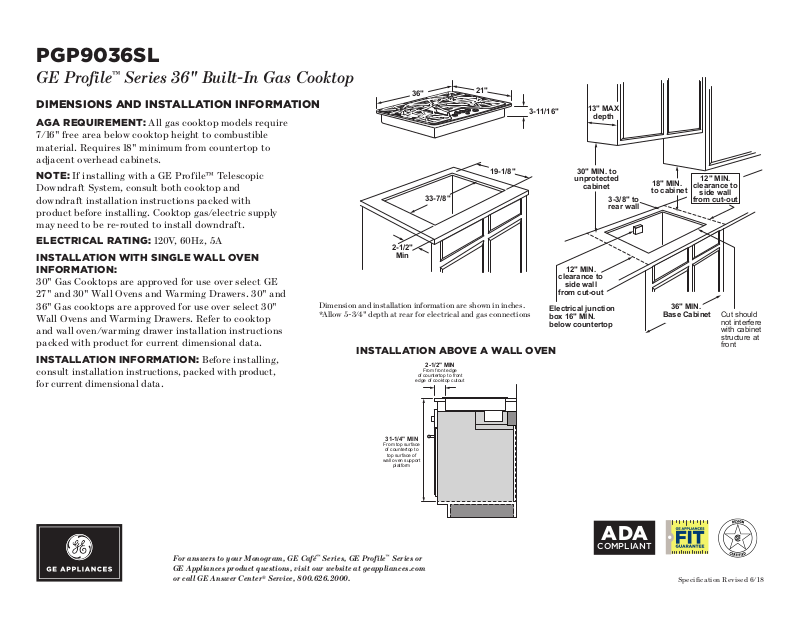

GE PGP9036SLSS Specification Sheet
PGP9036SL
Cooktop
3-11/16"
13" MAX
depth
30" MIN. to
unprotected
cabinet
12" MIN.
clearance to
side wall
from cut-out
18" MIN.
to cabinet
3-3/8" to
rear wall
36" MIN.
Base Cabinet
Electrical junction
box 16" MIN.
below countertop
Cut should
not interfere
with cabinet
structure at
front
12" MIN.
clearance to
side wall
from cut-out
Electrical
cord
Electrical
outlet
Shut-off
valve
Pressure
regulator
1/2" pipe
Coupling
Gas Connection
36"
21"
33-7/8"
19-1/8"
2-1/2"
Min
2-1/2" MIN
INSTALLATION ABOVE A WALL OVEN
GE Profile™ Series 36" Built-In Gas Cooktop
DIMENSIONS AND INSTALLATION INFORMATION
AGA REQUIREMENT: All gas cooktop models require
7/16" free area below cooktop height to combustible
material. Requires 18" minimum from countertop to
adjacent overhead cabinets.
NOTE: If installing with a GE Profile™ Telescopic
Downdraft System, consult both cooktop and
downdraft installation instructions packed with
product before installing. Cooktop gas/electric supply
may need to be re-routed to install downdraft.
ELECTRICAL RATING: 120V, 60Hz, 5A
INSTALLATION WITH SINGLE WALL OVEN
INFORMATION:
30" Gas Cooktops are approved for use over select GE
27" and 30" Wall Ovens and Warming Drawers. 30" and
36" Gas cooktops are approved for use over select 30"
Wall Ovens and Warming Drawers. Refer to cooktop
and wall oven/warming drawer installation instructions
packed with product for current dimensional data.
INS TA LLATI O N IN F O RMATI O N: Before installing,
consult installation
for current dimensional data.
instructions, packed with product,
Dimension and installation information are shown in inches.
*Allow 5-3/4" depth at rear for electrical and gas connections
INSTALLATION ABOVE A WALL OVEN
From front edge
of countertop to front
edge of cooktop cutout
31-1/4" MIN
From top surface
of countertop to
top surface of
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
wall oven support
platform
ADA
COMPLIANT
Speci fication Revised 6/18
PGP9036SL
GE Profile™ Series 36" Built-In Gas Cooktop
FEATURES AND BENEFITS
Heavy-cast, edge-to-edge grates – Allow for easy movement of pans between burners
18,000 BTU tri-ring burner – Offers the flexibility of three different burners
White LED backlit heavy-duty knobs – Durable knobs are back-lit with white LED
lighting that lend a sleek appearance and let you know if burners are on
Control lock capability – Protects against unintended activation
Precise Simmer burner – Delicate foods don’t burn with low, even heat
Sealed cooktop burners – Contains spills and make cleaning quick and easy
Heavy-duty, dishwasher safe grates – Easily and safely clean grates in the dishwasher
Optional extra-large, integrated cooktop griddle – Eliminate the need for extra
cookware and enjoy an optional built-in cooking surface for pancakes, grilled cheeses
and other favorites. Order part number JXGRIDL236
MAX burner system – Delivers the same maximum BTU power to propane and
natural gas cooktops
Model PGP9036SLSS – Stainless steel
GUARANTEED FIT
Replacing a similar cooktop from GE or another brand? GE cooktops
are guaranteed for an exact fit to make replacement easy
Visit geappliances.com for more info
Speci fication Revised 6/18
