GE PGP9036SL Specification

PGP9036SL

Cooktop

3-11/16"

13" MAX

depth

30" MIN. to

unprotected

cabinet

12" MIN.

clearance to

side wall

from cut-out

18" MIN.

to cabinet
3-3/8" to
rear wall

36" MIN.

Base Cabinet

Cut should
not interfere
with cabinet
structure at
front

12" MIN.

clearance to

side wall

from cut-out

Electrical
cord

Electrical
outlet

Shut-off

valve

Pressure
regulator

1/2" pipe

Coupling

Gas Connection

36"

21"

33-7/8"

19-1/8"

2-1/2"

Min

2-1/2" MIN

INSTALLATION ABOVE A WALL OVEN

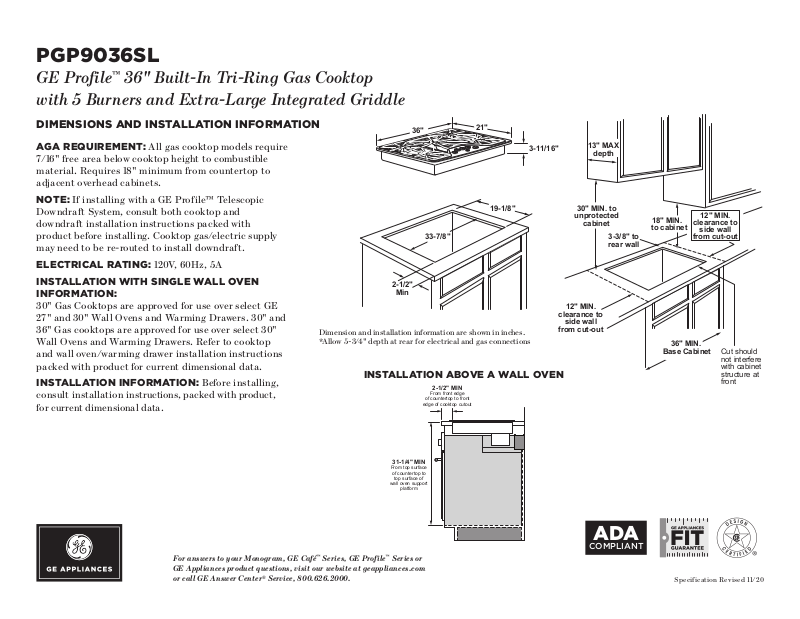

GE Profile™ 36" Built-In Tri-Ring Gas Cooktop
with 5 Burners and Extra-Large Integrated Griddle

DIMENSIONS AND INSTALLATION INFORMATION

AGA REQUIREMENT: All gas cooktop models require
7/16" free area below cooktop height to combustible
material. Requires 18" minimum from countertop to
adjacent overhead cabinets.

NOTE: If installing with a GE Profile™ Telescopic
Downdraft System, consult both cooktop and
downdraft installation instructions packed with
product before installing. Cooktop gas/electric supply
may need to be re-routed to install downdraft.

ELECTRICAL RATING: 120V, 60Hz, 5A

INSTALLATION WITH SINGLE WALL OVEN
INFORMATION:

30" Gas Cooktops are approved for use over select GE
27" and 30" Wall Ovens and Warming Drawers. 30" and
36" Gas cooktops are approved for use over select 30"
Wall Ovens and Warming Drawers. Refer to cooktop
and wall oven/warming drawer installation instructions
packed with product for current dimensional data.

INS TA LLATI O N IN F O RMATI O N: Before installing,
consult installation
for current dimensional data.

instructions, packed with product,

Dimension and installation information are shown in inches.
*Allow 5-3/4" depth at rear for electrical and gas connections

INSTALLATION ABOVE A WALL OVEN

From front edge

of countertop to front

edge of cooktop cutout

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

31-1/4" MIN

From top surface

of countertop to

top surface of

wall oven support

platform

ADA

COMPLIANT

Specification Revised 11/20

PGP9036SL

GE Profile™ 36" Built-In Tri-Ring Gas Cooktop
with 5 Burners and Extra-Large Integrated Griddle

FEATURES AND BENEFITS

18,000-BTU Power Boil Tri-Ring Burner

More cooking, less cookware

Maximize your cooking space

Precision simmer burner

Spend less time cleaning up

Dishwasher-safe grates

White LED backlit heavy-duty knobs

Control lock capability

MAX burner system

Fit Guarantee

Included Griddle – JXGRIDL236

Model PGP9036SLSS – Stainless steel

GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand?
GE cooktops are guaranteed for an exact fit or GE Appliances will
pay up to $100 toward modifications

Visit geappliances.com for more info

Specification Revised 11/20
