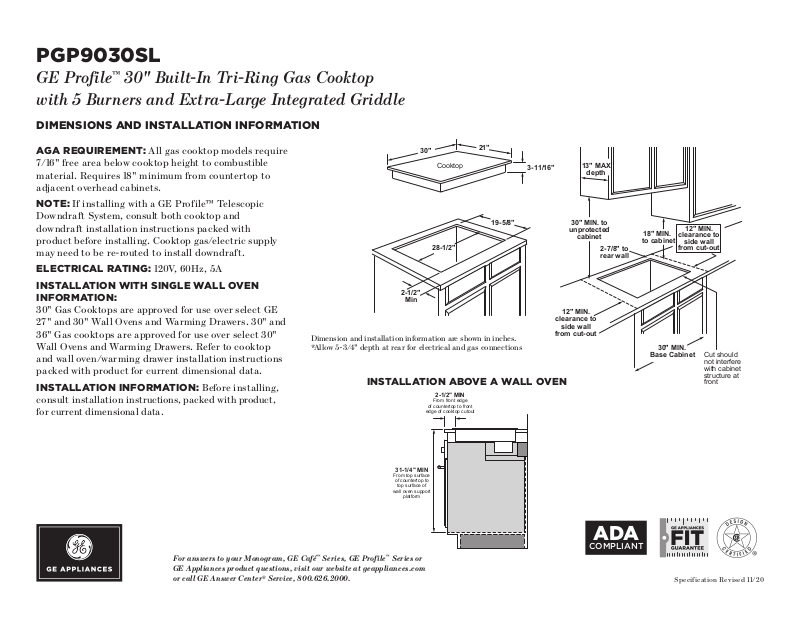

PGP9030SL
Cooktop
30"
21"
3-11/16"
13" MAX
depth
2-1/2"
Min
28-1/2"
19-5/8"
30" MIN. to
unprotected
cabinet
18" MIN.
to cabinet
2-7/8" to
rear wall
30" MIN.
Base Cabinet
Cut should
not interfere
with cabinet
structure at
front
12" MIN.
clearance to
side wall
from cut-out
Electrical
cord
45°
Gas Connection
12" MIN.
clearance to
side wall
from cut-out
INSTALLATION ABOVE A WALL OVEN
GE Profile™ 30" Built-In Tri-Ring Gas Cooktop
with 5 Burners and Extra-Large Integrated Griddle

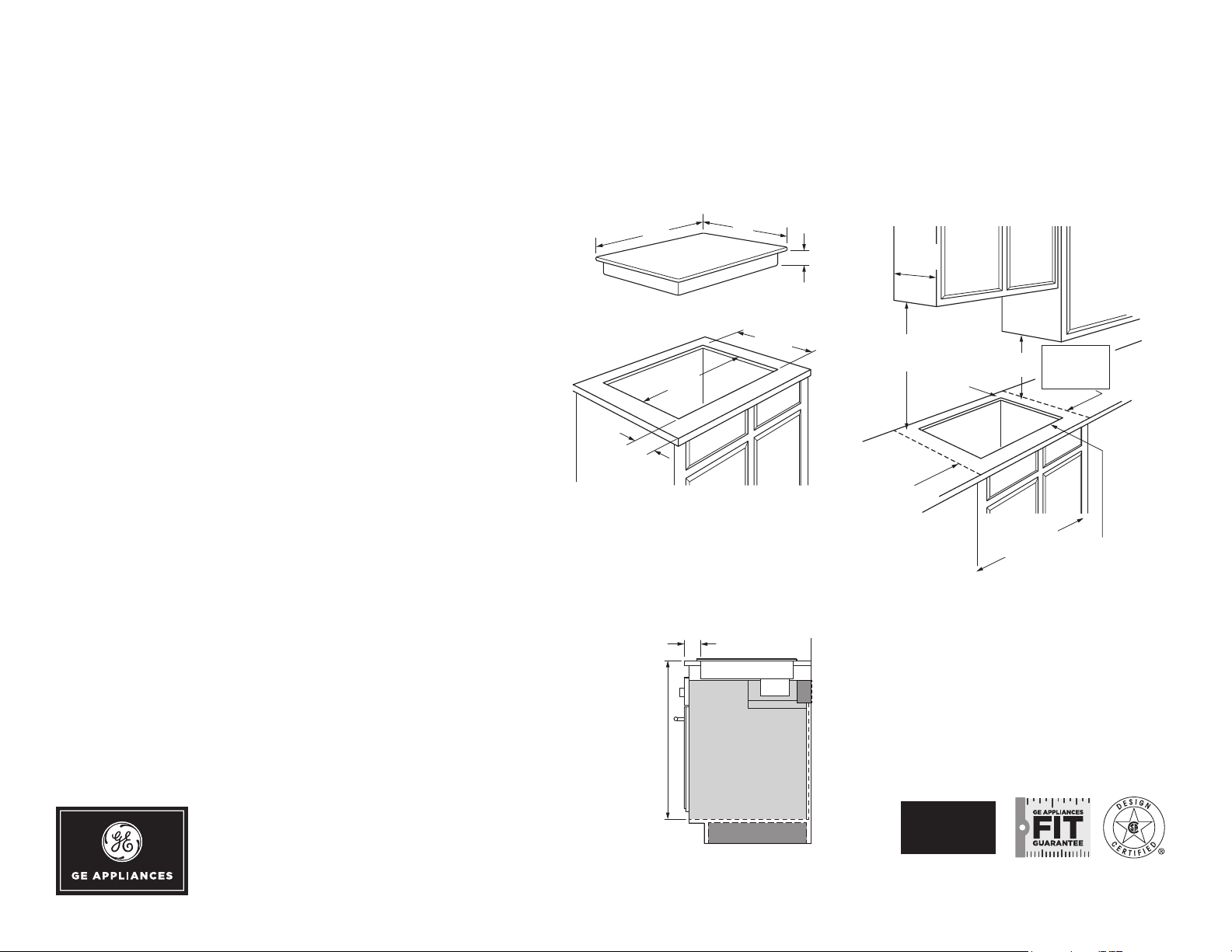

DIMENSIONS AND INSTALLATION INFORMATION
AGA REQUIREMENT: All gas cooktop models require
7/16" free area below cooktop height to combustible
material. Requires 18" minimum from countertop to
adjacent overhead cabinets.
NOTE: If installing with a GE Profile™ Telescopic
Downdraft System, consult both cooktop and
downdraft installation instructions packed with
product before installing. Cooktop gas/electric supply
may need to be re-routed to install downdraft.
ELECTRICAL RATING: 120V, 60Hz, 5A
INSTALLATION WITH SINGLE WALL OVEN
INFORMATION:
30" Gas Cooktops are approved for use over select GE
27" and 30" Wall Ovens and Warming Drawers. 30" and
36" Gas cooktops are approved for use over select 30"
Wall Ovens and Warming Drawers. Refer to cooktop
and wall oven/warming drawer installation instructions
packed with product for current dimensional data.
INS TA LLATI O N IN F O RMATI O N: Before installing,
consult installation
instructions, packed with product,
for current dimensional data.
Dimension and installation information are shown in inches.
*Allow 5-3/4" depth at rear for electrical and gas connections
INSTALLATION ABOVE A WALL OVEN
2-1/2" MIN
From front edge
of countertop to front
edge of cooktop cutout
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
31-1/4" MIN
From top surface
of countertop to
top surface of
wall oven support
platform
ADA
COMPLIANT
Specification Revised 11/20
Page 2

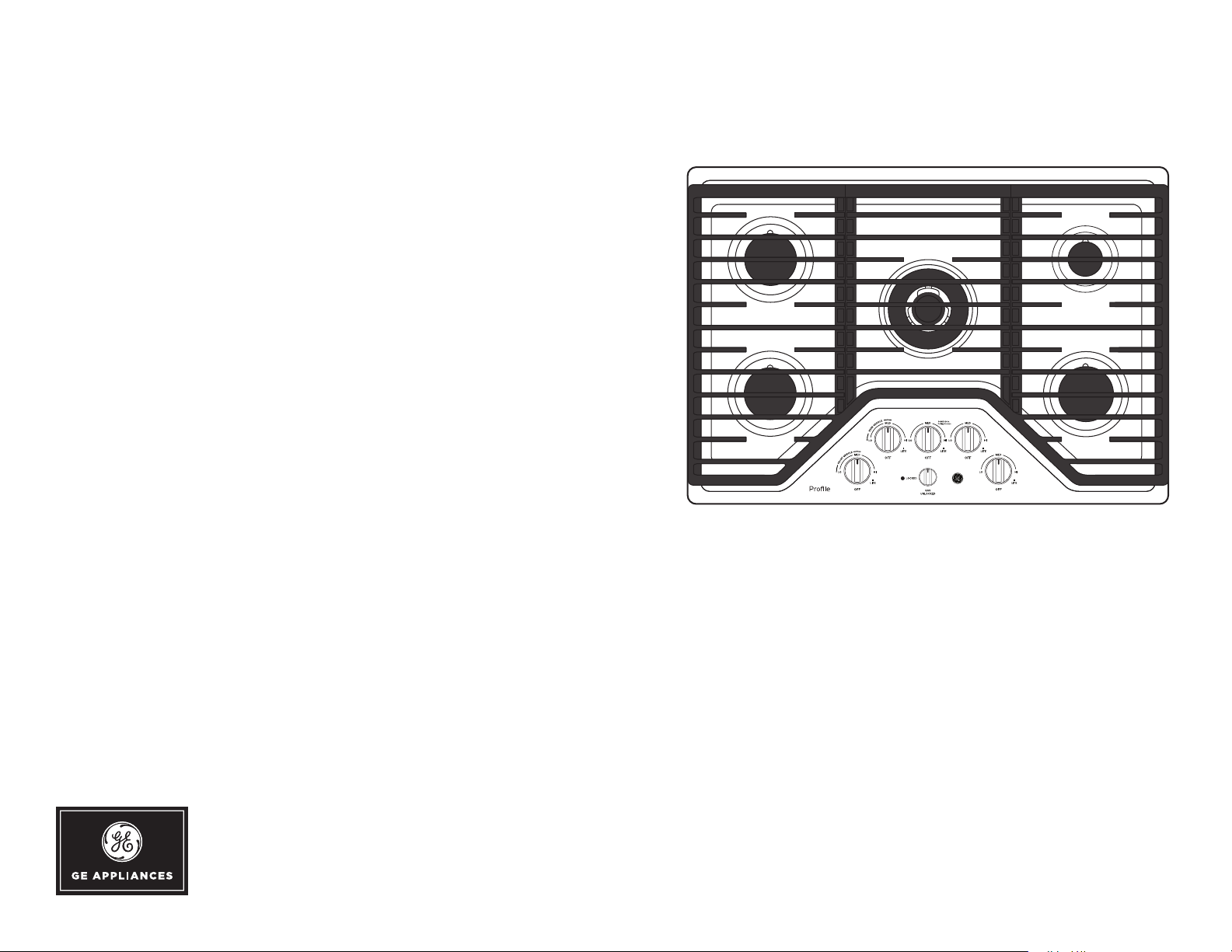

PGP9030SL
GE Profile™ 30" Built-In Tri-Ring Gas Cooktop
with 5 Burners and Extra-Large Integrated Griddle
FEATURES AND BENEFITS
18,000-BTU Power Boil Tri-Ring Burner
More cooking, less cookware
Maximize your cooking space
Precision simmer burner
Spend less time cleaning up
Dishwasher-safe grates
White LED backlit heavy-duty knobs
Control lock capability
MAX burner system
Fit Guarantee
Included Griddle – JXGRIDL230
Model PGP9030SLSS – Stainless steel
GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand?
GE cooktops are guaranteed for an exact fit or GE Appliances will
pay up to $100 toward modifications
Visit geappliances.com for more info
Specification Revised 11/20
