GE PGP7030DLBB, PGP7030DLWW, PGP7030SLSS Specification Sheet

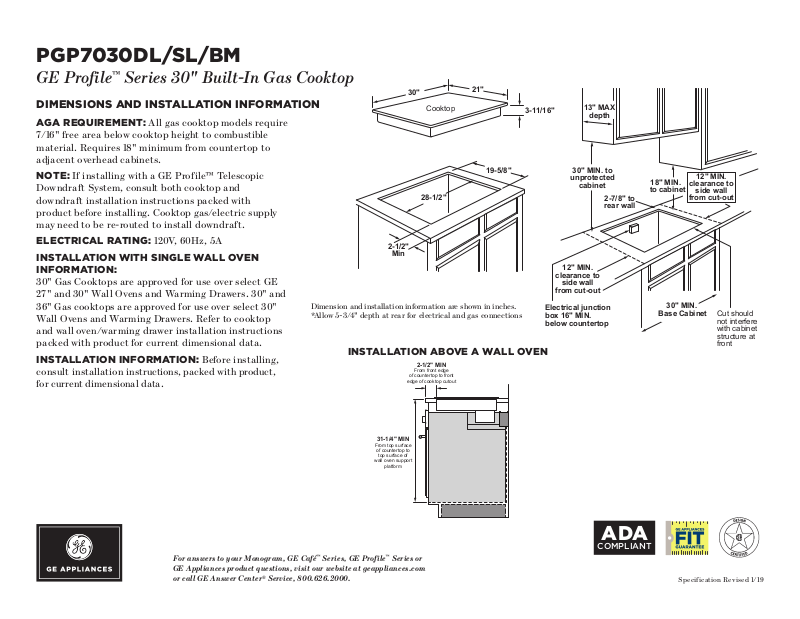

PGP7030DL/SL/BM

Cooktop

30"

21"

3-11/16"

13" MAX

depth

2-1/2"

Min

28-1/2"

19-5/8"

30" MIN. to

unprotected

cabinet

18" MIN.

to cabinet
2-7/8" to
rear wall

30" MIN.

Base Cabinet

Electrical junction
box 16" MIN.
below countertop

Cut should
not interfere
with cabinet
structure at
front

12" MIN.

clearance to

side wall

from cut-out

Electrical
cord

45°

Gas Connection

12" MIN.

clearance to

side wall

from cut-out

INSTALLATION ABOVE A WALL OVEN

GE Profile™ Series 30" Built-In Gas Cooktop

DIMENSIONS AND INSTALLATION INFORMATION

AGA REQUIREMENT: All gas cooktop models require
7/16" free area below cooktop height to combustible
material. Requires 18" minimum from countertop to
adjacent overhead cabinets.

NOTE: If installing with a GE Profile™ Telescopic
Downdraft System, consult both cooktop and
downdraft installation instructions packed with
product before installing. Cooktop gas/electric supply
may need to be re-routed to install downdraft.

ELECTRICAL RATING: 120V, 60Hz, 5A

INSTALLATION WITH SINGLE WALL OVEN
INFORMATION:

30" Gas Cooktops are approved for use over select GE
27" and 30" Wall Ovens and Warming Drawers. 30" and
36" Gas cooktops are approved for use over select 30"
Wall Ovens and Warming Drawers. Refer to cooktop
and wall oven/warming drawer installation instructions
packed with product for current dimensional data.

INS TA LLATI O N IN F O RMATI O N: Before installing,
consult installation

instructions, packed with product,

for current dimensional data.

Dimension and installation information are shown in inches.
*Allow 5-3/4" depth at rear for electrical and gas connections

INSTALLATION ABOVE A WALL OVEN

2-1/2" MIN

From front edge

of countertop to front

edge of cooktop cutout

For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.

31-1/4" MIN

From top surface

of countertop to

top surface of

wall oven support

platform

ADA

COMPLIANT

Specification Revised 1/19

PGP7030DL/SL/BM

GE Profile™ Series 30" Built-In Gas Cooktop

FEATURES AND BENEFITS

30" cooktop with 5 burners – Enjoy ultimate cooktop f lexibility and more cooking
space with 5 sealed burners

Heavy-cast, edge-to-edge grates – Allow for easy movement of pans between burners

18,000 BTU Power Boil burner – Boil water fast with intense heat from this 18,000
BTU burner

White LED backlit heavy-duty knobs – Durable knobs are back-lit with white LED
lighting that lend a sleek appearance and let you know if burners are on

Precise Simmer burner – Delicate foods don’t burn with low, even heat

Sealed cooktop burners – Contains spills and make cleaning quick and easy

Heavy-duty, dishwasher safe grates – Easily and safely clean grates in the dishwasher

Optional extra-large, integrated cooktop griddle – Eliminate the need for extra
cookware and enjoy an optional built-in cooking surface for pancakes, grilled cheeses
and other favorites. Order part number JXGRIDL230

MAX burner system – Delivers the same maximum BTU power to propane and
natural gas cooktops

Model PGP7030DLBB – Black

Model PGP7030DLWW – White

Model PGP7030SLSS – Stainless steel

Model PGP7030BMTS – Black stainless

GUARANTEED FIT
Replacing a similar cooktop from GE Appliances or another brand?
GE cooktops are guaranteed for an exact fit or GE Appliances will
pay up to $100 toward modifications

Visit geappliances.com for more info

Specification Revised 1/19
