GE PGB980ZEJ Specification
PGB980ZEJ
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
DOUBLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
29 7/8"
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
DOUBLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
26 3/4"
11 1/4"
43 1/2"
29 1/4"
w/o handle
w/ handle
29 7/8"
36"
to
36 1/2"

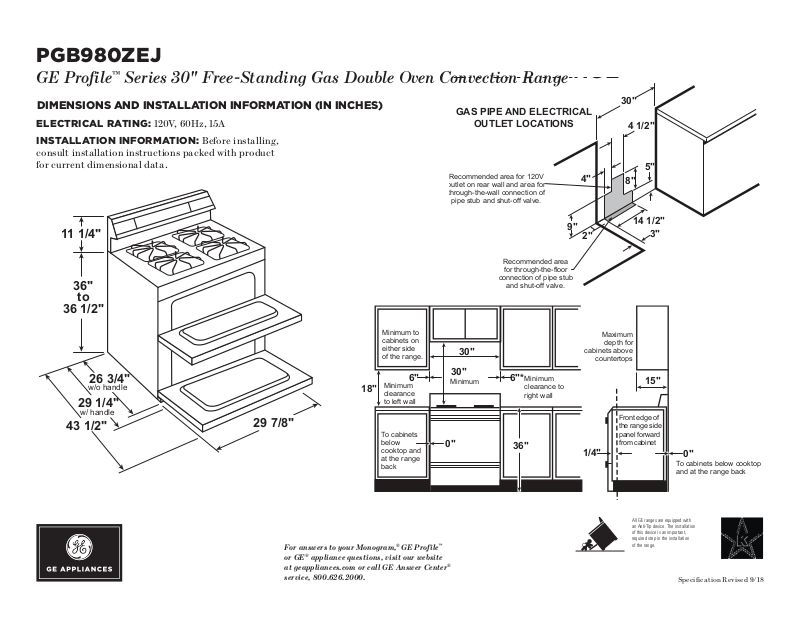

GE Profile™ Series 30" Free-Standing Gas Double Oven Convection Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
ELECTRICAL RATING: 120V, 60Hz, 15A
INSTALLATION INFORMATION : Before installing,
consult installation instructions packed with product
for current dimensional data.
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
pipe stub and shut-off valve.
Minimum to
cabinets on
either side
of the range.
6"
Minimum
18"
clearance
to left wall
To cabinets
below
cooktop and
at the range
back
30"
30"
Minimum
0"
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
6"*
Minimum
clearance to
right wall
36"
4"
9"
2"
cabinets above
1/4"
30"
Maximum
depth for
countertops
Front edge of
the range side
panel forward
from cabinet
4 1/2"
5"
8"
14 1/2"
3"
15"
0"
To cabinets below cooktop
and at the range back
For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Speci fication Revised 9/18
PGB980ZEJ
GE Profile™ Series 30" Free-Standing Gas Double Oven Convection Range
FEATURES AND BENEFITS
Dual purpose center burner - Accommodate everything from grills and griddles to
oversized pots with the industry's first combination oval/round burner
Edge-to-edge cooktop - A large, continuous cooking surface gives you extra room
for pots and pans of all sizes and lets cookware move easily from burner to burner
20,000 BTU tri-ring burner - Offers the f lexibility of three different burners
Stainless steel, deep-recessed cooktop - Contains spills for quick and easy cleaning
Extra-large, integrated reversible cast iron grill/griddle - Enjoy ultimate cooking
versatility. Cook up to six grilled cheeses on the industry's largest integrated griddle,
and then flip it over to grill your favorite foods.
Chef Connect - Three options with a single touch. For instant convenience, choose
when to automatically sync clocks and the range burners with the microwave's
surface light and vent.
Gas convection oven (lower oven) - Circulates heat for high-quality results
Double oven 6.8 cu. ft. total capacity - Large capacity is ideal for big meals
Heavy-duty, self-clean roller rack - Provide easy access to oven interior
Model PGB980ZEJSS - Stainless steel
Speci fication Revised 9/18
