GE PGB911ZEJ Specification
PGB911ZEJ
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
29 7/8"
Minimum to
cabinets on
either side
Maximum
depth for
cabinets above
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
4 1/2"
4"
2"
8"
5"
3"
14 1/2"
9"
30"
46 1/4"
28 3/4"
w/ handle
26 1/4"
w/o handle
29 7/8"
11 1/4"
36"
to
36 1/2"

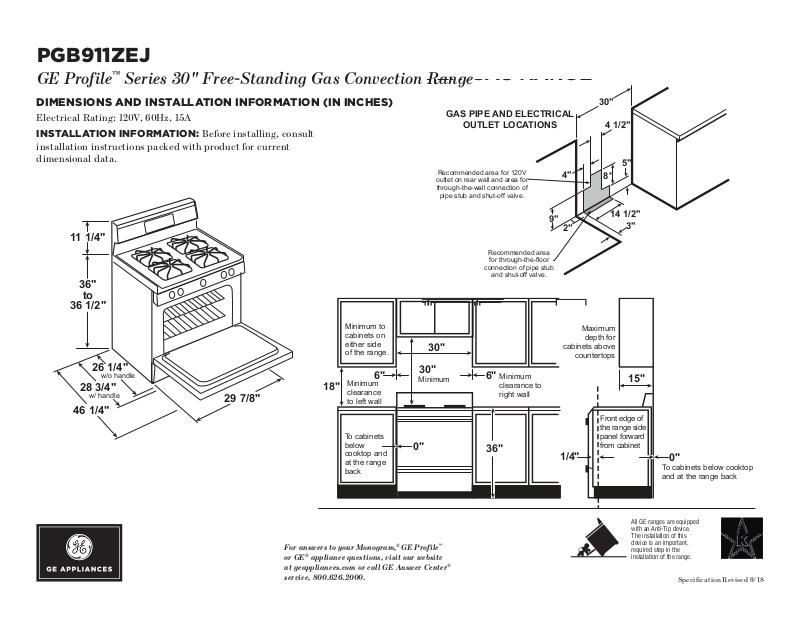

GE Profile™ Series 30" Free-Standing Gas Convection Range
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
Electrical Rating: 120V, 60Hz, 15A
INSTALLATION INFORMATION : Before installing, consult
installation instructions packed with product for current
dimensional data.
Minimum to
cabinets on
either side
of the range.
Minimum
clearance
to left wall
To cabinets
below
cooktop and
at the range
back
6"
18"
For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
Recommended area for 120V
outlet on rear wall and area for
through-the-wall connection of
pipe stub and shut-off valve.
30"
30"
Minimum
0"
Recommended area
for through-the-floor
connection of pipe stub
and shut-off valve.
6"
Minimum
clearance to
right wall
36"
4"
9"
2"
cabinets above
countertops
1/4"
30"
4 1/2"
8"
Maximum
depth for
Front edge of
the range side
panel forward
from cabinet
5"
14 1/2"
3"
15"
All GE ranges are equipped
with an Anti-Tip device.
The installation of this
device is an important,
required step in the
installation of the range.
0"
To cabinets below cooktop
and at the range back
Speci fication Rev ised 9/18
PGB911ZEJ
GE Profile™ Series 30" Free-Standing Gas Convection Range
FEATURES AND BENEFITS
Edge-to-edge cooktop – A large, continuous cooking surface gives you extra
room for pots and pans of all sizes and lets cookware move easily from
burner to burner
Extra-large, integrated reversible cast iron grill/griddle – Enjoy ultimate
cooking versatility. Cook up to six grilled cheeses on the industry's largest
integrated griddle, and then flip it over to grill your favorite foods
Two extra-large 18k Power Boil burners – Get twice the high-heat cooking
power with two up-front extra-large burners
18,000 BTU Power Boil burner – Boil water fast with intense heat from this
18,000 BTU burner
Gas convection oven – Circulates heat for high-quality results
Chef Connect – Three options with a single touch. For instant convenience,
choose when to automatically sync clocks and the range burners with the
microwave's surface light and vent
3 oven racks – Enjoy extra oven space with three adjustable racks
Center oval burner – Large oval fifth burner is ideal for griddles
Self-clean with Steam Clean option – Clean your oven the way you want
Heavy cast, dishwasher safe grates – Easily and safely clean grates
in the dishwasher
Precise Simmer burner – Delicate foods don’t burn with low, even heat
Model PGB911ZEJSS – Stainless steel
Speci fication Rev ised 9/18
