GE PFSF5NJW Specification
94" French Door Bottom Freezer Refer
A
Front View
Top View
G
D
C
F
B
E
H

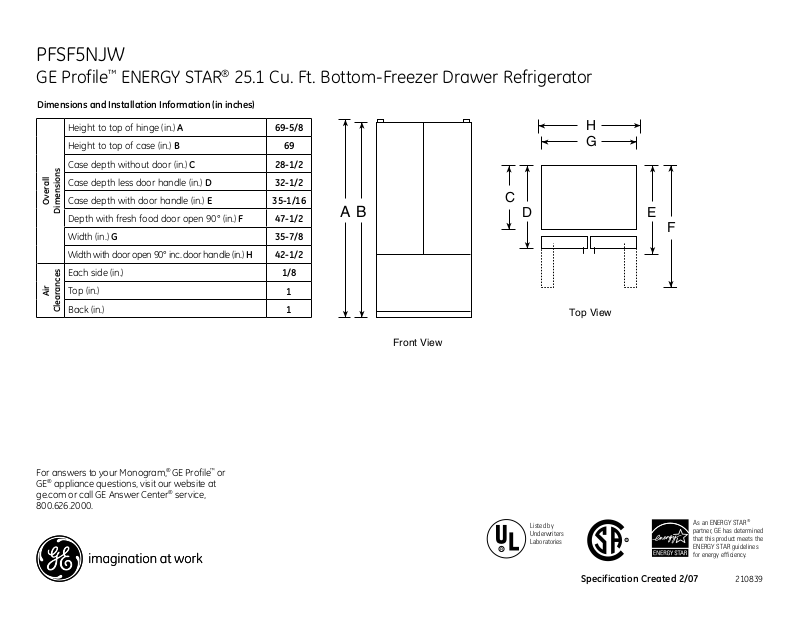

PFSF5NJW
GE Profile™ ENERGY STAR® 25.1 Cu. Ft. Bottom-Freezer Drawer Refrigerator
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-5/8
Height to top of case (in.) B 69
Case depth without door (in.) C 28-1/2
Case depth less door handle (in.) D 32-1/2
Case depth with door handle (in.) E 35-1/16
Overall
Dimensions
Depth with fresh food door open 90° (in.) F 47-1/2
Width (in.) G 35-7/8
Width with door open 90° inc. door handle (in.) H 42-1/2
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
1/8
1
1
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
Specification Created 2/07
210839
PFSF5NJW
GE Profile™ ENERGY STAR® 25.1 Cu. Ft. Bottom-Freezer Drawer Refrigerator
Features and Benefits
• High-Gloss, Contoured Doors, Sculptured Handles and Top and Bottom Bevels - Offer a
dramatic look and touch of personal style to any kitchen
™
• External Water Dispenser with TurboCool
the actual internal temperature of the refrigerator
• Factory-Installed Icemaker - Makes ice automatically ensuring a ready supply
™
• Freshness Center
- Offers maximum convenience by utilizing two humidity-controlled drawers
and 1 full-length drawer for large storage
™
• BrightSpace
Interior with GE Reveal™ Lighting - Cast a natural-looking glow throughout
the refrigerator
™
• Multi-Level Slide 'n Store
Basket System - Includes three full-extension baskets for tremendous
storage flexibility and keeps contents perfectly in place
• Condiment Bin and Beverage Rack - Provides convenient storage for canned drinks and condiments
™
• QuickSpace
Shelf - Slides out of the way to make room for tall items
• Upfront Temperature Controls with Actual Temperature Display & TurboCool
easy-to-reach, easy-to-read temperature controls and a setting to quickly restore proper
temperature after frequent door openings
Setting - Provides chilled, filtered water and displays
™
Setting - Features
• Self-Closing Drawer - Self-closing hinges automatically pull the drawer shut when it's within
one inch of the closed position
• Adjustable Spillproof Glass Shelves - Helps to contain spills for ease of cleaning
• Adjustable Gallon Door Bins - Make room for milk and other gallon-size containers
• Model PFSF5NJWWW - White on white
• Model PFSF5NJWCC - Bisque on bisque
• Model PFSF5NJWBB - Black on black
Specification Created 2/07
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
210839
