GE PFSF5NFX User Manual
A
G
D
C
F
B
E
H

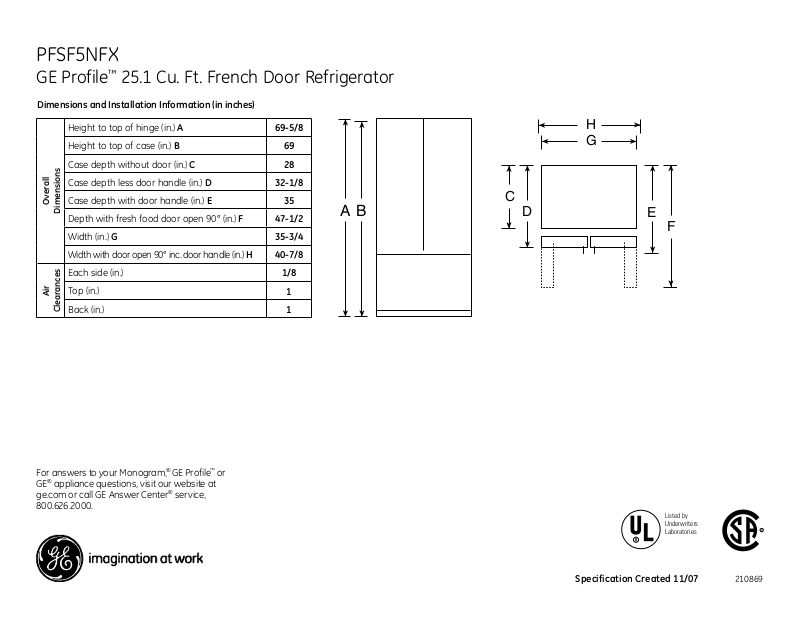

PFSF5NFX
GE Profile™ 25.1 Cu. Ft. French Door Refrigerator
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-5/8
Height to top of case (in.) B 69
Case depth without door (in.) C 28
Case depth less door handle (in.) D 32-1/8
Case depth with door handle (in.) E 35
Overall
Dimensions
Depth with fresh food door open 90° (in.) F 47-1/2
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 40-7/8
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
1/8
1
1
Listed by
Underwriters
Laboratories
Specification Created 11/07
210869
PFSF5NFX
GE Profile™ 25.1 Cu. Ft. French Door Refrigerator
Features and Benefits
• High-Gloss Doors with Top and Bottom Bevels - Offers a smooth contoured surface, with
concealed hinges providing a dramatic look
™
• ClimateKeeper
give you a greater degree of control over food preservation
• Upfront Temperature Controls with Actual Temperature Display - Features easy-to-reach, easyto-read temperature controls and displays the actual temperature setting
• BrightSpace
the refrigerator
• Factory-Installed Icemaker with Water Filtration System - Automatically creates fresh, filtered
ice cubes
• Freshness Center
and 1 full-length adjustable temperature deli drawer
• Multi-Level Slide 'n Store
storage flexibility and keeps contents perfectly in place
Temperature Management System - Digital controls and electronic sensors
™
Interior with GE Reveal™ Lighting - Cast a natural-looking glow throughout
™
- Offers maximum convenience by utilizing two humidity-controlled drawers
™
Basket System - Includes three full-extension baskets for tremendous
• Condiment Bin and Beverage Rack - Provides convenient storage for canned drinks
and condiments
™
• QuickSpace
• TurboCool
Shelf - Quickly slides out of the way to make room for tall items
™
Setting - Cools the refrigerator quickly after frequent door openings
• Secure-Close Door System - Securely pulls the door shut, even after you release the handle
• Adjustable Spillproof Glass Shelves - Raised edges help contain spills to make clean up quick
and easy
• Model PFSF5NFXWW - White on white
• Model PFSF5NFXBB - Black on black
Specification Created 11/07
210869
