GE PFSF5NFW Specification
94" French Door Bottom Freezer Refer
A
Front View
Top View
G
D
C
F
B
E
H

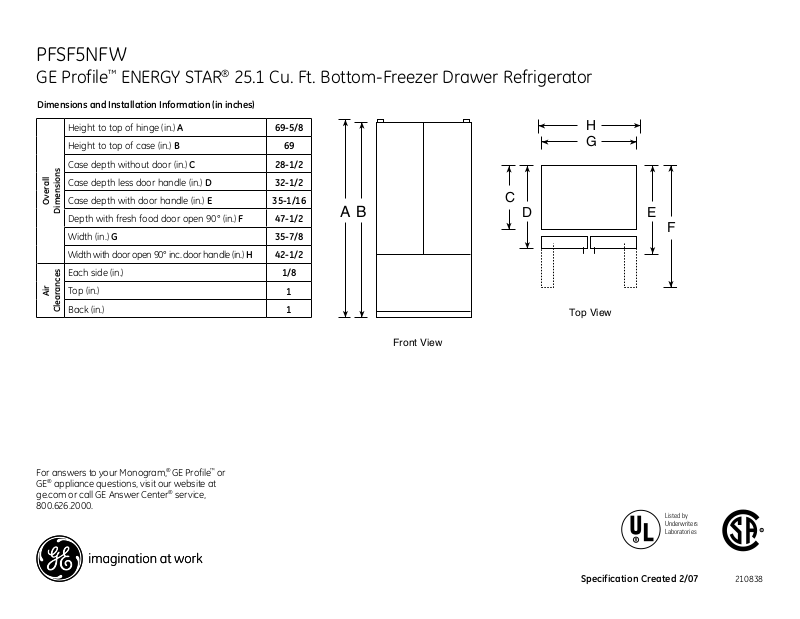

PFSF5NFW
GE Profile™ ENERGY STAR® 25.1 Cu. Ft. Bottom-Freezer Drawer Refrigerator
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-5/8
Height to top of case (in.) B 69
Case depth without door (in.) C 28-1/2
Case depth less door handle (in.) D 32-1/2
Case depth with door handle (in.) E 35-1/16
Overall
Dimensions
Depth with fresh food door open 90° (in.) F 47-1/2
Width (in.) G 35-7/8
Width with door open 90° inc. door handle (in.) H 42-1/2
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
1/8
1
1
Listed by
Underwriters
Laboratories
Specification Created 2/07
210838
PFSF5NFW
GE Profile™ ENERGY STAR® 25.1 Cu. Ft. Bottom-Freezer Drawer Refrigerator
Features and Benefits
• High-Gloss, Contoured Doors, Sculptured Handles and Top and Bottom Bevels - Offer a
dramatic look and touch of personal style to any kitchen
• Optional Automatic Icemaker - Equipped for a automatic icemaker
™
• Freshness Center
and 1 full-length drawer for large storage
• BrightSpace
™
the refrigerator
• Multi-Level Slide 'n Store
storage flexibility and keeps contents perfectly in place
• Condiment Bin and Beverage Rack - Provides convenient storage for canned drinks and condiments
• QuickSpace
™
• Upfront Temperature Controls with Actual Temperature Display & TurboCool
easy-to-reach, easy-to-read temperature controls and a setting to quickly restore proper
temperature after frequent door openings
- Offers maximum convenience by utilizing two humidity-controlled drawers
Interior with GE Reveal™ Lighting - Cast a natural-looking glow throughout
™
Basket System - Includes three full-extension baskets for tremendous
Shelf - Slides out of the way to make room for tall items
™
Setting - Features
• Self-Closing Drawer - Self-closing hinges automatically pull the drawer shut when it's within
one inch of the closed position
• Adjustable Spillproof Glass Shelves - Helps to contain spills for ease of cleaning
• Adjustable Gallon Door Bins - Make room for milk and other gallon-size containers
™
• NeverClean
Condenser - Condenser coils are encased, so they don't require cleaning in
normal operating environments
• Deluxe Quiet Design - Significantly reduces operating noise
• Model PFSF5NFWWW - White on white
• Model PFSF5NFWBB - Black on black
Specification Created 2/07
210838
