GE PFSF2MIXWW User Manual

94" French Door Bottom Freezer Refer

Front View

Top View

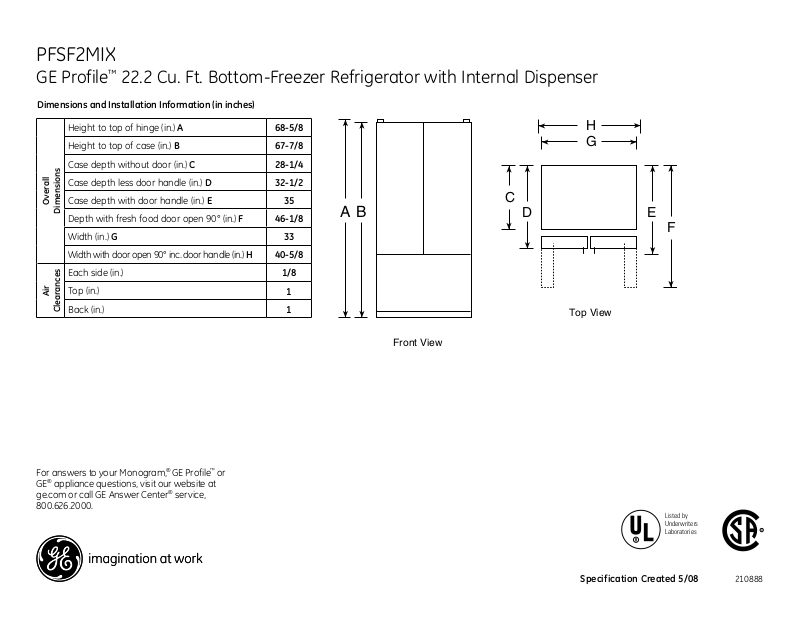

PFSF2MIX

GE Profile™ 22.2 Cu. Ft. Bottom-Freezer Refrigerator with Internal Dispenser

Dimensions and Installation Information (in inches)

Height to top of hinge (in.) A 68-5/8

Height to top of case (in.) B 67-7/8

Case depth without door (in.) C 28-1/4

Case depth less door handle (in.) D 32-1/2

Case depth with door handle (in.) E 35

Overall

Dimensions

Depth with fresh food door open 90° (in.) F 46-1/8

Width (in.) G 33

Width with door open 90° inc. door handle (in.) H 40-5/8

Each side (in.)

Top (in.)

Air

Clearances

Back (in.)

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,

800.626.2000.

1/8

Listed by Underwriters Laboratories

Specification Created 5/08

210888

PFSF2MIX

GE Profile™ 22.2 Cu. Ft. Bottom-Freezer Refrigerator with Internal Dispenser

Features and Benefits

• High-Gloss Doors with Top and Bottom Bevels - Offers a smooth contoured surface, with concealed hinges providing a dramatic look

™

• ClimateKeeper greater degree of control over food preservation

• Upfront Temperature Controls with Actual Temperature Display - Features easy-to-reach, easy-to-read temperature controls and displays the actual temperature setting

• Internal Water Dispenser With GE Water Filtration - Delivers chilled fresh-tasting water through an internal water dispenser

• Factory-Installed Icemaker with Water Filtration System - Automatically creates fresh, filtered ice cubes

• BrightSpace refrigerator

• Freshness Center full-length adjustable temperature deli drawer

• Multi-Level Slide 'n Store storage flexibility and keeps contents perfectly in place

Temperature Management System - Digital controls and electronic sensors give you a

™

Interior with GE Reveal™ Lighting - Cast a natural-looking glow throughout the

™

- Offers maximum convenience by utilizing two humidity-controlled drawers and 1

™

Basket System - Includes three full-extension baskets for tremendous

• Condiment Bin and Beverage Rack - Provides convenient storage for canned drinks and condiments

™

• QuickSpace

• TurboCool

Shelf - Quickly slides out of the way to make room for tall items

™

Setting - Cools the refrigerator quickly after frequent door openings

• Secure-Close Door System - Securely pulls the door shut, even after you release the handle

• Adjustable Spillproof Glass Shelves - Raised edges help contain spills to make clean up quick and easy

• Model PFSS2MIXWW - White on white

• Model PFSS2MIXBB - Black on black

Specification Created 5/08

210888
