GE PFCF1NJW Specification

94" French Door Bottom Freezer Refer

A

Front View

Top View

G

D

C

F

B

E

H

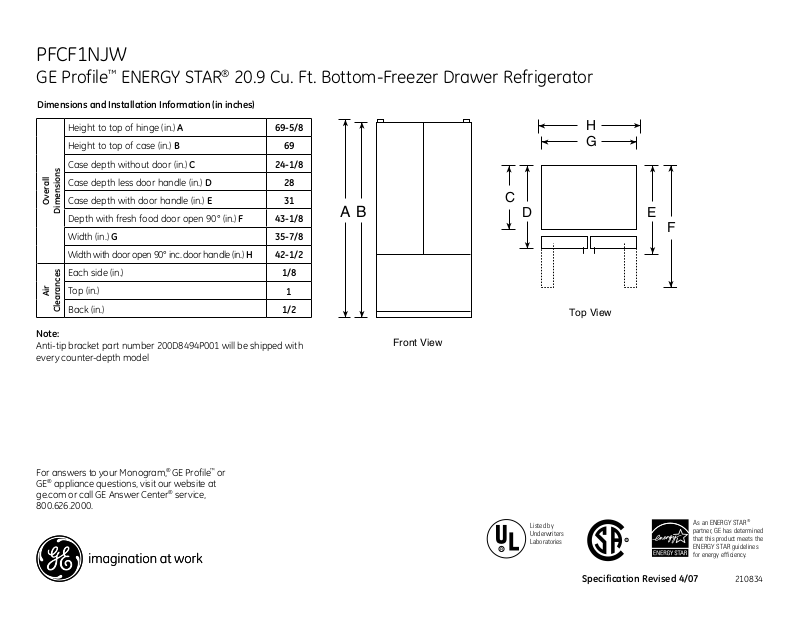

PFCF1NJW

GE Profile™ ENERGY STAR® 20.9 Cu. Ft. Bottom-Freezer Drawer Refrigerator

Dimensions and Installation Information (in inches)

Height to top of hinge (in.) A 69-5/8

Height to top of case (in.) B 69

Case depth without door (in.) C 24-1/8

Case depth less door handle (in.) D 28

Case depth with door handle (in.) E 31

Overall

Dimensions

Depth with fresh food door open 90° (in.) F 43-1/8

Width (in.) G 35-7/8

Width with door open 90° inc. door handle (in.) H 42-1/2

Each side (in.)

Top (in.)

Air

Clearances

Back (in.)

Note:

Anti-tip bracket part number 200D8494P001 will be shipped with
every counter-depth model

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

1/8

1

1/2

Listed by
Underwriters
Laboratories

As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.

guidelines

Specification Revised 4/07

210834

PFCF1NJW

GE Profile™ ENERGY STAR® 20.9 Cu. Ft. Bottom-Freezer Drawer Refrigerator

Features and Benefits

• Counter-Depth Configuration - Offers a built-in look by fitting almost completely flush with
surrounding cabinetry and blending in with décor

• High-Gloss, Contoured Doors, Sculptured Handles and Top and Bottom Bevels - Offer a
dramatic look and touch of personal style to any kitchen

• External Water Dispenser with TurboCool™ Setting - Provides chilled, filtered water and
displays the actual internal temperature of the refrigerator

• Factory-Installed Icemaker with Water Filtration System - Automatically creates fresh,
filtered ice cubes

• Freshness Center™ - Offers maximum convenience by utilizing two humidity-controlled
drawers and 1 full-length drawer for large storage

• BrightSpace™ Interior with GE Reveal™ Lighting - Cast a natural-looking glow throughout
the refrigerator

• Multi-Level Slide 'n Store™ Basket System - Includes three full-extension baskets for
tremendous storage flexibility and keeps contents perfectly in place

• Condiment Bin and Beverage Rack - Provides convenient storage for canned drinks
and condiments

• QuickSpace™ Shelf - Slides out of the way to make room for tall items

• Self-Closing Drawer - Self-closing hinges automatically pull the drawer shut when it's within
one inch of the closed position

• Adjustable Spillproof Glass Shelves - Helps to contain spills for ease of cleaning

• Adjustable Gallon Door Bins - Make room for milk and other gallon-size containers

• Model PFCF1NJWWW - White on white

• Model PFCF1NJWCC - Bisque on bisque

• Model PFCF1NJWBB - Black on black

Specification Revised 4/07

As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.

guidelines

210834
