GE PFCF1NFX User Manual
A
G
D
C
F
B
E
H

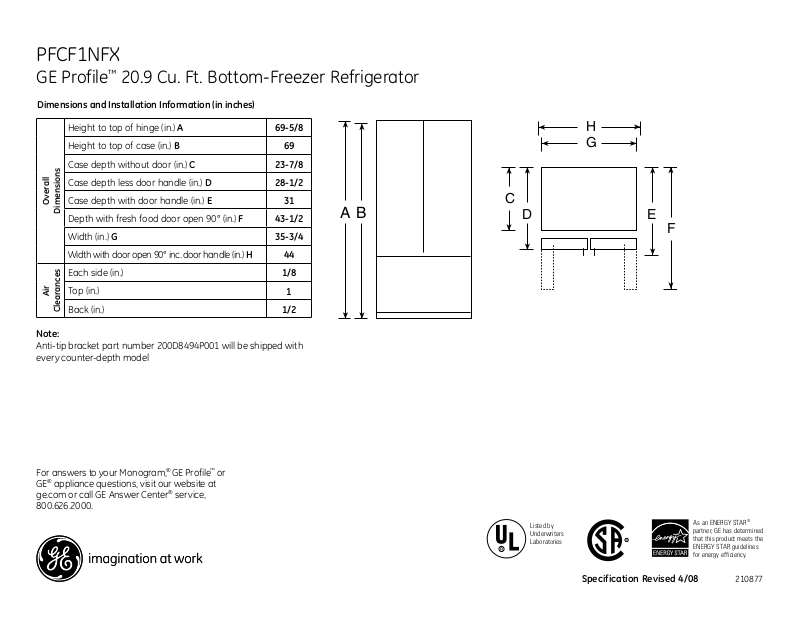

PFCF1NFX
GE Profile™ 20.9 Cu. Ft. Bottom-Freezer Refrigerator
Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-5/8
Height to top of case (in.) B 69
Case depth without door (in.) C 23-7/8
Case depth less door handle (in.) D 28-1/2
Case depth with door handle (in.) E 31
Overall
Dimensions
Depth with fresh food door open 90° (in.) F 43-1/2
Width (in.) G 35-3/4
Width with door open 90° inc. door handle (in.) H 44
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
Note:
Anti-tip bracket part number 200D8494P001 will be shipped with
every counter-depth model
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
1/8
1
1/2
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
Specification Revised 4/08
210877
PFCF1NFX
GE Profile™ 20.9 Cu. Ft. Bottom-Freezer Refrigerator
Features and Benefits
• Counter-Depth Design - Offers a built-in look without the built-in expense
• High-Gloss Doors with Top and Bottom Bevels - Offers a smooth contoured surface, with
concealed hinges providing a dramatic look
• ClimateKeeper™ Temperature Management System - Digital controls and electronic sensors
give you a greater degree of control over food preservation
• Upfront Temperature Controls with Actual Temperature Display - Features easy-to-reach,
easy-to-read temperature controls and displays the actual temperature setting
• BrightSpace™ Interior with GE Reveal™ Lighting - Cast a natural-looking glow throughout
the refrigerator
• Factory-Installed Icemaker with Water Filtration System - Automatically creates fresh,
filtered ice cubes
• Freshness Center™ - Offers maximum convenience by utilizing two humidity-controlled
drawers and 1 full-length adjustable temperature deli drawer
• Multi-Level Slide 'n Store™ Basket System - Includes three full-extension baskets for
tremendous storage flexibility and keeps contents perfectly in place
• Condiment Bin and Beverage Rack - Provides convenient storage for canned drinks
and condiments
• QuickSpace™ Shelf - Quickly slides out of the way to make room for tall items
• TurboCool™ Setting - Cools the refrigerator quickly after frequent door openings
• Secure-Close Door System - Securely pulls the door shut, even after you release the handle
• Adjustable Spillproof Glass Shelves - Raised edges help contain spills to make clean up
quick and easy
• Model PFCF1NFXWW - White on white
• Model PFCF1NFXBB - Black on black
Specification Revised 4/08
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
210877
