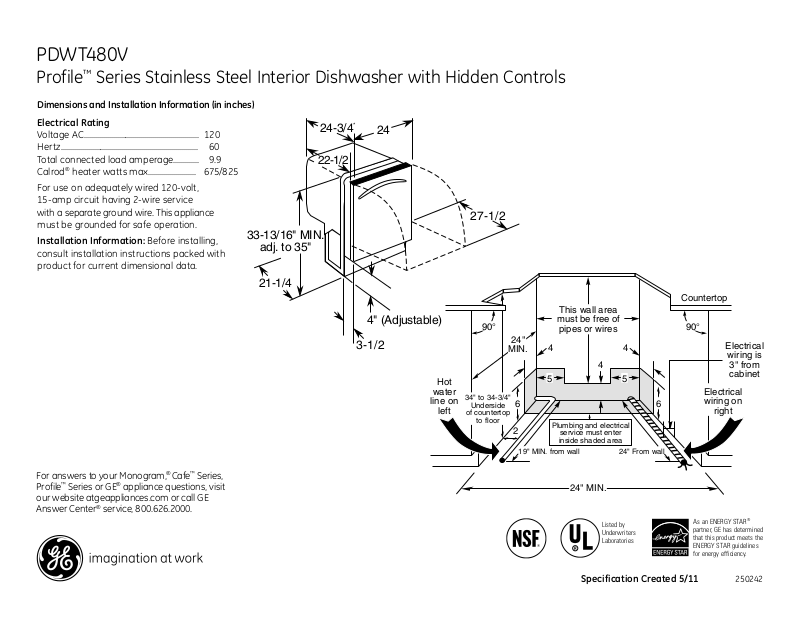

PDWT480V
Profile™ Series Stainless Steel Interior Dishwasher with Hidden Controls
Dimensions and Installation Information (in inches)
Electrical Rating |
|
24-3/4* |
24 |
Voltage AC.......................................................... |
120 |
|
|
Hertz..................................................................... |
60 |
Total connected load amperage............. |
9.9 |
Calrod® heater watts max........................ |
675/825 |
For use on adequately wired 120-volt, 15-amp circuit having 2-wire service with a separate ground wire. This appliance must be grounded for safe operation.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
22-1/2
27-1/2
33-13/16" MIN. adj. to 35"
21-1/4
4" (Adjustable) 3-1/2
Hot water line on left
|
|
|
This wall area |
90° |
|
|
must be free of |
|
|
pipes or wires |
|
|
24" |
4 |
4 |
MIN. |
|||
|
|
|
4 |
|
|
5 |
5 |
34" to 34-3/4" |
6 |
|
6 |
Underside |
|
||
of countertop |
|
|
|
to floor |
|
Plumbing and electrical |
|
|
2 |
||
|
|
service must enter |
|
|
|
|
inside shaded area |
19" MIN. from wall |
24" From wall |
Countertop
90°
Electrical wiring is 3" from cabinet
Electrical wiring on right
For answers to your Monogram,® Cafe™ Series, Profile™ Series or GE® appliance questions, visit our website atgeappliances.com or call GE Answer Center® service, 800.626.2000.
24" MIN.
Listed by
Underwriters
Laboratories
As an Energy Star® partner, GE has determined that this product meets the Energy Star guidelines
for energy efficiency.
Specification Created 5/11 |
250242 |
PDWT480V
Profile™ Series Stainless Steel Interior Dishwasher with Hidden Controls
Features and Benefits
•5-stage filtration with Piranha™ hard-food disposer - 5 self-cleaning filters ensure clean dishes
•Dedicated Silverware Jets - Highly pressurized spray jets target the silverware area for improved cleaning
•Steam PreWash - Loosens tough soils before any cycle virtually eliminating the need for soaking or pre-rinsing dishes
•Fan assist dry with heated option and Active Vent - A heating element heats the air inside while a hidden fan circulates the warm air to help dry dishes
•48 dBA sound level - Nearly silent two-pump system cleans dirty dishes without disruption
•ENERGY STAR® qualified and CEE Tier II rated - Meets or exceeds federal guidelines for energy efficiency for year-round energy and money savings
•Eclipse black full-extension racks with ball-tip tines - Durable racks glide smoothly on ballbearings for easy loading
•Four-position adjustable upper rack with Stem Safe - Provides loading versatility for today's dishes and up to 16 place settings
•Lower rack fold-down tines - Flexible loading options handle today's dishes and cookware of all shapes and sizes
•Upper rack deep bowl tines - Even oversized bowls fit perfectly in the top rack for easy cleaning
•Flexible racks - Designed for today's dishes and holds up to 16-place settings
•Two-pump system - One small pump for washing/rinsing and one small pump to remove soils provide excellent wash performance with reduced sound
•Model PDWT480VSS - Stainless steel
Specification Created 5/11 |
250242 |
