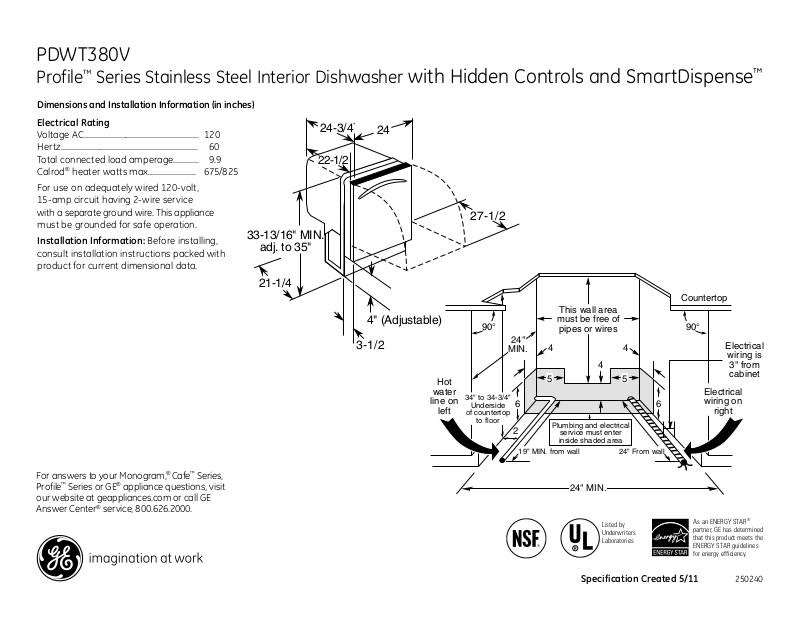

PDWT380V
Profile™ Series Stainless Steel Interior Dishwasher with Hidden Controls and SmartDispense
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 9.9
Calrod® heater watts max........................ 675/825
For use on adequately wired 120-volt, 15-amp circuit having 2-wire service with a separate ground wire. This appliance must be grounded for safe operation.
Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.
33-13/16" MIN.
adj. to 35"
21-1/4
24-3/4
22-1/2
*
24
4" (Adjustable)
3-1/2
Hot
water
line on
left
27-1/2
90°
34" to 34-3/4"
Underside
of countertop
to floor
24"
MIN.
55
6
2
19" MIN. from wall
This wall area
must be free of
pipes or wires
4
Plumbing and electrical
service must enter inside shaded area
24" From wall
Countertop
90°
44
6
Electrical
wiring is
3" from cabinet
Electrical wiring on
right
®
For answers to your Monogram,
Cafe™ Series, Profile™ Series or GE® appliance questions, visit our website at geappliances.com or call GE Answer Center® service, 800.626.2000.
24" MIN.
Listed by Underwriters Laboratories
Specification Created 5/11
As an ENERGY STAR® partner, GE has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
250240
PDWT380V
Profile™ Series Stainless Steel Interior Dishwasher with Hidden Controls and SmartDispense
Features and Benefits
• 5-stage filtration with Piranha™ hard-food disposer - 5 self-cleaning filters ensure clean dishes
• Dedicated Silverware Jets - Highly pressurized spray jets target the silverware area for
improved cleaning
• Deep Clean cycle with Steam Prewash - Removes tough, baked-on soils like egg, rice
and oatmeal
• Fan assist dry with heated option and Active Vent - A heating element heats the air inside
while a hidden fan circulates the warm air to help dry dishes
• 51 dBA sound level - Nearly silent two-pump system cleans dirty dishes without disruption
• ENERGY STAR
efficiency for year-round energy and money savings
• Eclipse black full-extension racks with ball-tip tines - Durable racks glide smoothly on ball-
bearings for easy loading
• Lower rack fold-down tines - Flexible loading options handle today's dishes and cookware of
all shapes and sizes
• SmartDispense
automatically dispenses multiple doses in each cycle
®
qualified and CEE Tier II rated - Meets or exceeds federal guidelines for energy
technology - Conveniently stores up to 47 oz of liquid detergent and
• Upper rack deep bowl tines - Even oversized bowls fit perfectly in the top rack for easy cleaning
• Antibacterial selection (NSF residential) - High temperature rinse sanitizes and reduces
99.999% of bacteria found on dishes
• Flexible racks - Designed for today's dishes and holds up to 16-place settings
• Model PDWT380VSS - Stainless steel
Specification Created 5/11
250240
