GE PDWT200V, PDWT280V Specification

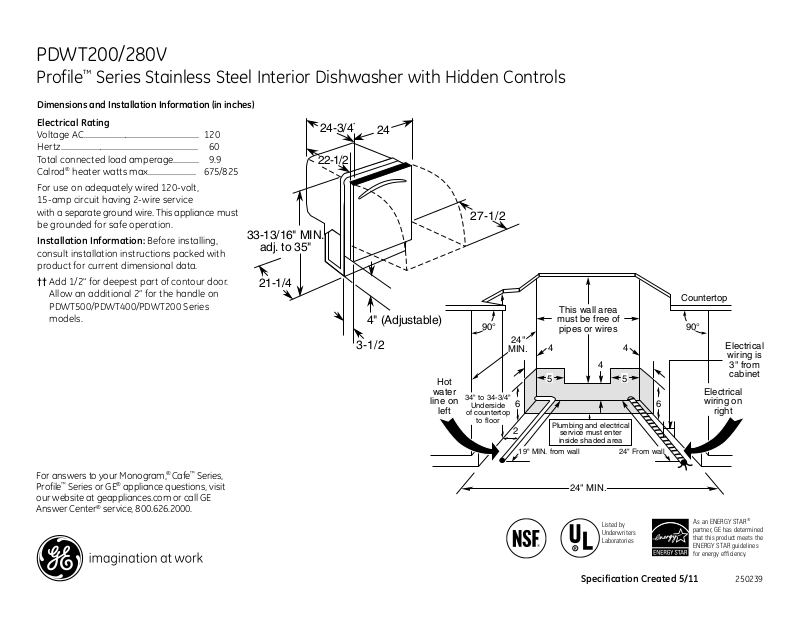

PDWT200/280V
Profile™ Series Stainless Steel Interior Dishwasher with Hidden Controls
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 9.9
Calrod® heater watts max........................ 675/825
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance must
be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
†† Add 1/2" for deepest part of contour door.
Allow an additional 2” for the handle on
PDWT500/PDWT400/PDWT200 Series
models.
33-13/16" MIN.
adj. to 35"
21-1/4
24-3/4
22-1/2
*
24
4" (Adjustable)
3-1/2
Hot
water
line on
left
27-1/2
90°
34" to 34-3/4"
Underside
of countertop
to floor
24"
MIN.
55
6
2
19" MIN. from wall
This wall area
must be free of
pipes or wires
4
Plumbing and electrical
service must enter
inside shaded area
24" From wall
Countertop
90°
44
6
Electrical
wiring is
3" from
cabinet
Electrical
wiring on
right
®
For answers to your Monogram,
Cafe™ Series,
Profile™ Series or GE® appliance questions, visit
our website at geappliances.com or call GE
Answer Center® service, 800.626.2000.
24" MIN.
Listed by
Underwriters
Laboratories
Specification Created 5/11
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
250239
PDWT200/280V
Profile™ Series Stainless Steel Interior Dishwasher with Hidden Controls
Features and Benefits
• 5-stage filtration with Piranha™ hard-food disposer - 5 self-cleaning filters ensure
clean dishes
• Dedicated Silverware Jets - Highly pressurized spray jets target the silverware area for
improved cleaning
• Steam PreWash - Loosens tough soils before any cycle virtually eliminating the need for
soaking or pre-rinsing dishes
• Fan assist dry with heated option and Active Vent - A heating element heats the air inside
while a hidden fan circulates the warm air to help dry dishes
• 52 dBA sound level - Nearly silent two-pump system cleans dirty dishes without disruption
• ENERGY STAR
energy efficiency for year-round energy and money savings
• Eclipse black full-extension racks with ball-tip tines - Durable racks glide smoothly on ball-
bearings for easy loading
• Eclipse black racking with deep-tiered upper rack - Provides loading versatility for today's
dishes and up to 16 place settings
®
qualified and CEE Tier II rated - Meets or exceeds federal guidelines for
• Upper rack deep bowl tines - Even oversized bowls fit perfectly in the top rack for easy
cleaning
• Antibacterial selection (NSF residential) - High temperature rinse sanitizes and reduces
99.999% of bacteria found on dishes
• Two-pump system - One small pump for washing/rinsing and one small pump to remove
soils provide excellent wash performance with reduced sound
• Model PDWT280VSS - Stainless steel (shown)
• Model PDWT200VWW - White on white
• Model PDWT200VBB - Black on black
Specification Created 5/11
250239
