GE PDW9900N, PDW9980N Specification
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2
Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34" to 34-3/4"
Underside
of countertop
to floor
5 5
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
24
24-3/4
††
21-1/4
3-1/2
4" (Adjustable)
33-13/16" MIN.
adj. to 35"
27-1/2
22-1/2

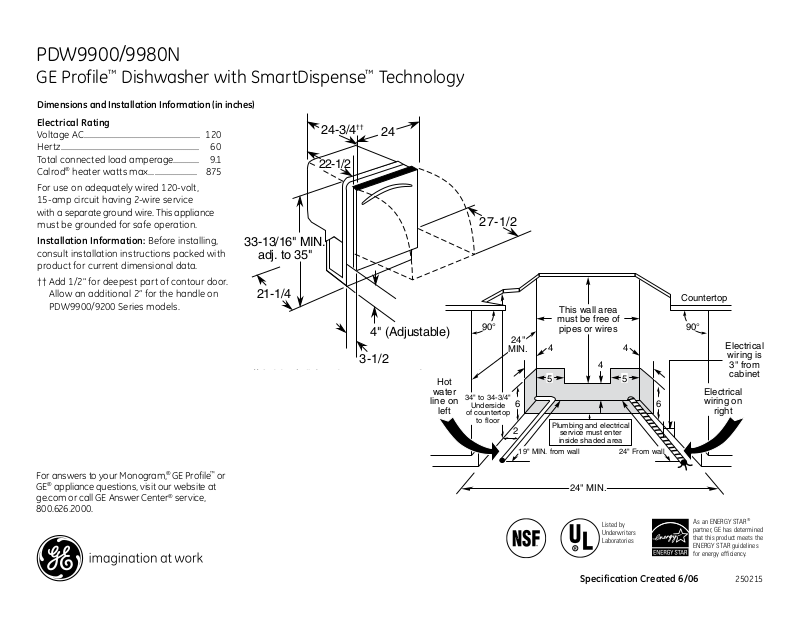

PDW9900/9980N
GE Profile™ Dishwasher with SmartDispense™ Technology
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 9.1
Calrod® heater watts max........................ 875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
†† Add 1/2" for deepest part of contour door.
Allow an additional 2” for the handle on
PDW9900/9200 Series models.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 6/06
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
250215
PDW9900/9980N
GE Profile™ Dishwasher with SmartDispense™ Technology
Features and Benefits
• SmartDispense™ Technology - Holds an entire bottle of liquid automatic
dishwasher detergent, dispensing the right amount based on water hardness
and soil levels to get dishes incredibly clean
•
Angled Rack Dry™ System - Features tines that gently angle cups, mugs and
dessert glasses so water runs right off
•
Single Rack Wash™ Selection - Perfect for smaller loads or for cleaning glasses
only, washing just the upper rack of dishes using less water and energy
•
QuietPower™ 7 Sound Package - Our quietest dishwasher ever with extremely
quiet components and a hidden vent that seals in sound during the wash cycle
•
Countdown Display with 1-24 Hour Delay Start - Signals remaining cycle time
and starts the dishwasher when no one's home or during off peak hours when
utilities are at reduced rates
•
100% Fold-Down Tines and Adaptable Bowl Tines in Lower Rack - Flip up to hold
bowls, or flip down to provide maximum loading flexibility in the lower rack
•
SpeedCycle™ Selection - Cuts the length of the normal cycle in half, effectively
washing and drying lightly soiled dishes in about 45 minutes or less
• Model PDW9980NSS - Stainless steel (shown)
• Model PDW9900NWW - White on white
• Model PDW9900NBB - Black on black
Specification Created 6/06
