GE PDW9900L, PDW9980L Specification
R
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2
Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34" to 34-3/4"
Underside
of countertop
to floor
5 5
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
24
24-3/4
††
21-1/4
3-1/2
4 (Adjustable)
33-13/16" MIN.
adj. to 35"
27-1/2
22-1/2

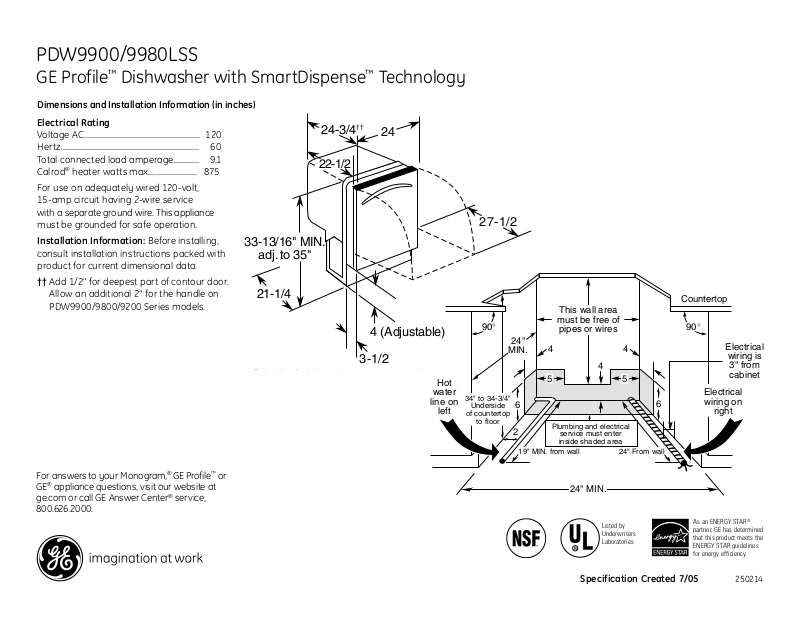

PDW9900/9980LSS
GE Profile™ Dishwasher with SmartDispense™ Technology
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 9.1
Calrod® heater watts max........................ 875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
†† Add 1/2" for deepest part of contour door.
Allow an additional 2” for the handle on
PDW9900/9800/9200 Series models.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 7/05
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
250214
PDW9900/9980L
GE Profile™ Dishwasher with SmartDispense™ Technology
Features and Benefits
• Stainless Contour Door with Stainless Sculptured Handle and Hidden Controls -
Create an elegant appearance with a sleek stainless steel door and handle while
hiding the controls inside the top edge of the dishwasher door (Model PDW9980LSS)
• SmartDispense™ Technology - Holds an entire bottle of liquid dishwasher detergent,
automatically dispensing the right amount based on water hardness and soil level to
get dishes incredibly clean
• Angled Rack Dry™ System - Virtually eliminates the need for a dishtowel, featuring a
rack that gently angles cups and mugs so water runs right off
• Single Rack Wash™ Selection - Perfect for smaller loads or for cleaning glasses only,
washing just the upper rack of dishes using less water and energy
• Giant Tub with Maximum-Capacity Nylon Pearlescent™ Racking - Washes up to 16
place settings at once in long-lasting, durable racks that enhance the stainless interior
• Plastics Cycle with Fan-Assist Dry - Protects plastics as they dry quickly, safely and
energy efficiently
• QuietPower™ 7 Sound Package - Our quietest dishwasher ever with extremely quiet
components and a hidden vent that seals in sound during the wash cycle
• Fully Integrated Light-Touch Electronic Controls with 6 Status Lights - Add a higher
level of control, with easy-to-use light-touch pads and status lights hidden inside the
door's top edge for increased design options
• 100% Fold-Down Tines and Adaptable Bowl Tines in Lower Rack - Flip up to hold
bowls, or flip down to provide maximum loading flexibility in the lower rack
• Model PDW9980LSS - Stainless steel (shown)
• Model PDW9900LWW - White on white
• Model PDW9900LBB - Black on black
Specification Created 7/05
250214
