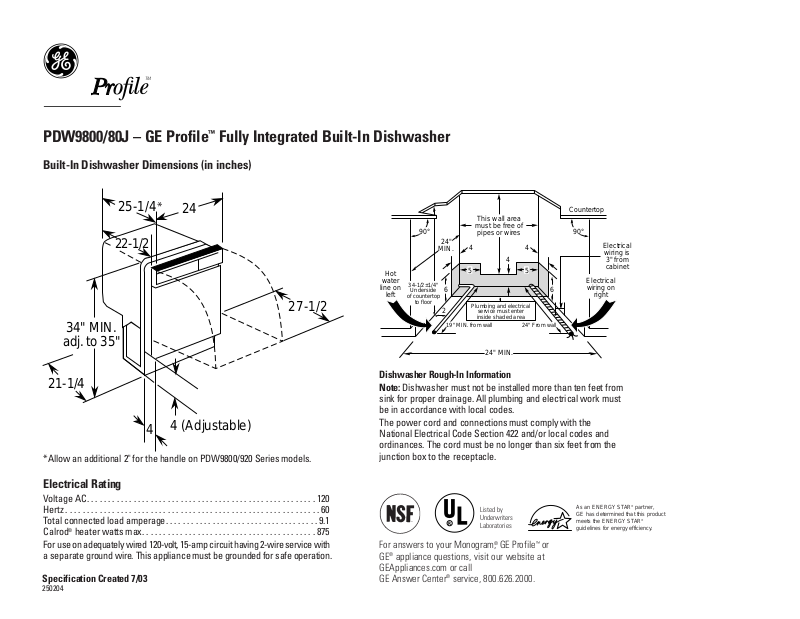

Specification Created 7/03
250204
PDW9800/80J – GE Profile™Fully Integrated Built-In Dishwasher
24
25-1/4
21-1/4
4
4 (Adjustable)
34" MIN.
adj. to 35"
27-1/2
22-1/2
Built-In Dishwasher Dimensions (in inches)
For answers to your Monogram,® GE Profile™or
GE®appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Listed by
Underwriters
Laboratories
As an ENERGY STAR®partner,
GE has determined that this product
meets the ENERGY STAR
®
guidelines for energy efficiency.
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2
Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34-1/2±1/4"
Underside
of countertop
to floor
55
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
*
*Allow an additional 2" for the handle on PDW9800/920 Series models.
Electrical Rating
Voltage AC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120
Hertz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Total connected load amperage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9.1
Calrod®heater watts max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 875
For use on adequately wired 120-volt, 15-amp circuit having 2-wire service with
a separate ground wire. This appliance must be grounded for safe operation.
Dishwasher Rough-In Information
Note: Dishwasher must not be installed more than ten feet from
sink for proper drainage. All plumbing and electrical work must
be in accordance with local codes.
The power cord and connections must comply with the
National Electrical Code Section 422 and/or local codes and
ordinances. The cord must be no longer than six feet from the
junction box to the receptacle.
![](/html/9c/9c5a/9c5af3f6dd3115bf3f63b58367d3c7d1ddf73901fe0c46958da263f1a9f96d1c/bg2.png)
Specification Created 7/03
250204
PDW9800/80J – GE Profile™Fully Integrated Built-In Dishwasher
T
I
M
E
R
E
M
A
I
N
I
N
G
A
N
T
I-
B
A
C
T
E
R
IA
L
C
O
O
K
W
A
R
E
N
O
R
M
A
L
S
PEED
C
Y
C
L
E
C
H
IN
A
C
H
Y
S
T
A
L
G
L
A
S
S
E
S
P
LA
ST
I
C
S
C
YC
L
E
R
INSE
O
N
L
Y
1-24
DELAY
HOURS
ADDED
HEAT
P
RE
W
ASH
HEATED
DRY
S
T
A
T
U
S
T
O
L
O
C
K
C
O
N
T
R
O
L
S
:
P
R
E
S
S
HE
A
T
E
D
D
R
Y
FO
R
3
S
E
C
.
E
N
HA
N
C
E
M
E
N
T
S
SE
L
E
CT
I
ONS
S
E
N
SING
A
D
D
-
A-D
ISH
W
A
S
HING
D
RY
ING
S
A
N
IT
I
Z
ED
C
L
E
A
N
START
RESET
Features and Benefits
• Fully integrated door design – Blends seamlessly into existing cabinetry.
• Bright annealed stainless steel tub and door liner – A lustrous finish and lasting beauty that
resists stains and corrosion.
• Removable/four-position adjustable upper rack – Pulls out completely or moves up, down or
diagonally for maximum loading flexibility.
• Countdown display with 24 hour delay – Signals remaining cycle time and starts the dishwasher
when no one’s home or during off peak hours when utilities are at reduced rates.
• Color-matched nylon Pearlescent™racks – Complement the radiance of stainless steel.
• QuietPower™VI sound package – Features the fan-assist drying system, the new concealed
ActiveVent and an enhanced insulation package to make this the quietest GE Profile
dishwasher ever.
• Fan-Assist Dry – Employs a quietly running fan to dry dishes quickly and efficiently.
• 100% Fold-down tines – Provides maximum loading flexibility in the lower rack.
• 4 sets fold down tines, 4 sets StemSafe™– upper rack – Provide additional flexibility for
loading odd-shaped items and for safely washing fine stemware.
• Cutlery tray – Protects cutlery or flatware and leaves space underneath for more dishes.
• Model PDW9800JWW – White on white
• Model PDW9800JCC – Bisque on bisque
• Model PDW9800JBB – Black on black
• Model PDW9880JSS – Stainless steel
As an ENERGY STAR®partner,
GE has determined that this product
meets the ENERGY STAR
®
guidelines for energy efficiency.
