GE PDW9800L, PDW9880L Specification
PDW9800/9880L
R
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2
Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34" to 34-3/4"
Underside
of countertop
to floor
5 5
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
24
24-3/4
††
21-1/4
3-1/2
4 (Adjustable)
33-13/16" MIN.
adj. to 35"
27-1/2
22-1/2

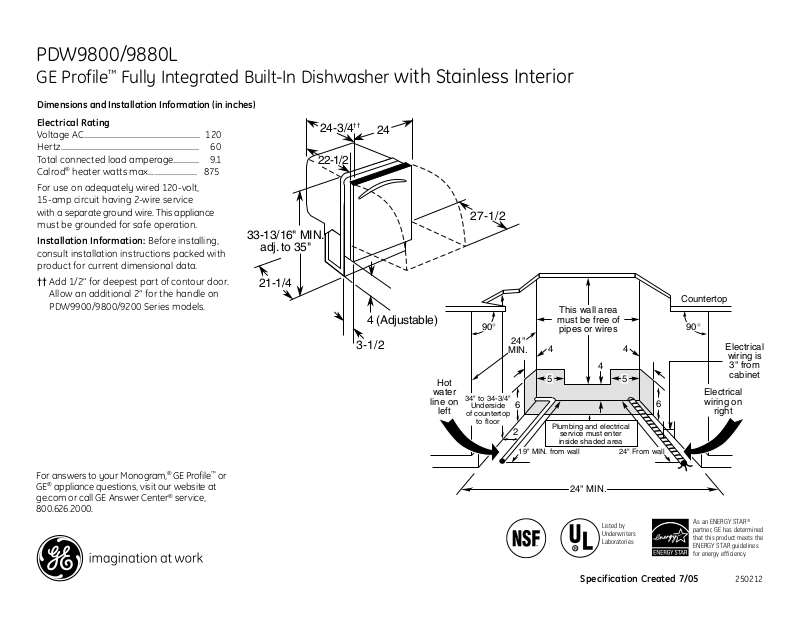

GE Profile™ Fully Integrated Built-In Dishwasher with Stainless Interior
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 9.1
Calrod® heater watts max........................ 875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
†† Add 1/2" for deepest part of contour door.
Allow an additional 2” for the handle on
PDW9900/9800/9200 Series models.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 7/05
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
250212
PDW9800/9880L
GE Profile™ Fully Integrated Built-In Dishwasher with Stainless Interior
Features and Benefits
• Stainless Contour Door with Stainless Sculptured Handle and Hidden Controls -
Creates an elegant appearance with a sleek stainless steel door and handle while
hiding the controls inside the top edge of the dishwasher door (Model PDW9880LSS)
• Giant Tub with Maximum Capacity Nylon Racking - Holds tall and oversized items;
washes 16 place settings at once
• Countdown Display with 1-24 Hour Delay Start - Signals remaining cycle time and
starts the dishwasher when no one's home or during off peak hours when utilities are
at a reduced rate
• Four-Position Adjustable/Removable Upper Rack - Pulls out completely or moves up,
down and diagonally for maximum loading flexibility
• 3 Nylon-Coated Pearlescent™ Metal Utility Shelves with StemSafe™ in Upper Rack Durable metal shelves create space in the upper rack for cups and utensils and secure
delicate stemware
• 100% Fold-Down Tines and Adaptable Bowl Tines in Lower Rack - Flip up to hold bowls,
or flip down to provide maximum loading flexibility in the lower rack
• Audible End-Of-Cycle Signal - When on, emits an audible signal to indicate the cycle
has ended
• QuietPower™ 6 Sound Package - Preserves peace and quiet in the kitchen with
fan-assisted drying and an enhanced insulation package
• Cutlery Tray - Protects cutlery or flatware and leaves space underneath for more dishes
• Model PDW9880LSS - Stainless steel (shown)
• Model PDW9800LWW - White on white
• Model PDW9800LBB - Black on black
Specification Created 7/05
