PDW9200/9280L
GE Profile™ Fully Integrated Built-In Dishwasher with Stainless Interior

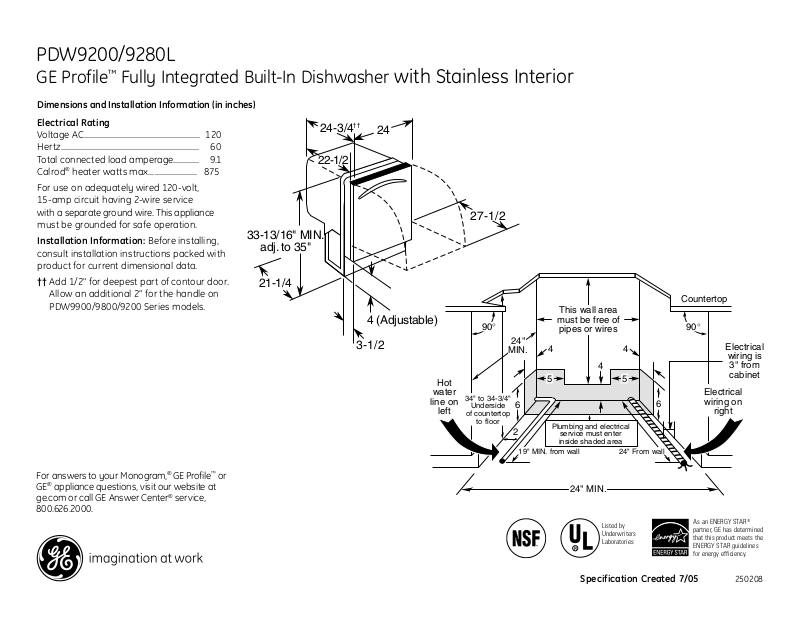

Dimensions and Installation Information (in inches)
Electrical Rating |
|
24-3/4†† |
24 |
Voltage AC.......................................................... |
120 |
|
|
Hertz..................................................................... |
60 |
|
|
Total connected load amperage............. |
9.1 |
22-1/2 |
|
Calrod® heater watts max........................ |
875 |
|
|
For use on adequately wired 120-volt, |
|
|
|
15-amp circuit having 2-wire service |
|
|
|
with a separate ground wire. This appliance |
|
27-1/2 |
|
must be grounded for safe operation. |
|
|
|
Installation Information: Before installing, |
33-13/16" MIN. |
|
adj.to 35" |
||
consult installation instructions packed with |
||
|
||
product for current dimensional data. |
|
†† Add 1/2" for deepest part of contour door. |
21-1/4 |
Allow an additional 2” for the handle on
PDW9900/9800/9200 Series models.
4 (Adjustable)
3-1/2
Hot water line on left
90°
24"
MIN.
This wall area must be free of pipes or wires
4 4
4
|
|
5 |
5 |
34" to 34-3/4" |
6 |
|
6 |
Underside |
|
||
of countertop |
|
|
|
to floor |
|
Plumbing and electrical |
|
|
2 |
||
|
|
service must enter |
|
|
|
|
inside shaded area |
19" MIN. from wall |
24" From wall |
Countertop
90°
Electrical wiring is 3" from cabinet
Electrical wiring on right
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
24" MIN.
Listed by Underwriters Laboratories
R
As an ENERGY STAR® partner, GE has determined that this product meets the ENERGY STAR guidelines for energy efficiency.
Specification Created 7/05 |
250208 |
PDW9200/9280L
GE Profile™ Fully Integrated Built-In Dishwasher with Stainless Interior
Features and Benefits
•Stainless Contour Door with Stainless Sculptured Handle and Hidden Controls - Creates an elegant appearance with a sleek stainless steel door and handle while
hiding the controls inside the top edge of the dishwasher door (Model PDW9280LSS)
• 6-Level BrilliantClean™ Wash System with CleanSensor™ - Scrubs dishes clean with three full-sized wash arms, six levels of wash action and a sensor that continually monitors and adjusts the wash cycle for a superior clean
• Giant Tub with Maximum Capacity Nylon Racking - Holds tall and oversized items; washes 16 place settings at once
•Removable upper rack - Pulls out completely to allow for washing items as large as a 20 gallon stockpot
•2/4/8 Hour Delay Start - Makes it easier than ever to wash dishes at any hour taking advantage of reduced energy rates or washing dishes even when the family is asleep
•QuietPower™ 6 Sound Package - Preserves peace and quiet in the kitchen with fan-assisted drying and an enhanced insulation package
•Audible End-Of-Cycle Signal - When on, emits an audible signal to indicate the cycle has ended
•Fully Integrated Light-Touch Eletronic Controls - Tucks easy-to-use light-touch control pads out of sight inside the door’s top edge
•2 sets fold down tines in lower rack - Provides loading flexibility for pots, pans and large bowls
•Model PDW9280LSS - Stainless steel (shown)
•Model PDW9200LWW - White on white
•Model PDW9200LBB - Black on black
