GE PDW9200N, PDW9280N Specification
PDW9200/9280N
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2
Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34" to 34-3/4"
Underside
of countertop
to floor
5 5
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
24
24-3/4
††
21-1/4
3-1/2
4" (Adjustable)
33-13/16" MIN.
adj. to 35"
27-1/2
22-1/2

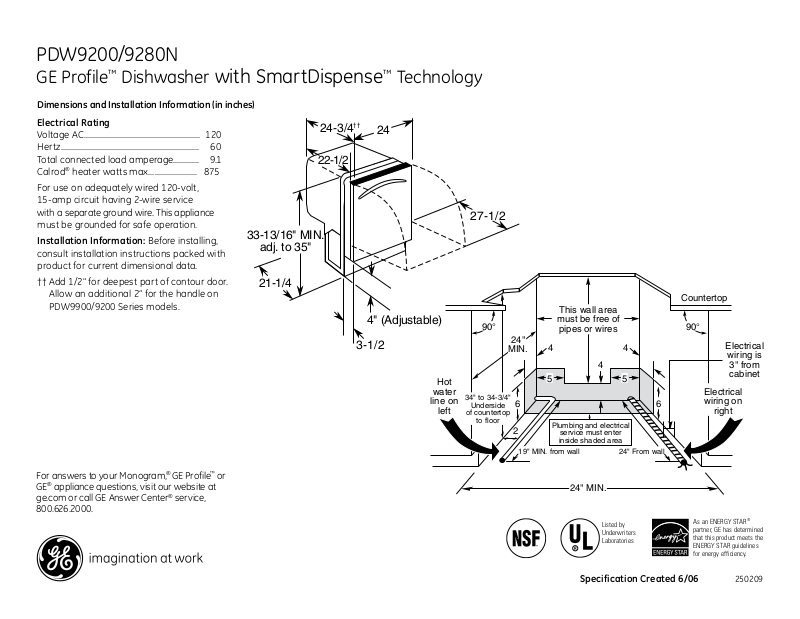

GE Profile™ Dishwasher with SmartDispense™ Technology
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 9.1
Calrod® heater watts max........................ 875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
†† Add 1/2" for deepest part of contour door.
Allow an additional 2” for the handle on
PDW9900/9200 Series models.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 6/06
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
250209
PDW9200/9280N
GE Profile™ Dishwasher with SmartDispense™ Technology
Features and Benefits
• SmartDispense™ Technology - Holds an entire bottle of liquid automatic dishwasher
detergent, dispensing the right amount based on water hardness and soil levels to get
dishes incredibly clean
•
6-Level BrilliantClean™ Towerless Wash System with CleanSensor™ - Scrubs dishes
clean with three full-sized wash arms, six levels of wash action and a sensor that
continually monitors and adjusts the wash cycle for a superior clean
•
Giant Tub with Maximum Capacity Nylon Racking - Holds tall and oversized items;
washes 16 place settings at once
•
QuietPower™ 6 Sound Package - Preserves peace and quiet in the kitchen with fanassisted drying and an enhanced insulation package
•
2/4/8-Hour Delay Start - Makes it easier than ever to wash dishes at any hour taking
advantage of reduced energy rates or washing dishes even when the family is asleep
•
2 Sets Fold-Down Tines in Lower Rack - Provides loading flexibility for pots, pans and
large bowls
•
Audible End-Of-Cycle Signal - When on, emits an audible signal to indicate the cycle
has ended
• Model PDW9280NSS - Stainless steel (shown)
• Model PDW9200NWW - White on white
• Model PDW9200NBB - Black on black
Specification Created 6/06
250209
