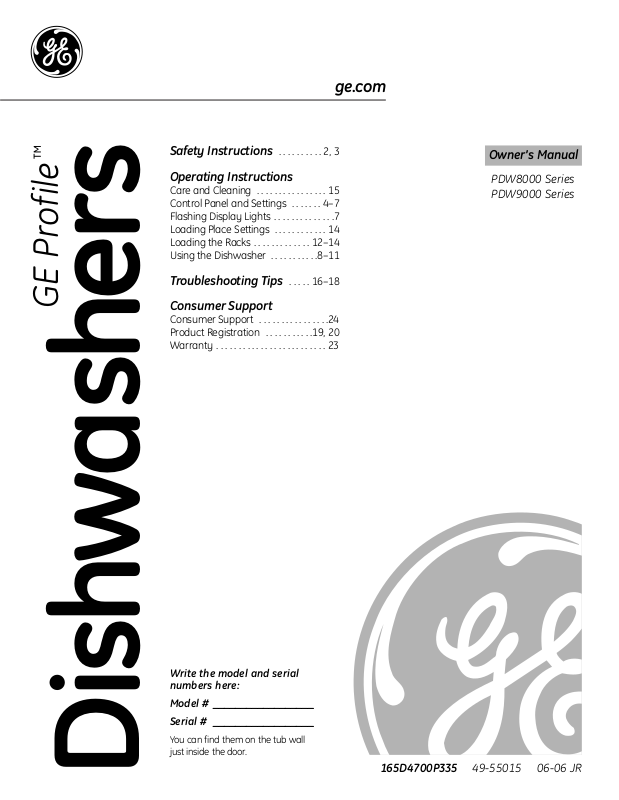

GE PDW9000 User Manual

PDW8000 Series PDW9000 Series

Owner’s Manual

Dishwashers

165D4700P335 49-55015 06-06 JR

Safety Instructions . . . . . . . . . . 2, 3

Operating Instructions

Care and Cleaning . . . . . . . . . . . . . . . . 15

Control Panel and Settings . . . . . . . 4–7

Flashing Display Lights . . . . . . . . . . . . . .7

Loading Place Settings . . . . . . . . . . . . 14

Loading the Racks . . . . . . . . . . . . . 12–14

Using the Dishwasher . . . . . . . . . . .8–11

Troubleshooting Tips . . . . . 16–18

Consumer Support

Consumer Support . . . . . . . . . . . . . . . .24

Product Registration . . . . . . . . . . .19, 20

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 23

ge.com

Write the model and serial numbers here:

Model # __________________

Serial # __________________

You can find them on the tub wall just inside the door.

GE Profile

™

Operating Instructions Safety Instructions

Consumer Support

Troubleshooting Tips

IMPORTANT SAFETY INFORMATION. READ ALL INSTRUCTIONS BEFORE USING — SAVE THESE INSTRUCTIONS

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, and to prevent property damage, personal injury, or death.

WATER HEATER SAFETY

PROPER INSTALLATION AND MAINTENANCE

This dishwasher must be properly installed and located in accordance with the Installation Instructions before it is used. If you did not receive an Installation Instructions sheet with your dishwasher, you can receive one by visiting our website at ge.com.

■ Contents washed in Anti-bacterial mode, if available, may be hot to the touch. Use care before handling.

■ Using a detergent that is not specifically designed for dishwashers will cause the dishwasher to fill with suds.

■ If your dishwasher is connected to a wall switch, ensure that the switch is on prior to use.

■ On dishwashers with electronic controls, if you choose to turn the wall switch off between wash cycles, allow 5–10 seconds after turning the switch on before touching START/RESET to allow the control to reboot.

■ Non-Dishware Items: Do not wash items such as electronic air cleaner filters, furnace filters and paint brushes in your dishwasher. Damage to dishwasher and discoloration or staining of dishwasher may result.

■ Close supervision is necessary if this appliance is used by or near children.

■ Load light, plastic items so they will not become dislodged and drop to the bottom of the dishwasher—they might come into contact with the heating element and be damaged.

■ Connect to a grounded metal, permanent wiring system; or run an equipment-grounding conductor with the circuit conductors and connect to the equipment-grounding terminal or lead of the appliance.

■ Improper connection of the equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

■ Dispose of discarded appliances and shipping or packing material properly.

■ Do not attempt to repair or replace any part of your dishwasher unless it is specifically recommended in this manual. All other servicing should be referred to a qualified technician.

■ To minimize the possibility of electric shock, disconnect this appliance from the power supply before attempting any maintenance.

NOTE: Turning the dishwasher off does not disconnect the appliance from the power supply. We recommend having a qualified technician service your appliance.

WARNING!

CAUTION: To prevent minor injury or property damage

Under certain conditions, hydrogen gas may be produced in a water heater that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE.

If the hot water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all hot water faucets and allow them to run for several minutes. Do this before using any electrical appliance which is connected to the hot water system. This simple procedure will allow any builtup hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

WARNING! RISK OF CHILD ENTRAPMENT

PROPER DISPOSAL OF THE DISHWASHER

Junked or abandoned dishwashers are dangerous… even if they will sit for “just a few days.” If you are getting rid of your old dishwasher, please follow the instructions to help prevent accidents.

Before You Throw Away Your Old Dishwasher

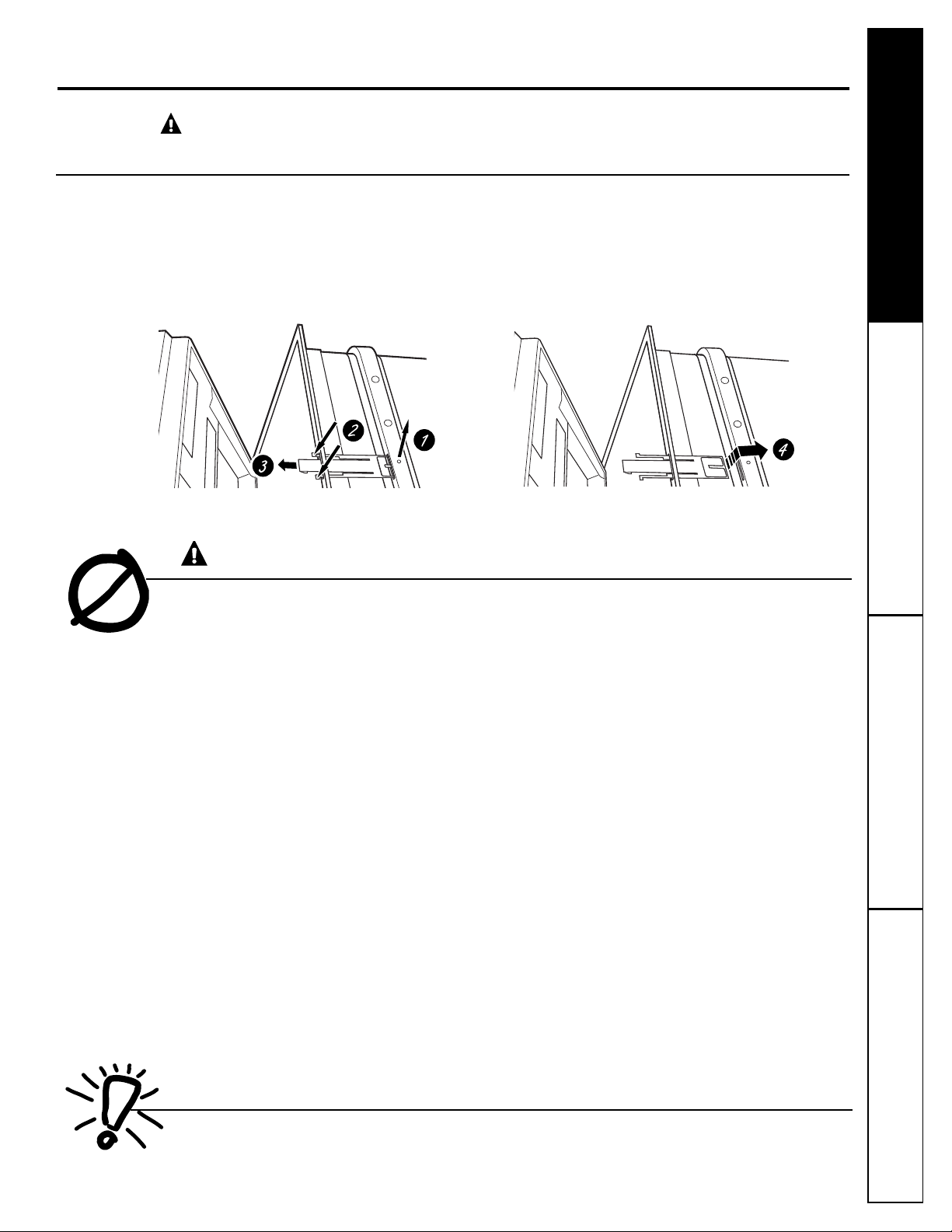

Take off the door of the washing compartment or remove the door latch (as shown).

NOTE: PDW9200–PDW9900 Series models also have a latch screw which must be removed (Step 1) as shown.

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

ge.com

Screw

(

on some

models)

■ Use this appliance only for its intended purpose as described in this Owner's Manual.

■ Use only powder, tabs, liquid detergents or rinse agents recommended for use in a dishwasher and keep them out of the reach of children. Cascade®, Cascade®Complete and Electrasol®Automatic Dishwashing Detergents, and Jet-Dry®and

Cascade Crystal Clear®rinse agents have been

approved for use in all GE dishwashers.

■ Do not mix any chlorine bleach-based automatic dishwashing detergent with any dishwashing detergent containing enzymes as this could cause the detergents to congeal and lead to blockage of the SmartDispenseTMsystem.

■ Locate sharp items so that they are not likely to damage the door seal.

■ Load sharp knives with the handles up to reduce the risk of cut-type injuries.

■ Do not wash plastic items unless marked dishwasher safe or the equivalent. For plastic items not so marked, check the manufacturer's recommendations.

■ Do not touch the heating element during or immediately after use.

■ Do not operate your dishwasher unless all enclosure panels are properly in place.

■ Do not tamper with controls.

■ Do not abuse, sit on or stand on the door or dish

rack of the dishwasher.

■ Do not allow children to play around dishwasher when opening or closing door due to the possibility of small fingers being pinched in door.

■ Do not discard a dishwasher without first removing the door of the washing compartment or the door latch.

■ Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

■ Do not allow children to play with, on or inside this appliance or any discarded appliance.

WARNING!

When using your dishwasher, follow basic precautions, including the following:

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS

Operating Instructions Safety Instructions

Consumer Support

Troubleshooting Tips

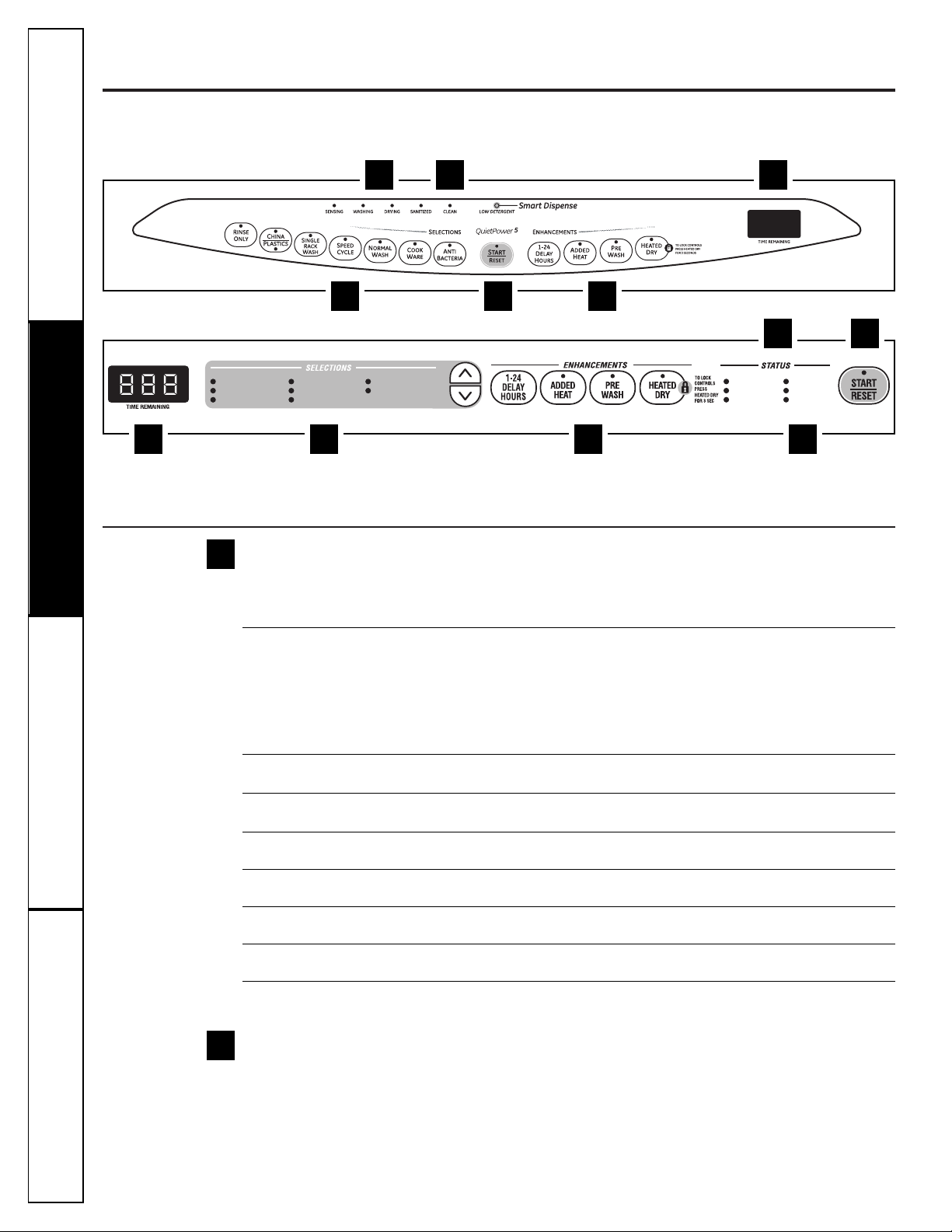

About the dishwasher control panel.

You can locate your model number on the tub wall just inside the door. Throughout this manual, features and appearance may vary from your model.

Control Settings

Status Indicator Lights (Indicators vary by models)

The Status display tells you what is happening while the dishwasher is in operation and may flash, indicating a malfunction. The lights will come ON indicating the sequence of the dishwasher operation.

LOW DETERGENT Displayed when the SmartDispenseTMneeds to be refilled with liquid or gel automatic

dishwasher detergent. NOTE: If you are not using SmartDispenseTMand you want to turn the LOW DETERGENT

LED light off, press the ADDED HEAT pad 5 times within 3 seconds. You will hear 3 beeps; then the light will go off. You can turn the light back on by pressing the ADDED HEAT pad 5 times within 3 seconds.

SENSING Displayed while the Clean SensorTMis measuring the amount of soil and temperature

of water. The dishwasher will adjust the selected cycle to achieve optimal performance.

ADD-A-DISH Displayed during prewash, indicating that dishes added now will still be cleaned.

WASHING Displayed during prewash, main wash and rinse periods.

RINSING Displayed during rinse periods.

DRYING Displayed during HEATED DRY.

SANITIZED Displayed when cycle has met sanitization conditions.

CLEAN Displayed when a wash cycle is complete.

Time Remaining Display (on some models)

During operation, the display shows the minutes remaining until the cycle is complete. The display may adjust the remaining time while the Sensing light is on. The time displayed at the start of each cycle may change from the factory setting as the unit customizes itself to home use. During a delay start, the display will show hours of time remaining until the cycle starts.

Selections

PDW8000 Series: Press the pad for the desired wash cycle. PDW9000 Series: Use the Arrow Pads to scroll through the wash cycles.

NOTE: All cycle times and water usage information contained in the following section are approximate values. Actual results will depend on several factors, including but not limited to inlet temperature, household water pressure and amount of soil in the wash water.

The light above or next to the selected pad will be ON to indicate which WASH CYCLE has been selected.

3 45

PDW8100 Series–PDW8900 Series

62 43

PDW9200 Series–PDW9900 Series

A C

NTI-BACTERIAL OOKWARE

ORMAL

PEED CYCLE

HINA CYCLE

LASTIC CYCLE

INGLE RACK WASH

INSE ONLY

LOW DETERGENT

ENSING

ASHING

RYING

ANITIZED

LEAN

Smart Dispense

Selections (continued)

ANTI-BACTERIA Heavy 8.8 gal., 105 min.

Medium 7.5 gal., 95 min. Light 6.3 gal., 85 min.

This cycle raises the water temperature in the final rinse to sanitize your dishware. The cycle length will vary depending on the temperature of your inlet water.

NOTE: The Anti-Bacteria cycle is monitored for sanitization requirements. If the cycle is interrupted during or after the main wash portion or if the incoming water temperature is so low that adequate water heating cannot be achieved, the sanitizing conditions may not be met. In these cases, the sanitized light will not illuminate at the end of the cycle.

NOTE: NSF-certified residential dishwashers are not intended for licensed food establishments

COOKWARE Heavy 10.0 gal., 80 min.

(POTS & PANS) Medium 8.8 gal., 70 min.

Light 7.5 gal., 60 min.

This cycle is meant for heavily soiled dishes or cookware with dried-on or baked-on soils. This cycle may not remove burned-on foods. Everyday dishes are safe to be used in this cycle.

NORMAL WASH Heavy 8.8 gal., 70 min.

Medium 7.5 gal., 60 min. Light 5.0 gal., 50 min.

This cycle is for medium/heavily soiled dishes and glassware.

SPEED CYCLE 7.5 gal., 35 min.

(on some models)

This cycle is for everyday dishes and glassware.

CHINA CRYSTAL 7.5 gal., 35 min.

This cycle is for lightly soiled china and crystal.

GLASSES 7.5 gal., 30 min.

(on some models)

This cycle is specifically designed for glasses.

PLASTICS CYCLE Heavy 8.8 gal., 120 min.

(on some models) Medium 7.5 gal., 105 min.

Light 5.0 gal., 90 min. The longer time for this cycle includes a built-in drying portion that is specifically

designed to reduce the risk of melting plastic items and improve plastic drying. For removing red tomato-based stains, GE recommends the use of Cascade

Plastic BoosterTM.

SINGLE RACK WASH Heavy 8.2 gal., 70 min.

(on some models) Medium 7.0 gal., 60 min.

Light 4.6 gal., 50 min. This cycle washes lightly soiled dishes on the upper rack only.

RINSE ONLY 2.5 gal., 10 min.

For rinsing partial loads that will be washed later. Do not use detergent with this cycle.

NOTE: On the PDW8000 Series models, the CHINA CRYSTAL/PLASTICS selector is a toggle pad; push pad to switch between CHINA CRYSTAL and PLASTICS.

NOTE: This dishwasher is equipped with CleanSensorTMwith automatic temperature control; therefore, cycle length and time may vary depending on soil and water temperature conditions.

NOTE: Only the Anti-Bacteria cycle has been designed to meet the requirements of Section 6, NSF 184 for soil removal and sanitization efficacy.

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

ge.com

Enhancements

The light above the selected pad will be ON to indicate which ENHANCEMENT has been selected.

DELAY HOURS You can delay the start of a wash cycle for up to 24 hours (depending on model). Press

the DELAY START pad to choose the number of hours you want to delay the start of the cycle; then press START/RESET.

PDW8000 Series: The machine will count down and start automatically at the correct time.

PDW9000 Series: After closing the door, the machine will count down and automatically start at the correct time.

NOTE: To cancel the DELAY START selection before the cycle begins, repeatedly press the DELAY START pad until the display is blank.

ADDED HEAT When selected, the cycle will run longer with heating element on to improve both wash

(EXTRA HOT WASH) and dry performance.

NOTE: Cannot be selected with RINSE ONLY cycle.

PRE WASH For use with heavily soiled and/or dried-on, baked-on soils. This option MUST be

(on some models) selected PRIOR to starting the cycle. This option adds 15 minutes to the cycle time.

NOTE: Cannot be selected with RINSE ONLY cycle.

HEATED DRY Shuts off the drying heat option. Dishes will air dry naturally (PDW8900 Series) or

Light Off fan dry (PDW9200–PDW9900 Series) to save energy.

HEATED DRY Turns the heater on for fast drying. This will extend the total cycle time by 15 minutes

Light On for the ANTI-BACTERIAL cycle, 38 minutes for the NORMAL, SINGLE RACK WASH

and COOKWARE cycles, 8 minutes for the SPEED cycle, 15 minutes for the PLASTICS cycle and 30 minutes for all other cycles.

NOTE: Cannot be selected with RINSE ONLY cycle.

LOCK You can lock the controls to prevent any selections from being made. Or you can lock

the controls after you have started a cycle.

Children cannot accidentally start dishwasher by touching pads with this option selected.

To unlock the dishwasher controls, press and hold the HEATED DRY pad for 3 seconds. The light above the lock pad will turn off. To lock the dishwasher, press and hold the HEATED DRY pad for 3 seconds. The light above the LOCK pad will turn on.

RESET To change a cycle after washing starts…

PDW8000 Series: Touch the START/RESET pad to cancel the cycle. The START/RESET light

will flash while the water is pumped out if needed. This takes approximately 2 minutes. PDW9000 Series: Open the door slowly to prevent splash-out. Touch the START/RESET

pad to cancel the cycle. If the START/RESET light is flashing, close the door until the water pumps out (this takes approximately 2 minutes) and the light stops flashing.

When the light stops flashing, the dishwasher can be reprogrammed and restarted.

Start

PDW8000 Series

Close and latch the dishwasher door and select the cycle and desired enhancements. Touch the START/RESET pad to begin the cycle. Water fill begins immediately, and approximately 60 seconds later the wash action begins.

When the dishwasher door is fully closed and latched, the control panel lights will display the last settings you selected. If you don’t want to change any of the settings, simply touch the START/RESET pad to begin the cycle.

If the door is closed, the indicator lights will turn off if the START/RESET pad is not selected within 5 minutes. To activate the display, open and close the door or press any pad.

Operating Instructions Safety Instructions

Consumer Support

Troubleshooting Tips

About the dishwasher control panel.

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

Flashing display lights.

Status Indicator Lights What It Means

START/RESET Cycle has been interrupted by pressing the START/RESET pad, or there

has been a power failure. Light will stop flashing after the dishwasher automatically drains out the water. The dishwasher will restart if the interruption was the result of a power failure.

Recommended dishwasher products.

GE recommends the following products for use in its dishwashers:

■ For your manual detergent dispenser, Cascade

and Electrasol® powder, liquid or gel automatic dishwasher detergents are approved.

■ For your SmartDispense

Detergent Dispenser, use only the recommended detergents listed on page 10 of this manual.

■ Jet Dry®or Cascade Crystal Clear®rinse agents

to remove spots and prevent new film buildup on your dishes, glasses, flatware, cookware and plastic. Using rinse agent also improves dry performance.

■ Cascade

Plastic BoosterTMto remove red staining

inside your dishwasher that can come from some tomato-based foods.

■ Cerama Bryte®Stainless Steel Appliance Cleaner

to clean the exterior stainless steel panel of GE and ProfileTMdishwashers (for stainless steel exterior models only).

ge.com

Start (continued)

PDW9000 Series

After selecting the cycle and desired enhancements, touch the START/RESET pad to ready the dishwasher to begin the cycle. Close the door to start the cycle or begin the DELAY START countdown. When the cycle starts, the water fill begins and approximately 60 seconds later the wash action begins.

The dishwasher will always display your last selection and enhancements. If you don’t want to change the settings, simply touch the START/RESET pad to ready the dishwasher and close the door to begin the cycle.

Also, if a power failure occurs NORMAL and HEATED DRY will automatically be programmed. Make any new selections and touch the START/RESET pad to begin the new cycle.

When the door is opened, the indicator lights will turn off if the START/RESET pad is not selected within 5 minutes. To activate the display, open and close the door or touch any pad.

Clean

PDW8000 Series

The CLEAN light is illuminated when the selected cycle and enhancements are complete. The light will stay ON until a pad is pressed or the door is opened and then closed.

PDW9200 Series–PDW9900 Series

The CLEAN light is illuminated and a double beep will sound when the selected cycle and enhancements are complete. You may remove the dishes at any time. The high-efficiency fan will run quietly for 30 minutes to 4 hours (depending on selected cycle) after the CLEAN light is illuminated to continue drying the dishes. The fan can be turned off by opening the door and pressing any keypad.

ALL MODELS: To turn off the audible end-of-cycle signal (or re-activate it if it was previously turned off), press the HEATED DRY pad 5 times within 3 seconds. A triple beep will sound to indicate the end-of-cycle beep option has been toggled.

Operating Instructions Safety Instructions

Consumer Support

Troubleshooting Tips

Using the dishwasher.

The entering water should be at least 120°F and not more than 150°F for effective cleaning and to prevent dish damage. Check the water temperature with a candy or meat thermometer. Turn on the hot water faucet nearest the dishwasher, place the thermometer in a glass and let the water run continuously into the glass until the temperature stops rising.

Check the Water Temperature

Jet-Dry®or Cascade Crystal Clear®rinse agent improves drying, removes spots and prevents new

film buildup on your dishes, glasses, flatware, cookware and plastic.

Use Jet-Dry®or Cascade Crystal Clear®Rinse Agent

Filling the Dispenser

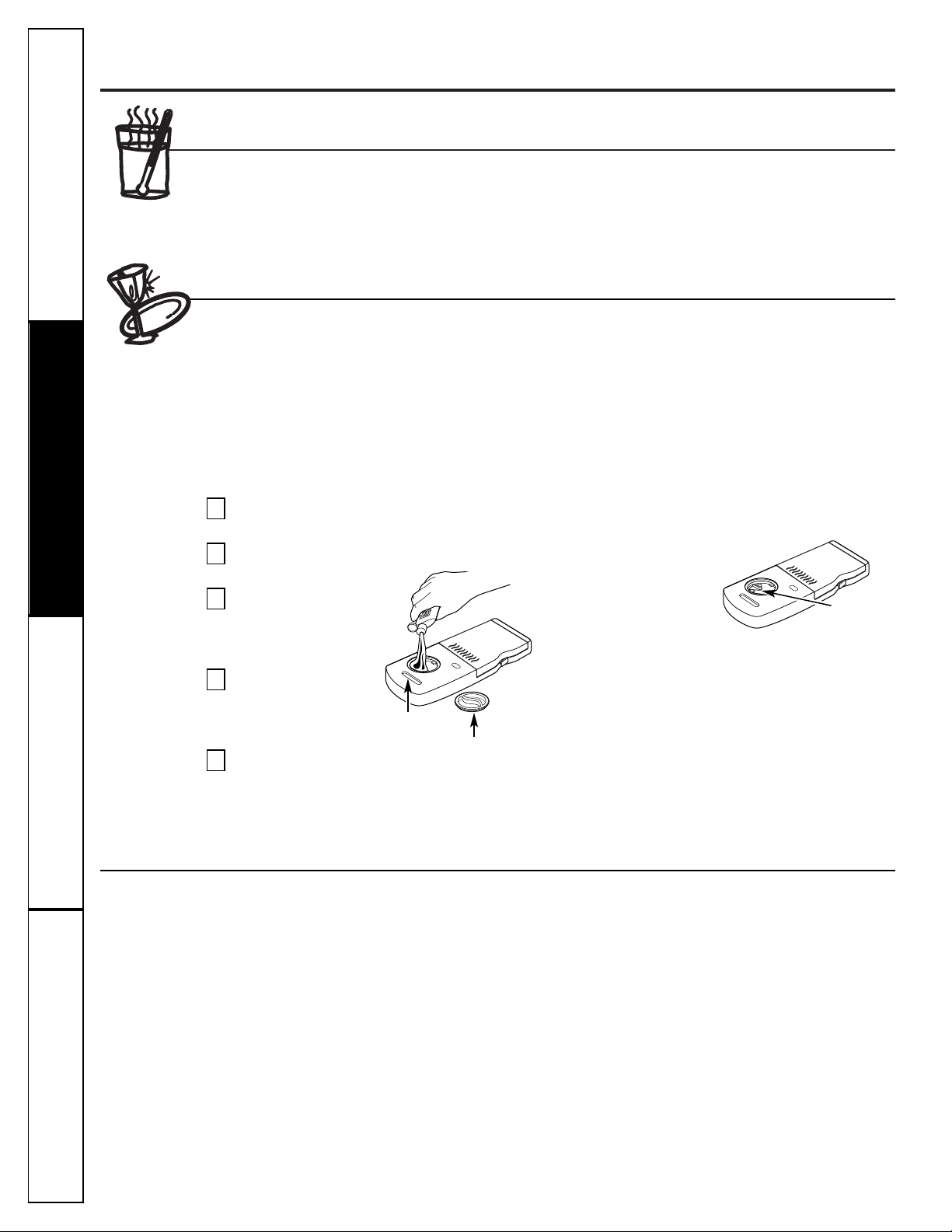

The rinse agent dispenser holds 3.5 oz. of rinse agent . Under normal conditions, this will last approximately one month. Try to keep it full, but do not overfill.

Make sure the dishwasher door is fully open.

Turn the dispenser cap to the left and lift it out.

Add rinse agent until the indicator window looks full.

Clean up any spilled rinse agent with a damp cloth.

Replace the dispenser cap.

Rinse Aid Setting

The amount of rinse agent released into the final wash can be adjusted. The factory setting is at the midpoint. If there are rings of calcium (hard water) spots on dishes, try a higher setting. If there is foaming, use a lower setting.

To adjust the setting:

Remove the dispenser cap; then turn the adjuster counterclockwise to increase the amount of rinse agent or clockwise to reduce the amount of rinse agent dispensed.

Rinse agent adjuster

■ No prerinsing of normal food soil is required.

■ Scrape off hard soils, bones, toothpicks, skins and

seeds.

■ Remove large quantities of any remaining food.

■ Remove leafy vegetables, meat trimmings and

excessive amounts of grease or oil.

Dish Preparation Prior to Loading

Indicator window

Dispenser cap

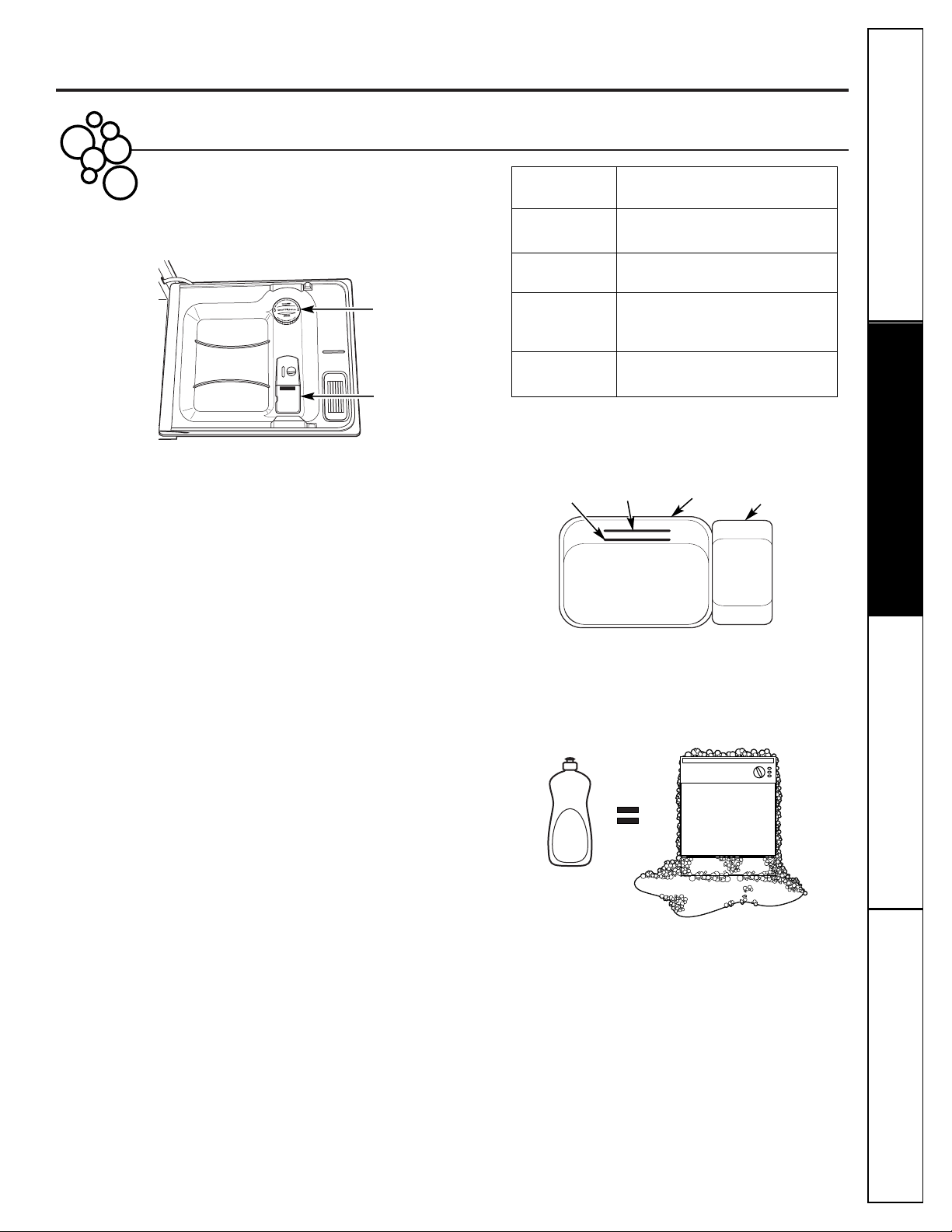

Your dishwasher comes equipped with an automatic liquid dishwasher detergent dispenser (SmartDispenseTM) and a manual dispenser. You can use either of these dispensers but don’t use both at the same time.

The cover of the manual dispenser will open during the wash cycle. If you are using SmartDispenseTM, leave the cover of the manual dispenser open before starting the cycle.

For the manual dispenser, Cascade®and Electrasol

Automatic Dishwashing Detergents have been approved. You may use powder, liquid, gel or tablets in this dispenser. It is important to keep powdered detergents and tablets fresh and dry so they don’t lose effectiveness. Therefore, do not put detergent into the manual dispenser until you are ready to wash dishes.

Filling Manual Detergent Dispenser

The amount of detergent to use depends on whether your water is hard or soft. With hard water, you need extra detergent. With soft water, you need less detergent.

Protect your dishes and dishwasher by contacting your water department and asking how hard your water is. Twelve or more grains is extremely hard water. A water softener is recommended. Without it, lime can build up in the water valve, which could stick while open and cause flooding. Too much detergent with soft water can cause a permanent cloudiness of glassware, called etching.

Use the information in the table below as a guide to determine the amount of automatic dishwasher detergent to place in the dispenser. You may use powder, liquid, gel or tablets in this dispenser.

When using automatic dishwashing detergent tablets, simply place one tablet in the main wash section and close the cover.

For heavily soiled loads, use a bit more detergent. For water temperatures above 140°F, use a bit less detergent.

For heavily soiled loads, use the Pots and Pans or Heavy Wash cycle.

DO NOT USE HAND DISH DETERGENT

NOTE: Using a detergent that is not specifically designed

for dishwashers will cause the dishwasher to fill with suds. During operation, these suds will spill out of the dishwasher vents, covering the kitchen floor and making the floor wet.

Because so many detergent containers look alike, store the dishwasher detergent in a separate space from all other cleaners. Show anyone who may use the dishwasher the correct detergent and where it is stored.

While there will be no lasting damage to the dishwasher, your dishes will not get clean using a dishwashing detergent that is not formulated to work with dishwashers.

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

ge.com

Soft

Medium

Soft

Medium

Hard

Extremely

Hard

Manual Detergent Dispenser

Detergent Cups to Fill

Fill cup to soft line (1/3 full)

Fill cup to medium soft line (2/3 full)

Fill cup to medium hard line

(completely full)

Fill both main wash cup

and pre wash cup

Number

of Grains

Less than 4

4 to 8

8 to 12

Greater than 12

SmartDispense

Manual Detergent Dispenser

PRE

MAIN WASH

WASH

This dishwasher may have SmartDispenseTM, a feature which automatically dispenses liquid automatic dishwasher detergent into each cycle based on soil level and water hardness.

To utilize the SmartDispenseTMDetergent Dispenser, it must first be filled. Although any liquid or gel automatic dishwashing detergent can be used in the SmartDispenseTMsystem, all liquid or gel automatic dishwashing detergents are not the same. Most automatic dishwashing detergents are chlorine bleach-based (such as Cascade®or Electrasol®) while others contain enzymes (such as Cascade Complete®).

Do not mix any chlorine bleach-based automatic dishwashing detergent with any dishwashing detergent containing enzymes as this could cause the detergents to congeal and lead to blockage of the SmartDispenseTMsystem. Check the detergent

label to determine if the detergent is chlorine bleach-based or one that contains enzymes. It is recommended that the same type of detergent be used when refilling your SmartDispenseTMsystem.

CAUTION!Absolutely do not add

powder detergent, tablets or any liquid soap or detergent normally used for washing hands or dishes in a sink. Only use liquid or gel detergent specifically designed for use in an automatic dishwasher.

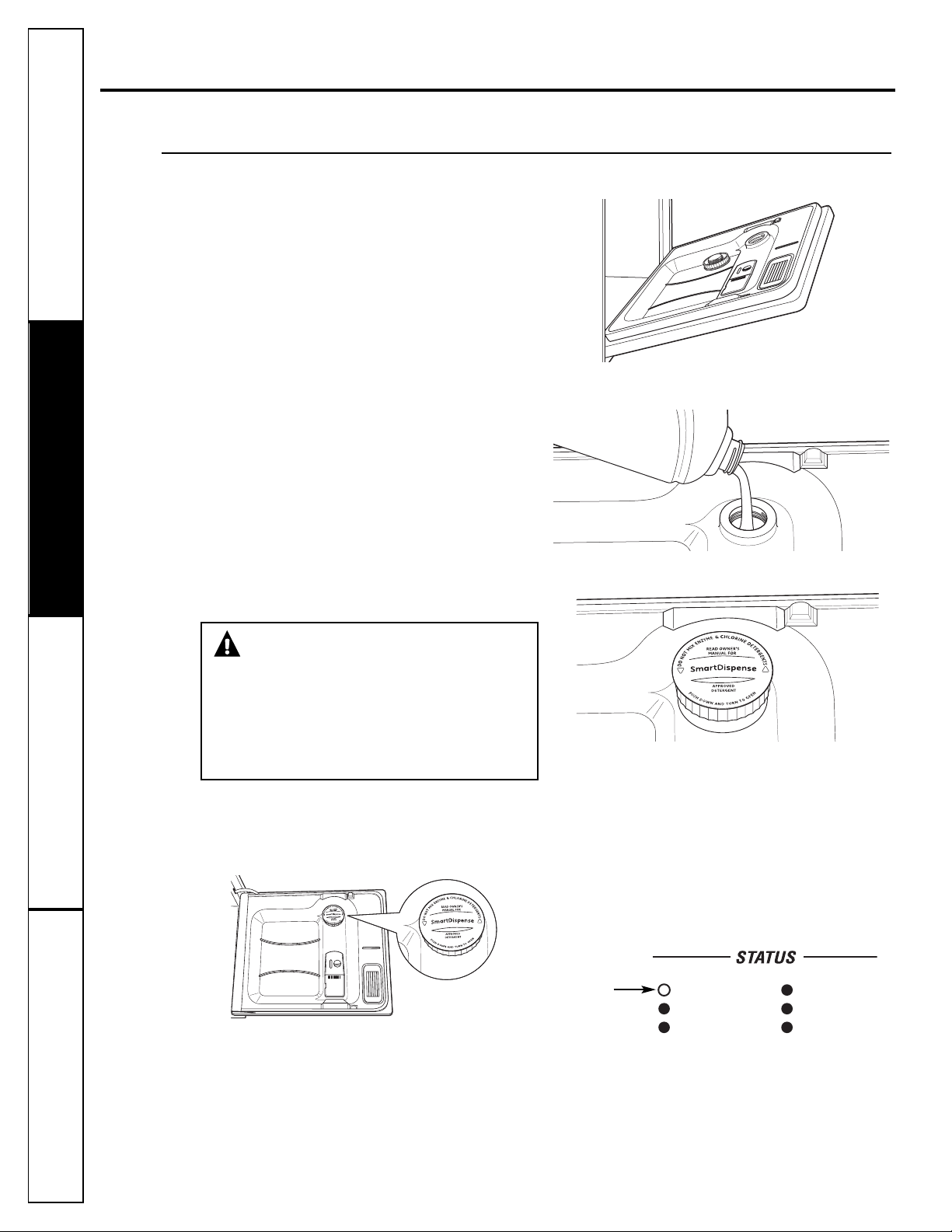

To open the dispenser for filling, push down and turn the blue cap counterclockwise until the cap is loose. Lift cap off.

Set the door at a comfortable angle to fill the dispenser.

Aim the detergent bottle at the opening in the door and begin to fill.

The dispenser will hold 45 oz of liquid dishwasher detergent (standard size bottle).

When full, replace the cap and turn clockwise until tight. If residue is left on the door, it will be washed off in the next cycle.

An indicator light will turn on to notify you when the dispenser needs to be filled again. After filling, the light will not turn off until the door is closed. A full dispenser will last approximately 1 month for the average user.

NOTE: If you are not using SmartDispenseTMand you want to turn the LOW DETERGENT LED light off, press the ADDED HEAT pad 5 times within 3 seconds. You will hear 3 beeps; then the light will go off. You can turn the light back on by pressing the ADDED HEAT pad 5 times within 3 seconds.

Operating Instructions Safety Instructions

Consumer Support

Troubleshooting Tips

Using the dishwasher.

SmartDispense

Detergent Dispenser (some models)

Light will turn on when time to refill

Turn clockwise.

(appearance may vary)

SmartDispense

LOW DETERGENT

ENSING

ASHING

RYING

ANITIZED

LEAN

Prior to the first use, the dishwasher needs to be calibrated for water hardness. Please follow directions below to calibrate the dishwasher to the hardness of your tap water.

Determine the Hardness of Your Tap Water

In the bag that contained these instructions, you should find a water hardness test strip package. Read the instructions on the package, remove the test strip and follow the instructions to determine the hardness level of your tap water. You will use this information to calibrate your dishwasher to dispense the optimal amount of detergent.

Water hardness test strip indication

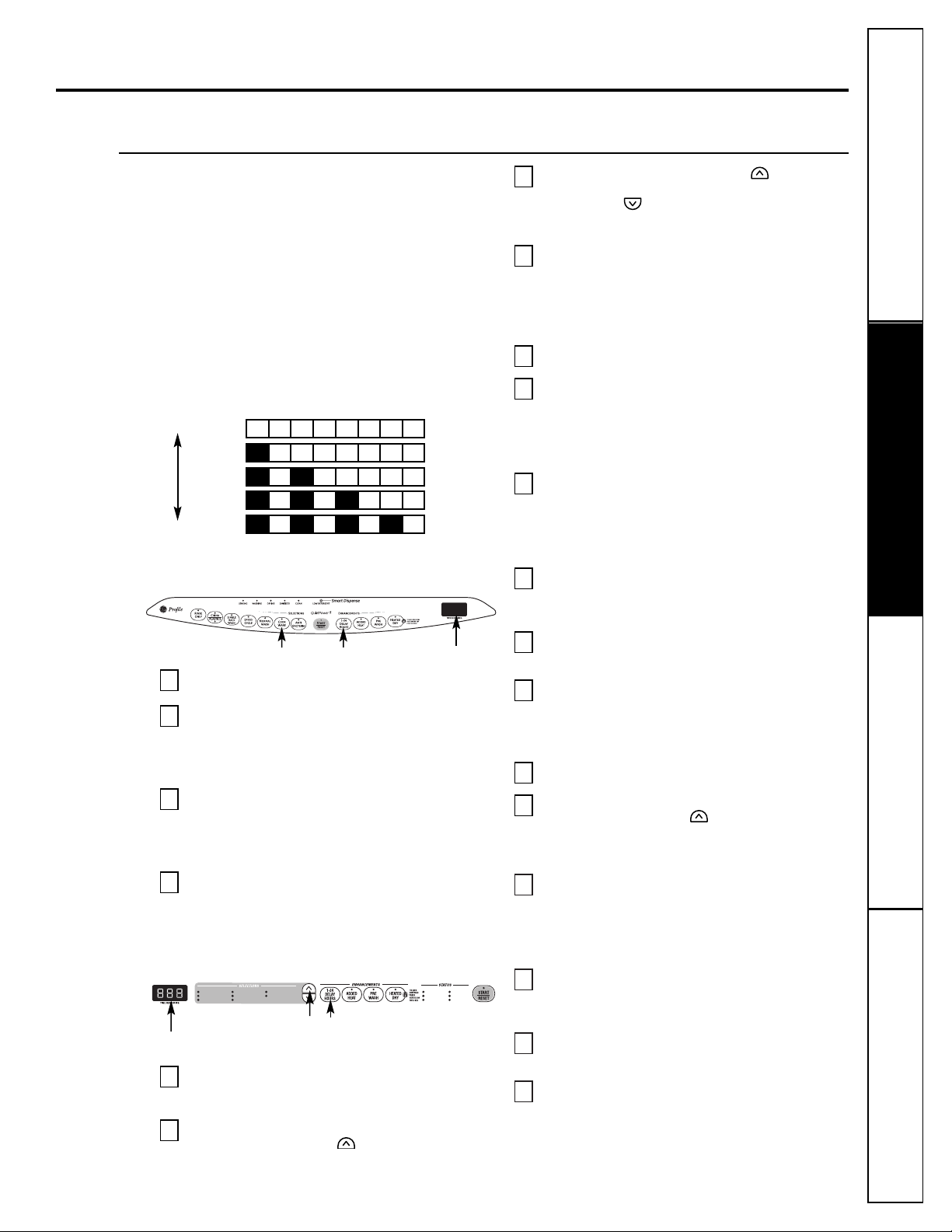

Calibration of 12-Button Front-Control Models With 3-Digit Display

Close and latch the door (lights on, dishwasher not running).

Press the COOKWARE and DELAY HOURS pads at the same time for 3 seconds. The display will show a number from 1 to 5. This is the water hardness value currently set.

Press the COOKWARE pad to raise the value or the NORMAL pad to lower the value. Set the water hardness value to the number determined with the test strip and table above.

Once the water hardness is set, press the START/RESET pad to save the setting and return the dishwasher to normal operation.

Calibration of 7-Button Front-Control Models With 3-Digit Display

Open the door and touch a pad (other than START) to turn lights on.

Press the “Up” Arrow Pad and DELAY HOURS pad at the same time for 3 seconds. The display will show a number from 1 to 5. This is the water hardness value currently set.

Press the “Up” Arrow Pad to raise the value or the “Down” Arrow Pad to lower the value. Set the water hardness value to the number determined with the test strip and table at the left .

Once the water hardness is set, press the START/RESET pad to save the setting and return the dishwasher to normal operation.

Calibration of Models Without a 3-Digit Display

Front controls

Close and latch the door (lights on, dishwasher not running).

Press the COOKWARE and DELAY HOURS pads together for 3 seconds. All lights will light up and you will hear 1 to 5 beeps. The number of beeps indicates the current hardness value.

To change the setting, press the DELAY HOURS pad the number of times that corresponds to the water hardness value determined at the left. The control will beep each time you press the pad.

Once finished pressing the pad, you will hear a confirmation with beeps for the number of times you pressed the pad.

If the number of beeps is not what you desire, start pressing the DELAY HOURS pad again to reenter a new water hardness level.

Once the water hardness is set, press the START/RESET pad to save the setting and return the dishwasher to normal operation.

Top controls

Open the door and touch a pad to turn lights on.

Press the “Up” Arrow Pad and DELAY HOURS pad at the same time for 3 seconds. All lights will light up and you will hear 1 to 5 beeps. The number of beeps indicates the current hardness value.

To change the setting, press the DELAY HOURS pad the number of times that corresponds to the water hardness value determined at the left. The control will beep each time you press the pad.

Once finished pressing the pad, you will hear a confirmation with beeps for the number of times you pressed the pad.

If the number of beeps is not what you desire, start pressing the DELAY HOURS pad again to reenter a new water hardness level.

Once the water hardness is set, press the START/RESET pad to save the setting and return the dishwasher to normal operation.

NOTE: You should recalibrate the dishwasher control if water conditions change; for example, if a water softener system is added or removed from your home.

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

ge.com

SmartDispenseTMDetergent Dispenser Water Hardness Calibration

0 RED

1 RED

2 RED

3 RED

4 RED

SOFT

HARD

Value to Enter

into Dishwasher

Press at the same time.

Display

Press at the same time.

Display

SINGLE RACK WASH

SPEED CYCLE

NTI-BACTERIAL

OOKWARE

NORMAL

RINSE ONLY

CHINA CYCLE PLASTIC CYCLE

Smart Dispense

LOW DETERGENT

RYING

ENSING

ANITIZED

ASHING

LEAN

Operating Instructions Safety Instructions

Consumer Support

Troubleshooting Tips

Loading the dishwasher racks.

For best dishwashing results, follow these loading guidelines. Features and appearance of racks and silverware baskets may vary from your model.

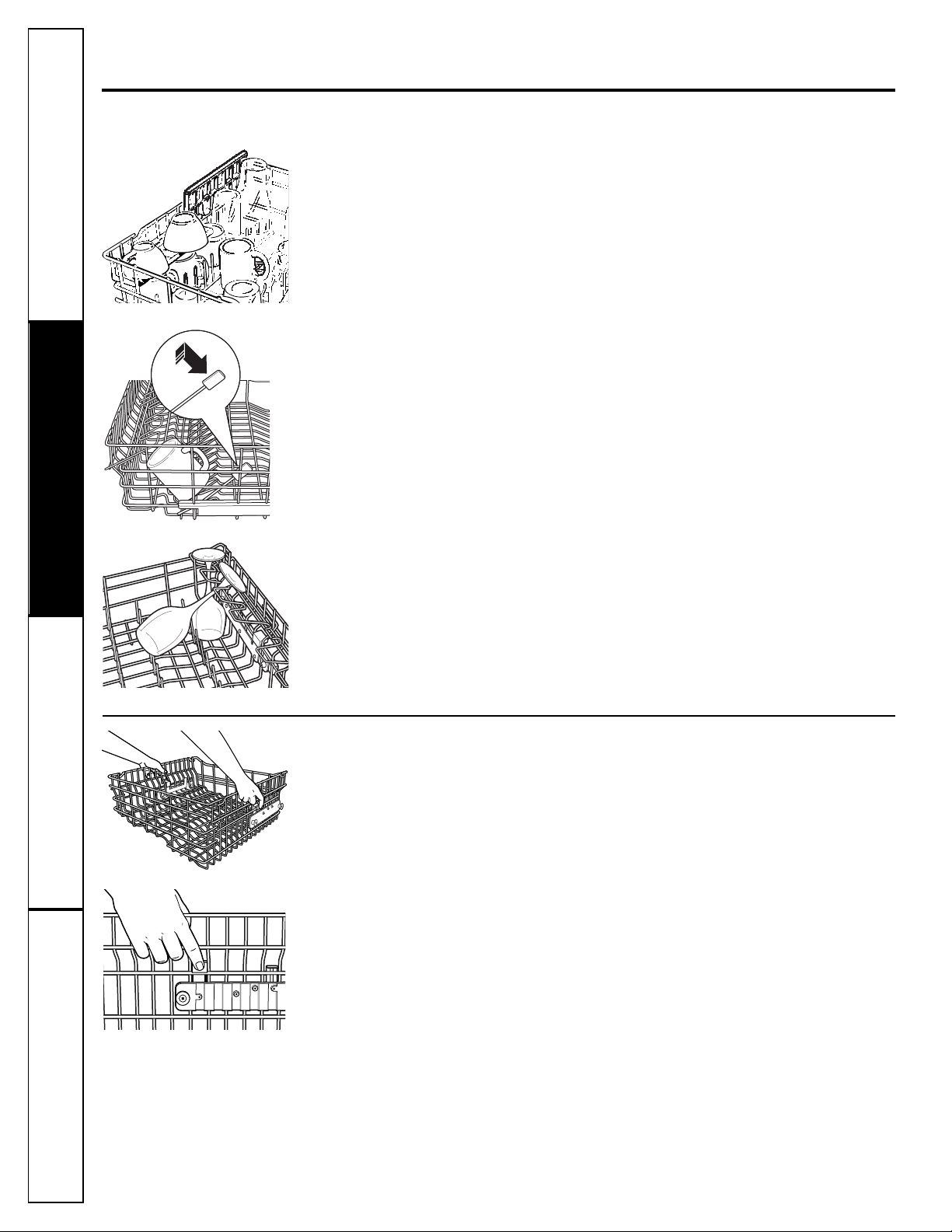

Upper Rack

Although the upper rack is primarily for glasses, cups and saucers, pots and pans can be placed in this rack for effective cleaning. Cups and glasses fit best along the sides. This is also a secure place for dishwasher plastics.

The utility shelf (some models) may be placed in the up or down position to add flexibility. A wine glass holder (some models) secures wine glasses for best washability.

Some models have contoured metal cup shelves that can secure up to 12 wine glasses (as shown).

Because wine glasses come in various sizes, after loading, slowly push in the rack to make sure they will clear the top of the dishwasher.

Some models have an Angled Rack System, which allows you to angle your dishes, such as coffee mugs, for better cleaning and quicker drying. To position the tines, pull the lever forward then drop the tines into position, then release the lever.

The upper rack is good for all kinds of odd-shaped utensils. Saucepans, mixing bowls and other items should be placed face down. Fold-down tines (on some models) provide flexibility for extra-large and hardto-fit items.

Secure larger dishwasher-safe plastics over 2 tines when possible.

Make sure small plastic items are secure so they can’t fall onto the heater.

Be sure that items do not protrude through the bottom of the rack and block rotation of the middle spray arm. This could result in poor wash performance for items in the upper rack.

Check to make sure that no items will block rotation of the wash arm.

NOTE:

The Single Rack Wash selection, on models with this feature, washes the upper rack only. If you use this feature, do not load items in the lower rack.

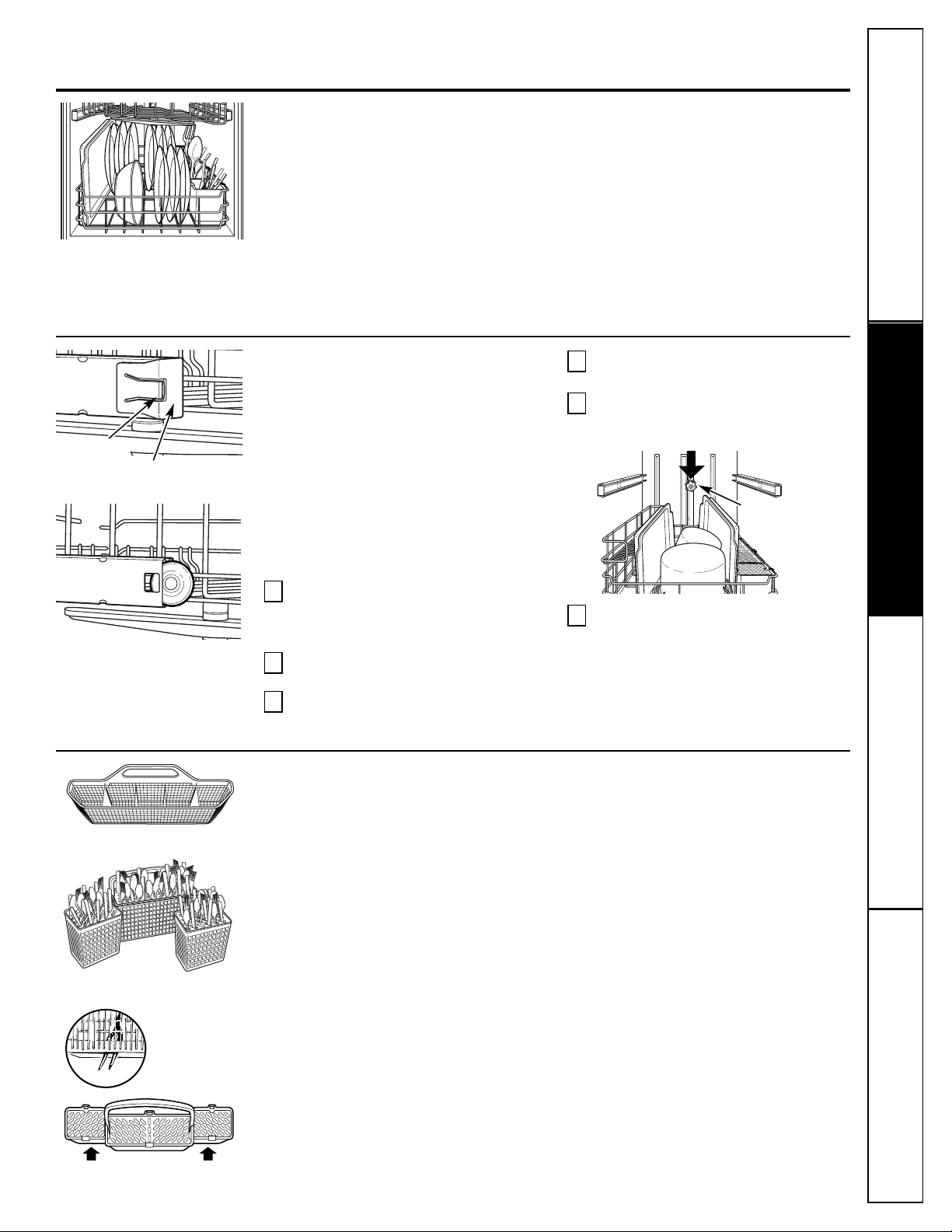

Adjustable Upper Rack

The standard position of your adjustable rack is “up” which allows for maximum clearance for your taller items in the lower rack. If you have taller wine glasses, tumblers or other items to place in the upper rack, you may want to adjust the rack to the lower position.

To lower the rack, support the weight of the rack with your hands as shown and press both finger pads about 1/4″ toward the inside of the rack as indicated and guide the rack down to its lower position.

To raise the rack to the “up” position, pull up on the center of the rack side frame until the rack locks into place.

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

Remove end cap

Press thumb tab out

ge.com

Lower Rack

The lower rack is best used for plates, saucers and cookware. Large items such as broiler pans and baking racks should go along the left-hand side. Load platters, pots and bowls along the sides, in corners or in the back. The soiled side of items should face the center of the rack. If necessary, oversized glasses and mugs can be placed in the lower rack to maximize loading flexibility.

Also, be careful not to let a portion of an item such as a pot or dish handle extend through the bottom rack. This could block the wash arm and cause poor washing results.

Fold-down tines (on some models) provide flexibility for extra-large and hard-to-fit items. The tines may be left in the up position or folded down to customize the lower rack.

Removing the Upper Rack

You can remove the upper rack to allow space for large items in the lower rack.

NOTE: Do not use the SINGLE RACK WASH cycle (some models) with this feature. Single Rack Wash cycle is for upper rack wash only. The recommended cycle for lower rack only use is the COOKWARE cycle.

To remove the upper rack:

Press thumb tab out and remove the front end caps on each side of the rail.

Pull the rack straight out and off the rails.

Replace the end caps.

Push the rails all the way back into the dishwasher.

Slide the shower nozzle attachment (located in the bag that contained these instructions) over the spout .

Then fill the lower rack and begin your cycle.

NOTE: Don’t forget to remove the shower nozzle attachment before you replace the upper rack.

Shower nozzle attachment

Don’t let any item extend through bottom.

To remove end baskets, grasp the basket at opposite corners and slide apart.

Three-piece basket (on some models)

One-piece basket (on some models)

Silverware Basket

To load flatware, simply push the adjustable handle to either side (on some models). Put flatware in the removable basket with fork and knife handles up to protect your hands. Place spoons in the basket with handles down. Mix knives, forks and spoons so they don’t nest together. Distribute evenly. Small plastic items, such as measuring spoons and lids from small containers should go in the bottom of the silverware basket with the silverware on top.

The one-piece silverware basket (on some models) can be placed in the front, right side or back of the lower rack.

A variety of options is available regarding the three-piece silverware basket (on some models) in your dishwasher. The complete basket is designed to fit on the right side of the lower rack. Additionally, each end of the basket is removable to add loading flexibility to accommodate flatware and lower rack capacity needs.

The lids of both end and middle baskets (on some models) can be closed to contain small items. Long items can be placed on the utility shelf in the upper rack.

Operating Instructions Safety Instructions

Consumer Support

Troubleshooting Tips

Loading the dishwasher racks.

Extra Rack Features (on some models)

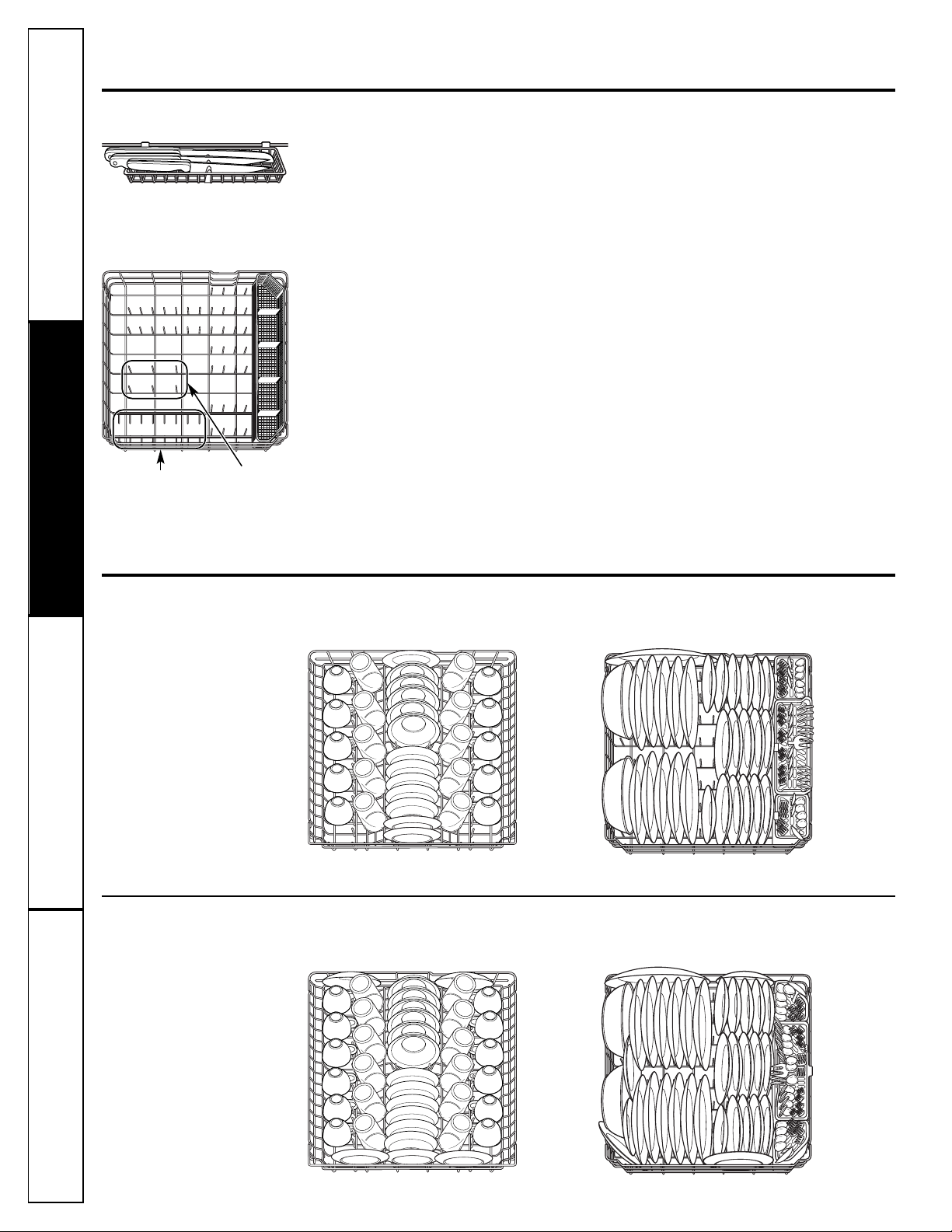

Cutlery Tray

The cutlery tray holds up to 4 large knifes such as a carver, chef’s knives, bread knife, etc., that are too tall to fit in the silverware basket.

Hook the tray onto the rear of the upper rack. Lay the knives between the guides (as shown).

Bowl Tines

The special large-bowl tines in the lower rack add flexibility to your loading pattern. They are useful for serving bowls or other large bowls.

To use the bowl tines, fold down the 2 rows of flex tines in front of the bowl tines and load bowls just as you would in the upper rack.

Loading place settings…

Follow these guidelines for loading 10 place settings. Features and appearance of racks and silverware baskets may vary from your model.

NOTE:

Silverware should be individually loaded into the slots on the silverware basket lid.

Upper Rack—10 place settings Lower Rack—10 place settings

Follow these guidelines for loading 12 place settings. Features and appearance of racks and silverware baskets may vary from your model. NOTE: Silverware should be individually loaded into the slots on the silverware basket lid.

Upper Rack—12 place settings Lower Rack—12 place settings

These tines fold down

Large-bowl tines

Consumer Support

Troubleshooting TipsOperating InstructionsSafety Instructions

Caring for the dishwasher. ge.com

Cleaning the Exterior Door Panel

Before cleaning the front panel, make sure you know what type of panel you have. Refer to the last two letters of your model number. You can locate your model number on the left-hand tub wall just inside the door. If your model number ends with BB, CC, WW, SA or BG, then you have a Painted Door panel. If your model number ends with SS, then you have a Stainless Steel Door panel. If your model number ends with CS, then you have a CleanSteel panel.

Follow the instructions below for cleaning the door panel for your specific model.

Painted Door Panel (model numbers ending in BB–black, CC–bisque, WW–White, SA–silver metallic or BG–graphite black)

Use a clean, soft, lightly dampened cloth, then dry thoroughly. You may also use a good appliance wax or polish.

Stainless Steel Door Panel (model numbers ending in SS)

The stainless steel panels can be cleaned with Stainless Steel Magic or a similar product using a clean, soft cloth. Do not use appliance wax, polish, bleach or products containing chlorine on Stainless Steel doors.

You can order Stainless Steel Magic #WX10X15 through GE Parts by calling

800.626.2002.

CleanSteel Door Panel (model numbers ending in CS)

Use a clean, soft, lightly dampened cloth, then dry thoroughly. Do not use appliance wax, polish or any chemical agent on CleanSteel doors.

Do not wipe the dishwasher with a soiled dish cloth or wet towel. These may leave a residue. Do not use scouring pads or powdered cleaners because these products can scratch the finish.

Cleaning the Control Panel

To clean the control panel, use a lightly dampened cloth. Then dry thoroughly.

Check the air gap any time your dishwasher isn’t draining well.

An air gap protects your dishwasher against water backing up into it if a drain clogs. The air gap is not a part of the dishwasher. It is not covered by your warranty. Not all plumbing codes require air gaps, so you may not have one.

The air gap is easy to clean.

Turn off the dishwasher and lift off the cover.

Remove the plastic cap and clean with a toothpick.

Air gap

Does Your Dishwasher Have an Air Gap?

Stainless Steel Interior—Tub and Inner Door

The stainless steel used to make the dishwasher tub and inner door provides the highest reliability available in a GE dishwasher. If the dishwasher tub or inner door should be scratched or dented during normal use, they will not rust or corrode. These surface blemishes will not affect their function or durability.

If your dishwasher is left in an unheated place during the winter, ask a service technician to:

Cut off electrical power to the dishwasher. Remove fuses or trip circuit breaker.

Turn off the water supply and disconnect the water inlet line from the water valve.

Drain water from the water inlet line and water valve. (Use a pan to catch the water.)

Reconnect the water inlet line to the water valve.

Protect Against Freezing

+ 33 hidden pages
