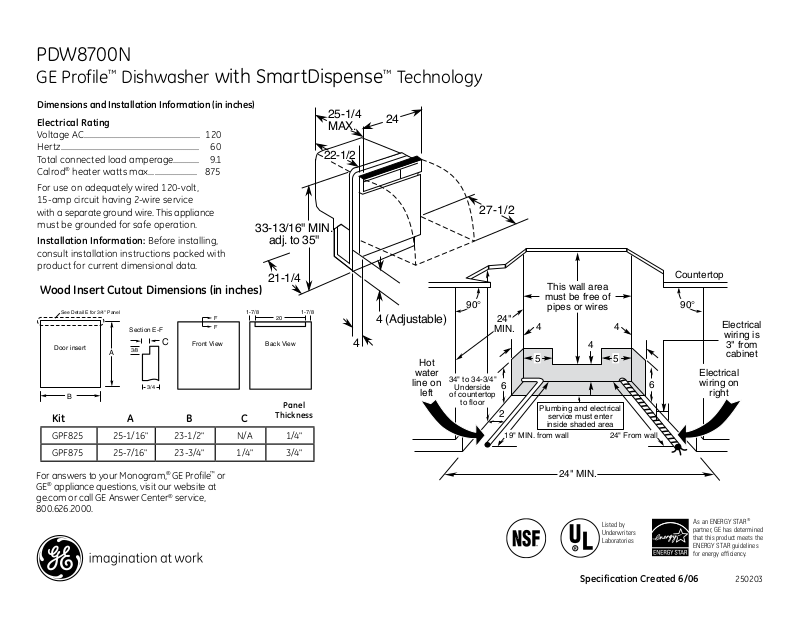

PDW8700N
GE Profile™ Dishwasher with SmartDispense™ Technology
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 9.1
Calrod® heater watts max........................ 875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
Wood Insert Cutout Dimensions (in inches)
Kit A B C
GPF825 25-1/16" 23-1/2" N/A 1/4"
GPF875 25-7/16" 23-3/4" 1/4" 3/4"
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Panel
Thickness
Listed by
Underwriters
Laboratories
Specification Created 6/06
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
250203
PDW8700N
GE Profile™ Dishwasher with SmartDispense™ Technology
Features and Benefits
• Full-Length Flat Door (CustomStyle™ panel kit available) - Accepts custom panels to
blend almost seamlessly with the kitchen cabinets
SmartDispense™ Technology - Holds an entire bottle of liquid automatic dishwasher
•
detergent, dispensing the right amount based on water hardness and soil levels to get
dishes incredibly clean
Giant Tub with Maximum-Capacity Nylon Pearlescent™ Racking - Washes up to 16 place
•
settings at once in long-lasting, durable racks that enhance the stainless interior
100% Fold-Down Tines and Adaptable Bowl Tines in Lower Rack - Flip up to hold bowls,
•
or flip down to provide maximum loading flexibility in the lower rack
Countdown Display with 1-24 Hour Delay Start - Signals remaining cycle time and starts
•
the dishwasher when no one's home or during off peak hours when utilities are at
reduced rates
QuietPower™ 5 Sound Package - Features an enhanced sound-deadening system to
•
seal in sound, keeping the kitchen remarkably quiet
Plastics Cycle - Optimizes wash and dry temperatures to protect plastics
•
• Model PDW8700NWW - White on white
• Model PDW8700NBB - Black on black
