GE PDW8700L Specification
R
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2
Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34" to 34-3/4"
Underside
of countertop
to floor
5 5
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
24
25-1/4
MAX.
21-1/4
4
4 (Adjustable)
33-13/16" MIN.
adj. to 35"
27-1/2
22-1/2
B
See Detail E for 3/4" Panel
Detail E for 3/4 panel only
Door insert
A
Back ViewFront View
F
F
1-7/8 1-7/8
20
Section F-F
C
3/8
3/4
Detail E for 3/4 panel only
Back ViewFront View
F
F
1-7/8 1-7/8
20
Section F-F
C
3/8
3/4

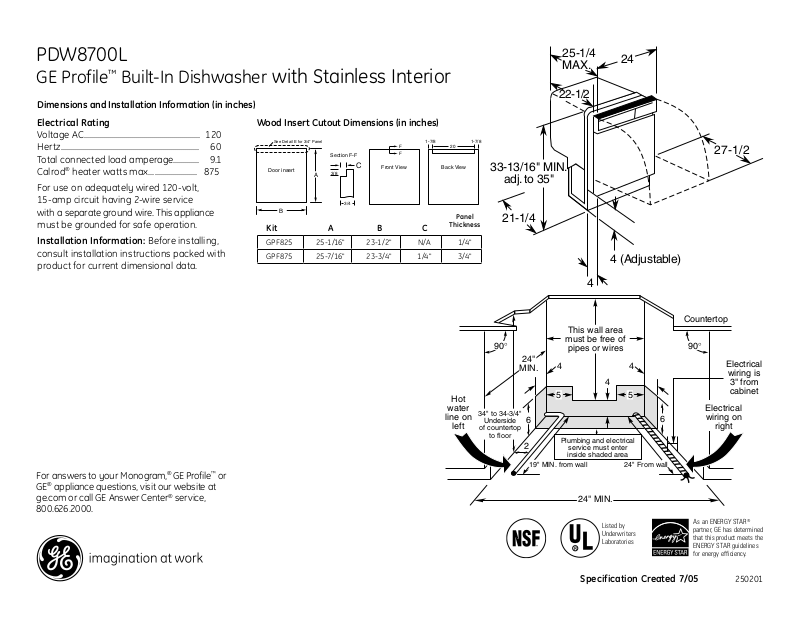

PDW8700L
GE Profile™ Built-In Dishwasher with Stainless Interior
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 9.1
Calrod® heater watts max........................ 875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
Wood Insert Cutout Dimensions (in inches)
Kit A B C
GPF825 25-1/16" 23-1/2" N/A 1/4"
GPF875 25-7/16" 23-3/4" 1/4" 3/4"
Panel
Thickness
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 7/05
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
250201
PDW8700L
GE Profile™ Stainless Built-In Dishwasher
Features and Benefits
• Full-Length Flat Door ( CustomStyle panel kit available) - Accepts custom panels to blend
almost seamlessly with the kitchen cabinets
• 6-Level BrilliantClean™ Wash System with CleanSensor™ - Scrubs dishes clean with
three full-sized wash arms, six levels of wash action and a sensor that continually
monitors and adjusts the wash cycle for a superior clean
• Giant Tub with Maximum-Capacity Nylon Pearlescent™ Racking - Washes up
to 16 place settings at once in long-lasting, durable racks that enhance the
stainless interior
• Countdown Display with 1-24 Hour Delay Start - Signals remaining cycle time and
starts the dishwasher when no one’s home or during off peak hours when utilities
are at reduced rates
• 100% Fold-Down Tines and Adaptable Bowl Tines in Lower Rack - Flip up to hold
bowls, or flip down to provide maximum loading flexibility in the lower rack
• QuietPower™ 5 Sound Package - Features an enhanced sound-deadening system to
seal in sound, keeping the kitchen remarkably quiet
• Plastics Cycle - Optimizes wash and dry temperatures to protect plastics
• Four-Position Adjustable/Removable Upper Rack - Pulls out completely or moves up,
down and diagonally for maximum loading flexibility
• Add-A-Dish Status Light - Illuminates when enough time remains in the cycle to get
late added dishes clean
• Model PDW8700LWW - White on white
• Model PDW8700LBB - Black on black
Specification Created 7/05
250201
