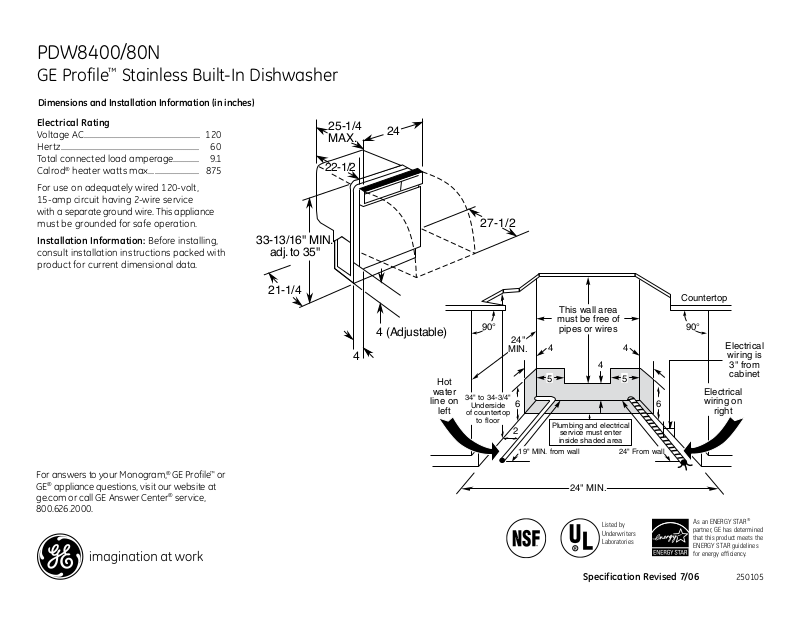

GE PDW8400N, PDW8480N Specification

PDW8400/80N

This wall area

must be free of

pipes or wires

Countertop

Hot

water

line on

left

Plumbing and electrical

service must enter inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

34" to 34-3/4"

Underside

of countertop

to floor

5 5

90°

Electrical wiring on

right

Electrical

wiring is

3" from cabinet

25-1/4 MAX.

21-1/4

4 (Adjustable)

33-13/16" MIN.

adj. to 35"

27-1/2

22-1/2

GE Profile™ Stainless Built-In Dishwasher

Dimensions and Installation Information (in inches)

Electrical Rating

Voltage AC.......................................................... 120

Hertz..................................................................... 60

Total connected load amperage............. 9.1

Calrod® heater watts max......................... 875

For use on adequately wired 120-volt, 15-amp circuit having 2-wire service with a separate ground wire. This appliance must be grounded for safe operation.

Installation Information: Before installing, consult installation instructions packed with product for current dimensional data.

For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service,

800.626.2000.

Listed by Underwriters Laboratories

Specification Revised 7/06

As an ENERGY STAR® partner, GE has determined that this product meets the ENERGY STAR for energy efficiency.

guidelines

250105

PDW8400/80N

GE Profile™ Stainless Built-In Dishwasher

Dimensions and Installation Information (in inches)

Features and Benefits

• 6-Level BrilliantClean™ Towerless Wash System with CleanSensor™ - Scrubs dishes clean with three full-sized wash arms, six levels of wash action and a sensor that continually monitors and adjusts the wash cycle for a superior clean

• Giant Tub with Maximum-Capacity Nylon Pearlescent™ Racking - Washes up to 16 place settings at once in long-lasting, durable racks that enhance the stainless interior

• Four-Position Adjustable/Removable Upper Rack - Pulls out completely or moves up, down and diagonally for maximum loading flexibility

• Countdown Display with 1-9 Hour Delay Start - Signals remaining cycle time and makes it easier than ever to wash dishes at any hour, taking advantage of reduced energy rates or washing dishes even when the family is asleep

• SpeedCycle™ Selection - Cuts the length of the normal cycle in half, effectively washing and drying lightly soiled dishes in about 45 minutes or less

• Two Utility Shelves with StemSafe™ in Upper Rack - Two shelves flip down, providing an extra level for stacking items like teacups or odd-shaped utensils; StemSafe™ design holds wine glasses securely in place

• Light-Touch Electronic Controls with 6 Status Lights - Provide a smooth sleek surface and requires only a gentle touch to operate

• Model PDW8400NWW – White on white

• Model PDW8400NBB – Black on black

• Model PDW8480NSS – Stainless steel (shown)

Specification Revised 7/06

250105
