GE PDW7900N, PDW7980N Specification
PDW7900/80N
GE Profile™ Dishwasher with SmartDispense™ Technology

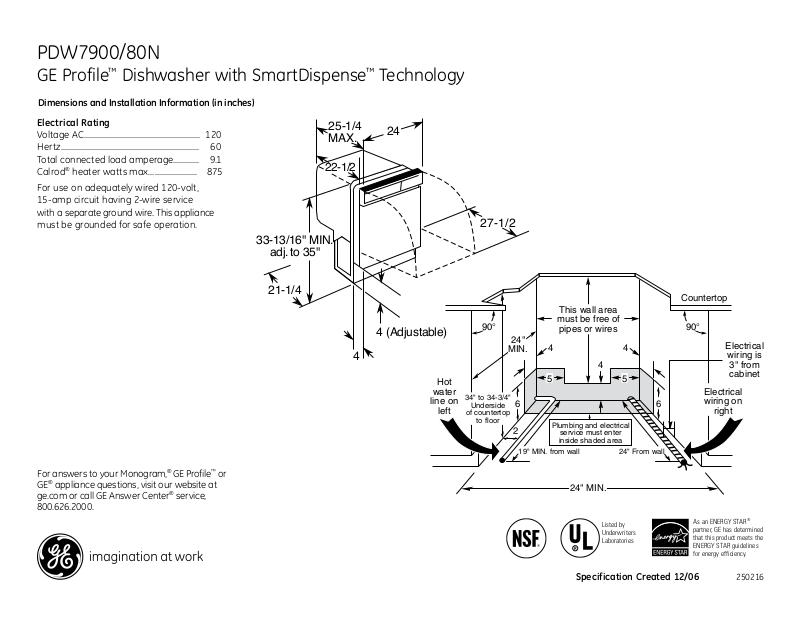

Dimensions and Installation Information (in inches)
Electrical Rating |
|
25-1/4 |
24 |
Voltage AC |
120 |
MAX. |
|
|
|||
Hertz..................................................................... |
60 |
|
|
Total connected load amperage............. |
9.1 |
22-1/2 |
|
Calrod® heater watts max........................ |
875 |
|
|
For use on adequately wired 120-volt, |
|
|
|
15-amp circuit having 2-wire service |
|
|
|
with a separate ground wire. This appliance |
|
27-1/2 |
|
must be grounded for safe operation. |
|
|
|
33-13/16" MIN. adj. to 35"
21-1/4
4 (Adjustable)
4
Hot water line on left
|
|
|
This wall area |
90° |
|
|
must be free of |
|
|
pipes or wires |
|
|
24" |
4 |
4 |
MIN. |
|||
|
|
|
4 |
|
|
5 |
5 |
34" to 34-3/4" |
6 |
|
6 |
Underside |
|
||
of countertop |
|
|
|
to floor |
|
Plumbing and electrical |
|
|
2 |
||
|
|
service must enter |
|
|
|
|
inside shaded area |
19" MIN. from wall |
24" From wall |
Countertop
90°
Electrical wiring is 3" from cabinet
Electrical wiring on right
For answers to your Monogram,® GE Profile™ or GE® appliance questions, visit our website at ge.com or call GE Answer Center® service, 800.626.2000.
24" MIN.
Listed by
Underwriters
Laboratories
As an Energy Star® partner, GE has determined that this product meets the Energy Star guidelines
for energy efficiency.
Specification Created 12/06 |
250216 |
PDW7900/80N
GE Profile™ Dishwasher with SmartDispense™ Technology
Features and Benefits
• SmartDispense™ Technology - Holds an entire bottle of liquid automatic dishwasher detergent, dispensing the right amount based on water hardness and soil levels to get dishes incredibly clean
• Giant Tub with Maximum Capacity Nylon Racking - Holds tall and oversized items; washes 16 place settings at once
• 6-Level BrilliantClean™ Towerless Wash System with CleanSensor™ - Scrubs dishes clean with three full-sized wash arms, six levels of wash action and a sensor that continually monitors and adjusts the wash cycle for a superior clean
•QuietPower™ 4 Sound Package - Adds extra insulation to keep the kitchen extra quiet
•100% Fold-Down Tines in Lower Rack - Provides maximum loading flexibility in the lower rack
•Light-Touch Electronic Controls - Provide a smooth, sleek surface and requires only a gentle touch to operate
•SpeedCycle™ - Cuts the length of the normal cycle in half, washing and drying lightly soiled dishes effectively in 45 minutes or less
•Model PDW7900NWW – White on white
•Model PDW7900NCC – Bisque on bisque
•Model PDW7900NBB – Black on black
•Model PDW7980NSS – Stainless steel (shown)
As an Energy Star® partner, GE has determined that this product meets the Energy Star guidelines
for energy efficiency.
Specification Created 12/06 |
250216 |
