PDW7800/80N
This wall area
must be free of
pipes or wires
Countertop
4
6
Hot
water
line on
left
44
2
Plumbing and electrical
service must enter
inside shaded area
24" From wall
24" MIN.
90°
19" MIN. from wall
24"
MIN.
6
34" to 34-3/4"
Underside
of countertop
to floor
5 5
90°
Electrical
wiring on
right
Electrical
wiring is
3" from
cabinet
24
25-1/4
MAX.
21-1/4
4
4 (Adjustable)
33-13/16" MIN.
adj. to 35"
27-1/2
22-1/2

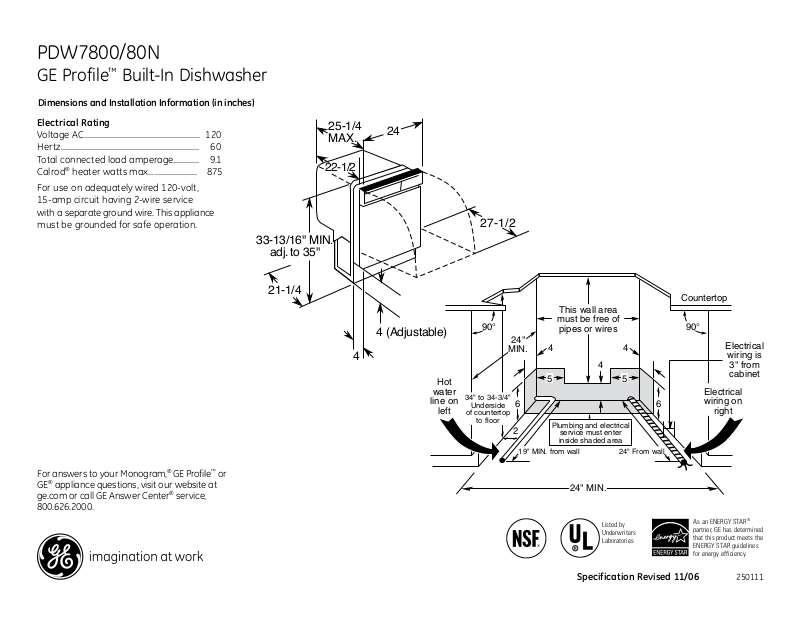

GE Profile™ Built-In Dishwasher
Dimensions and Installation Information (in inches)
Electrical Rating
Voltage AC.......................................................... 120
Hertz..................................................................... 60
Total connected load amperage............. 9.1
Calrod® heater watts max........................ 875
For use on adequately wired 120-volt,
15-amp circuit having 2-wire service
with a separate ground wire. This appliance
must be grounded for safe operation.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Revised 11/06
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
250111
PDW7800/80N
GE Profile™ Built-In Dishwasher
Features and Benefits
• Giant Tub with Maximum Capacity Nylon Racking - Holds tall and oversized
items; washes 16 place settings at once
• Four-Position Adjustable Upper Rack - Moves up, down and diagonally
for maximum loading flexibility
• Four Utility Shelves with StemSafe™ in Upper Rack - Four full-length shelves flip
down, providing an extra level for stacking items like teacups or odd-shaped
utensils; and hold wine glasses securely in place
• 100% Fold-Down Tines in Lower Rack - Provides maximum loading flexibility in
the lower rack
• Light-Touch Electronic Controls with 6 Status Lights - Provide a smooth sleek
surface and requires only a gentle touch to operate
• Countdown Display with 1-9 Hour Delay Start - Signals remaining cycle time
and makes it easier than ever to wash dishes at any hour, taking advantage of
reduced energy rates or washing dishes even when the family is asleep
• 6-Level BrilliantClean™ Towerless Wash System with CleanSensor™ - Scrubs
dishes clean with three full-sized wash arms, six levels of wash action and a
sensor that continually monitors and adjusts the wash cycle for a superior clean
• Model PDW7800NWW – White on white
• Model PDW7800NCC – Bisque on bisque
• Model PDW7800NBB – Black on black
• Model PDW7880NSS – Stainless steel (shown)
Specification Revised 11/06
