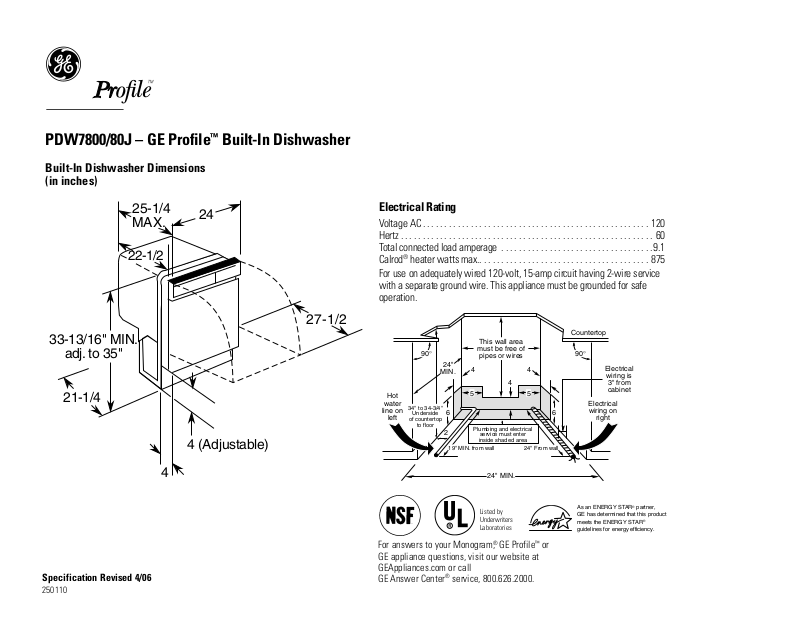

GE PDW7800J, PDW7880J Specification

PDW7800/80J – GE Profile™ Built-In Dishwasher

This wall area

must be free of

pipes or wires

Countertop

4

6

Hot

water

line on

left

44

2

Plumbing and electrical

service must enter
inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

6

34" to 34-3/4"

Underside

of countertop

to floor

5 5

90°

Electrical
wiring on

right

Electrical

wiring is

3" from
cabinet

24

25-1/4
MAX.

21-1/4

4

4 (Adjustable)

33-13/16" MIN.

adj. to 35"

27-1/2

22-1/2

Built-In Dishwasher Dimensions
(in inches)

Electrical Rating

Voltage AC . .. . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . . . . . . . 120

Hertz . .. . . . . . . . . . . . .. . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . .. . . . . . 60

Total connected load amperage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .9.1

Calrod® heater watts max. . . . . . . . . . . . . .. . . . . . . . . . . . . . . . . . . . . . . .. . 875

For use on adequately wired 120-volt, 15-amp circuit having 2-wire service
with a separate ground wire. This appliance must be grounded for safe
operation.

Specification Revised 4/06

250110

Listed by
Underwriters
Laboratories

For answers to your Monogram,® GE Profile™ or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.

As an ENERGY STAR® partner,
GE has determined that this product
meets the ENERGY STAR®
guidelines for energy efficiency.

PDW7800/80J – GE Profile™ Built-In Dishwasher

Features and Benefits

• One-Piece Color Wrap Contour Door - Provides a rich contemporary look in any kitchen

• Nylon Racks with Color-Matched Components - Matches our durable PermaTuf® materials

• Giant Tub with Maximum Capacity Nylon Racking - Holds tall and oversized items; washes

• Four-Position Adjustable Upper Rack - Moves up, down and diagonally for maximum

• 100% Fold-Down Tines in Lower Rack - Provides maximum loading flexibility in the lower rack

• QuietPower™ 4 Sound Package - Adds extra insulation to keep the kitchen extra quiet

• Countdown Display with 1-9-Hour Delay Start - Signals remaining cycle time and makes it

• 6-Level BrilliantClean™ Towerless Wash System with CleanSensor™ - Scrubs dishes clean with

for a beautiful, monochromatic interior

16 place settings at once

loading flexibility

easier than ever to wash dishes at any hour, taking advantage of reduced energy rates or
washing dishes even when the family is asleep

three full-sized wash arms, six levels of wash action and a sensor that continually monitors
and adjusts the wash cycle for a superior clean

Specification Revised 4/06

250110

• Model PDW7800JWW – White on white

• Model PDW7800JCC – Bisque on bisque

• Model PDW7800JBB – Black on black

• Model PDW7880JSS – Stainless steel (shown)

As an ENERGY STAR® partner,
GE has determined that this product
meets the ENERGY STAR®
guidelines for energy efficiency.
