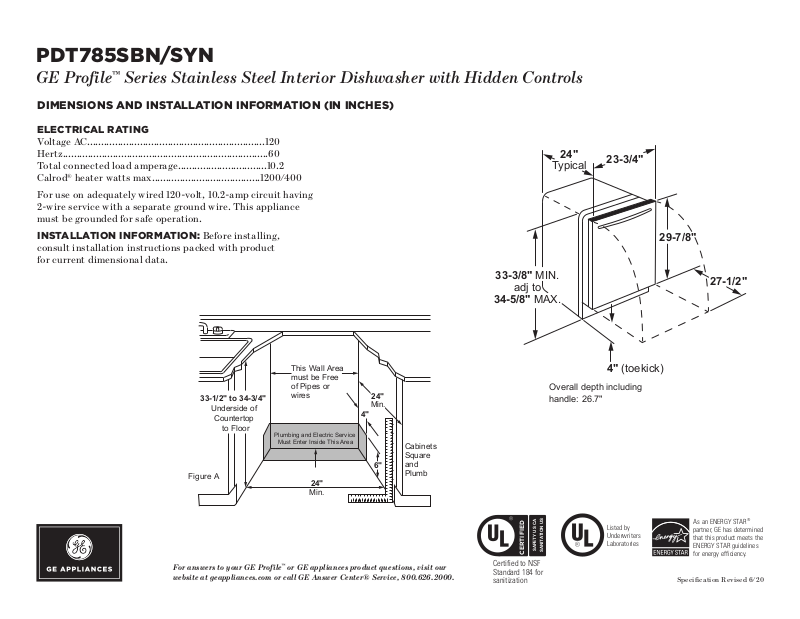

GE PDT785SBN, PDT785SYN Specification

PDT785SBN/SYN

GE Profile™ Series Stainless Steel Interior Dishwasher with Hidden Controls

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

ELECTRICAL RATING

Voltage AC................................................................120

Hertz..........................................................................60

Total connected load amperage................................10.2

Calrod® heater watts max.......................................1200/400

For use on adequately wired 120-volt, 10.2-amp circuit having
2-wire service with a separate ground wire. This appliance
must be grounded for safe operation.

INSTA L L ATION IN FO R MATION : Before installing,
consult installation instructions packed with product
for current dimensional data.

33-3/8" MIN.

adj to

34-5/8" MAX.

24"

Typical

23-3/4"

29-7/8"

27-1/2"

This Wall Area
must be Free
of Pipes or

33-1/2" to 34-3/4"

Underside of

Countertop

to Floor

Figure A

For answers to your GE Profile™ or GE appliances product questions, visit our
website at geappliances.com or call GE Answer Center® Service, 800.626.2000.

wires

Plumbing and Electric Service

Must Enter Inside This Area

24"

Min.

24"

Min.

4"

Cabinets
Square

6"

and
Plumb

SAFETY US CA

CERTIFIED

Certified to NSF
Standard 184 for
sanitization

4" (toekick)

Overall depth including
handle: 26.7"

Listed by
Underwriters

SANITATION US

Laboratories

As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.

Speci fication Revise d 6/20

PDT785SBN/SYN

GE Profile™ Series Stainless Steel Interior Dishwasher with Hidden Controls

FEATURES AND BENEFITS

Twin Turbo Dry Boost – Ensure a complete dry with every cycle, thanks
to a dual fan system and inline heater that provide exceptional performance,
even with plastics

WiFi Connect – Monitor cycle status, check rinse aid levels and automatically reorder
detergent using your mobile device

Deep Clean Silverware Jets – No matter how you load your silverware basket, powerful jets
blast away stuck-on food for silverware that’s always spotless

Leak Defense with Active Flood Protect – Uncommon leaks can be easily detected and
contained

Bottle Jets - Clean hard-to-reach areas inside tall items with up to 4 dedicated jets integrated
into the upper rack that shower water deep inside for the ultimate clean

Third Rack – Now there’s a place for miscellaneous items and gadgets, thanks to an additional
rack at the top of the dishwasher that’s ideal for plastic lids, pizza slicers and more

Piranha Hard Food Disposer – To ensure consistently clean items, this stainless steel blade
rotates at 3,600 RPM to pulverize food particles and helps to prevent large particles from
clogging the wash arms

1 Hour Wash – Enjoy a quality clean when you’re short on time

Steam + Sani – Loosens tough soils before any cycle virtually eliminating the
need for soaking or pre-rinsing dishes. Plus a High-temperature rinse sanitizes
and reduces 99.999% of bacteria found on dishes

16 place settings – Extra capacity to ensure easy cleanup from your
largest gatherings

39 dBA – Ultra-quiet operation creates a peaceful kitchen environment even
as it delivers powerful wash performance

Model PDT785SYNFS – Fingerprint Resistant Stainless

Model PDT785SBNTS – Black Stainless

Speci fication Revise d 6/20
