GE PDSF5NBX Specification

B

A

E

F

G

H

C

D

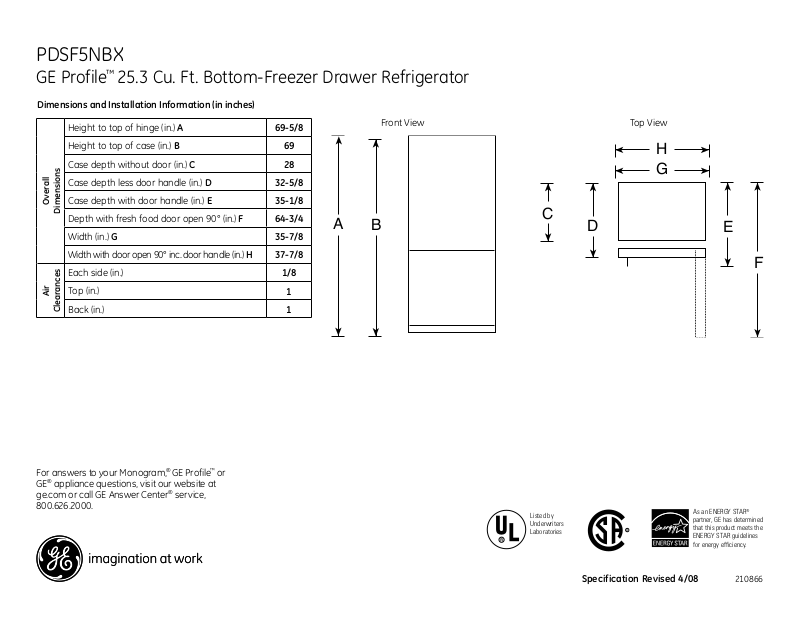

PDSF5NBX

GE Profile™ 25.3 Cu. Ft. Bottom-Freezer Drawer Refrigerator

Dimensions and Installation Information (in inches)

Height to top of hinge (in.) A 69-5/8

Height to top of case (in.) B 69

Case depth without door (in.) C 28

Case depth less door handle (in.) D 32-5/8

Case depth with door handle (in.) E 35-1/8

Overall

Dimensions

Depth with fresh food door open 90° (in.) F 64-3/4

Width (in.) G 35-7/8

Width with door open 90° inc. door handle (in.) H 37-7/8

Each side (in.)

Top (in.)

Air

Clearances

Back (in.)

Front View Top View

1/8

1

1

For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,

800.626.2000.

Listed by
Underwriters
Laboratories

Specification Revised 4/08

As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.

guidelines

210866

PDSF5NBX

GE Profile™ 25.3 Cu. Ft. Bottom-Freezer Drawer Refrigerator

Features and Benefits

• High-Gloss Doors with Top and Bottom Bevels - Offers a smooth contoured surface, with
concealed hinges providing a dramatic look

™

• ClimateKeeper
give you a greater degree of control over food preservation

• Upfront Temperature Controls with Actual Temperature Display - Features easy-to-reach, easy­to-read temperature controls and displays the actual temperature setting

• BrightSpace
the refrigerator

• Freshness Center
and 1 full-length adjustable temperature deli drawer

• Multi-Level Slide 'n Store
storage flexibility and keeps contents perfectly in place

Temperature Management System - Digital controls and electronic sensors

™

Interior with GE Reveal™ Lighting - Cast a natural-looking glow throughout

™

- Offers maximum convenience by utilizing two humidity-controlled drawers

™

Basket System - Includes three full-extension baskets for tremendous

• Condiment Bin and Beverage Rack - Provides convenient storage for canned drinks
and condiments

™

• QuickSpace

• TurboCool

Shelf - Quickly slides out of the way to make room for tall items

™

Setting - Cools the refrigerator quickly after frequent door openings

• Secure-Close Door System - Securely pulls the door shut, even after you release the handle

• Adjustable Spillproof Glass Shelves - Raised edges help contain spills to make clean up quick
and easy

• Adjustable Gallon Door Bins - Provides additional storage space for milk and other
gallon-size containers

• Model PDSF5NBXWW - White on white

• Model PDSF5NBXBB - Black on black

Specification Revised 4/08

As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.

guidelines

210866
