GE PDS22LBN Specification
PDS22LBN – GE Profile™21.9 Cu. Ft. Bottom-Freezer Refrigerator
TM
Specification Created 5/02

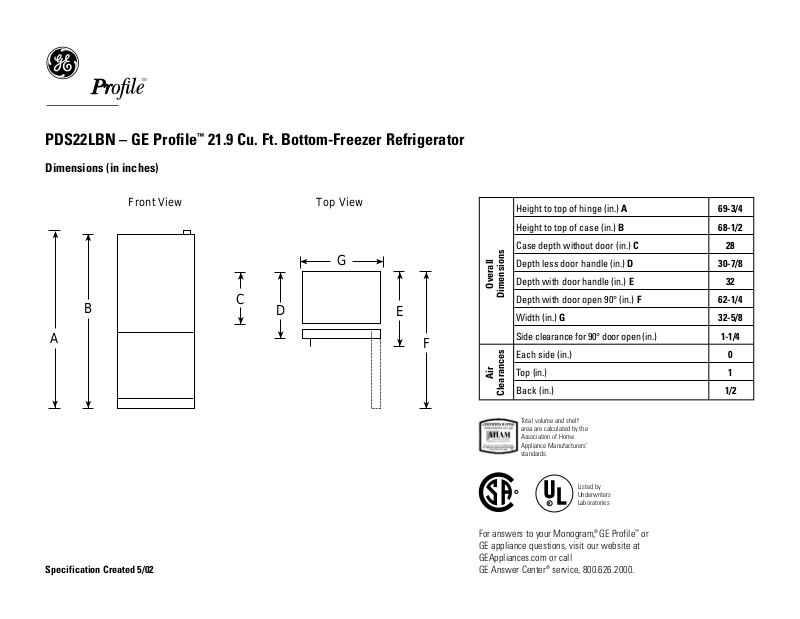

Front View Top View
B
A
E
F
G
C
D
Dimensions (in inches)
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
Height to top of hinge (in.) A 69-3/4
Height to top of case (in.) B 68-1/2
Case depth without door (in.) C28
Depth less door handle (in.) D 30-7/8
Depth with door handle (in.) E32
Depth with door open 90° (in.) F 62-1/4
Width (in.) G 32-5/8
Side clearance for 90° door open (in.) 1-1/4
Each side (in.) 0
Top (in.) 1
Back (in.) 1/2
Air Overall
Clearances Dimensions
R
Listed by
Underwriters
Laboratories
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Specification Created 5/02
TM
PDS22LBN – GE Profile™21.9 Cu. Ft. Bottom-Freezer Refrigerator
Features and Benefits
• 21.9 cu. ft. Capacity (Fresh Food 15.61 cu. ft./Freezer 6.31 cu. ft.)
• ENERGY STAR®Qualified
• 2 Full-Width Sliding Freezer Storage Baskets
• 4 Split, Adjustable, Spill-Proof Glass Fresh Food Cabinet Shelves (3 Slide-Out)
• ShelfSaver™Rack
• 4 Adjustable Fresh Food Door Bins
• NeverClean™Condenser
• 2 Adjustable Humidity Vegetable/Fruit Crispers
• Snack Pan
• Equipped for Optional Automatic Icemaker
• 1 Fixed Full-Width Enclosed Door Shelf with Gallon Storage
• Dairy Compartment
• 2 Ice ’N Easy Trays with Ice Tray Shelf
• Deluxe Quiet Design Quiet Package
• Color-Matched Door Handles
• Model PDS22LBNWW – White on white
• Model PDS22LBNBB – Black on black
• Model PDS22LBNCC – Bisque on bisque
