GE PDCF1NBW Specification
Front View Top View
B
A
E
F
G
C
D
PDCF1NBW
GE Profile™ ENERGY STAR® 21.1 Cu. Ft. Bottom-Freezer Drawer Refrigerator

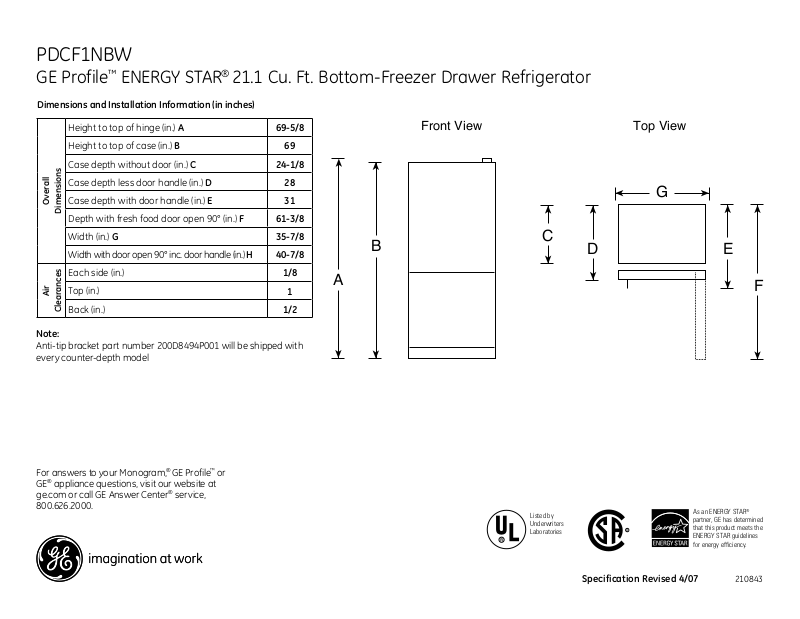

Dimensions and Installation Information (in inches)
Height to top of hinge (in.) A 69-5/8
Height to top of case (in.) B 69
Case depth without door (in.) C 24-1/8
Case depth less door handle (in.) D 28
Case depth with door handle (in.) E 31
Overall
Dimensions
Depth with fresh food door open 90° (in.) F 61-3/8
Width (in.) G 35-7/8
Width with door open 90° inc. door handle (in.) H 40-7/8
Each side (in.)
Top (in.)
Air
Clearances
Back (in.)
Note:
Anti-tip bracket part number 200D8494P001 will be shipped with
every counter-depth model
1/8
1
1/2
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
Specification Revised 4/07
210843
PDCF1NBW
GE Profile™ ENERGY STAR® 21.1 Cu. Ft. Bottom-Freezer Drawer Refrigerator
Features and Benefits
• Counter-Depth Configuration - Offers a built-in look by fitting almost completely flush with
surrounding cabinetry and blending in with décor
• High-Gloss, Contoured Doors, Sculptured Handles and Top and Bottom Bevels - Offer a
dramatic look and touch of personal style to any kitchen
• Optional Automatic Icemaker - Equipped for a automatic icemaker
• Freshness Center™ - Offers maximum convenience by utilizing two humidity-controlled
drawers and 1 full-length drawer for large storage
• BrightSpace™ Interior with GE Reveal™ Lighting - Cast a natural-looking glow throughout
the refrigerator
• Multi-Level Slide 'n Store™ Basket System - Includes three full-extension baskets for
tremendous storage flexibility and keeps contents perfectly in place
• Condiment Bin and Beverage Rack - Provides convenient storage for canned drinks
and condiments
• QuickSpace™ Shelf - Slides out of the way to make room for tall items
• Upfront Temperature Controls with Actual Temperature Display & TurboCool™ Setting Features easy-to-reach, easy-to-read temperature controls and a setting to quickly restore
proper temperature after frequent door openings
• Self-Closing Drawer - Self-closing hinges automatically pull the drawer shut when it's within
one inch of the closed position
• Adjustable Gallon Door Bins - Make room for milk and other gallon-size containers
• NeverClean™ Condenser - Condenser coils are encased, so they don't require cleaning in
normal operating environments
• Model PDCF1NBWWW - White on white
• Model PDCF1NBWBB - Black on black
Specification Revised 4/07
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
210843
