GE PB930SJSS Specification Sheet
PB930SJ
30
" Free-Standing Electric
Single Oven
GE Profile™ Series 30" Free-Standing Electric Convection Range with Warming Drawer

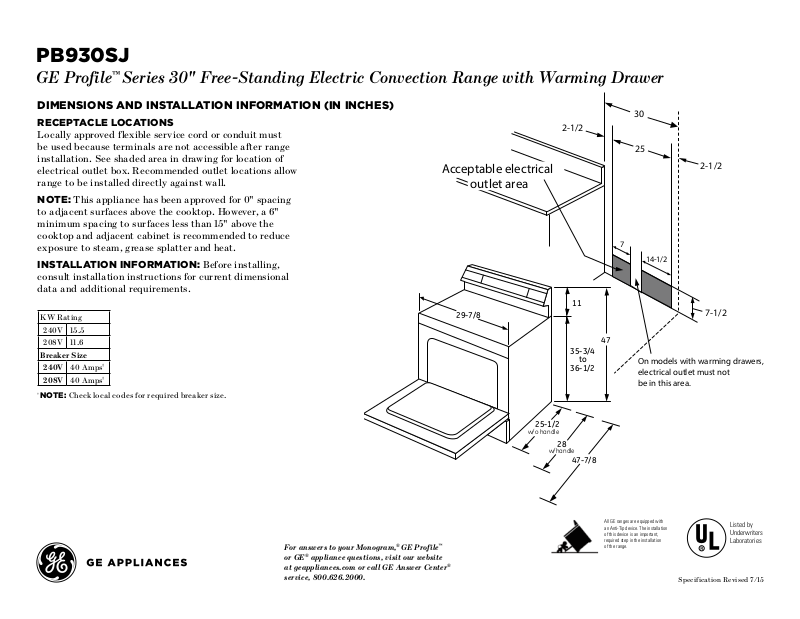

DimenSionS anD inStallation infoRmation (in incheS)
RecePtacle l o cationS
Locally approved flexible service cord or conduit must
be used because terminals are not accessible after range
installation. See shaded area in drawing for location of
electrical outlet box. Recommended outlet locations allow
range to be installed directly against wall.
note: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
inStallation infoRmation: Before installing,
consult installation instructions for current dimensional
data and additional requirements.
KW Rating
240V 15.5
208V 11.6
Breaker Size
24 0V 40 Amps
208V 40 Amps
†
note: Check local codes for requ ired breaker size.
†
†
Acceptable electrical
outlet area
29-7/8
2-1/2
11
35-3/4
36-1/2
30
25
2-1/2
7
14-1/2
7-1/2
47
to
On models with warming drawers,
electrical outlet must not
be in this area.
For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at geappliances.com or call GE Answer Center®
service, 800.626.2000.
25-1/2
w/o handle
w/handle
28
47-7/8
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
Listed by
Underwriters
Laboratories
Speci fication Rev ised 7/15
PB930SJ
GE Profile™ Series 30" Free-Standing Electric Convection Range with Warming Drawer
featuReS anD BenefitS
Edge-to-edge cooktop – A large, seamless surface makes it easy to wipe
away messes
WiFi Connect – Wirelessly control oven functions from your smartphone
12"/9"/6" 3,600W Power Boil – Pots and pans fit perfectly on the flexible
heating element
Chef Connect – Three options with a single touch. For instant convenience,
choose when to automatically sync clocks and the range elements with the
microwave's surface light and vent.
Full fifth element – Enjoy maximum cooktop flexibility with five
full-power elements
True European Convection with Precise Air – Enjoy perfectly even results
without turning the pan
Bridge zone – Cook griddle favorites from the convenience of your range
Warming drawer – Variable temperature control keeps foods warm
Self-clean, heavy-duty roller rack – Easily access items with a rack that
glides smoothly
Temperature probe – Ensure meats are thoroughly and accurately cooked
Model PB930SJSS – Stainless steel
Speci fication Rev ised 7/15
