GE PB911SJ Specification
PB911SJ
30
" FREE-STANDING ELECTRIC
SINGLE OVEN
GE Profile™ Series 30" Free-Standing Electric Convection Range

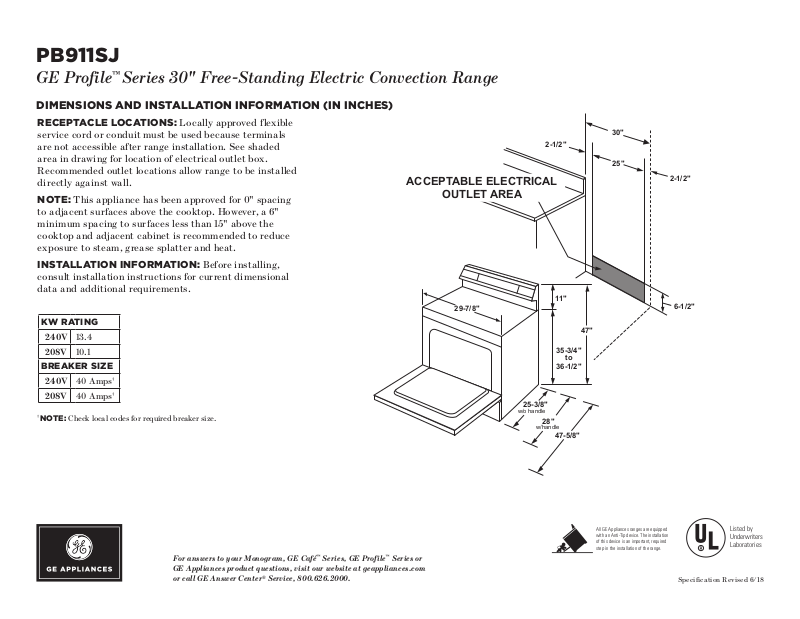

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
RECEPTACLE LOCATIONS: Locally approved flexible
service cord or conduit must be used because terminals
are not accessible after range installation. See shaded
area in drawing for location of electrical outlet box.
Recommended outlet locations allow range to be installed
directly against wall.
NOTE: This appliance has been approved for 0" spacing
to adjacent surfaces above the cooktop. However, a 6"
minimum spacing to surfaces less than 15" above the
cooktop and adjacent cabinet is recommended to reduce
exposure to steam, grease splatter and heat.
INS TA LLATI O N IN F O RMATI O N: Before installing,
consult installation instructions for current dimensional
data and additional requirements.
KW RATI N G
24 0V 13.4
208V 10.1
BREAKER SIZE
24 0V 40 Amps
208V 40 Amps
†
NOTE: Check local codes for required breaker size.
†
†
2-1/2"
ACCEPTABLE ELECTRICAL
OUTLET AREA
29-7/8"
25-3/8"
w/o handle
28"
w/handle
11"
35-3/4"
to
36-1/2"
47-5/8"
30"
25"
2-1/2"
6-1/2"
47"
For answers to your Monogram, GE Café™ Series, GE Profile™ Series or
GE Appliances product questions, visit our website at geappliances.com
or call GE Answer Center® Service, 800.626.2000.
All GE Appliances ranges are equipped
with an Anti-Tip device. The installation
of this device is an important, required
step in the installation of the range.
Listed by
Underwriters
Laboratories
Speci fication Revised 6/18
PB911SJ
GE Profile™ Series 30" Free-Standing Electric Convection Range
FEATURES AND BENEFITS
Edge-to-edge cooktop – A large, seamless surface makes it easy to wipe away messes
Electronic touch controls – Enjoy easy operation and cleanability with
streamlined controls
12"/9" dual element – Two heating elements in one offer flexibility
Chef Connect – Three options with a single touch. For instant convenience, choose
when to automatically sync clocks and the range elements with the microwave's
surface light and vent.
True European Convection with Precise Air – Enjoy perfectly even results without
turning the pan
9"/6" Power Boil element – Produces rapid, powerful heat
Fast preheat – Make hot meals in a hurry with less time preheating
Fifth element warming zone – Provides low-heat capability for foods
Self-clean with Steam Clean option – Clean your oven the way you want
Hidden bake oven interior – Make cleanup easy by eliminating hard-to-reach areas
Black gloss oven interior – Enjoy a clean and sleek appearance
Model PB911SJSS – Stainless steel
Speci fication Revised 6/18
