Flood Lighting
P-154™ Powerflood™ (P54S)
imagination at work
Page 2
Product Features
GE floodlights bring the security and safety of high quality illumination to a variety of outdoor areas. With a great look,
performance and durability, these fixtures offer versatility while meeting your outdoor lighting requirements.
Applications
• Parking lots, building security, building facades,
recreation areas and many other outdoor area
applications
• Anywhere a compact 70 to 400 watt, floodlight is
needed
• Easy to hide for facade, entrance and identification
sign lighting
Housing
• Heavy duty die-cast aluminum housing
Finish
• Dark Bronze powder coated polyester paint
Ratings
• Listed Suitable for Wet Locations
/
• UL1572 Outdoor Salt Water Marine and UL844
(See Hazardous Location Lighting)
Unique Features
• Heat and shock resistant tempered glass
• Heavy-gauge steel trunnion
• Corrosion-resistant hardware
• Hinged front door, secured with two corrosion-resistant
screws
• Mogul base socket – E39 standard
• Terminal board
Page 3

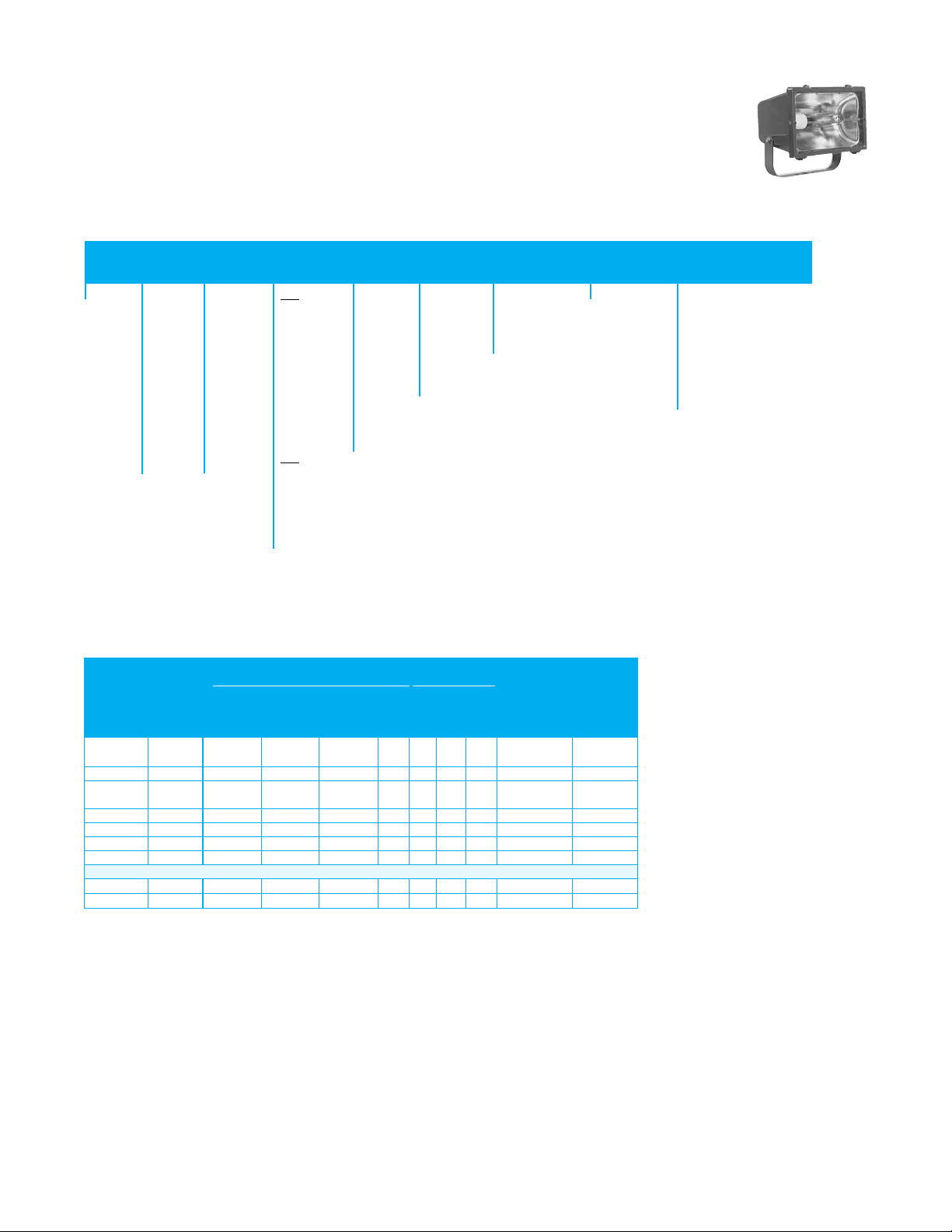

Ordering Number Logic
P-154™ Powerflood™ (P54S)
P 5 4 S DB
_ _ _ _ - _ _ - _ - _ - _ - _ - _ _ _ - _ _ - _
PROD. ID
P54S = P-154 07 = 70
wATTAGE
10 = 100
15 = 150
17 = 175**
20 = 200
24 = 250/400*
25 = 250
32 = 320
35 = 350
40 = 400
*Available in
HPS only
**175W not
available in
EPMH (Contact
factory)
LIGHT
SOURCE
E = Energy Act
Compliant Pulse
MH (EPMH)
S = HPS
M = MH
P = PMH
(Contact
Factory
for availability)
CAUTION: For
350W or 400W
EPMH, an E-18
or ED-28 lamp
must be used.
Standard: Lamp
not included.
VOLTAGE
60Hz
0 = 120/208/
240/277
Multivolt*
1 = 120
2 = 208
3 = 240
4 = 277
5 = 480
C = 120X240X
277V
D = 347
F = 120X347**
T = 220
50Hz
6 = 220
R = 230
Y = 240
*Connected for
120V
**250 X 400 HPS
only
BALLAST
TYPE
See Ballast and
Photometric
Selection Table
A = Autoreg
G = Mag-Reg
with
Grounded
Socket Shell
H = HPF Reac-
tor or Lag
M = Mag-Reg
P = CWI with
Grounded
Socket Shell
PE
FUNCTION
1 = None
2 = PE
Receptacle
NOTE:
Receptacle
connected same
voltage as unit.
Order PE Control
separately.
NEMA TYPE BEAM
SPREAD
HORIZ X VERT
Select NEMA Type
from Photometric
Selection Table
Example:
7X6 = 7X6
Ballast and Photometric Selection Table
All light sources are clear unless otherwise indicated.
Ballast Type/Voltage
60Hz 50Hz
120, 208,
Light 240, 277, 347,
wattage
70, 100,
150 (55V) HPS H H, M*** H, G H H H H 6X6(126X128) 177346
250,320 EPMH A A A N/A N/A N/A N/A 7X6(136X129) 177344
250,320 EPMH A A A N/A N/A N/A N/A 7X7(144X145) 177345
(Coated)
200 HPS A A N/A N/A N/A N/A N/A 7X6(134X127) 177347
250,400 HPS A, P A, P A , P A A A A 7X6(134X127) 177347
250/400** HPS A A N/A N/A N/A N/A N/A 7X6(134X127) 177347
350, 400* EPMH A A A N/A N/A N/A N/A 7X6(131X120) 177455
CANADA & EXPORT ONLY
250 MH A A A A A A A 7X6(136X129) 177344
400* MH A A A N/A N/A N/A N/A 7X6(131X120) 177455
NOTE: *Lamp for 400 watt and 350 watt EPMH or 400 watt MH fixture must be E-18 or ED-28 only
Source
Multivolt 480 120x347 220
**250/400 dual wattage not available in 347 volt
***For 150 watt and below, 480V - Use “M” ballast only.
N/A = Not Available
NEMA Type
Horiz X Vert Number
220 230 240 (Degrees
Beam Spread
Photometric
Curve
) 35-
DB = Dark Bronze
OPTIONSCOLOR
F = Fusing (Not
available with
multivolt or
120X347 volt)
G = Top Trunnion
L = Latch for door
P = Prewired with 6 ft.
(2M) #14/3
Y = Dual Wattage Units
Connect Higher
Wattage
Page 4

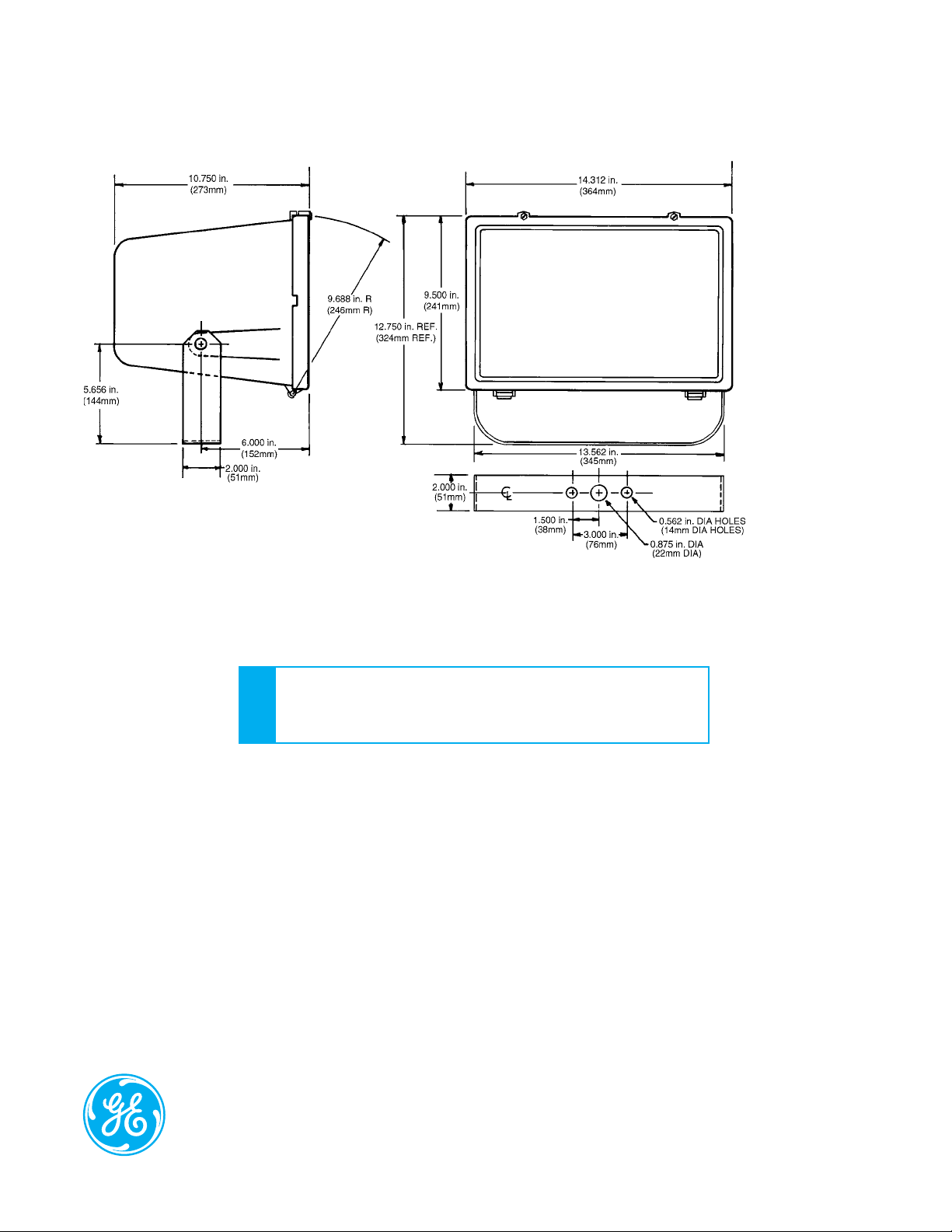

Product Dimensions
• Approximate Net Weight: 23-25 lbs (10-11 kgs)
• Effective Projected Area: 1.0 sq ft max (.09 sq M max)
DATA
• Suggested Mounting Height: 15-60 ft (5-18 M)
