GE P2B940DEFBB Specification Sheet
P2B940DEF
GAS PIPE AND ELECTRICAL
Product is shipped with 4-prong
plug. Recommended outlet is
a NEMA 14-50R receptacle.
7-1/2
8
9
4
30
3
3
3
2-1/4
2
NOTE: Make gas connections on
the left side and electrical conections
on the right side of the
cutout opening.
Recommended acceptable
electrical outlet area. Orient
the electrical receptacle so the
length is parallel to the floor.
Wall-Mounted
Recommended area
for through-the-wall
connection of pipe
stub/shut-off valve.
Recommended area for
through-the-floor connection
of pipe stub/shut-off valve.
This area allows
flush installation
to rear wall.
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
30"
SINGLE OVEN GAS RANGE
7-1/2
8
9
4
30
3
3
3
2-1/4
2
NOTE: Make gas connections on
the left side and electrical conections
on the right side of the
cutout opening.
Recommended acceptable
electrical outlet area. Orient
the electrical receptacle so the
length is parallel to the floor.
Wall-Mounted
Recommended area
for through-the-wall
connection of pipe
stub/shut-off valve.
This area allows
flush installation
to rear wall.
GAS PIPE AND ELECTRICAL
OUTLET LOCATIONS
SINGLE OVEN GAS RANGE

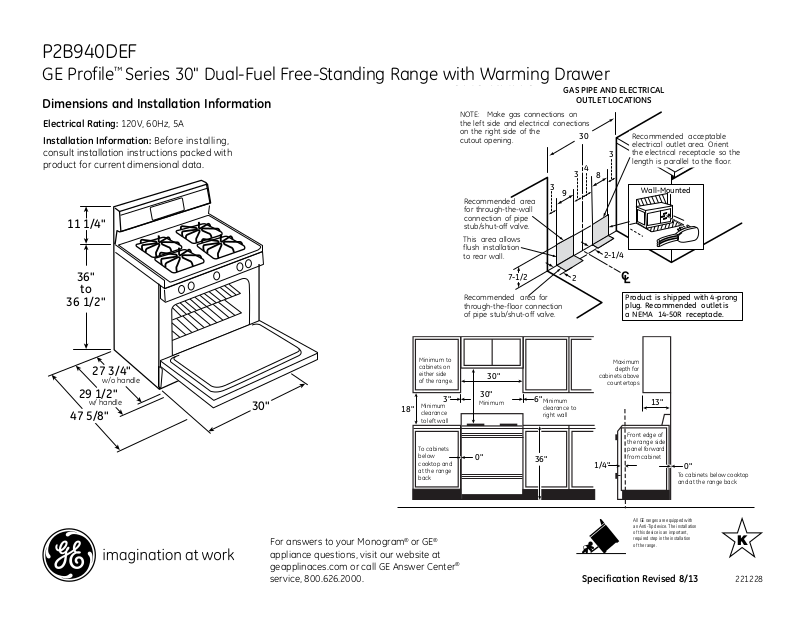

GE Profile™ Series 30" Dual-Fuel Free-Standing Range with Warming Drawer
Dimensions and Installation Information
Electrical Rating: 120V, 60Hz, 5A
Installation Information: Before installing,
consult installation instructions packed with
product for current dimensional data.
11 1/4"
36"
to
36 1/2"
27 3/4"
29 1/2"
w/ handle
47 5/8"
w/o handle
NOTE: Make gas connections on
the left side and electrical conections
on the right side of the
cutout opening.
30"
18"
Minimum to
cabinets on
either side
of the range.
Minimum
clearance
to left wall
To cabinets
below
cooktop and
at the range
back
Recommended area
for through-the-wall
connection of pipe
stub/shut-off valve.
This area allows
flush installation
to rear wall.
7-1/2
Recommended area for
through-the-floor connection
of pipe stub/shut-off valve.
30"
3"
30"
Minimum
0"
6"
36"
Minimum
clearance to
right wall
For answers to your Monogram® or GE®
appliance questions, visit our website at
geapplinaces.com or call GE Answer Center®
service, 800.626.2000.
OUTLET LOCATIONS
30
4
3
3
9
2
Specification Revised 8/13
Recommended acceptable
electrical outlet area. Orient
the electrical receptacle so the
3
length is parallel to the floor.
8
Wall-Mounted
2-1/4
Product is shipped with 4-prong
plug. Recommended outlet is
a NEMA 14-50R receptacle.
Maximum
depth for
cabinets above
countertops
13"
Front edge of
1/4"
the range side
panel forward
from cabinet
All GE ranges are equipped with
an Anti-Tip device. The installation
of this device is an important,
required step in the installation
of the range.
0"
To cabinets below cooktop
and at the range back
221228
P2B940DEF
GE Profile™ Series 30" Dual-Fuel Free-Standing Range with Warming Drawer
Features and Benefits
• Dual-Fuel Range - Utilizes both gas and electric elements
• 19,000 BTU Tri-Ring Burner - Offers the flexibility of three different burners
• Center Oval Burner - Large oval fifth burner is ideal for griddle or odd-size
cookware
• Reversible Cast-Iron Griddle/Grill - Two great ways to cook
• True European Convection with Precise Air - Accurate heat circulation
ensures evenly baked foods
• Self-Clean Heavy-Duty Roller Rack - Easily access items with a rack that
glides smoothly
• Warming Drawer - Variable temperature control keeps foods warm
• Glass Touch Controls - Set temperatures quickly and clean with little effort
• 5.6 cu. ft. Oven Capacity - Enough room to cook an entire meal at once
• Model P2B940DEFWW - White on white
• Model P2B940DEFBB - Black on black
Specification Revised 8/13
