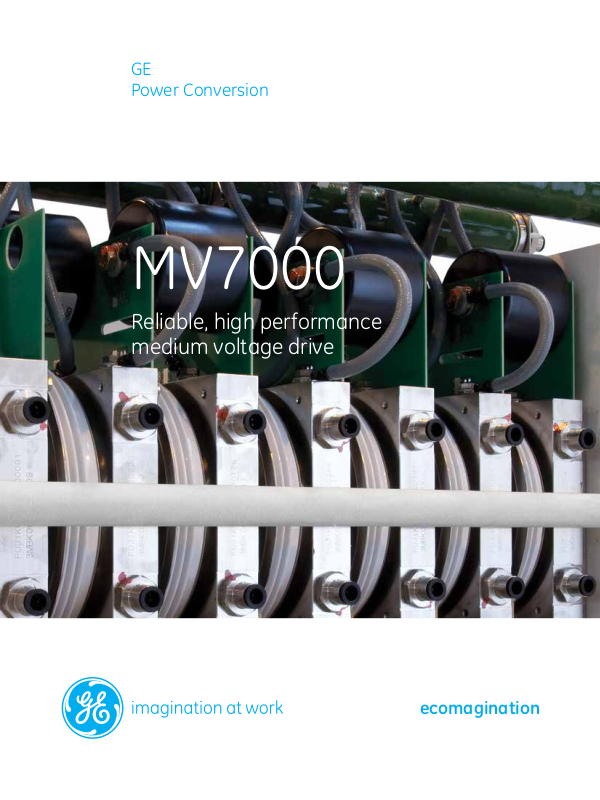

GE MV7000 Brochure

GE
Power Conversion

MV7000

Reliable, high performance
medium voltage drive

ecomagination

The next generation of drive technology

Cutting-edge power electronics
technology and decades of process
expertise come together in the
MV7000 — a world-class water-cooled
medium voltage drive suitable for
a wide range of power conversion
applications. Easy to install and
maintain, the drive offers high
reliability and availability and helps
increase the uptime of critical
processes. The MV7000 provides
a flexible approach to achieve a
customized solution across different
applications.

With the MV7000 our power
conversion expertise helps increase
operating efficiency, power availability,
plant throughput, operational
precision, and process yield. We are
helping our customers meet the
demands and opportunities of the
new electric age.

Benefits:

• Peak power density — our drive

can deliver up to 15 MW with just
18 IGBTs, which is equivalent
to a power density of 1.5 MVA/m

• High reliability and availability —

over 10 million hours in operation
across an installed base of over

8.5 GW

• Power scalability with à la carte

option packaging that can be
adapted to a wide range of
applications

• A full family of drives — GE is

your one-stop provider with a
wide portfolio of drives

5-6.6

4.1-6

3.3

2.4

2.5 5.0 7.5 10.0 12.5 15.0 17.5 20.0 22.5 25.0 27.5 30.0 32.5 35.0 81.0

3

2-3 x MV7900

The MV7000 belongs to GE’s wide range of drives for all applications.

3GE I MV7000

Advantages of a medium voltage variable
frequency system

MV7000 — Enhanced technology

Reliability & availability

The higher reliability and lower
maintenance needs of a variable
speed drive system compared to
gearboxes and hydraulic couplings
result in lower lifecycle cost.

Saving energy, caring for
the environment

In today’s world more than ever,
energy saved is energy produced.
For a variety of loads, from water
pumps to gas compressors, variable
speed control offers the best way
to capture energy savings.

Precise power delivery

In many applications, the superiority
of electrical control simply cannot
be matched by mechanical systems.
Precise control of power means better
outcomes, from the flatness of a steel
sheet to the accuracy of offshore
Oil & Gas exploration.

Key benefits

• Peak power density

• High reliability and availability

• Power scalability with customizable
options featuring:

– Low harmonics without

additional equipment

– Four quadrant operation for

regenerative applications

– Transformerless design for

compactness

– Common DC bus system for energy

savings
– High performance process control
– Visor Connect supports warranty

with remote real-time support

and advice

• Front access maintenance

• Simplified cooling system
architecture and gate drive
power supply topology

• Fuseless design

Pawer stack

Variable frequency drives can be used in a variety
of industries and applications

Industry sector Applications

Oil and gas eLNG trains, injection compressors and pumps, gas

storage, multiphase pumps, pipeline compressors

Marine Cruise ships, LNG carriers, offshore drilling vessels,

research vessels, megayachts, merchant vessels,
navy support vessels

General and
heavy industry

Metal rolling mills, test benches, grinders, water pumps,
mine winders, crushers, ID fans, FD fans, wind turbines,
static frequency converters, boiler feed pump, power
quality systems

Best-in-class power density

The phase power stack is the main
modular building block of the three­level inverter.

• Compact enclosures thanks to
double sided cooling of the IGBTs

• Just 18 IGBTs at 3.3 kV can
deliver 15 MW

• Control hardware mounted
on a slide in/out frame

Inverter cubicle

54 GE I MV7000 GE I MV7000

High reliability and availability

Power scalability with customizable options

MV7000 comes in a standard Diode-Front-End (DFE) rectifier configuration.

The MV7000 is a great example
of a design philosophy based on
minimizing component count while
retaining peak performance.
Press-pack IGBT (PPI) power
devices enable:

• The capability to limit overcurrent
with safe turn-off under all operating
and failure conditions

• Case rupture-free due to pressed
contacts and no-wire bonding

Pre-charge &

Control Cubicle

Cooling Unit

Pre-magnetizing

Diode front-end

• N+1 series redundancy thanks to
the capability of PPI for continuous
conduction under failure mode

• Long life expectancy even under
load cycling

• Effective performance even at low
motor frequency operation

Low harmonics without
additional equipment

• Available in 12, 24 and 36-pulse

configurations

• Low levels on harmonics –

IEEE 519 compliant

• No additional filters necessary

• Fully able to handle faults such

as voltage dips

Four quadrant operation
for energy savings

• Regeneration of the energy to

the network through IGBT bridge

• Unity power factor

• Sinusoidal input with negligible

harmonics

Active

Front End

DC Bus Inverter

• For reversing applications, an

active-front-end (AFE) is available

NP

DC Capacitor

filter

AC Output

Inverter

Rectifier

DC Bus Inverter

Active front-end (AFE)

NP

Inside look at the MV7000

Diode front-end (DFE)

Output voltage and current

76 GE I MV7000GE I MV7000

Anywhere Customer Site

GE

Transformerless design
for compactness

The MV7000 is available in
transformerless design

• AFE with additional input filter

to reduce line harmonics

• Big savings in capital cost,

installation cost and footprint

• Increased overall system

efficiency and reliability

Input Filter

Active

Front End

DC Bus Inverter

+

NP

-

Transformerless design

Common DC bus system
for energy savings

For multi-drive applications, a
common DC link system is available

• Shared Active-Front-End (AFE)

rectifier configuration

• Saves energy by the redistribution

of power from braking

• Reduction in overall equipment

cost, operating cost and footprint

Active

Front End

Machine

Bridge

Common DC bus system

High performance
process control

MV7000 is equipped with a standard
Power Electronics Controller (PECe)

• Mounted on slide in/out frame for

easy access and compactness

• Advanced Vector Control (AVC)

• Fast dynamic response

• Clean, robust power delivery

• Fully customizable

Remote Connection

GE PC remote

engineer

Dedicated

Portal

Visor DMZ

Visor Connect

with Proficy

historian

GE PC Global

Service Operations

Central Data

Warehouse

and Analytics

Visor Connect: Remote connection
to equipment, monitoring and support

Visor Connect provides secured
remote connection to GE equipment
(outside the control network).
Remote connection enables GE‘s
service engineers to provide real-time
support, ongoing health analytics
and key performance indicators
(KPIs), as well as basic configuration
management support.

Key benefits

• Reduce unscheduled downtime

• Real-time support and advice

• Customers can access GE’s
global Services organization
24/7, 365 days a year from
anywhere in the world

Site Equipment

Automation

Machines

& DP

Drives

98 GE I MV7000GE I MV7000

Process control benefits

MV7000 — À la carte option packaging

Incoming power dip
ride-through

The MV7000 provides incoming power
loss ride-through and keeps the
process running without tripping.

Under-voltage operation

The MV7000 operates continuously
and provides power to the motor at
a lower input supply voltage (down
to 70% of nominal voltage).

Flying start into a
spinning load

The MV7000 offers the ability to
catch and take control of a spinning
load without any damaging torque,
voltage or current impacting the
equipment if started while the load
is already spinning.

Critical speed avoidance

The MV7000 can be programmed for
up to three critical frequency bands
and ride-through these without any
resonance issues.

Independent acceleration
and deceleration ramps

The MV7000 can be be programmed
into the drive controls as needed for
controlled starting and stopping of
the load.

Feature suite for
every application

Standard product customizable with
pre-engineered options including, but
not limited to:

• Redundant pump for cooling

• Customizable process control

• DB chopper

• Communication protocols

• Harsh environment packaging

• Vibration and shock reinforcement

• Marine-class package

• Up and down synchronous transfer

Motor friendly

• Suited for synchronous induction
and permanent magnet motors

• Output waveforms reduce motor
losses

• Reduced motor noise and vibration

• No significant motor shaft torque
pulsations

• Wide speed range with a consistent
response

High performance control

11GE I MV700010 GE I MV7000

MV7000 ratings Dimensions & weights

Output

voltage

VFD

frame size

Rectifier

type

Power

output

MW MVA A

Output
current

MV7303 DFE 12p 3.8 4.3 750
MV7303 AFE 3.8 4.3 750
MV7306 DFE 12p 6.9 7.7 1350
MV7306 AFE 6.9 7.7 1350
MV7310 DFE 12p 10.8 12 2100
MV7310 AFE 8.8 9.8 1550
MV7312 DFE 24p 13.3 14.8 2600
MV7312 AFE 13.3 14.8 2320

3.3kV
MV7315 DFE 24p 15 17 2900

MV7315 AFE 13.3 17 2320

2xMV7310 2xDFE 12p 21.6 24 4200
2xMV7310 AFE 17.6 19.6 3100
2xMV7312 2xDFE 24p 26.6 29.6 5200
2xMV7312 AFE 26.6 29.6 4640
2xMV7315 2xDFE 24p 30 34 5800
2xMV7315 AFE 26.6 34 4640

MV7607 DFE 24p 7 8.6 950

5.2kV
MV7615 DFE 24p 14 16.2 1800

MV7609 DFE 24p 10 12.6 1100
MV7609 AFE 8 10 800

6.6kV

MV7616 DFE 24p 15.4 17 1500
MV7618 DFE 24p 18 22.8 2000
MV7618 AFE 14.3 17.9 1250

8.2kV MV7821 DFE 36p 21 21.3 1500
MV7913 DFE 36p 13 17.1 1000
MV7927 DFE 36p 27 33.7 2000

10kV

MV7927 AFE 21.4 26.7 1250

2xMV7927 2xDFE 36p 54 67.4 4000
3xMV7927 3xDFE 36p 81 101 6000

Output

voltage

VFD

frame size

Width Depth Weight

inches/mm inches/mm lbs./kg

MV7303 157 / 4000 39 / 1000 8818 / 4000
MV7303 189 / 4800 39 / 1000 10582 / 4800
MV7306 173 / 4400 39 / 1000 9700 / 4400
MV7306 205 / 5200 39 / 1000 11464 / 5200
MV7310 173 / 4400 39 / 1000 9700 / 4400
MV7310 220 / 5600 39 / 1000 12346 / 5600
MV7312 189 / 4800 39 / 1000 10582 / 4800
MV7312 252 / 6400 39 / 1000 14109 / 6400

3.3kV
MV7315 197 / 5000 39 / 1000 11023 / 5000

MV7315 260 / 6600 39 / 1000 14550 / 6600

2xMV7310 425 / 10800 39 / 1000 23810 / 10800
2xMV7310 441 / 11200 39 / 1000 24692 / 11200
2xMV7312 457 / 11600 39 / 1000 25574 / 11600
2xMV7312 582 / 14800 39 / 1000 32627 / 14800
2xMV7315 472 / 12000 39 / 1000 26455 / 12000
2xMV7315 520 / 15200 39 / 1000 33508 / 15200

MV7607 291 / 7400 55 / 1400 16314 / 7400

5.2kV
MV7615 299 / 7600 55 / 1400 16754 / 7600

MV7609 291 / 7400 55 / 1400 16314 / 7400
MV7609 409 / 10400 55 / 1400 22928 / 10400

6.6kV

MV7616 299 / 7600 47 / 1200 16754 / 7600
MV7618 299 / 7600 55 / 1400 16754 / 7600
MV7618 425 / 10600 55 / 1400 23368 / 10600

8.2kV MV7821 402 / 10200 55 / 1400 22487 / 10200
MV7913 386 / 9800 55 / 1400 21605 / 9800
MV7927 402 / 10200 55 / 1400 22486 / 10200

10kV

MV7927 567 / 14400 55 / 1400 31745 / 14400

2xMV7927 803 / 20400 55 / 1400 44972 / 20400
3xMV7927 1205 / 30600 55 / 1400 67458 / 30600

Table shows the typical ratings for variable torque load applications. Please contact GE sales for constant torque applications.

1312 GE I MV7000 GE I MV7000

.

MV7000 drive specifications

VFD ratings

Output power 3 – 81 MW

Output voltage up to 10 kV

Output frequency 15-90 Hz, 0 to 15 Hz on request

Input voltage 3 to 10 kV ±10%

Input frequency 50 or 60 Hz ±5%

Auxiliary voltage

Line side converter DFE 12 to 36-pulse / AFE IGBT 6-pulse

Load side inverter 3-level VSI; IGBTs

VFD system efficiency Up to 99%

Power factor >0.96 (DFE) / 1 (AFE)

Input harmonics IEEE 519 compliant

DC link Self-healing, long life, film capacitors

Mode of operation Four-quadrant

Mode of control Flux vector / without encoder / induction motor & synchronous (option)

Analog input / output (3) inputs / (3) outputs +/-10 Vdc or 4-20 mA standard

Digital input / output (6) inputs / (6) outputs standard

Speed regulation <0.5 % without encoder and <0.1% with encoder

LAN interface

Protective functions Over-current, current limit , over and under-voltage, motor stall

3 phase, 400 V, 440 V, 480 V, or 600 V; 50/60 Hz
1 phase, 110 V, 230 V, 50/60 Hz

Power quality

Energy storage

VFD control

Ethernet modbus standard
optional: profibus; devicenet

Environment & enclosure

Services from GE – a focus on availability

We understand the vital importance
of process availability – and our focus
on service keeps us actively engaged,
both when things are going right, and
when they are going wrong.

Our world-class Global Customer
Service and Support Center is available
24/7, 365 days a year. Our strategic
distribution centers and authorized
distributors carry an extensive
inventory of GE’s drives, allowing us to
quickly fulfill your genuine replacement
part needs, no matter where you are
located.

With a comprehensive global network
of service engineers and technicians,
GE is uniquely positioned to provide
the knowledge, experience and skills
for your full range of industrial service
requirements. From system design to
maintenance and outage support, we
have the resources and capabilities
to advance your equipment‘s
performance and reliability. Some key
benefits of GE’s support are:

• Single point of contact

• Reduced call-out rates

• 24/7 availability

• Rapid mobilization of engineers

• Routine maintenance visits

• Training

• System health checks

• Spares management

• Obsolescence management

GE also provides managed system
upgrade paths for our legacy systems
and has significant experience
in replacing systems from other
manufacturers with low disruption
to the existing infrastructure.

Remote support

Visor Connect, GE’s remote diagnostic
and support system, is based on highly
secure satellite communications links.
It enables our experts, regardless
of their geographical location, to
look over the shoulder of your onsite
equipment operator or technician and
advise and assist you on fault finding
and resolution.

Enclosure IP31, IP33, IP44, others on request

Ambient / elevation 0-45ºC / 1000m above sea level; higher with de-rating

Insulation coordination Pollution degree 2 per EN 61800-5-1 and EN 50178

Industry standards

Standards

IEC 61800-3, IEC 61800-4, IEC 61800-5
Qualification to industry-specific standards available
Marine classification society/compliant

1514 GE I MV7000 GE I MV7000

MAIN OFFICES

Australia, Botany
Tel: [phone]

Brazil, Minas Gerais
Tel: [phone]

Canada, Mississauga
Tel: [phone]

Chile, Santiago
Tel: [phone]

China, Shanghai
Tel: [phone]

France, Massy Cedex
Tel: [phone]

Germany, Berlin
Tel: [phone]

Norway, Oslo
Tel: [phone]

Russia, Moscow
Tel: [phone]

Singapore

Tel: [phone]

South Africa, Midrand
Tel: [phone]

South Korea, Busan
Tel: [phone]

UAE, Dubai
Tel: [phone]

UK, Rugby
Tel: [phone]

India, Chennai
Tel: [phone]

Japan, Tokyo
Tel: [phone]

USA, Pittsburgh
Tel: [phone]

www.gepowerconversion.com

Copyright © 2013 General Electric Company and/or its affiliates.
All rights reserved. GEA30737A (12/2014)
