Page 1

Installation Instructions

36″ Glass Canopy Chimney Vent Hood

ZV900

49-80328

04-06 JR

Page 2

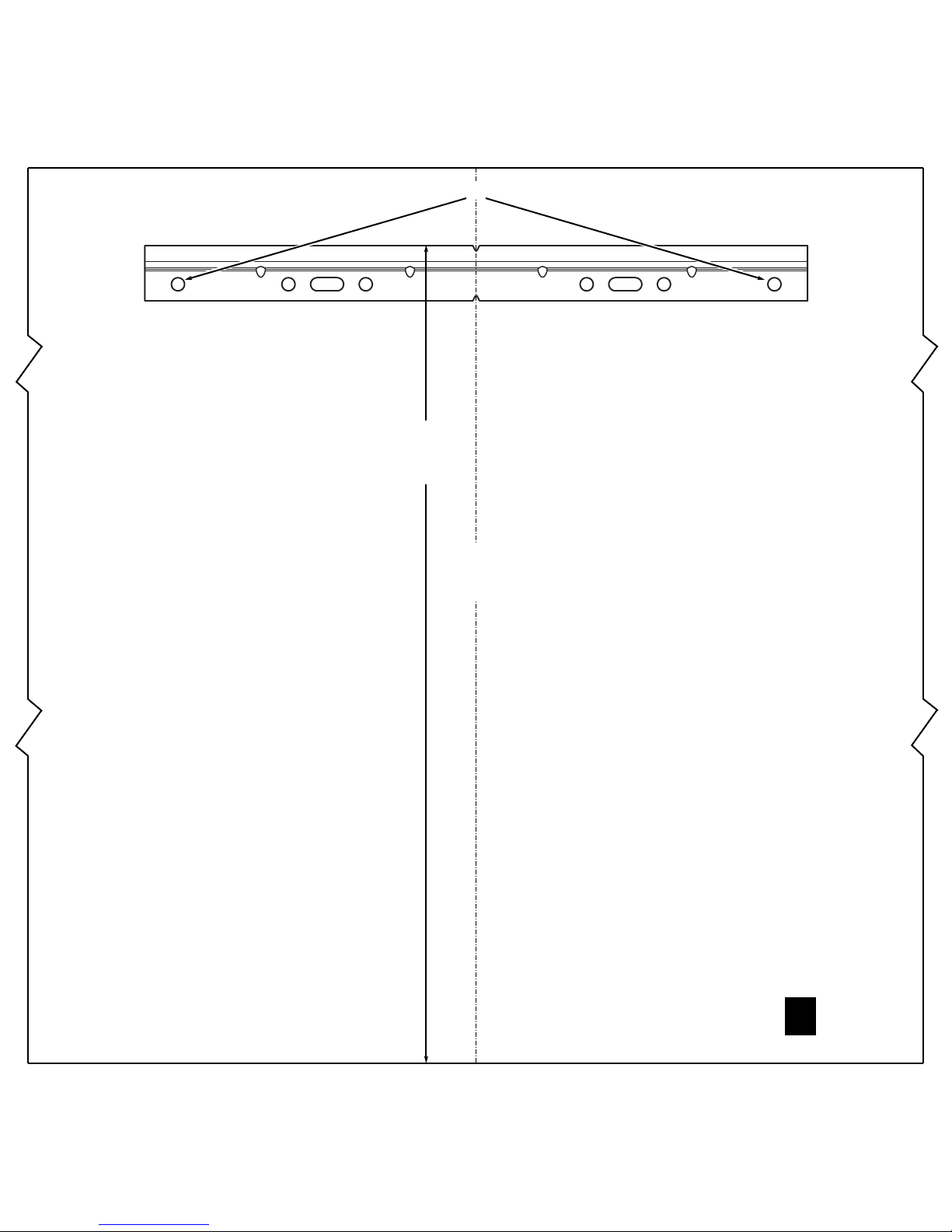

14-5/8″

to top of

bracket

▼

ALIGN BOTTOM EDGE

WITH PENCIL LINE,

INDICATING BOTTOM

OF THE HOOD

Drill 2 (two) 3/16″ pilot holes through studs or rear wall support

REAR WALL

MOUNTING TEMPLATE

49-80405 04-06 JR

Page 3

Safety Information

BEFORE YOU BEGIN

Read these instructions completely and carefully.

•

IMPORTANT— Save these instructions for

local inspector’s use.

•

IMPORTANT

— Observe all governing codes

and ordinances.

•

Note to Installer — Be sure to leave these

instructions with the Consumer.

• Note to Consumer

— Keep these instructions

with your Owner’s Manual for future reference.

•

Skill Level

— Installation of this appliance requires

basic mechanical and electrical skills.

•

Completion Time — 1 to 3 Hours.

• Proper installation is the responsibility of the installer.

Product failure due to improper installation is not covered under the warranty.

For Monogram local service in your area, call

1.800.444.1845. For Monogram service in Canada, call 1.888.880.3030 For Monogram Parts and Accessories, call

1.800.626.2002.

CAUTION:

Due to the weight and size of these vent hoods and to reduce the risk of personal injury or damage to the product, TWO PEOPLE ARE REQUIRED FOR PROPER

INSTALLATION.

PRUDENCE :

À cause du poids et de la taille de ces hottes et pour reduire le risque de blessures et de dommages, IL FAUT

DEUX PERSONNES POUR FAIRE L’INSTALLATION CORRECTEMENT.

WARNING:

To reduce the risk of fire or electrical shock, do not use this range hood with any external solid-state speed control device. Any such alteration from original factory wiring could result in damage to the unit and/or create an electrical safety hazard.

AVERTISSEMENT :

Pour réduire le risque d’incendie ou de choc électrique, il ne faut pas utiliser cette hotte avec un régulateur de vitesse électronique externe. Toute modification de ce type du branchement d’usine peute endommager l’appareil ou créer un risque de choc électrique.

TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

WARNING: TO REDUCE THE RISK OF FIRE,

ELECTRICAL SHOCK OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

A. Use this unit only in the manner intended by the

manufacturer. If you have any questions, contact the manufacturer.

B. Before servicing or cleaning unit, switch power off at

the service panel and lock service panel to prevent power from being switched on accidentally. If the service panel cannot be locked, fasten a tag or prominent warning label to the panel.

AVERTISSEMENT :

POUR RÉDUIRE LE RISQUE D’INCENDIE, DE CHOC ÉLECTRIQUE OU DE BLESSURES, IL FAUT OBSERVER LES REGLES SUIVANTES :

A. Utiliser cet appareil uniquement de la maniére prévue

par le fabricant. En cas de question, consulter le fabricant.

B. Avant toute intervention ou nettoyage, couper

l’alimentation électrique au disjoncteur et verrouiller le panneau du disjoncteur pour éviter la mise sous tension accidentelle. S’il n’est pas possible de verrouiller le panneau du disconcteur, attacher un placard ou une étiquette trés visible au panneau.

• For general ventilating use only. Do not use to

exhaust hazardous or explosive materials or vapors.

• Structural framing, installation work and electrical

wiring must be done by qualified person(s) in accordance with all applicable codes and standards including fire-rated construction.

• Sufficient air is needed for proper combustion and

exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer’s guidelines and safety standards such as those published by the National Fire Protection Association (NFPA), and the American Society for Heating, Refrigeration and Air Conditioning Engineers (ASHRAE), and the local code authorities.

• Local codes vary. Installation of electrical

connections and grounding must comply with applicable codes. In the absence of local codes, the vent should be installed in accordance with National Electrical Code ANSI/NFPA 70-1990 or latest edition.

CAUTION:To reduce risk of fire and to

properly exhaust air, be sure to duct air outside—do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces or garages.

PRUDENCE : Il faut prendre soin d’installer

un conduit vers l’extérieur pour réduire le risque d’incendie et pouvoir évacuer l’air correctement. Il ne faut pas évacuer l’air correctement. Il ne faut pas évacuer l’air dans l’espace entre les parois d’un mur, un plafond ou un grenier, un espace sanitaire ou un garage.

Page 4

INSTALLATION OPTIONS

NOTE: Installation height should be measured from the cooking surface to the outer glass sides.

This hood may be installed onto a wall and vented to the outdoors, or it can be installed for recirculating operation. All necessary parts for recirculating operation are supplied with the hood. No kits required.

This hood can be installed over any Monogram electric cooktop or gas cooktop. It cannot be installed over a Monogram Professional cooktop or range.

Design Information

CONTENTS

Design Information

Product Dimensions and Clearances ....................................................3

Installation Options ........................................................................................3

Installation Preparation

Advance Planning, Ductwork, Framing ................................................4

Power Supply ....................................................................................................4

Duct Fittings ......................................................................................................5

Tools and Materials Required ....................................................................6

Remove the Packaging ................................................................................6

Determine Installation Height ..................................................................7

Wall Mount Installation Heights ..............................................................7

Check Installation Hardware......................................................................8

Installation—Vented to the Outside

Step 1, Install Framing for Hood Support ............................................9

Step 2, Install Mounting Bracket............................................................10

Step 3, Install Duct Bracket......................................................................10

Step 4, Prepare the Hood..........................................................................11

Step 5, Mount the Hood ............................................................................12

Step 6, Level the Hood................................................................................12

Step 7, Connect Ductwork ........................................................................12

Step 8, Connect Electrical ........................................................................13

Step 9, Install Duct Covers........................................................................14

Step 10, Install Filters ..................................................................................14

Step 11, Finalize Installation ....................................................................14

Installation—Recirculating

Ductwork, Wiring Locations ....................................................................15

Step 1, Install Framing for Hood Support..........................................15

Step 2, Install Mounting Bracket............................................................16

Step 3, Install Duct Bracket......................................................................16

Step 4, Prepare the Hood..........................................................................17

Step 5, Mount the Hood ............................................................................17

Step 6, Level the Hood................................................................................17

Step 7, Size and Cut Duct Piece ............................................................18

Step 8, Connect Electrical ........................................................................18

Step 9, Install Duct Covers........................................................................19

Step 10, Install Filters ..................................................................................19

Step 11, Finalize Installation ....................................................................19

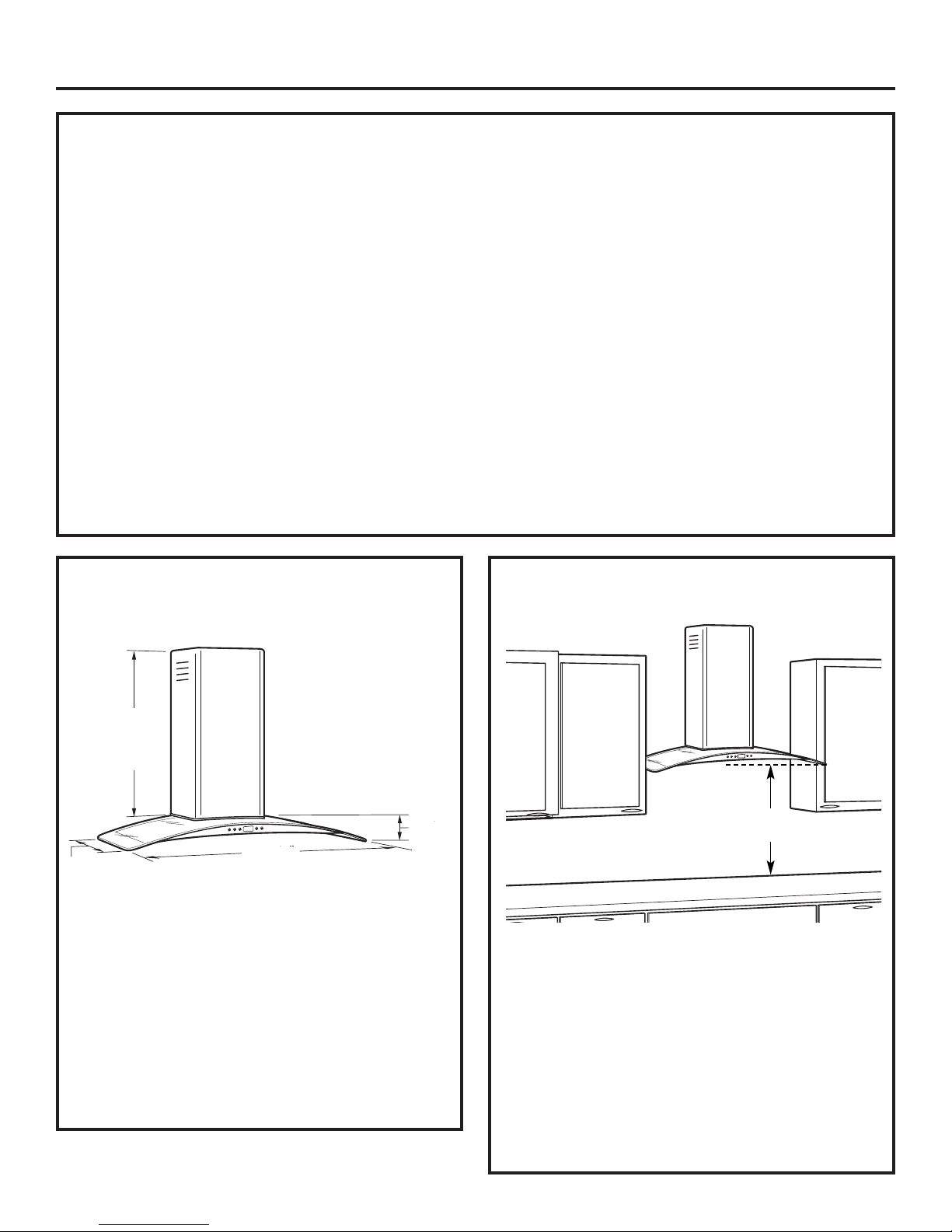

PRODUCT DIMENSIONS AND CLEARANCES

The vent hood must be installed 24″ min., and 30

″ max. above the cooking surface. The hood

installation height above the cooking surface depends upon ceiling height.

The telescopic duct cover conceals the ductwork running from the top of the hood to the ceiling. The supplied duct cover is sized to reach 8′ to 9′ 5″ ceiling heights.

The ZX90010 accessory is available for ceiling heights of 9′ 6″ to 10′ 5″.

* The Supplied Duct Cover Fits 8′ to 9′ 5″ Ceiling

Heights. For 9′ 6″ to 10′ 5″ ceilings, order ZX90010.

*Height

Ceiling

20 7/16”

35 7/8”

3 1/4”

24” Min.

30” Max.

*Height

Ceiling

7/16"

35 7/8"

3 1/4"

Page 5

Installation Preparation

ADVANCE PLANNING

• Determine the exact location of the vent hood.

• Plan the route for venting exhaust to the outdoors.

• Use the shortest and straightest duct route possible. For

satisfactory performance, duct run should not exceed 100 ft. equivalent length for any duct configurations.

• Refer to “Duct Fittings” chart to compute the maximum

permissible length for duct runs to the outdoors.

CAUTION:To reduce risk of fire and to properly

exhaust air, be sure to duct air outside—do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces or garages.

PRUDENCE :Il faut prendre soin d’installer un

conduit vers l’extérieur pour réduire le risque d’incendie et pouvoir évacuer l’air correctement. Il ne faut pas évacuer l’air correctement. Il ne faut pas évacuer l’air dans l’espace entre les parois d’un mur, un plafond ou un grenier, un espace sanitaire ou un garage.

• Use metal ductwork only. These hoods must use

″ round duct.

• Install a wall cap with damper or roof cap at the exterior

opening. Order the wall or roof cap and any transition needed in advance.

Wall Framing for Adequate Support

• This vent hood is heavy. Adequate structural support must

be provided in all types of installations. The hood must be secured to vertical studs in the wall, or to a horizontal support.

• The vent hood should be on site before final framing and

wall finishing. This will help to accurately locate the duct work and electrical service.

• Installation will be easier if the vent hood is installed before

the cooktop and countertop are installed.

Accessory Duct Cover

• This hood is shipped with a decorative duct cover for ceiling

heights of 7′ 11

″ to 9′ 5″. ZX90010 duct cover accessory

is available to reach 9′ 6

″ to 10′ 5″ ceiling heights. The

accessory should be ordered with the hood and be on site before installation begins.

POWER SUPPLY

IMPORTANT – (Please read carefully)

WARNING: FOR PERSONAL SAFETY, THIS

APPLIANCE MUST BE PROPERLY GROUNDED.

AVERTISSEMENT : POUR DES RAISONS DE

SÉCURITÉ, CET APPAREIL DOIT ÊTRE CORRECTEMENT MISE À LA TERRE.

Remove house fuse or open circuit breaker before beginning installation.

Do not use an extension cord or adapter plug with this appliance. Follow National electrical codes or prevailing local codes and ordinances.

Electrical supply

These vent hoods must be supplied with 120V, 60Hz, and connected to an individual, properly grounded branch circuit, and protected by a 15 or 20 amp circuit breaker or time delay fuse.

• Wiring must be 2 wire with ground.

• If the electrical supply does not meet the above

requirements, call a licensed electrician before proceeding.

• Route house wiring as close to the installation location as

possible, in the ceiling or back wall.

• Connect the hood wiring to the house wiring in accordance

with local codes.

Grounding instructions

The grounding conductor must be connected to a grounded metal, permanent wiring system, or an equipment-grounding terminal or lead on the hood.

WARNING:The improper connection of the

equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

AVERTISSEMENT : Le mauvais branchement du

fil de mise à la terre peut causer un choc électrique. En cas de doute, consulter un électricien qualifié ou un technicien pour déterminer si l’appareil est à la terre.

CAUTION:Automatically Operated Device –

To reduce the risk of injury disconnect from power supply before servicing. This unit is equipped with an integral disconnecting switch located inside the blower housing.

PRUDENCE :Appareil commandé

automatiquement. Afin de réduire les risques de blessure, débranchez l’appareil de l’alimentation électrique avant de procéder à une réparation. L’appareil est équipé d’un sectionneur intégral situé à l’intérieur du logement du ventilateur.

Page 6

DUCT FITTINGS

Use this chart to compute maximum permissible lengths for duct runs to outdoors.

NOTE: Do not exceed maximum permissible equivalent lengths!

Maximum duct length: 100 foot for 8″ round duct

Flexible ducting:

If flexible metal ducting is used, all the equivalent feet values in the table should be doubled. The flexible metal duct should be straight and smooth and extended as much as possible.

DO NOT use flexible plastic ducting.

NOTE: Any home ventilation system, such as a ventilation hood, may interrupt the proper flow of combustion air and exhaust required by fireplaces, gas furnaces, gas water heaters and other naturally vented systems. To minimize the chance of interruption of such naturally vented systems, follow the heating equipment manufacturer’s guidelines and safety standards such as those published by NFPA and ASHRAE.

This Hood Must Use an

8″ Round Duct.

Installation Preparation

Total

Equivalent Quantity Equivalent

Duct Piece Dimensions Length* Used Length

Round, 1 ft. straight (per foot

length)

3-1/4″ x 12″ 1 ft. 3-1/4″ x 24″ (per foot straight length)

8″ round 90° elbow 15 ft.

8″ round 45° elbow 8 ft.

3-1⁄4″ x 12″ 90° elbow 11 ft.

3-1/4″ x 12″ or 45° elbow 6 ft.

3-1/4″ x 12″ 90° flat elbow 24 ft.

8″ round to 3-1/4″ x 12″ or 3-1/4″ x 24″ transition 1 ft.

3-1/4″ x 12″ to 8″ round transition 8 ft.

8″ round to 3-1/4″ x 12″ or transition 90° elbow 16 ft.

3-1/4″ x 12″ to 8″ round round transition 90° elbow 17 ft.

8″ round wall cap with damper 30 ft.

3-1/4″ x 12″ wall cap with damper 30 ft.

8″ round roof cap 26 ft.

8″ round roof vent 26 ft.

*Actual length of straight duct plus duct fitting

equivalent. Equivalent length of duct pieces are based on actual tests conducted by GE Evaluation Engineering and reflect requirements for good venting performance with any ventilation hood.

Total Duct Run

Page 7

Installation Preparation

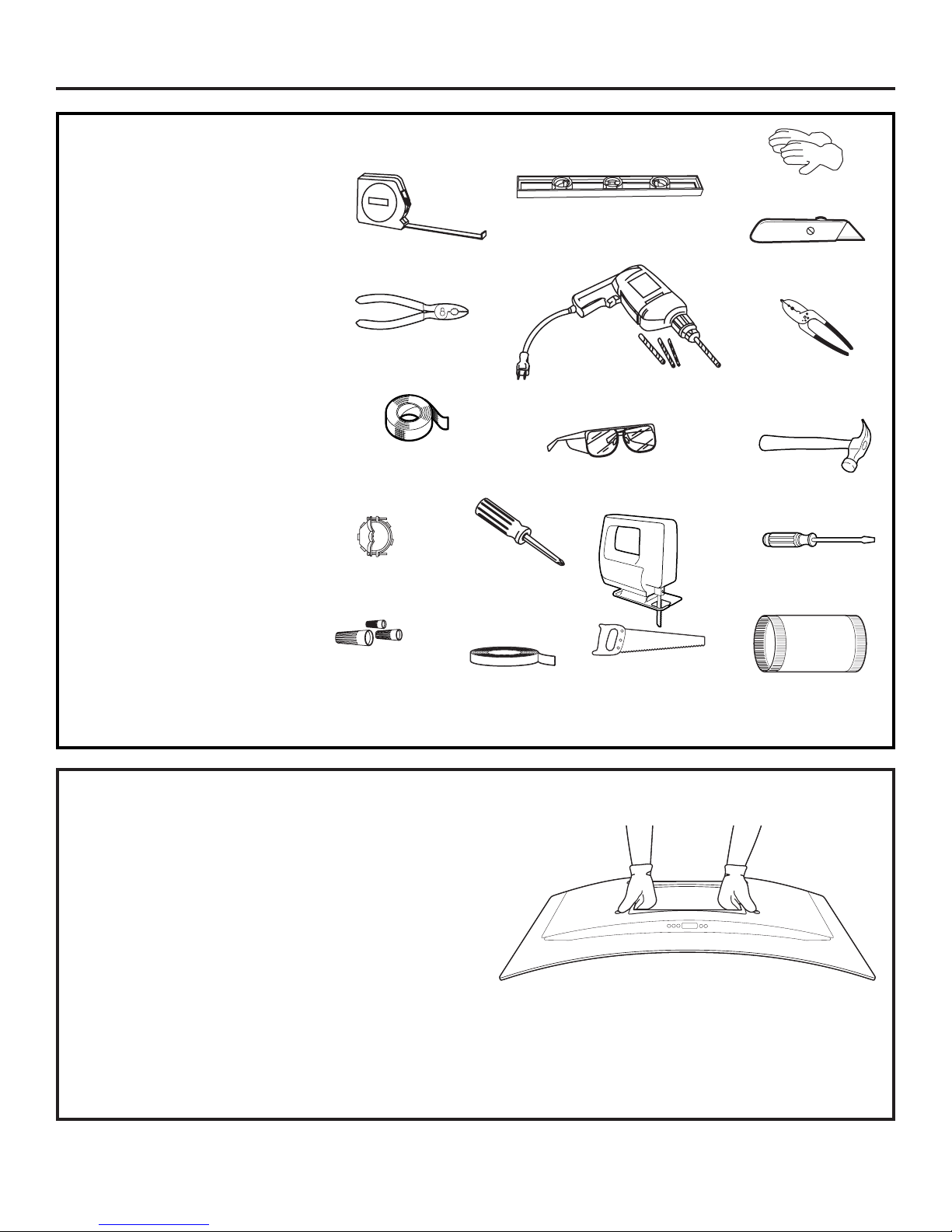

REMOVE THE PACKAGING

CAUTION: LIFT THE HOOD OUT OF THE BOX

BY THE CENTER METAL PORTION. DO NOT LIFT BY THE GLASS SIDES.

PRUDENCE : LEVEZ LA HOTTE À

L’EXTÉRIEUR DE LA BOÎTE PAR LA PORTION MÉTAL CENTRAL. NE LEVEZ PAS PAR LES CÔTÉS DE VERRE.

CAUTION: Wear gloves to protect against

sharp edges.

PRUDENCE : Portez des gants pour éviter

les blessures causées par les tranchants.

• Grasp the hood by the metal insert in the center

and lift straight up and out of the box.

• Remove and properly discard the plastic wrapping.

• Remove parts box, duct covers and other

packaging.

TOOLS AND MATERIALS REQUIRED

(NOT SUPPLIED)

 Tape measure  Knife  Spirit level  Wire cutter/stripper  Wire nuts  Electric drill with 5/16″ and 3/8″ bits  Phillips and flat blade screwdrivers  Hammer  Pliers  Safety glasses  Duct tape  Tape to mount template  Gloves to protect against sharp edges  120V 60Hz. 15 or 20 Amp, 2 wire with

ground Properly grounded branch circuit

 Strain relief for junction cover  8″ round metal duct, length to suit

installation

 Saw, jig saw or reciprocating saw

Measuring tape

Electric drill with 5/16” and 3/8” Bits

12” long Phillips head screwdriver

Safety glasses

Gloves

Spirit level

Knife

Wire

cutter/stripper

Flat blade

screwdriver

Hammer

Pliers

Duct tape

Masking tape

Wire nuts

Strain relief

Saw, jig saw or

reciprocating

saw

8″ round metal duct,

length to suit

installation

Page 8

Wall Mount ZV900

Installation Heights

Actual *Possible Ceiling *Possible VENTED RECIRCULATING Height Installation Height Installation Height

7′ 11″ 24″ to 26″ 24″ to 26″

8′ 0″ 24″ to 27″ 24″ to 27″ 8′ 1″ 24″ to 28″ 24″ to 28″ 8′ 2″ 24″ to 29″ 24″ to 29″ 8′ 3″ 24″ to 30″ 24″ to 30″ 8′ 4″ 24″ to 30″ 24″ to 30″ 8′ 5″ 24″ to 30″ 24″ to 30″ 8′ 6″ 24″ to 30″ 24″ to 30″ 8′ 7″ 24″ to 30″ 24″ to 30″ 8′ 8″ 24″ to 30″ 24″ to 30″

8′ 9″ 24″ to 30″ 24″ to 30″ 8′ 10″ 24″ to 30″ 25″ to 30″ 8′ 11″ 24″ to 30″ 26″ to 30″

9′ 0″ 25″ to 30″ 24″ to 30″

9′ 1″ 26″ to 30″ 24″ to 30″

9′ 2″ 27″ to 30″ 24″ to 30″

9′ 3″ 28″ to 30″ 24″ to 30″

9′ 4″ 29″ to 30″ 24″ to 30″

9′ 5″ 30″ 25″ to 30″

9′ 6″ 24″ to 30″ 24″ to 30″

9′ 7″ 24″ to 30″ 24″ to 30″

9′ 8″ 24″ to 30″ 24″ to 30″

9′ 9″ 24″ to 30″ 24″ to 30″ 9′ 10″ 24″ to 30″ 24″ to 30″ 9′ 11″ 24″ to 30″ 24″ to 30″

10′ 24″ to 30″ 24″ to 30″ 10′ 1″ 24″ to 30″ 24″ to 30″ 10′ 2″ 25″ to 30″ 24″ to 30″ 10′ 3″ 26″ to 30″ 25″ to 30″ 10′ 4″ 27″ to 30″ 26″ to 30″ 10′ 5″ 28″ to 30″ 27″ to 30″

*Based on 36″ countertop height.

ACCESSORY ZX90010 SUPPLIED

DETERMINE INSTALLATION HEIGHT

• Telescopic duct covers are provided to conceal

the ductwork running to the ceiling.

• This hood can be installed for recirculating

operation. No kits required.

The vent hood must be installed 24

″ min. and

″ max. above the cooking surface. The hood

installation height, from the cooking surface to the bottom of the hood, depends upon ceiling height.

Installation Preparation

24” Min.

30” Max.

36” Min.

ACCESSORY ZX90010

NOTE: Measure installation height from the cooking surface to the outer glass portion of the hood.

ACCESSORIES:

• Order ZX90010 accessory for ZV900 wall mount

hood to reach ceiling heights between 9

′ 6″ and

′ 5″. This accessory contains one 40″ long duct

cover.

Page 9

CHECK INSTALLATION HARDWARE

Locate the hardware accessory box packed with the hood and check contents.

Installation Preparation

Mounting bracket

1 charcoal filter for

recirculating installation

2-piece decorative duct

cover (dimension shown

for reference only)

Air deflector for

recirculating

installation only

Duct bracket

Wall mount template

HARDWARE PACKAGE

Locate and count

screws

3 wood screws

3 wall

fasteners

3 wall bracket

screws

12 hood

attachment

screws

27-3/4”

12-7/8”

23-7/8”

11-1/2”

Stainless steel filter

2 thumb

screws

12"

49-80405 04-06 JR

Drill 2 (two) 3/16″pilot holes through studs or rear wall support

14-5/8″ to top of bracket

MOUNTING TEMPLATE

REAR WALL

ALIGNBOTTOM EDGE

WITH PENCILLINE,

INDICATING BOTTOM

OF THE HOOD

▼

9-7/8"

11-1/2"

27-3/4"

Page 10

INSTALL FRAMING FOR HOOD SUPPORT

IMPORTANT

— Framing must be capable of

supporting 100 lbs.

If drywall is present, mark the screw hole locations for the top mounting brackets. Remove the template.

• Cut away enough drywall to expose 2 vertical studs

at the bracket location indicated on the template.

• Install a horizontal support at least 1

″ x 6″

between two wall studs at the bottom mounting bracket installation location. The horizontal support

must be flush with the room side of the studs.

Use cleats behind both sides of the support to secure to wall studs.

• Reinstall drywall.

Installation Instructions

Centerline of

installation

space

View from rear

cleats

1” x 6” min.

mounting

support

DUCTWORK, WIRING LOCATIONS

Determine the exact location of the vent hood.

• Locate the template packed with the literature.

– Measure 36″ from the floor to the top of the cooking

surface. Add hood installation height determined on page 7. Mark that location.

– Use a level to draw a straight pencil line on the wall.

– Tape the template in position along the penciled

line. CHECK TO BE SURE THE TEMPLATE IS LEVEL.

Ceiling ducting:

If ductwork will vent straight up to the ceiling:

• Use a level to draw a line straight up, from the

centerline on the template to the ceiling.

• Measure 5-1/2

″ from the back wall to the centerline

of an 8-1/2

″ hole on the ceiling.

NOTE: If drywall is not present, add drywall thickness to the 5-1/2

″ dimension.

Wall Ducting:

If ductwork will vent to the rear:

• Use a level to draw a line straight up from the

centerline on the template.

• Measure at least 26

″ above the pencil line that

indicates the bottom installation height, to the centerline of an 8-1/2

″ dia. duct hole. (Hole may

be elongated for duct elbow.)

HOUSE WIRING LOCATION:

• The junction box is located on the top left side

of the hood.

• Wiring should enter the back wall at least 22

″ above

the bottom of the hood, and within 6

″ of the left side

of the centerline.

5-1/2” centerline to wall

8-1/2” dia. hole

FOR CEILING VENT DUCTING

Centerline 26” above

the marked bottom

pencil line for

installation height.

FOR WALL VENT DUCT

INSTALLATION—VENTED TO THE OUTSIDE

Ceiling

8-1/2” min. opening for ductwork

8" Min. Opening for Ductwork

View From Rear

Cleats

1" x 6" Min.

Mounting

Support

Centerline of Installation Space

Page 11

Installation Instructions

INSTALL DUCT BRACKET

The duct bracket should be installed against the back wall and flush with the ceiling. This bracket will hold the duct cover in place at the top.

Secure the bracket to the wall:

• Align the marked centerline on the bracket with

the centerline on the wall.

• Mark 2 screw hole locations in the wall.

• Drill 3/16

″ pilot holes in the marked locations.

• If pilot holes do not enter studs, enlarge the holes

to 3/8

″ and install wall fastener anchors.

• Drive screws, by hand, into the fasteners to allow

anchors to expand. Remove the screws.

• Secure the bracket to the wall with wood screws

and/or fasteners.

INSTALL MOUNTING BRACKET

This vent hood must be secured to the horizontal support or wall studs.

• With the template taped in place, use a punch to mark mounting bracket screw locations.

• Drill 3/16

″ pilot holes in 2 of the punched locations

in the lower bracket.

• Remove the template.

• Use wood screws to secure the mounting bracket

to the wall. The screws must engage wall studs or the installed horizontal mounting support.

• Check to be sure that the bracket is level.

INSTALLATION—VENTED TO THE OUTSIDE

Drill 2 (two) 3/16″pilot holes through studs or rear wall support

14-5/8″ to top of bracket

REAR WALL

MOUNTING TEMPLATE

ALIGNBOTTOM EDGE

WITH PENCILLINE,

INDICATING BOTTOM

49-80405 04-06 JR

OF THE HOOD

▼

Page 12

Installation Instructions

PREPARE THE HOOD

• Place the hood on a padded surface.

• Position the motor housing at the back of the hood.

Electrical connectors should face the front, with rear mounting hooks at the back.

• Slip the bottom flange of the motor housing into the side slots at the top rear opening.

• Carefully lay the hood on its back.

• Fasten the hood to the motor housing from the

bottom, using 6 screws.

• Join two cable connectors at the front of the hood.

Rear

mounting

hooks

INSTALLATION—VENTED TO THE OUTSIDE

Engage flange on motor

housing into slots

Rear view

Bottom view

Rear side

Front side

To Lights

Control

Panel

Page 13

CONNECT DUCTWORK

• Install ductwork, making connections in the

direction of airflow as illustrated.

• Push duct over the exhaust outlet and damper.

• Secure joints in ductwork with sheetmetal screws.

• Wrap all duct joints and the flange connections

with duct tape for an airtight seal.

CAUTION:Do not use sheet metal screws

at the hood flange connection. Doing so will prevent proper damper operation. Seal connection with tape only.

PRUDENCE :

Il ne faut pas utiliser de vis autoraurdeuses à la connexion du collet de la hotte. Ceci empêcherait le bon fonctionnement du registre. N’utiliser que du ruban adhésif pour assurer l’étanchéité du raccord.

Duct tape over seam and screw

Screw

Airflow

Installation Instructions

INSTALLATION—VENTED TO THE OUTSIDE

MOUNT THE HOOD

WARNING: 2 people are required to lift and

position the hood onto the mounting bracket.

AVERTISSEMENT :

If faut deux personnes pour lever et mettre en place la hotte sur le support de montage.

• Lift the hood onto the mounting bracket.

• Position a spirit level at the bottom of the hood to check side to side leveling.

LEVEL THE HOOD

This hood has built-in levelers on the mounting hooks at each side. Use a long Phillips screwdriver from the front to access the levelers.

• Use the top screw hole in the leveler to raise or lower

the hood on that side.

• Use the bottom screw hole to pull the hood tight

against the wall surface.

• Mark hole location at the bottom of the hood.

• Remove the hood. If the bottom screw hole does not

enter a stud, enlarge the hole to 3/8″ and install wall fastener anchors.

• Place the hood back onto the mounting bracket,

check level again and install the wall fastener.

Screw hole

Levelers

Page 14

Installation Instructions

INSTALLATION—VENTED TO THE OUTSIDE

CONNECT ELECTRICAL

Verify that power is turned off at the source.

WARNING: If house wiring is not 2-wire

with a ground wire, a ground must be provided by the installer. When house wiring is aluminum, be sure to use U.L. approved anti-oxidant compound and aluminum-to-copper connectors.

AVERTISSEMENT :

Si la maison n’est pas câblee avec deux fils et un fil de terre, l’installateur doit installer un fil de terre. Quand les fils sont en aluminium, il faut prendre soin d’utiliser des connecteurs aluminium à cuivre avec une pâte antioxydante approuvée par U.L.

• Remove junction box cover and knockout on the

left side.

• Secure the house wiring to the junction box with

a strain relief.

• Connect white leads to branch circuit white lead.

• Connect black leads to branch circuit black lead.

• Connect green/yellow leads to branch circuit green

lead or bare ground lead.

• Secure all connections with wire nuts on each

electrical connector.

• Push wires into junction box and replace cover.

Be sure wires are not pinched.

• Secure J-Box cover with original screw.

House wiring

J-Box

cover

Knockout

J-Box

cover

Page 15

INSTALL DUCT COVERS

• Place the decorative duct

covers on top of the hood.

NOTE: The inside (upper) duct piece has holes on one end. The holes are intended for use when the hood is installed for recirculating purposes. Slide the inside end into the outer piece; the vent holes should not be visible in this installation.

The inside duct piece must slip into the folded ends of the outer section.

• Extend the inner duct upward to the ceiling bracket.

• Secure duct cover to ceiling bracket with 2 screws.

Installation Instructions

INSTALLATION—VENTED TO THE OUTSIDE

Mounting

screws

INSTALL FILTERS

IMPORTANT: Check to be sure that the main

ON/OFF switch next to the motor is in the ON position.

• Remove protective film on the filters.

• Tip the filter into the left or right side of the

opening. Lift the filter to the opposite side and into the filter lock.

• To remove the filter, pull the filter lock downward.

FINALIZE INSTALLATION

• Check to be sure all tape and packaging materials

have been removed.

• Refer to the Owner’s Manual for operating

instructions.

NOTE: The charcoal filter is not required for this installation.

Duct cover

support bracket

Upper duct cover

Lower duct cover seat

Filter Lock

Duct cover

support bracket

Lower duct cover

Page 16

Installation Instructions

INSTALLATION—RECIRCULATING

DUCTWORK, WIRING LOCATIONS

• Determine the exact location of the vent hood.

• Locate the template packed with the literature.

• Measure 36

″ from the floor to the top of the cooking

surface. Add hood installation height determined on page 7. Mark that location.

• Tape the template in position along the penciled line.

CHECK TO BE SURE THE TEMPLATE IS LEVEL.

• Use a level to draw a line straight up, from the

centerline on the template to the ceiling.

HOUSE WIRING LOCATION:

• The junction box is located on the top left side of

the hood.

• Wiring should enter the back wall at least 22

″

above the bottom of the hood, and within 6″ of the centerline.

INSTALL FRAMING FOR HOOD SUPPORT

IMPORTANT:

Framing must be capable of

supporting 100 lbs.

If drywall is present, mark the screw hole locations for the top mounting brackets. Remove the template.

• Cut away enough drywall to expose 2 vertical studs

at the bracket location indicated on the template.

• Install a horizontal support at least 1

″ x 6″

between two wall studs at the bottom mounting bracket installation location. The horizontal support

must be flush with the room side of the studs.

Use cleats behind both sides of the support to secure to wall studs.

• Reinstall drywall.

Centerline of

installation

space

View from rear

cleats

1” x 6” min.

mounting

support

Ceiling

8" Min. Opening for Ductwork

Centerline of Installation Space

View From Rear

Cleats

1" x 6" Min.

Mounting

Support

Page 17

Installation Instructions

INSTALLATION—RECIRCULATING

INSTALL DUCT BRACKET

The duct bracket should be installed against the back wall and flush with the ceiling. This bracket will hold the duct cover in place at the top.

Secure the bracket to the wall:

• Align the marked centerline on the bracket with

the centerline on the wall.

• Mark 2 screw hole locations in the wall.

• Drill 3/16

″ pilot holes in the marked locations.

• If pilot holes do not enter studs, enlarge the holes

to 3/8

″ and install wall fastener anchors.

• Drive screws, by hand, into the fasteners to allow

anchors to expand. Remove the screws.

• Secure the bracket to the wall with wood screws

and/or fasteners.

INSTALL MOUNTING BRACKET

This vent hood must be secured to the horizontal support or wall studs.

• With the template taped in place, use a punch to mark mounting bracket screw locations.

• Drill 3/16

″ pilot holes in 2 of the punched locations

in the lower bracket.

• Remove the template.

• Use wood screws to secure the mounting bracket

to the wall. The screws must engage wall studs or the installed horizontal mounting support.

• Check to be sure that the bracket is level.

Drill 2 (two) 3/16″pilot holes through studs or rear wall support

14-5/8″

to top of

bracket

REAR WALL

MOUNTING TEMPLATE

ALIGNBOTTOM EDGE

WITH PENCILLINE,

INDICATING BOTTOM

49-80405 04-06 JR

OF THE HOOD

▼

Page 18

Installation Instructions

INSTALLATION—RECIRCULATING

PREPARE THE HOOD

• Place the hood on a padded surface.

• Position the motor housing at the back of the hood.

Electrical connectors should face the front, with rear mounting hooks at the back.

• Slip the bottom flange of the motor housing into the side slots at the top rear opening.

• Carefully lay the hood on its back.

• Fasten the hood to the motor housing from the

bottom, using 6 screws.

• Join two cable connectors at the front of the hood.

Rear

mounting

hooks

Engage flange on motor

housing into slots

Rear view

Bottom view

Rear side

Front side

To Lights

Control

Panel

MOUNT THE HOOD

WARNING: 2 people are required to lift and

position the hood onto the mounting bracket.

AVERTISSEMENT :

If faut deux personnes pour lever et mettre en place la hotte sur le support de montage.

• Lift the hood onto the mounting bracket.

• Position a spirit level at the bottom of the hood to check side to side leveling.

LEVEL THE HOOD

This hood has built-in levelers on the mounting hooks at each side. Use a long Phillips screwdriver from the front to access the levelers.

• Use the top screw hole in the leveler to raise or lower

the hood on that side.

• Use the bottom screw hole to pull the hood tight

against the wall surface.

• Mark hole location at the bottom of the hood.

• Remove the hood. If the bottom screw hole does not

enter a stud, enlarge the hole to 3/8″ and install wall fastener anchors.

• Place the hood back onto the mounting bracket,

check level again and install the wall fastener.

Screw hole

Levelers

Page 19

CONNECT ELECTRICAL

Verify that power is turned off at the source.

WARNING: If house wiring is not 2-wire

with a ground wire, a ground must be provided by the installer. When house wiring is aluminum, be sure to use U.L. approved anti-oxidant compound and aluminum-to-copper connectors.

AVERTISSEMENT :

• Remove junction box cover and knockout on the

left side.

• Secure the house wiring to the junction box with

a strain relief.

• Connect white leads to branch circuit white lead.

• Connect black leads to branch circuit black lead.

• Connect green/yellow leads to branch circuit

green lead or bare ground lead.

• Secure all connections with wire nuts on each

electrical connector.

• Push wires into junction box and replace cover.

Be sure wires are not pinched.

• Secure J-Box cover with original screw.

Installation Instructions

INSTALLATION—RECIRCULATING

SIZE AND CUT DUCT PIECE

• Hold upper air deflector

with duct connector against the ceiling.

• Measure from the bottom

of the air deflector to the top of the hood as shown. Reduce that dimension by 1

″ to

facilitate installation. The duct will cover and overlap the deflector and the hood outlets.

• Cut the duct piece to size and

slip onto the bottom of the deflector.

• Place the assembled deflector

and duct over the exhaust outlet.

• Hold the assembly against the

duct bracket.

• Drive 4 screws into the bottom

of the deflector and into the bracket.

• Use duct tape to seal duct

to the deflector and at the exhaust outlet.

Measure

length

Deflector

Duct

length

Knockout

J-Box cover

House wiring

J-Box cover

Page 20

Installation Instructions

INSTALLATION—RECIRCULATING

INSTALL FILTERS

IMPORTANT: Check to be sure that the main

ON/OFF switch next to the motor is in the ON position.

Charcoal filter

• Install the black charcoal filter into the center

opening. Secure the filter with thumbscrews on each side.

Metal filter

• Tip the filter into the left or right side of the

opening. Lift the filter to the opposite side and into the filter lock.

• To remove the filter, pull the filter lock downward.

FINALIZE INSTALLATION

• Remove all tape and packing material.

• Refer to the Owner’s Manual for operating

instructions.

INSTALL DUCT COVERS

• Place the decorative duct

covers on top of the hood.

NOTE: The inside piece has holes on one end intended for use when the hood is installed for recirculating purposes. Be sure the vented end is at the top; the vent holes will be visible in this installation.

The inside duct piece must slip into the folded ends on the outer section.

• Extend the inner duct upward to the ceiling

bracket.

• Secure duct cover to ceiling bracket with 2 screws.

Mounting

screw holes

Vent holes

Duct cover

support bracket

Upper duct cover

Lower duct cover

Lower duct cover seat

Filter Lock

Duct cover

support bracket

Page 21

Printed in Italy

NOTE: While performing installations described in this book, safety glasses or goggles should be worn.

For Monogram®local service in your area, call

1.800.444.1845.

NOTE: Product improvement is a continuing endeavor at General Electric. Therefore, materials, appearance and specifications are subject to change without notice.

GE Consumer & Industrial

GE Appliances General Electric Company Louisville, KY 40225

ge.com
