Page 1
ZIS480NX
*84" From
Floor to
Top Frame
48"
Frame to Frame
47"
Case Width
*83-1/2"
at
Rear
25-3/4"
27-3/4"
including
handle
23-7/8"
Behind
Frame
90° Door Swing
4" Min.
to Wall
28-5/8"
20"
130° Door Swing
15"
*Finished Width
6"
5"
Electrical
Area
84-1/2" max
83-1/2" min
Finished
Opening
75" From Floor
to Bottom
of Electrical
Area
24"
5"
5"
3-1/2"
Water Supply
3-1/2"
36" Models 12"
42" Models 18"
48" Models 20"

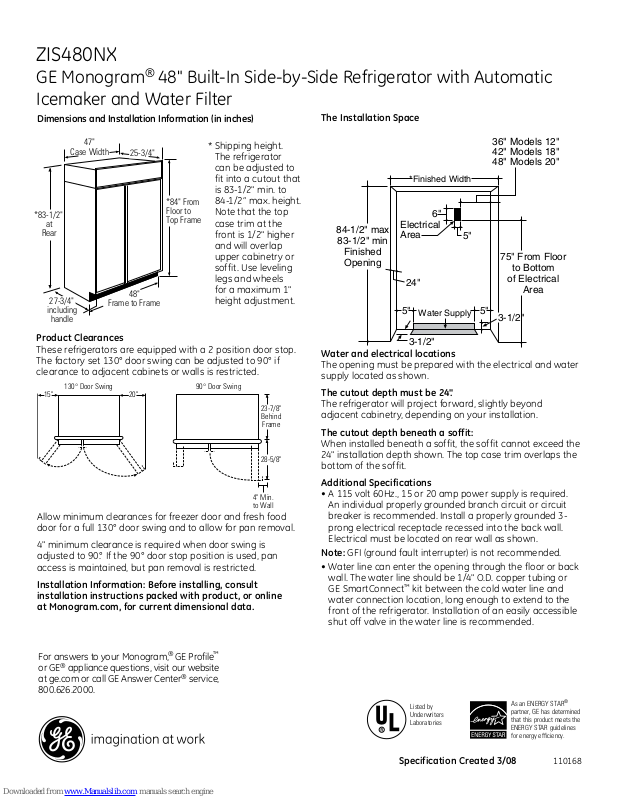

GE Monogram® 48" Built-In Side-by-Side Refrigerator with Automatic
Icemaker and Water Filter
Dimensions and Installation Information (in inches)
The Installation Space
* Shipping height.
The refrigerator
can be adjusted to
fit into a cutout that
is 83-1/2" min. to
84-1/2” max. height.
Note that the top
case trim at the
front is 1/2" higher
and will overlap
upper cabinetry or
soffit. Use leveling
legs and wheels
for a maximum 1"
height adjustment.
Product Clearances
These refrigerators are equipped with a 2 position door stop.
The factory set 130° door swing can be adjusted to 90° if
clearance to adjacent cabinets or walls is restricted.
Allow minimum clearances for freezer door and fresh food
door for a full 130° door swing and to allow for pan removal.
4" minimum clearance is required when door swing is
adjusted to 90°. If the 90° door stop position is used, pan
access is maintained, but pan removal is restricted.
Installation Information: Before installing, consult
installation instructions packed with product, or online
at Monogram.com, for current dimensional data.
Water and electrical locations
The opening must be prepared with the electrical and water
supply located as shown.
The cutout depth must be 24".
The refrigerator will project forward, slightly beyond
adjacent cabinetry, depending on your installation.
The cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot exceed the
24" installation depth shown. The top case trim overlaps the
bottom of the soffit.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is required.
An individual properly grounded branch circuit or circuit
breaker is recommended. Install a properly grounded 3prong electrical receptacle recessed into the back wall.
Electrical must be located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
• Water line can enter the opening through the floor or back
wall. The water line should be 1/4" O.D. copper tubing or
GE SmartConnect™ kit between the cold water line and
water connection location, long enough to extend to the
front of the refrigerator. Installation of an easily accessible
shut off valve in the water line is recommended.
For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 3/08
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
110168
Page 2
ZIS480NX
Framed Panel
3/4" Overlay Panel
.10" Thick Spacer Panel
1/4" Thick Backer Panel
*84"
2-9/16"
24"
*3" to 4"
3/16"
1-7/8"
GE Monogram® 48" Built-In Side-by-Side Refrigerator with Automatic
Icemaker and Water Filter
Dimensions and Installation Information (in inches)
Customization Basics: Framed or Overlay Panels, Custom Handles and Accessory Kits
Trimmed Refrigerators
ZIS480NXSS, ZISW480DXSS, ZISB480DXSS
Trimmed refrigerators are designed to be customized with
decorative panels. Field-installed custom door and grille
panels are required.
Framed Panels
You may install 1/4"-thick custom panels from your cabinet
manufacturer. The decorative panels slide into the factoryinstalled trim. Or, order black, white and stainless steel
accessory panels from your Monogram dealer.
Standard supplied handles shown in 1/4" panel position.
Overlay Panels
You may also choose to install custom overlay panels from
your cabinet manufacturer. This design provides a seamless
appearance which integrates smoothly with surrounding
cabinetry.
Door Handles
The supplied handles can be adjusted to accommodate both
framed or overlay panels. Custom handles of your choice,
supplied by your cabinet maker, can also be installed. If
desired, you may order ZKHSS2 Monogram stainless steel
tubular handle kit for overlay panels.
Side Panels
Side panels must be used whenever
the sides of the refrigerator will be
exposed. The 1/4" side panels will
slip into the side case trim. Secure
the panels to the refrigerator with
stick-on hook and loop fastener
strips. Order the side panels from
the cabinet manufacturer.
• Cut a notch in the top front corner
as shown to allow clearance for
corner keys in the front side trim.
Standard supplied handles shown in 3/4" overlay panel position.
For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at ge.com or call GE Answer Center® service,
800.626.2000.
*Depending on installation height.
Optional Accessory Kit
ZKHSS2: Tubular Stainless Steel handles designed to fit
3/4" overlay panels.
Accessory Panels
White or black acrylic and stainless steel accessory panels
are available from your Monogram supplier. Panels are
cut to size and ready to install. These panel kits must be
ordered separately.
White Black Stainless
Models Acrylic Acrylic Steel
ZISW480D ZPW480D ZPS480D
ZISB480D ZPB480D ZPS480D
ZIS480N ZPW480N ZPB480N ZPS480N
Listed by
Underwriters
Laboratories
Specification Created 3/08
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
110168
Page 3
ZIS480NX
Fresh Food
Panel
Freezer
Panel
26-9/16"
18-9/16"
45-7/8"
9-1/2"
Grille Panel
68-3/8"
3/4"
Overlay
Panel
Door
.10"
Spacer
1/4"
Backer
Panel
Spacer Panel
Overlay Panel
Backer Panel
Door
5/16"
Trim
Reveal
1/4"
Panel
Fresh Food
Panel
Freezer
Panel
E
D
A
B
Grille Panel
C
GE Monogram® 48" Built-In Side-by-Side Refrigerator with Automatic
Icemaker and Water Filter
Dimensions and Installation Information (in inches)
3/4" Overlay Panel
Dimensions
For a more custom appearance,
overlay panels may be installed
on trimmed models. The overlay
panel must be secured to a 1/4"thick backer panel which slides
into the trim. A spacer panel 0.10"
thick must be placed between the
overlay and backer panels.
.250" + .10" + .750" =
1.100" Total Panel Thickness
Center each panel over the
other. Assemble the panels
with glue and screws. Screws
must be countersunk into the
backer panel.
NOTE: Left-to-right offset
is not always equal to
top-to-bottom offset.
48" Side-by-Side (in inches)
A B C D E
1/4" Backer Panel 45-7/8 9-1/2 68-3/8 18-9/16 26-9/16
.10" Spacer Panel 45 8-5/8 67 17-1/4 25-1/4
3/4" Spacer Panel 46-1/8 9-3/4 68-5/8 18-13/16 26-13/16
Important Note: Maximum total
panel weight:
• Fresh food door panel – 50 lbs.
• Freezer door panel – 30 lbs.
1/4" Framed Panel
Dimensions
If you choose to install framed
panels, they must be cut to the
dimensions shown. The panels will
slide into the frame on the door and
grille.
If the custom panel is less than 1/4"
thick, and it fits loosely in the door
frame, it can be backed up with a
piece of filler material or foam tape
to improve the fit.
Important Note: Maximum weight
for fresh food panel is 50 pounds and
30 pounds for freezer panel.
For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 3/08
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
110168
Page 4
ZIS480NX
1/4"
1/2"
3/4"
1"
1-1/4"
1"
3/4" Overlay
Panel
(Nominal Size)
1/4"
1/2"
3/4"
2"
1-1/4"
1-1/2"
1-3/4"
3"
2-1/4"
2-1/2"
2-3/4"
1/4"
1/2"
3/4"
Door
23-7/8" From
Rear of
Refrigerator
1"
Refrigerator
Case
Trim
GE Monogram® 48" Built-In Side-by-Side Refrigerator with Automatic
Icemaker and Water Filter
Dimensions and Installation Information (in inches)
Advance Planning for Built-In Custom Side-by-Side Refrigerators
Use this page to determine door swing
interaction with adjacent cabinets
or countertops.
Frameless Cabinets: The case trim overlaps
cabinets at the top and sides. Therefore,
frameless cabinets may require filler strips
to prevent interference with cabinet door
swing. The opening must allow for filler strips.
Top View

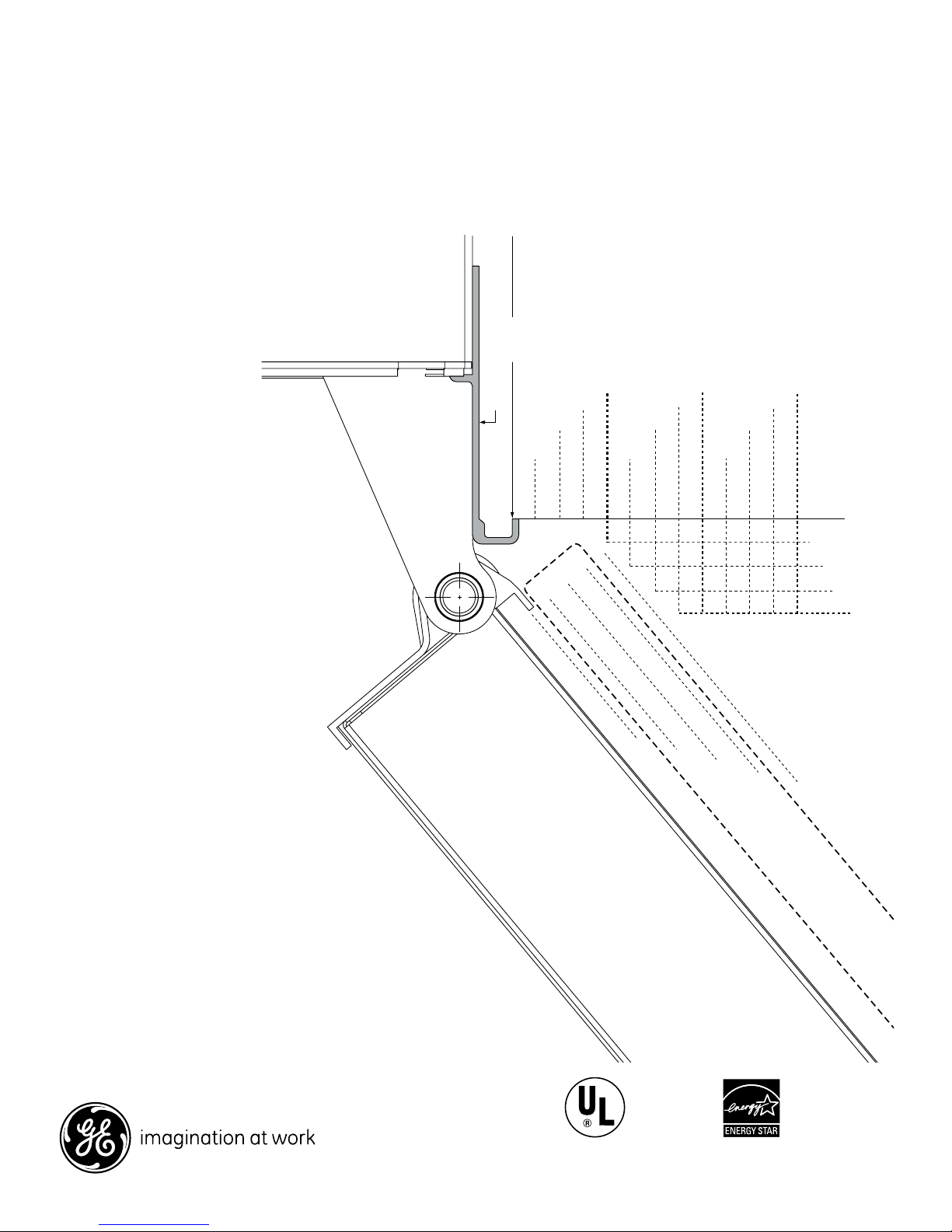

130° Door Swing
(Factory setting)
Scale 1:1
IMPORTANT NOTE –
FOR DISPENSER MODELS
Dispenser models are supplied with
two dispenser trims, one to fit framed
panels and one for overlay panels.
Dispenser trim fit to the custom panel
depends on correct
panel thickness. Framed panels
must be 1/4" nominal. Overlay panels
should be constructed as shown
to accomplish a total
1.100" thickness.
For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
Specification Created 3/08
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
110168
Page 5
ZIS480NX
1/4"
1/2"
3/4"
1"
1-1/4"
1/4"
1/2"
3/4"
1"
1-1/4"
1-1/2"
23-7/8"
From Rear of
Refrigerator
3/4" Overlay
Panel
(Nominal Size)
Case Trim
Refrigerator
Door
GE Monogram® 48" Built-In Side-by-Side Refrigerator with Automatic
Icemaker and Water Filter
Dimensions and Installation Information (in inches)
Advance Planning for Built-In
Side-by-Side Refrigerators
Use this page to determine door swing
interaction with adjacent cabinets
or countertops.
Frameless Cabinets: The case trim overlaps
cabinets at the top and sides. Therefore,
frameless cabinets may require filler strips
to prevent interference with cabinet door swing.
The opening must allow for filler strips.

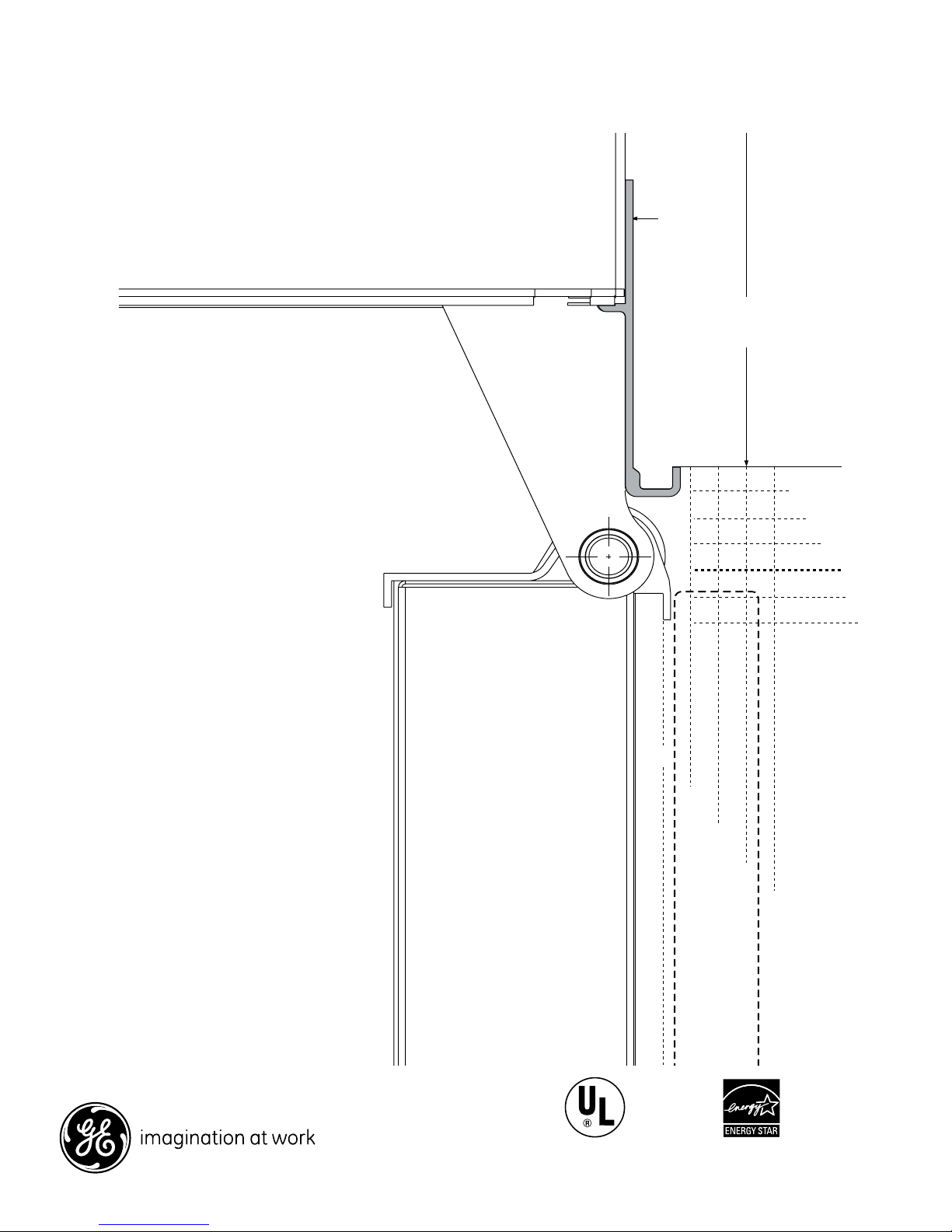

Top View
90° Door Swing
(Optional setting)
Scale 1:1
IMPORTANT NOTE –
FOR DISPENSER MODELS
Dispenser models are supplied with two
dispenser trims, one to fit framed panels and
one for overlay panels. Dispenser trim fit to
the custom panel depends on correct panel
thickness. Framed panels must be 1/4" nominal.
Overlay panels should be constructed as shown
to accomplish a total 1.100" thickness.
For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at ge.com or call GE Answer Center® service,
800.626.2000.
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
Specification Created 3/08
110168
Page 6
ZIS480NX
GE Monogram® 48" Built-In Side-by-Side Refrigerator with Automatic
Icemaker and Water Filter
Features and Benefits
• Halogen Light Columns - Located in the freezer and fresh
food compartments, extend the full length of the interior
compartments providing brilliant, all-level illumination
• LED Lighting - Located at the top of the fresh food
compartment, and inside the high-humidity and climatecontrol drawers, illuminates contents without
compromising space
• Advanced Temperature Management System with Multi-Shelf
Air Tower - Provides even distribution of air throughout
the refrigerator
• Climate-Control Drawer - Allows you to express-chill
beverages, express-thaw meats and select specific
temperatures for perishable foods
• Humidity-Controlled Vegetable Drawer - Helps preserve the
freshness of foods
• Gallon-Size Door Bin - Holds milk containers, two-liter bottles
and pitchers
• Adjustable Spillproof Glass Shelves - Easily accommodate
party trays and platters
• Drop-Down Shelf - Provides additional space for a casserole
dish or pizza box
• Adjustable Deli Drawer on Full-Extension Slides - Keeps
meats, cheeses and other everyday foods within easy reach
• Dairy Bin with Center Divider - Has a unique magnetic seal
that locks in freshness
• Adjustable Door Bins - Can be moved to one of two positions
in seven locations
• Model ZIS480NX – Non-dispenser model
For answers to your Monogram,® GE Profile™
or GE® appliance questions, visit our website
at ge.com or call GE Answer Center® service,
800.626.2000.
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR
for energy efficiency.
guidelines
Specification Created 3/08
110168
Loading...
