ZIC360NM – GE Monogram 36" Built-In Bottom Freezer Refrigerator with
Automatic Icemaker
Water and Electrical Locations
Electrical and water supply must be located as shown.
The cutout depth must be 24"
Designed for industry standard flush installation. The refrigerator will
project forward, slightly beyond adjacent cabinetry, depending on
your installation.
Cutout depth beneath a soffit
When installed beneath a soffit, the soffit cannot exceed the 24" installation
depth shown. The top case trim overlaps the bottom of the soffit.
Frameless Cabinets
The case trim overlaps cabinets at the top and sides. Therefore, frameless
cabinets may require filler strips to prevent interference with cabinet
door swing. The opening must allow for filler strips.
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is required. An individual
properly grounded branch circuit or circuit breaker is recommended.
Install a properly grounded 3-prong electrical receptacle recessed
into the back wall. Electrical must be located on rear wall as shown.
Note: GFI (grounded fault interrupter) is not recommended.
• Water line can enter the opening through the floor or back wall. The
water line should be 1/4" O.D. copper tubing between the cold water
line and water connection location, long enough to extend to the
front of the refrigerator. Installation of an easily accessible shut off
valve in the water line is recommended.
Optional Panel Kits:
• ZPBC360: Black Panel Kit
• ZPWC360: White Panel Kit
• ZPSC360: Stainless Steel Panel Kit
Optional Custom Trim Kits:
• ZKHCSS2: Tubular Stainless Steel handles
• ZUG2: Unified Grille Kit
Product Clearances
These refrigerators are equipped with a 2 position door stop. The
factory set 130° door swing can be adjusted to 90° if clearance to
adjacent cabinets or walls is restricted.
Allow 25" minimum clearance for a full 130° door swing. Allow 15" for
pan removal.
4" minimum clearance is required when door swing is adjusted to 90°.
If the 90° door stop position is used, pan access is maintained, but pan
removal is restricted.
36"
Frame to Frame
Width
*84" From
Floor to
Top Frame
35"
Case Width
*83-1/2"
at
Rear
23-7/8"
Behind
Frame
36-3/4"
4" Minimum
to Wall
90° Door Swing
90°
25"
Minimum
to Wall
130° Door Swing
130°
The Installation Space
7"
Wall View
Electrical
Area
84-1/2" max
83-1/2" min
Finished
Opening
74-1/2" From
Floor to
Bottom
of Electrical
10"
5"
3 1/2"
5"
3 1/2"
Water Supply
24" Cutout Depth
35-1/2"
Finished Width
2-5/16"
The finished cabinet width must be 35-1/2".
Dimensions and Clearances
* Shipping height. The refrigerator
can be adjusted to fit into a
cutout that is 83-1/2" min. to
84-1/2" max. height. Note that
the top case trim at the front
is 1/2" higher and will overlap
upper cabinetry or soffit. Use
leveling legs and wheels for
height adjustment.
Specification Revised 8/02
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Page 2
Monogram.
Specification Revised 8/02
ZIC360NM – GE Monogram 36" Built-In Bottom Freezer Refrigerator with
Automatic Icemaker

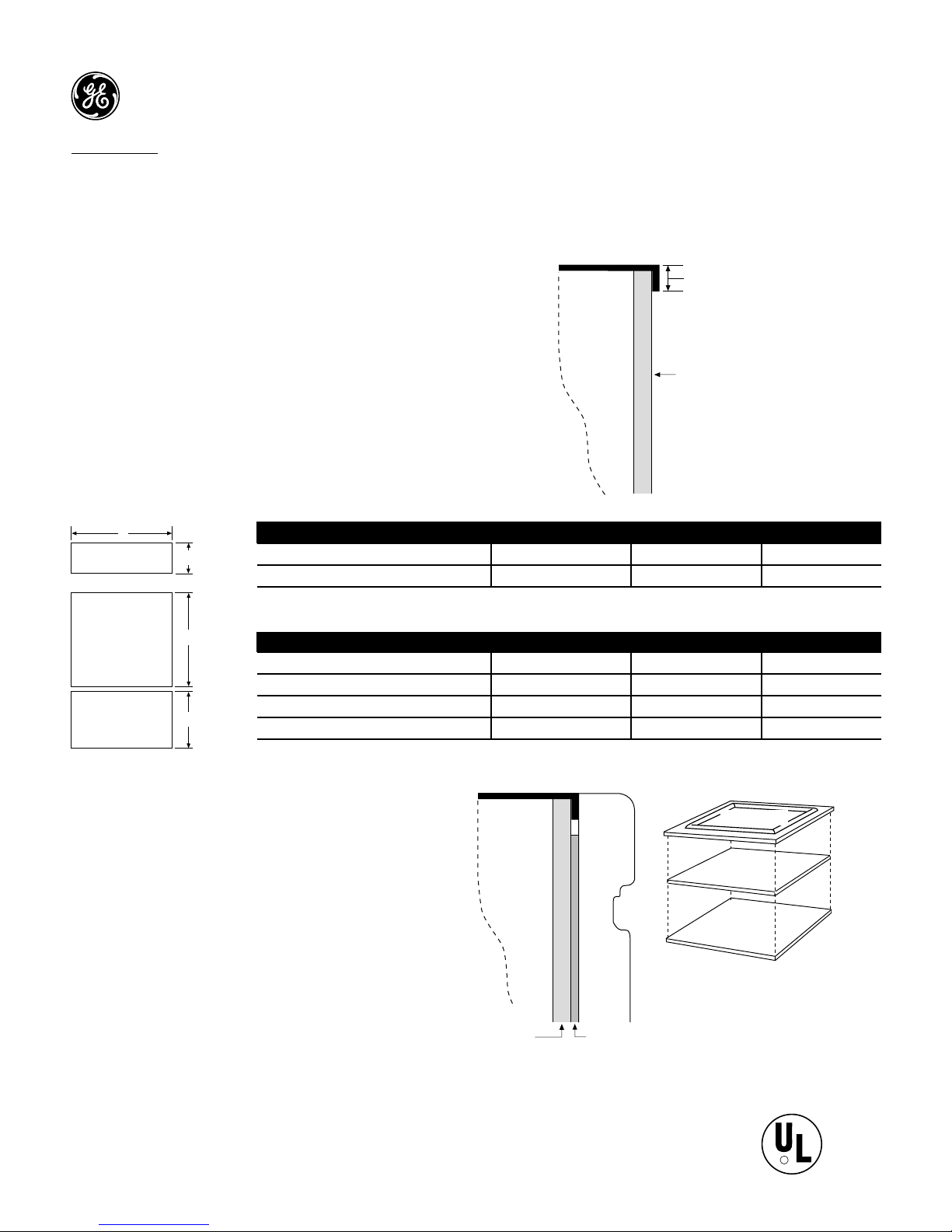

1/4" FRAMED PANEL DIMENSIONS
If you choose to install framed panels, they must be cut to
the dimensions shown. The panels will slide into the frame
on the door, drawer and grille.
If the custom panel is less than 1/4" thick and if it fits loosely
in the door frame, it can be backed up with a piece of filler
material or foam tape to improve the fit.
IMPORTANT NOTE: Maximum weight for fresh food panel is
50 pounds and 30 pounds for freezer drawer panel.
Framed Panel Dimensions
A (Width) B (Grille Height) C (FF Height) D (FZ Height)
1/4" Framed Panel 33-7/8" 8-7/8" 46-1/16" 21-7/8"
Overlay Panel Dimensions
A (Width) B (Grille Height) C (FF Height) D (FZ Height)
1/4" Backer Panel 33-7/8" 8-7/8" 46-1/16" 21-7/8"
0.10" Spacer Panel 32-1/2" 7-5/8" 44-11/16" 20-1/2"
3/4" Overlay Panel 34-1/8" 9" 46-5/16" 22"
3/4" OVERLAY PANEL DIMENSIONS
For a more custom appearance, overlay panels may be
installed on trimmed models. The overlay panel must be
secured to a 1/4" thick backer panel which slides into the
trim. A spacer panel 0.10" thick must be placed between the
overlay and backer panel.
IMPORTANT NOTE: Maximum total weight for assembled
fresh food panel is 50 pounds and 30 pounds for freezer
drawer panel.
Assemble the panels with glue and screws.
• Center the spacer panel on the backer panel, left to right
and top to bottom. Secure the panels with glue.
• Center the spacer and backer panel on the overlay panel
and secure with glue and screws. Screws must be
countersunk into the backer panel.
1/4"
Panel
Door/Drawer
5/16"
Trim
Reveal
Fresh Food
Panel
Freezer Drawer
Panel
D
C
A
B
Grille Panel
Overlay
Panel
1/4"
Backer
Panel
Door/Drawer
.10"
Spacer
Spacer Panel
Backer Panel
Overlay Panel
Note: Left-to-right offset is not always
equal to top-to-bottom offset.
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
™
Page 3
Monogram.
™
ZIC360NM – GE Monogram 36" Built-In Bottom Freezer Refrigerator with
Automatic Icemaker
Design Guide
ZUG2 Unified Grille Panel Kit
• If you are installing two refrigerators, side by side, the installation
space must be 71-1/2" wide.
Note: Additional cutout width may be required when side panels are
used. Add side panel thickness to the finished cutout to calculate
rough-in width.
• The water and electrical locations for each product must be located
as shown.
• A separate 115V, 60Hz., 15 or 20 amp power supply is recommended
for each product.
2-5/16"
74-1/2" From
Floor to Bottom
of Electrical
84-1/2" max
83-1/2" min
Finished
Opening
71-1/2" Finished Width
Electrical
5"
3-1/2"
24" Cutout
Depth
Water Supply
Wall View
24-3/16"
26"
7"
10"
7"
10"
Water Supply
26"
5"
3-1/2"
Specification Revised 8/02
Framed panels
You may install 1/4" thick custom panels from your cabinet manufacturer.
The decorative panel slides into the factory installed trim. Or, order
black, white and stainless steel accessory panels from your
Monogram dealer.
Overlay panels
You may also choose to install custom overlay panels from your cabinet
manufacturer. This design provides a seamless appearance which
integrates smoothly with surrounding cabinetry.
Door and Drawer Handles
The standard supplied handles can be adjusted to accommodate both
framed or overlay panels. Custom handles of your choice, supplied by
your cabinet maker can also be installed. If desired, you may order
ZKHCSS2 Monogram stainless steel tubular handle kit for overlay panels.
Side Panels
Side panels must be used whenever the sides of the refrigerator will
be exposed.
Optional Accessory Kits
• ZKHCSS2: Monogram Tubular Stainless Steel handles designed to fit
overlay panels.
• ZUG2: For side by side installation of two trimmed bottom-freezer
refrigerators. This kit provides for the installation of a unified custom grille
panel to span the width of two units using a framed or overlay panel.
Accessory Panels
White, black and stainless steel accessory panels are available from your
Monogram dealer. Panels are cut to size and ready to install.
ZPBC360 – Black, ZPWC360 – White, ZPSC360 – Stainless Steel Panels
Standard Door Handle
Framed Panel
Standard
Door Handle
3/4" Overlay Panel
1/4" Thick Backer Panel
.10" Thick Spacer Panel
Standard supplied handles shown in 1/4" panel position.
Standard supplied handles shown in 3/4" overlay panel position.
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Page 4
Monogram.
ZIC360NM – GE Monogram 36" Built-In Bottom Freezer Refrigerator with
Automatic Icemaker
SIDE PANELS
Side panels must be used whenever the sides of the refrigerator
will be exposed. The 1/4" side panels will slip into the side case
trim. Order the side panels from the cabinet manufacturer.
*84"
2-9/16"
24"
*3" to 4"
* Depending on
installation height.
ZUG2 GRILLE PANEL DIMENSIONS
The ZUG2 unified grille panel kit provides for the installation
of a framed or overlay grille panel.
Framed Panel Dimensions
A (Width) B (Height)
1/4" Framed Panel 69-7/8" 8-7/8"
Overlay Panel Dimensions
A (Width) B (Height)
1/4" Backer Panel 69-7/8" 8-7/8"
0.10" Spacer Panel 68-1/2" 7-5/8"
3/4" Overlay Panel 70-1/8" 9"
Spacer Panel
Backer Panel
Overlay Panel
Assemble the overlay panels in the same manner
as the door and drawer panels.
A
B
Grille Panel
Specification Revised 8/02
For answers to your Monogram,® GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
™
Page 5
Monogram.
™
Specification Revised 8/02
ZIC360NM – GE Monogram 36" Built-In Bottom Freezer Refrigerator with
Automatic Icemaker
Features and Benefits
• 20.6 Cu. Ft. Capacity (Fresh Food
14.5 Cu. Ft./Freezer 6.1 Cu. Ft.)
• Equipped with Factory Installed
Automatic Icemaker with
Removable Ice Storage Bin
• Upfront Dual Electronic Controls
• Multi-Shelf Air Management Tower
• 2 Sealed, Adjustable Humidity
Produce Pans with Easy Access Lids
and Full Extension Slides
• 2 Sealed Slide-Out Deli Pans
• Adjustable Spill-Proof Glass Shelves
• 6 Adjustable Fresh Food Door Bins
• Gallon Door Storage
• 2 Sealed Dairy Compartments with
Glass-Covered Butter Dish
• Egg Bin
• Wine Caddy
• Freezer Drawer on Full Extension Slides
• Independent Utility Basket on Full
Extension Slides
• GE SmartWater Filtration System
• Model ZIC360NMRH – Right-handed
door swing (Door panels required)
• Model ZIC360NMLH – Left-handed
door swing (Door panels required)
