Specification Revised 9/00
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Monogram.
™

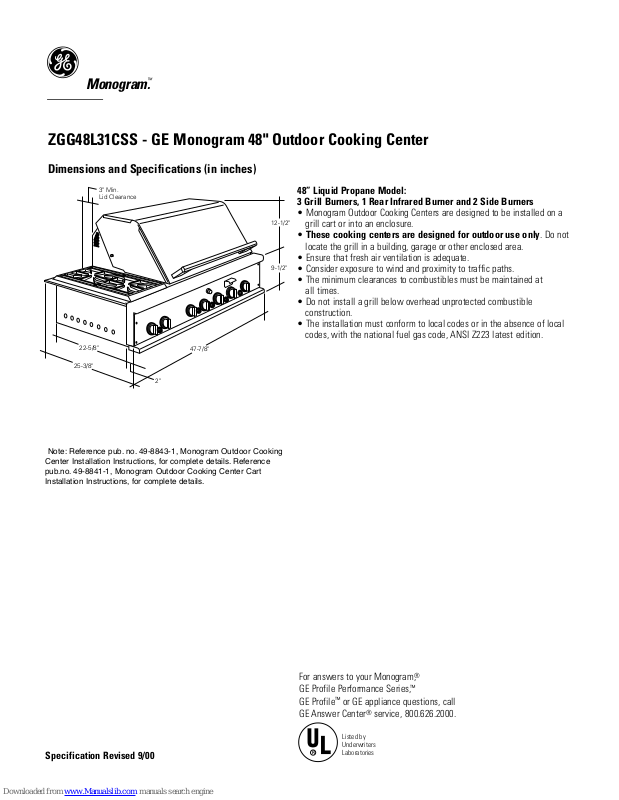

ZGG48L31CSS - GE Monogram 48" Outdoor Cooking Center

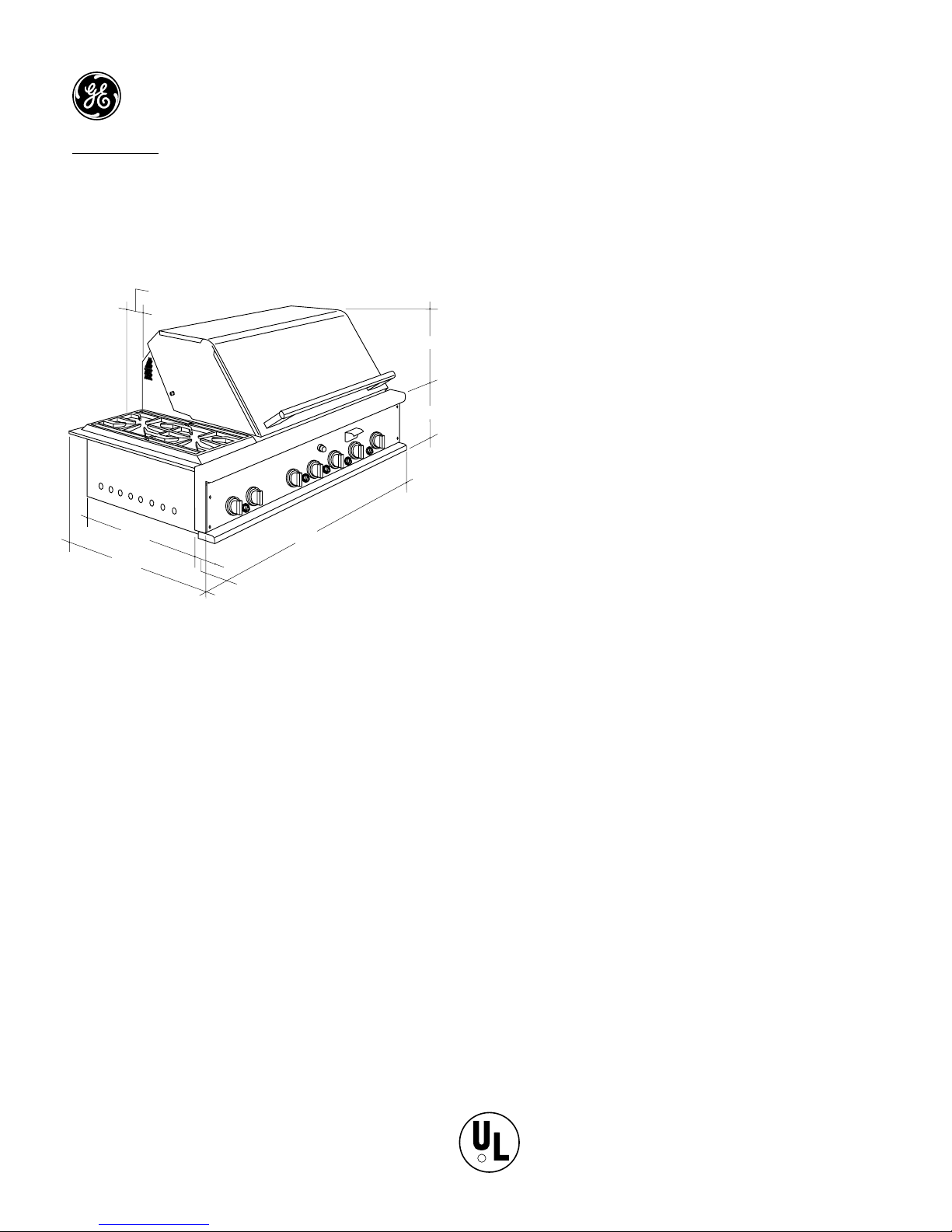

Dimensions and Specifications (in inches)
48” Liquid Propane Model:
3 Grill Burners, 1 Rear Infrared Burner and 2 Side Burners
• Monogram Outdoor Cooking Centers are designed to be installed on a
grill cart or into an enclosure.
• These cooking centers are designed for outdoor use only. Do not
locate the grill in a building, garage or other enclosed area.
• Ensure that fresh air ventilation is adequate.
• Consider exposure to wind and proximity to traffic paths.
• The minimum clearances to combustibles must be maintained at
all times.
• Do not install a grill below overhead unprotected combustible
construction.
• The installation must conform to local codes or in the absence of local
codes, with the national fuel gas code, ANSI Z223 latest edition.
3" Min.
Lid Clearance
22-5/8"
25-3/8"
47-7/8"
12-1/2"
2"
9-1/2"
Note: Reference pub. no. 49-8843-1, Monogram Outdoor Cooking
Center Installation Instructions, for complete details. Reference
pub.no. 49-8841-1, Monogram Outdoor Cooking Center Cart
Installation Instructions, for complete details.
R
Listed by
Underwriters
Laboratories
Page 2
Specification Revised 9/00
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
Monogram.
™
ZGG48L31CSS - GE Monogram 48" Outdoor Cooking Center
Dimensions and Specifications (in inches)
Installation in a non-combustible enclosure.
• In a non-combustible (masonry) enclosure, the grill drops into the
opening and hangs from its side flanges. A deck is not required
for support.
3" Min. for Lid
Clearance
45-3/4"
18-1/2"
22-3/4"
9-1/8"
24-1/8"
18-1/4"
4x4 Opening
for Gas Supply
Line
Opening
for Access
Doors
If Installing
an Electrical
Outlet for
the Rotisserie
Motor, Mount
on Right Side
(6.5 AMP Min.)
35-1/2"
3" Min. for Lid
Clearance
51-3/4"
18-1/2"
3-1/8"
23-3/4"
10-1/8"
24-1/8"
18-1/4"
4x4 Opening
for Gas Supply
Line
Opening
for Access
Doors
If Installing
an Electrical
Outlet for
the Rotisserie
Motor, Mount
on Right Side
(6.5 AMP Min.)
35-1/2"
Installation in a combustible enclosure.
ZX48JYSS insulated jacket is required.
• Combustible enclosures require insulated jackets.
ZX36JYSS for 36” models and ZX48JYSS for 48” models. The
insulated jacket must be supported from the bottom by a solid
deck or ledge on each side beneath the jacket.
• Construct the enclosure as shown and place the insulated jacket
into the enclosure. Place the cooking center into the jacket. No
installation hardware is required.
Clearances - All Models
• Allow 3” at the rear for lid clearance.
• Allow at least 12” clearance at the back of the grill when
exhaust is directed to a window or a surface that is
difficult to clean.
• Allow at least 6” clearance on each side to any non-combustible
material located above the cooking surface for counterspace.
Rotisserie models also require 6” clearance for placing and
handling the motor and skewer.
• Allow at least 12” clearance on each side to combustible
vertical materials.
R
Listed by
Underwriters
Laboratories
Page 3
Monogram.
™
Specification Revised 9/00
ZGG48L31CSS - GE Monogram 48" Outdoor Cooking Center
Features and Benefits
• Liquid Propane Gas Model
• 3 (20,000 BTU) Cast-Iron Gas Grill Burners
• 2 (15,000 BTU) Cast-Iron Gas Cooktop Burners
• 14,000 BTU Infrared Rotisserie System
• 5,000 BTU Stainless Steel Built-In Smoker System
• Warming Rack
• Rotary Multi-Spark Piezo Ignition
• Brass Control Valves
• Steel, Porcelain-Enameled Grill Grates
• Porcelainized, Cast-Iron Burner Grates
• Stainless Steel, Slide-Out Drip Tray
• Heavy Duty 304 Stainless Steel Construction
• Flexible Installation
• LP Tank Included
• Model ZGG48N31CSS - Natural Gas
• Model ZGG48L31CSS - Liquid Propane Gas
GRILL
IGNITOR
SMOKER
IGNITOR
GRILL
IGNITOR
ROTESSERIE
IGNITOR
GRILL
IGNITOR
SMOKER GRILLGRILLGRILL ROTISSERIE
HOLD 10 SEC. WHILE LIGHTING
IGNITOR
REAR FRONT
