what’s new in refrigeration
the beauty of design essentials
MONOGRAM HOME
A GE MONOGRAM PUBLICATION
Page 2
The new Monogram®refrigerators
reflect beautifully today’s kitchen
aesthetic, both in terms of overall
appearance and fine details. Look
closely and you’ll find that
Monogram is elegance — pure
and simple.
But there’s more to Monogram
refrigerators than meets the eye.
Beneath the surface of each model
lie a number of thoughtful features
and life-enhancing innovations.
Lift the overhead panel on a
Monogram side-by-side refrigerator
and discover what the nation’s finest
restaurants already know about
food preservation. Like commercial
refrigerators, the Monogram side-by-
side uses an overhead evaporator
located outside the food zones.
The unique configuration of the
evaporator enhances airflow, capa-
city and efficiency.
Monogram refrigerators come
in a selection of styles. Make a
statement with the sleek sophisti-
cation of the stainless steel wrap
model. Or, install custom door
panels, letting the refrigerator
disappear into the woodwork as
it integrates quietly and beauti-
fully with color schemes and
custom cabinetry.
Simple, elegant styling. Beautiful possibilities.
2
Page 3
2
ZISS480DMSS 48" stainless steel wrapped side-by-side
Page 4
33
ZISB480DM 48" side-by-side with framed panels and standard handles
Page 5
44
ZISB480DM 48" side-by-side with overlay panels and custom handles
Page 6
6
The beveled
edges and
concealed
hinges reflect
Monogram
craftsmanship.
Page 7
7
Rich materials, uniquely applied.
When you choose GE Monogram®,
you can expect superior materials,
beautiful details and outstanding
performance. Monogram designers
perfect every detail to meet your
highest expectations.
Seamless corners and concealed door
hinges don’t interrupt the overall
design of the refrigerator. Brushed,
stainless-steel provides a rich appear-
ance, and sleek glass-touch controls
feel as good as they look.
Finishing touches such as clear Lexan®and subtle,
frosted curves are Monogram refrigeration signatures.
Page 8
8

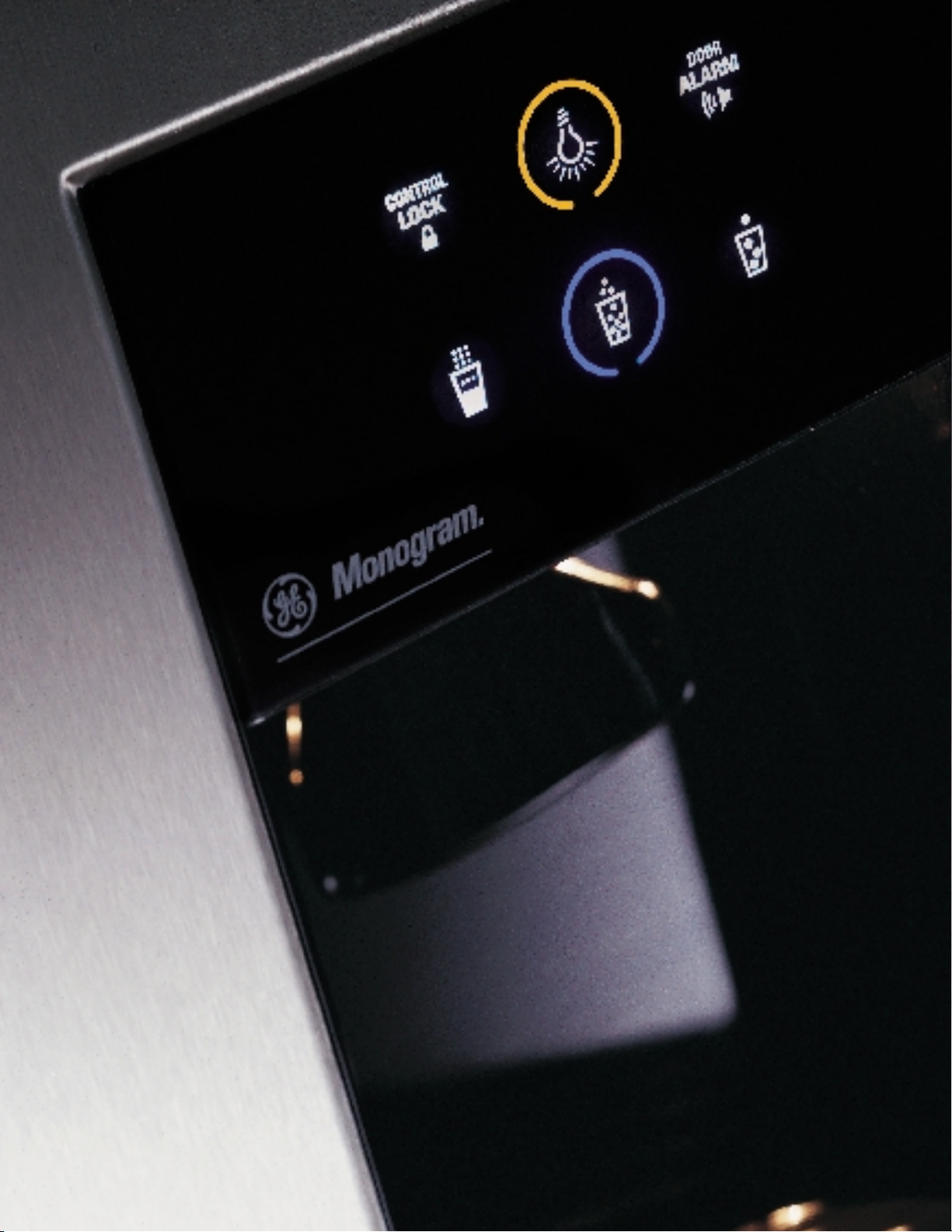

Intuitive. Interactive. Invisible.
Now you see them, now you
don’t. The electronic controls on
the new Monogram®side-by-side
refrigerator dispenser are truly
interactive. Activated by a unique
proximity sensor that senses your
presence, the bright icons of the
controls light up as you approach
the dispenser, and switch off auto-
matically when you walk away.
The glass-touch dispenser
provides you with refreshing,
filtered GE SmartWater.™Enjoy
it chilled, or select cubed or
crushed ice. Glass-touch controls
are as attractive and practical as
they are pleasing to the touch.
There are no levers or buttons
and no complicated instructions
to follow.
The convenient extra-tall dispenser
accommodates oversized containers
such as pitchers, sport bottles and
coffee pots.
When you walk
away from
the refrigerator,
the lighted graphics
simply vanish.
Page 9
9
The dispenser with proximity sensor
is an example of Monogram design
principles – simple styling, ergonomic
function, thoughtful innovation.
Page 10
Like commercial refrigerators, GE
Monogram®side-by-side refriger-
ators use an overhead evaporator
located outside the fresh food and
freezer compartments. The unique
configuration of the evaporator
allows independent airflow for
each compartment without any
direct air exchange. It also makes
Monogram built-in side-by-side
refrigerators the most spacious
and energy efficient available.
The adjustable storage system
allows you to get the most out of
your interior space. The flexible
system makes fresh food storage
sensible and simple with four
specialized drawers, including a
sealed deli pan that can be
positioned at various heights.
Temperature controls on the
climate control drawer, along
with humidity settings on the
produce pan, let you customize
food environments for optimal
preservation. And full-extension
slides allow easy access to
all contents.
A broad column of halogen
light extends the length of the back
walls of both the fresh food and
freezer compartments, providing
excellent visibility. You’ll never
lose sight of those little jars again.
10
Commercial design. Residential conveniences.

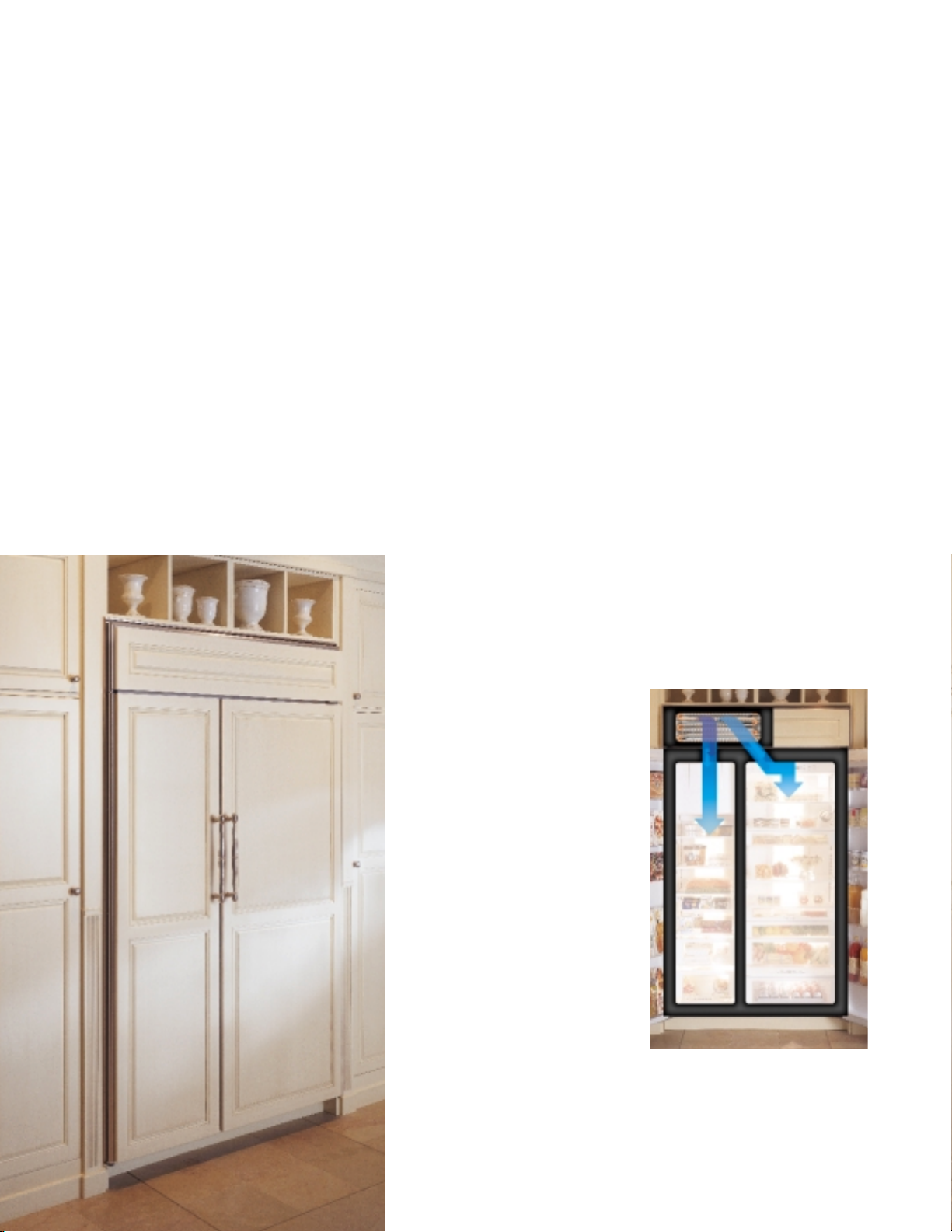

An overhead evaporator provides
direct airflow to each compartment,
maximizes storage capacity and
optimizes energy efficiency.
ZIS480NM 48" side-by-side with
overlay panels and custom handles
Page 11
11

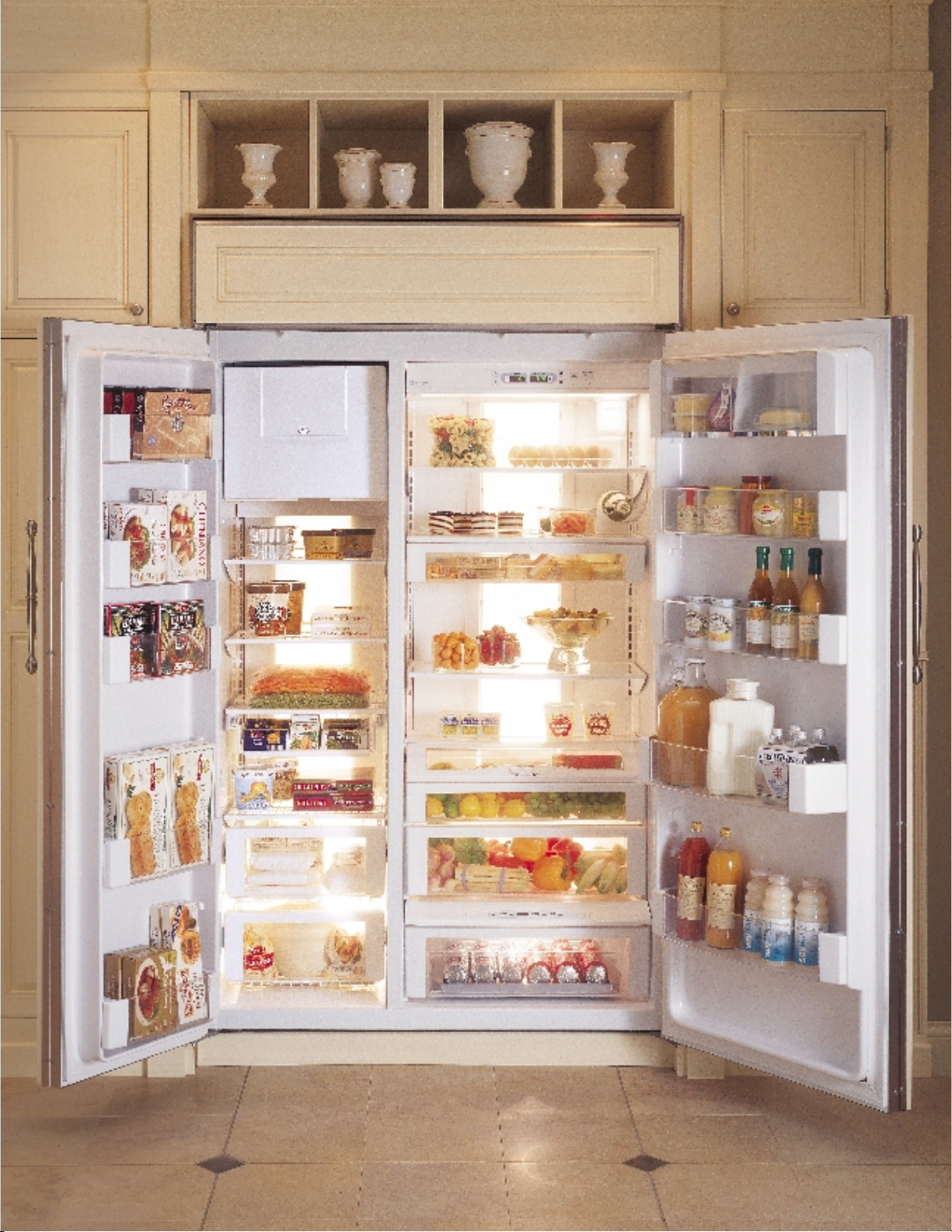

Adjustable, tempered-glass shelves provide plenty of room for whatever you’re
storing. Each shelf and each pan is bathed in light, so every item is fully illuminated.
Page 12
1212

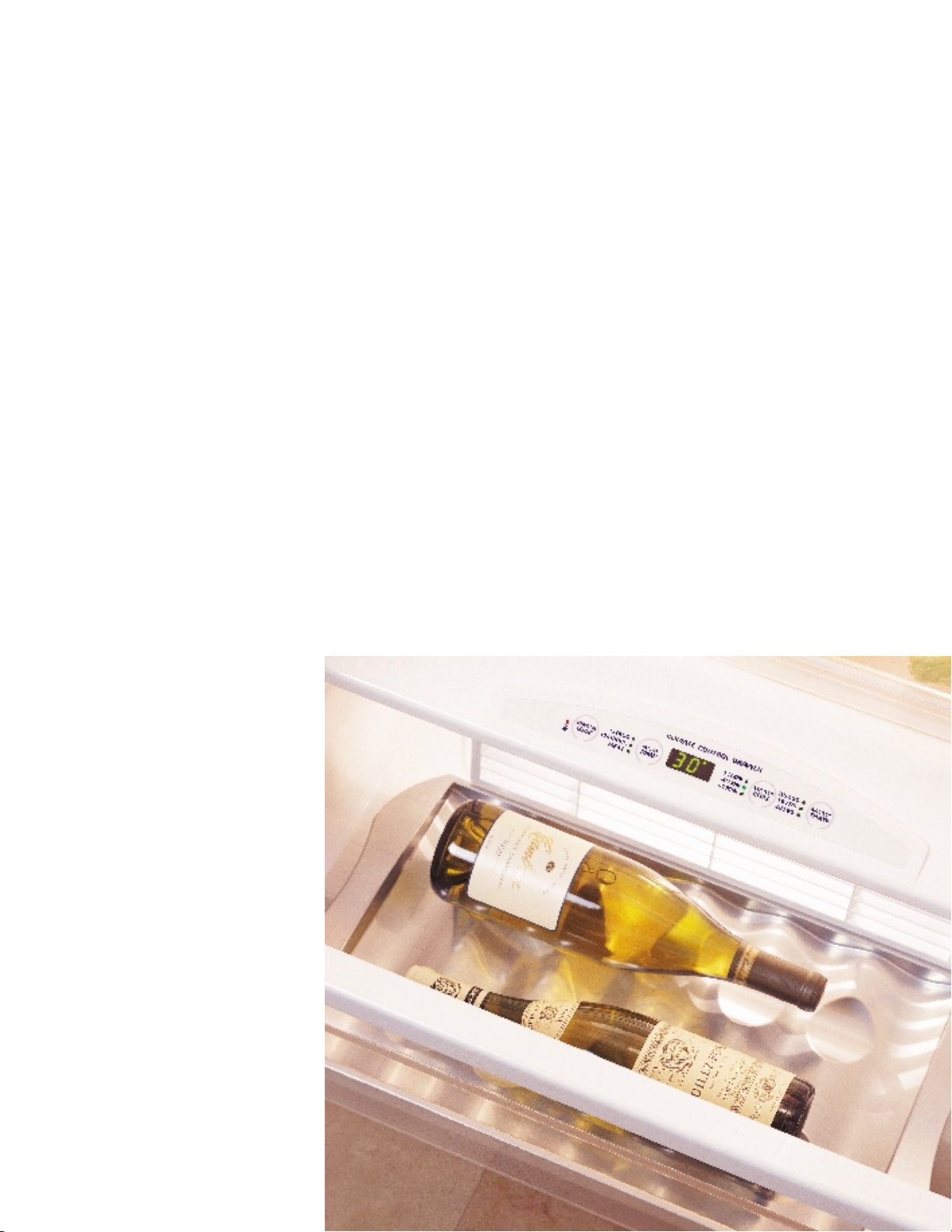

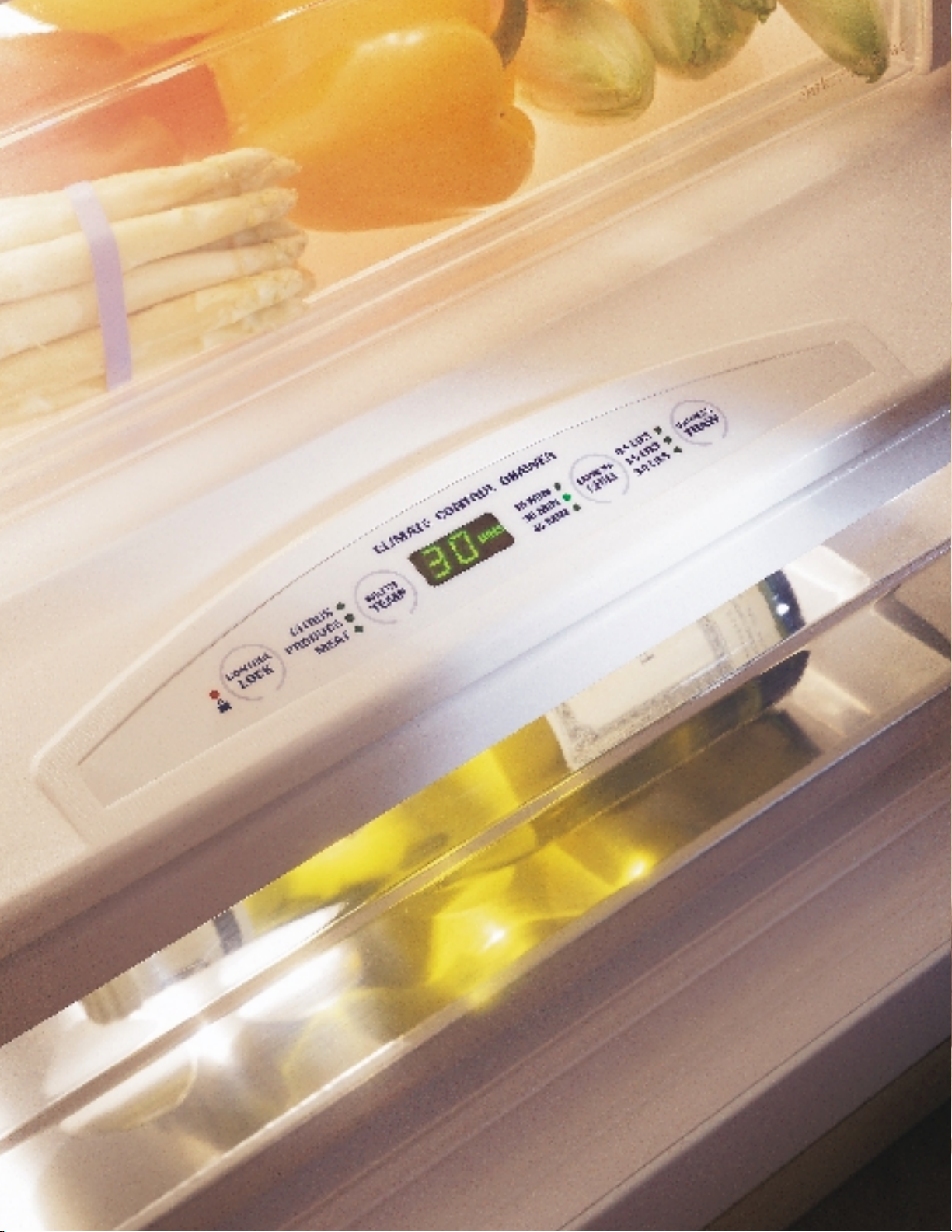

The climate control drawer lets you chill wine and other beverages in
minutes. You can also use it to set custards, cream pies or cheesecakes.
Page 13
The Monogram®refrigerator lets
you select different environments
for the various foods on the
shelves and in the drawers. Once
you select a specific environment,
this GE Monogram refrigerator
maintains that environment with
extraordinary precision.
Sophisticated technology keeps
foods fresher longer and performs
an array of practical functions –
from chilling to thawing to
defrosting only when necessary.
To keep food viable longer,
five strategically located sensors
monitor temperatures and main-
tain optimum cooling levels
throughout the fresh food and
freezer compartments. An exclu-
sive air tower is hidden behind
the column of light where it is
perfectly positioned to deliver
fresh, cool air to every individual
shelf and every storage drawer
from floor to ceiling.
T
he climate control drawer
functions like a refrigerator within
the refrigerator. Precise controls
allow you to chill or thaw quickly
for spontaneous entertaining.
Monogram’s adjustable humidity pan lets you maintain the moisture content that
best preserves vegetables and certain fruits.
13
Perfect control. A matter of degree.
Page 14
14
The innovative material of the tray maintains the temperature
from the climate control drawer, allowing you to serve foods
at their ideal temperature, beautifully.
Page 15
15
Environmentally correct from sushi to chardonnay.
Equipped with individual con-
trols and its own thermistor, the
climate control drawer gives you
three options.
First, it allows you to select
specific temperatures for exotic
foods that are particularly tem-
perature sensitive.
Then, with just one touch of
the controls, this sealed refrigera-
tion compartment lets you express
chill wine and other beverages in
minutes rather than hours. It also
lets you express chill sushi and
other specialty foods.
The express thaw setting gives
you yet another option. It thaws
meats, poultry and seafood in
hours instead of days. You can
take a rib roast from the freezer
in the morning and safely thaw
it for dinner that night.
Chill room-temperature
wine in a matter of minutes
for an impromptu evening.
Page 16
16
Eye-level beauty, creative inner space.
The convenient configuration of
the Monogram®bottom-freezer
refrigerator is the perfect choice
for households with a fresh-food
focus. The eye-level accessibility
of the fresh food compartment
eliminates stooping and bending
for everyday items.
Outside, beautifully designed
beveled edges and new concealed
hinges exemplify Monogram’s
concept of simplicity as style.
Inside, brilliant lighting in both
the fresh food compartment and
the freezer drawer lets you enjoy
a full view of everything.
Versatile storage options offer
an array of features for preserv-
ing freshness. Tempered-glass
shelves are spill-proof and adjust
to handle foods and containers
of different sizes. Sealed deli
pans and vegetable bins with
adjustable humidity control help
foods stay fresher.

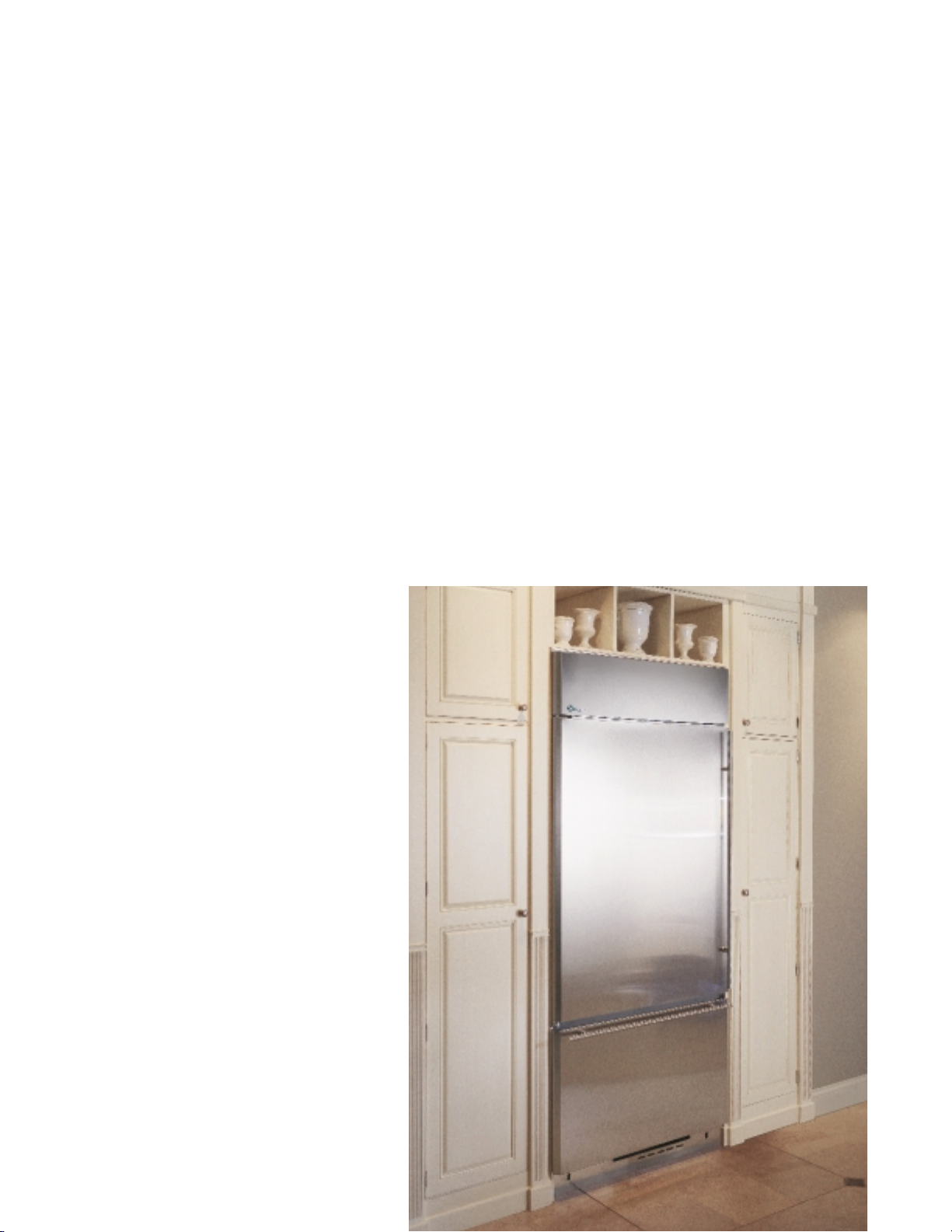

ZICS360NMLH 36" stainless steel
wrapped bottom-freezer
Page 17
17

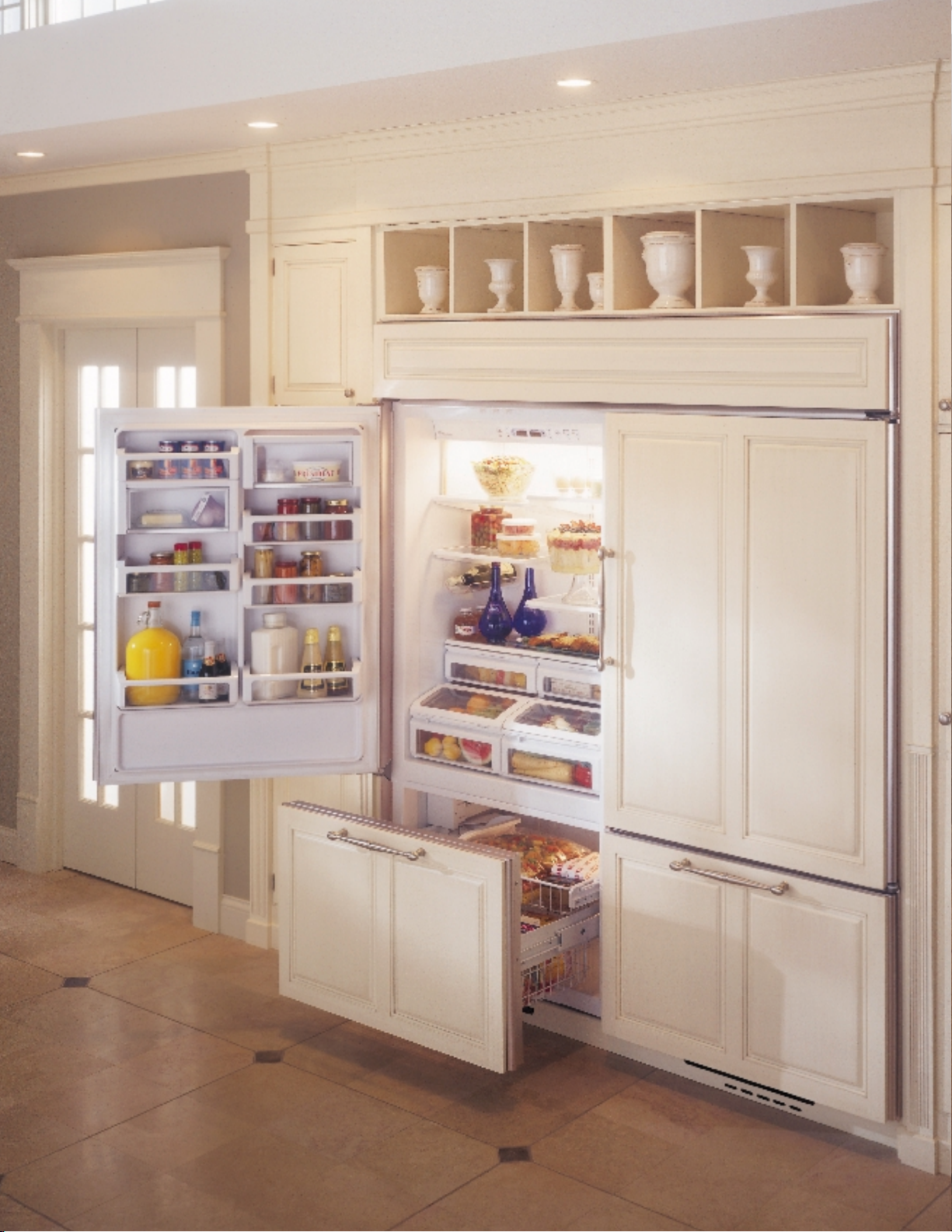

Two of these models installed side by side create a thoroughly versatile refrigeration center.
ZIC360NMLH (left) ZIC360NMRH (right) 36" bottom-freezer with overlay panels, custom handles and unified grille kit.
Page 18
18
A paradigm of convenience.
The functional design of the
Monogram®bottom-freezer is
evident in the selection of storage
spaces and features dedicated to
preserving a variety of foods.
The temperature management
system with upfront, electronic
controls delivers cool, fresh air to
every shelf. Digital readouts tell
you at a glance the temperatures
maintained in the fresh food and
freezer compartments.

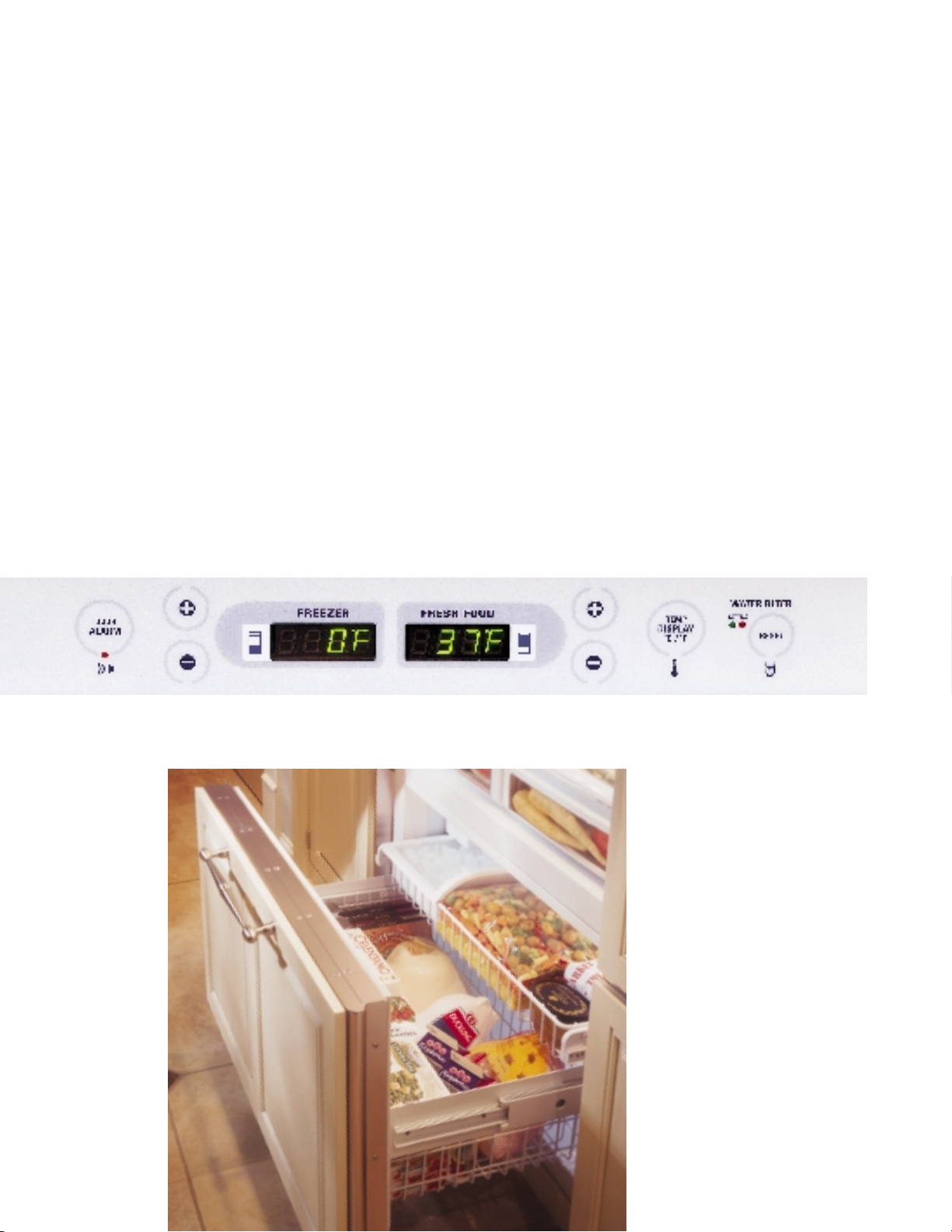

The large freezer drawer is
designed for ease of use and
convenience. Two full-width wire
baskets provide maximum stability,
even when stocked with items as
heavy as a smoked turkey or a
glazed ham.
Even the automatic icemaker
has been thoughtfully equipped
with filtered GE SmartWater™for
fresh-tasting ice cubes that please
the most discriminating palate.
Freezer baskets glide out smoothly
on independent, full-extension
Accuride®slides, so there’s no sticking
or wobbling.
Page 19
19
Two sealed deli pans offer ample room for meats,
cheeses and other items that need airtight storage.
The two lower bins offer adjustable humidity
settings for fruits and vegetables.
Page 20
Side-by-Side Refrigerators
ZISW480DM, ZISB480DM, ZISS480DMSS, ZIS480NM, ZISS480NMSS, ZISW420DM, ZISB420DM, ZISS420DMSS, ZIS420NM,
ZISS420NMSS, ZISW360DM, ZISB360DM, ZISS360DMSS, ZIS360NM and ZISS360NMSS
Side-by-Side A B C
48" wide models 20" 47-1/2" 48"
42" wide models 18" 41-1/2" 42"
36" wide models 12" 35-1/2" 36"
*Shipped at 84" installation height. Grille panel supplied is sized
for 84" installation height. Grille panels can be adjusted for
83-1/2" to 84-1/2" installation heights using height adjustment kit.
7"
Electrical
Area
74" From Floor
to
Bottom
of Electrical
5"
5"
3-1/2"
5"
3-1/2"
Water Supply
Electrical Outlet
Location–A
83-1/2"-84-1/2"
24"
C
Frame to
Frame Width
84"*
23-7/8"
Behind Frame
B
Page 21
Side-by-Side Refrigerators
ZISW480DM* ZISW420DM* ZISW360DM*
ZISB480DM* ZIS480NM* ZISB420DM* ZIS420NM* ZISB360DM* ZIS360NM*
ZISS480DMSS** ZISS480NMSS** ZISS420DMSS** ZISS420NMSS** ZISS360DMSS** ZISS360NMSS**
Description
48" Built-In 42" Built-In 36" Built-In
Refrigerator 48" Built-In Refrigerator 42" Built-In Refrigerator 36" Built-In
with Dispenser Refrigerator with Dispenser Refrigerator with Dispenser Refrigerator
Capacity
To t al (cu. ft.) 30.7 30.6 26.1 26.0 21.7 21.6
Fresh Food Section
Upfront Electronic Controls with Digital Readouts ••••••
Multi-Shelf Halogen Light Tower ••••••
Multi-Shelf Air Management Tower ••••••
Clear Lexan™Bins and Pans ••••••
Climate Control Drawer w/Express Chill,
Express Thaw, Select Temp ••••••
Sealed Adjustable Humidity Produce Pan
w/Easy Access Lid and Full Extension Slides ••••••
High Humidity Sealed Produce Pan
with Full Extension Slides ••••••
Adjustable Sealed Deli Pan with Full Extension Slides ••••••
Spill-Proof Glass Shelves 3 Adj./1 Fixed 3 Adj./1 Fixed 3 Adj./1 Fixed 3 Adj./1 Fixed 3 Adj./1 Fixed 3 Adj./1 Fixed
Adjustable Door Bins 444444
Gallon Door Storage ••••••
Sealed Dairy Compartment 222211
Glass-Covered Butter Dish, Wine Caddy, Egg Bin ••••••
Freezer Section
Multi-Shelf Halogen Light Tower ••••••
Utility Baskets with Full Extension Slides 222222
Adjustable Wire Shelves 444444
Slide-Out Can Rack ••••••
Adjustable Door Bins 353535
Automatic Icemaker ••••••
Removable Ice Storage Bin ••••••
General Features
ENERGY STAR®Qualified •••
Disappearing Electronic Glass Touch
Dispenser Controls w/Proximity Sensors •••
Extra-Tall Dispenser w/Cubes,
Crushed Ice and Chilled Water •••
GE SmartWater™Filtration System for Water and Ice
••••••
Industry Standard Flush Installation ••••••
Concealed Door Hinge ••••••
Easy Access Hinged Grille ••••••
Master Light Control Switch ••••••
Four-Point Leveling System ••••••
Adjustable Door Stop (90°/130°) ••••••
White White White
Black Black Black
Dispenser Color(s) Black N/A Black N/A Black N/A
White White White
Black Black Black Black Black Black
Steel Toekick Color(s) Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel Stainless Steel
115 Volts/20 Amps ••••••
Overall Dimensions (WxHxD in inches) 48 x 84 x 23-7/8 48 x 84 x 23-7/8 42 x 84 x 23-7/8 42 x 84 x 23-7/8 36 x 84 x 23-7/8 36 x 84 x 23-7/8
Approx. Shipping Weight (lbs.) 625 625 580 580 520 520
Full Warranty† 2-Year 2-Year 2-Year 2-Year 2-Year 2-Year
Full Warranty on Sealed Refrigeration System† 5-Year 5-Year 5-Year 5-Year 5-Year 5-Year
Limited Warranty on Sealed System Parts† 12-Year 12-Year 12-Year 12-Year 12-Year 12-Year
Limited Warranty on Full Extension Slides† Lifetime Lifetime Lifetime Lifetime Lifetime Lifetime
*Door panels required. Accepts 1/4"
framed panels or 3/4" overlay panels.
**Full stainless wrap.
†See written warranty for details.
Page 22
Bottom-Freezer Refrigerators
ZIC360NMRH, ZIC360NMLH, ZICS360NMRH and ZICS360NMLH
Note: ZIC360NMLH, ZICS360NMLH models have hinges on the left side and the door swings from right to left. ZIC360NMRH, ZICS360NMRH models have hinges on the right side
and door swings from left to right.
Bottom-Freezer A B C
36" wide models 22-5/8" 35-1/2" 36"
*Shipped at 84" installation height. Grille panel supplied is sized for
84" installation height. Grille panels can be adjusted for 83-1/2" to
84-1/2" installation heights using height adjustment kit.
7"
Wall View
Electrical
Area
84-1/2" max
83-1/2" min
Finished
Opening
74-1/2" From
Floor to Bottom
of Electrical
10"
5"
3 1/2"
5"
3 1/2"
Water Supply
24" Cutout Depth
35-1/2"
Finished Width
2-5/16"
83-1/2"
To
84-1/2"
24"
36" Frame to Frame Width
84"*
23-7/8"
Behind Frame
35-1/2
Page 23
23
Bottom-Freezer Refrigerators
ZIC360NMRH* ZICS360NMRH**
ZIC360NMLH* ZICS360NMLH**
Description
36" Built-In
36" Built-In Stainless Steel
Refrigerator Refrigerator
Capacity
Total (cu. ft.) 20.6 20.6
Fresh Food Section
Upfront Electronic Controls
w/Digital Readouts ••
Multi-Shelf Air Management Tower ••
Sealed Adjustable Humidity
Produce Pans w/ Easy Access
Lids and Full Extension Slides 2 2
Sealed Deli Pan with
Full Extension Slides 2 2
Spill-Proof Glass Shelves 4 Adj./1 Fixed 4 Adj./1 Fixed
Adjustable Door Bins 6 6
Gallon Door Storage ••
Sealed Dairy Compartment 2 2
Glass-Covered Butter Dish ••
Wine Caddy ••
Egg Bin ••
Freezer Section
Freezer Drawer with
Full Extension Slides ••
Independent Utility Basket
with Full Extension Slides ••
Automatic Icemaker ••
Removable Ice Storage Bin ••
GE SmartWater
™
Filtration System ••
General Features
Industry Standard Flush Installation ••
Concealed Door Hinge ••
Easy Access Hinged Grille ••
Master Light Control Switch ••
Four-Point Leveling System ••
Adjustable Door Stop (90°/130°) ••
Steel Toekick Color Black Stainless Steel
115 Volts/20 Amps ••
Overall Dimensions
(WxHxD in inches) 36 x 84 x 23-7/8 36 x 84 x 23-7/8
Approx. Shipping Weight (lbs.) 520 520
Full Warranty† 2-Year 2-Year
Full Warranty
on Sealed Refrigeration System† 5-Year 5-Year
Limited Warranty
on Sealed System Parts† 12-Year 12-Year
Limited Warranty
on Full Extension Slides† Lifetime Lifetime
*Door panels required. Accepts 1/4"
framed panels or 3/4" overlay panels.
**Full stainless wrap.
†See written warranty for details.
Page 24
48" Side-by-Side Refrigerators
Models
ZISW480DM ZISB480DM ZIS480NM
Custom Options
Stainless Steel Tubular Handles ZKHSS2 ZKHSS2 ZKHSS2
1/4" Black Acrylic Panels ZPB480D ZPB480N
1/4" White Acrylic Panels ZPW480D ZPW480N
1/4" Stainless Steel Panels ZPS480D ZPS480D ZPS480N
42" Side-by-Side Refrigerators
Models
ZISW420DM ZISB420DM ZIS420NM
Custom Options
Stainless Steel Tubular Handles ZKHSS2 ZKHSS2 ZKHSS2
1/4" Black Acrylic Panels ZPB420D ZPB420N
1/4" White Acrylic Panels ZPW420D ZPW420N
1/4" Stainless Steel Panels ZPS420D ZPS420D ZPS420N
36" Side-by-Side Refrigerators
Models
ZISW360DM ZISB360DM ZIS360NM
Custom Options
Stainless Steel Tubular Handles ZKHSS2 ZKHSS2 ZKHSS2
1/4" Black Acrylic Panels ZPB360D ZPB360N
1/4" White Acrylic Panels ZPW360D ZPW360N
1/4" Stainless Steel Panels ZPS360D ZPS360D ZPS360N
36" Bottom-Freezer Refrigerators
Models
ZIC360NMRH ZIC360NMLH ZICS360NMRH ZICS360NMLH
Custom Options
Stainless Steel Tubular Handles ZKHCSS2 ZKHCSS2
Unified Grille Kit ZUG2 ZUG2 ZUGSS2 ZUGSS2
1/4" Black Acrylic Panels ZPBC360 ZPBC360
1/4" White Acrylic Panels ZPWC360 ZPWC360
1/4" Stainless Steel Panels ZPSC360 ZPSC360
Custom Options for Refrigerators
Glossary of Terms
Stainless steel, white or black panels. Factory-installed trim will accept
1/4"-thick accessory panels which are cut to size and ready to install. These
panels must be ordered separately.
Tubular stainless steel handles. Monogram stainless steel tubular handles
can be used with 1/4"- or 3/4"-thick panels.
Unified grille panel kit. An optional grille panel creates a unified look above
two units placed side by side.
Page 25
25
Choosing a refrigerator can be a
monumental decision. With so
many beautiful possibilities, how
do you decide? Monogram®offers
additional refrigeration products
for the kitchen and throughout
the home, including built-in
All-Freezers and All-Refrigerators,
fully wrapped stainless steel free-
standing models, versatile wine
chillers, convenient beverage
centers and icemakers. To see the
complete selection of refrigerators
and the entire GE Monogram
Collection™, please visit us at
Monogram.com.
Decisions. Decisions. Decisions.
Page 26
EXCEPTIONAL SERVICE IS A MONOGRAM STANDARD.
Monogram®offers a feature no other brand can match: customized services
that begin before you’ve selected your appliances and continue until well
after your Monogram home has become a reality. The Monogram Collection™,
a superb line of kitchen appliances with a package of services to match.
Visit Monogram.com. View Monogram product information, specifications,
installation instructions and owner’s manuals online.
Monogram Customer Service, 800.444.1845. If your Monogram appliance ever
requires service, you can depend on Monogram Customer Service. Simply call,
8 a.m.-8 p.m. EST, Monday - Friday and 9 a.m.-4 p.m. EST, Saturday and a
specialist will promptly coordinate an appointment.
GE QuickSpecs, 800.432.3729. Request dimensions and specifications on
any Monogram appliance and have the data transmitted, within minutes,
to the fax number you provide.
GE Answer Center®, 800.626.2000. For technical assistance and answers to
your questions about Monogram appliances any time.
Acknowledgements. Monogram thanks the following fine companies for their
generous contributions to the “California Chic” kitchen (pages 6-13).
Wood-Mode®Fine Custom Cabinetry, 800-635-7500, www.wood-mode.com
Andersen® Windows, 888-888-7020, www.andersenwindows.com
Ann Sacks®Tile & Stone, Inc., 800-278-8453, www.annsacks.com
Kallista®Inc. (island sink and faucet), 888-452-5547, www.kallistainc.com
Chicago Faucet Co. (pot filler faucet), 847-803-5000, www.chicagofaucets.com
General Electric Company
Louisville, Kentucky 40225
All Monogram products are appropriately
UL or AGA approved.
Product improvement is a continuing
endeavor at General Electric. Therefore,
materials, appearance and specifications
are subject to change without notice.
Publication Number 24-M071-1
© 2002 General Electric Company
As an ENERGY STA R®partner, GE has
determined that this product meets the
E
NERGY STA R guidelines for energy efficiency.
Loading...
