GE Match 19 User Manual

Match 19"

Uninterruptible Power Supply
700 - 1500 VA

Manufactured by:

GE Digital Energy

General Electric Company Telephone +41 (0)91 / 850 51 51
CH – 6595 Riazzino (Locarno) Fax +41 (0)91 / 850 51 44
Switzerland Website www.gedigitalenergy.com

GE Digital Energy

Technology for the Digital World.

ver 3.0 - GB

Match 19" UPS

g

OPM_MAE_19X_700_1K5_2GB_V030 1 GE DE Match 19” 700-1500: User manual 3.0 (GB)

GE Digital Energy

g

USER MANUAL

Match 19"

Uninterruptible Power Supply

Uninterruptible Power SupplyUninterruptible Power Supply

Uninterruptible Power Supply

700 - 1500 VA

700 - 1500 VA700 - 1500 VA

700 - 1500 VA

Please read these instructions carefully before installation and start-up of the Match 19” UPS.
Keep this manual in a safe place for future reference.

CONTENTS

1 INTRODUCTION .......................................................................................................2

1.1 Introduction

1.2 Safety Rules

1.3 Transport / Storage

2 INSTALLATION .........................................................................................................2

2.1 Installation Rules

2.2 Installation Procedure

3 OPERATION..............................................................................................................4

3.1 Start-up

3.1.1 Start-up, mains available

3.1.2 Start-up, mains not available

3.2 Use: Normal Operation

3.2.1 Normal operating conditions

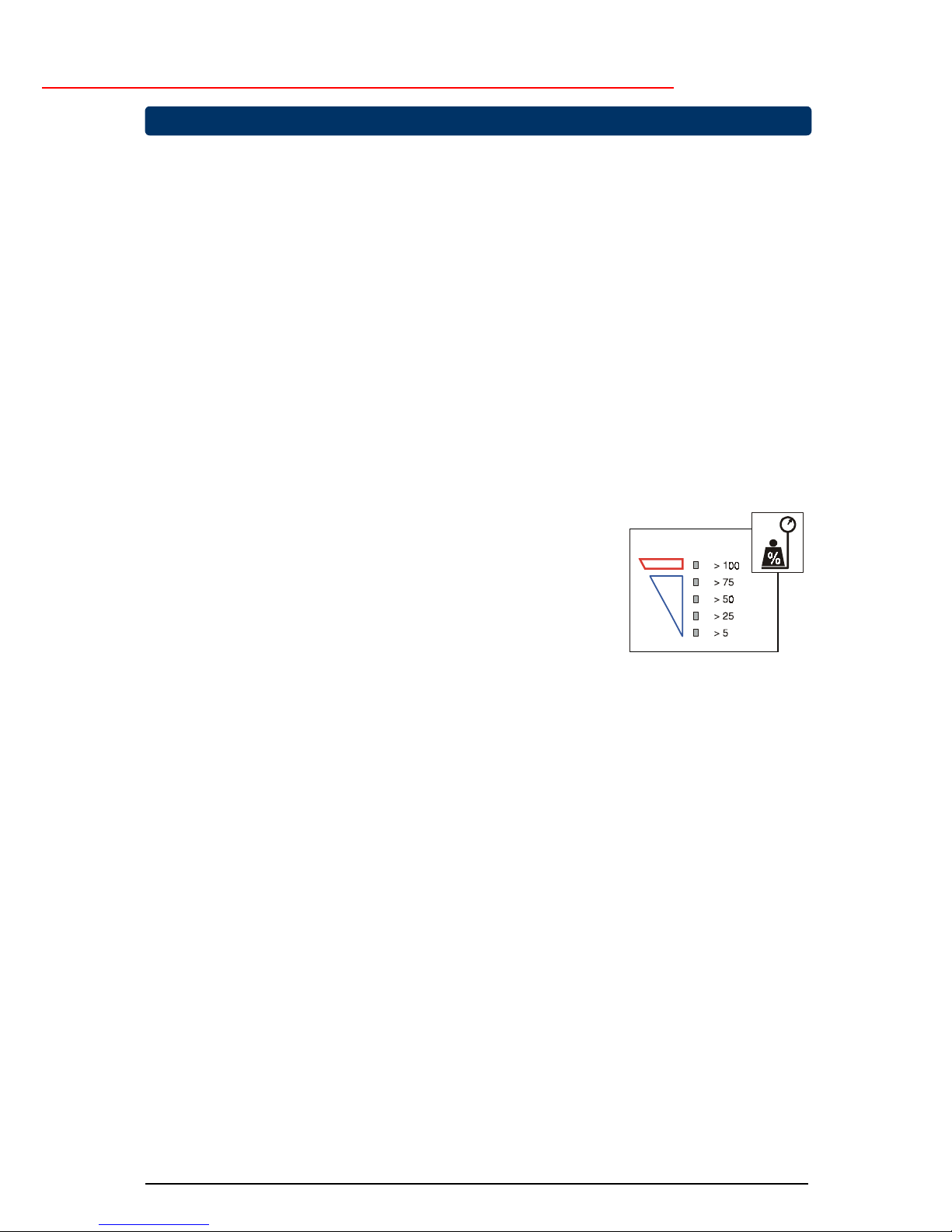

3.2.2 Load indication

3.2.3 Auto-off (no-load shutdown)

3.2.4 Battery test

3.2.5 Switching off

3.3 Use: Status and Alarm Indications

3.3.1 Charger on

3.3.2 Normal operation

3.3.3 AVR active

3.3.4 On battery

3.3.5 Battery low

3.3.6 Replace battery

3.3.7 Overload

3.3.8 High temperature

3.3.9 Programmed shutdown

4 COMMUNICATION ...................................................................................................7

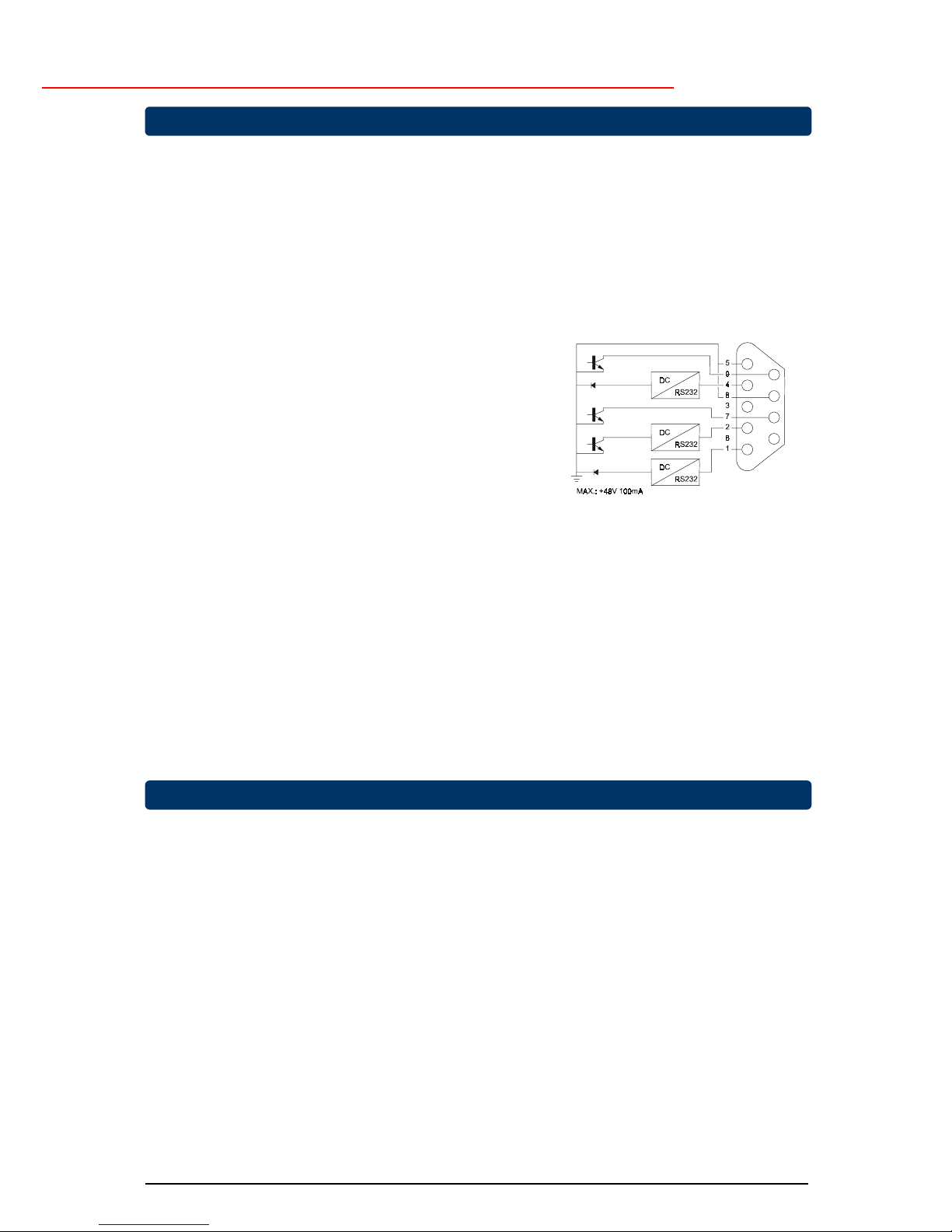

4.1 RS232 Port

4.2 Relay Interface Card (option)

4.3 SNMP Interface Card (option)

5 MAINTENANCE.........................................................................................................7

5.1 General

5.2 Fuses

5.3 Batteries

5.3.1 General

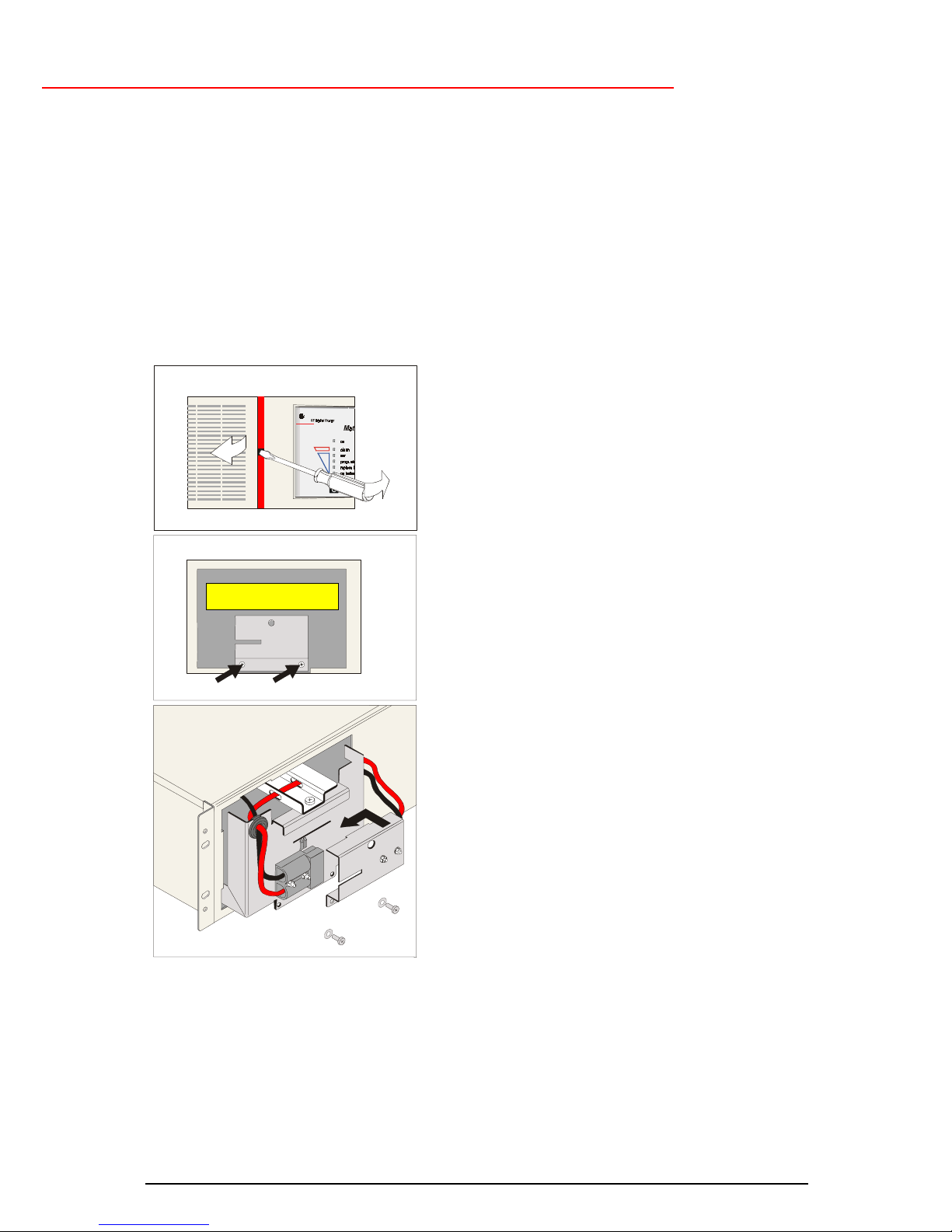

5.3.2 Battery replacement

5.4 UPS Configuration Tool

6 TROUBLESHOOTING ..............................................................................................9

7 SPECIFICATIONS...................................................................................................10

©

GE Digital Energy

. All rights reserved; reproduction without permission prohibited. This manual may be subject to change; no

liability can be accepted for any error or omission.

GB

OPM_MAE_19X_700_1K5_2GB_V030 2 GE DE Match 19” 700-1500: User manual 3.0 (GB)

GE Digital Energy

g

1.1 Introduction

The

General Electric (GE) Digital Energy Match 19” UPS

, an uninterruptible power supply, protects

your equipment from all forms of power interference, including complete power failures.

1.2 Safety Rules

CAUTION: RISK OF ELECTRICAL SHOCK.

The UPS contains batteries. The appliance
outlets may be electrically live, even when the UPS is disconnected from the mains.
The UPS contains potentially hazardous voltages. Do not open the UPS, there are no user
serviceable parts inside.
All maintenance and service work,

except for replacement of the batteries

, should be performed

by qualified service personnel.

1.3 Transport / Storage

x

No liability can be accepted for any transport damage when the equipment is shipped in non­original packaging.

x

During transport the battery drawer must either be removed or fixed with two screws at the rear
side of the UPS (A, fig. 1).

x

Store the UPS in a dry location with the batteries in a fully charged state. Storage temperature
must be within -20 +45 qC. If the unit is stored for a period exceeding 3 months, optimal battery
lifetime is obtained if the storage temperature does not exceed 25°C.

x

If the unit is stored for an extended period of time, the batteries must be recharged periodically.
Be sure that the battery drawer is connected to the UPS. Subsequently connect the unit to a wall
outlet and recharge the batteries for 24 hours:

- if the storage temperature is within -20 and +30°C: every 3 months,

- if the storage temperature is within -20 and +45°C: every month.

The shipping box contains a Match 19” UPS, two IEC male-female power cords, a data cable, a CD ROM
and this manual. After unpacking, inspect the UPS for damage. If you find any damage please
immediately notify the carrier and place of purchase.

IMPORTANT

:

Before making any connection and switching on the UPS, please check the following conditions:

x

your mains supply is 220 - 240 Volts and 50 or 60 Hz, and

x

the total power demand of the connected equipment does not exceed the rated output power of
the UPS (indicated on the rating label).

2.1 Installation Rules

x

The UPS is intended to be used in normal domestic and office situations.

x

Protect the UPS, according to the wiring rules, with a 16A D-type fuse.

x

The UPS must be powered from a single phase grounded wall outlet. Do not use extension
cords.

x

Avoid locations that are excessively humid, near water, near heat sources or in direct sunlight.

x

The ambient temperature should not exceed 40qC. Optimal battery lifetime is obtained if the
ambient temperature does not exceed 30qC.

x

It is important that ventilation air can move freely around and through the unit. Do not block the air
vents.

x

Do not plug appliances such as electric heaters, toasters and vacuum cleaners into the UPS.

x

Be careful when connecting laser printers: be sure that the demanded power does not exceed the
capacity of the UPS.

x

The sum of the leakage currents of the UPS and the connected loads should not exceed 3.5mA.

1 - Introduction

2 - Installation

OPM_MAE_19X_700_1K5_2GB_V030 3 GE DE Match 19” 700-1500: User manual 3.0 (GB)

GE Digital Energy

g

2.2 Installation Procedure

1. Remove the transport screws (A, fig. 1) and store them in the free holes (B, fig.1). Mount the
Match 19” UPS in the 19” rack. The module must be supported by mounting rails, do not mount it
by using the front brackets only. The front brackets allow mounting of handles (not included).

2. Make sure that the air vents in the side panels of the module are not blocked by the mounting
rails or the side panels of the 19” rack.

3. Switch off your computer, and unplug it from the
socket-outlet.

4. Disconnect the power cord from the computer (rating
250Vac/10A) and connect this cord to the mains
input socket (2, fig. 1) of the UPS. See fig. 2.

5. Using the output cord(s) provided, connect the
computer(s) to the appliance outlet(s) (4, fig. 1) of
the UPS. Spread the loads over the appliance
outlets as equally as possible. If you use a
distribution box to connect more than one appliance
per outlet, please note that the maximum AC-current
rating of each appliance outlet is 10Amps. See fig. 3.

6. Connect the mains cord of the UPS to a working,
grounded AC wall socket outlet. See fig. 4. The

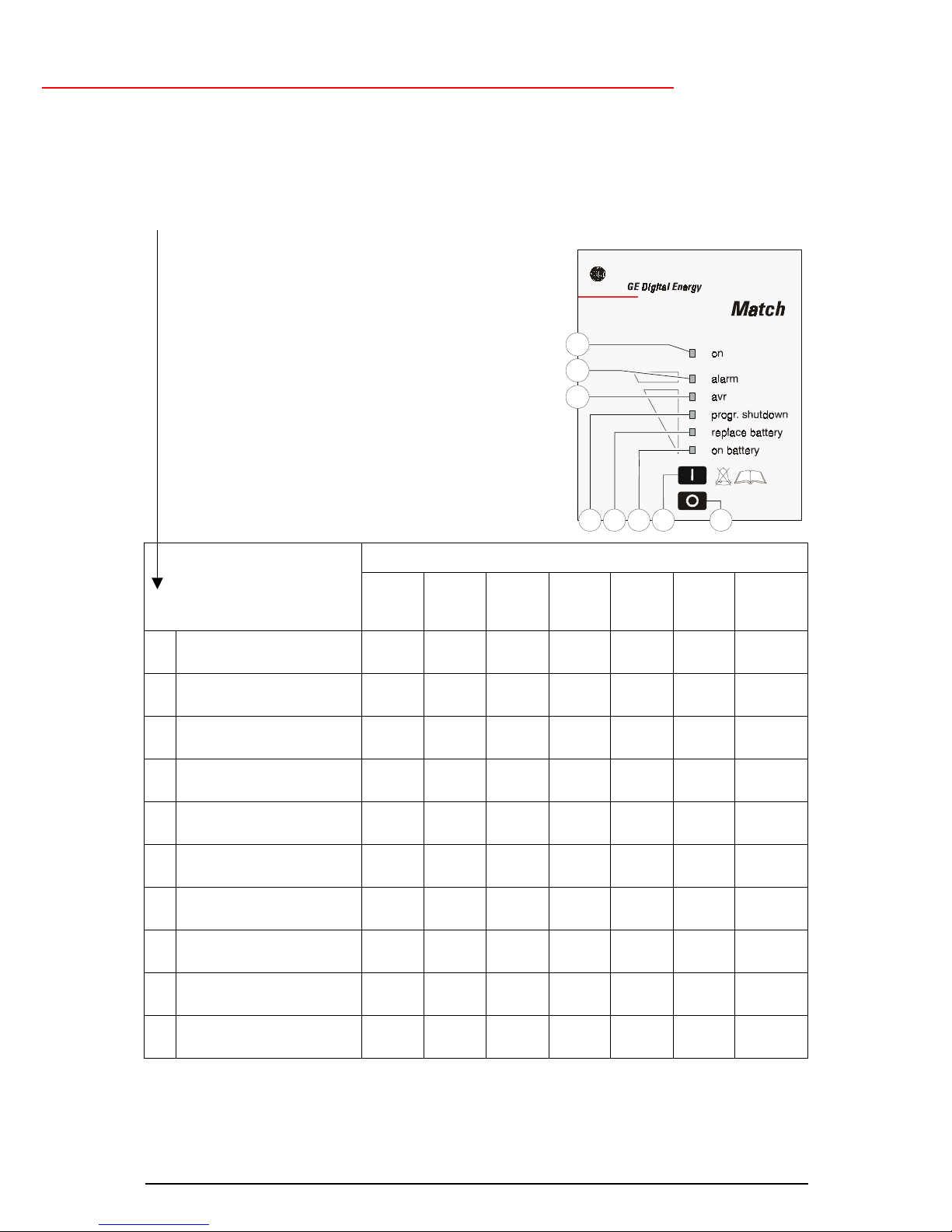

green LED 'on' (7, fig. 6) will blink: power is available
and the batteries are charging. If the LED does not
blink, press 'I' briefly. Probably LED ‘replace battery’
lights up; the LED goes out as soon as the batteries
have been charged.

7. For best results, allow the UPS to recharge the batteries during a period of approx. 2 hours. It is
acceptable to use the UPS without first charging the battery, but the runtime may be reduced.

8. For advanced communication possibilities, the RS232 interface port (3, fig. 1) can be connected
to a computer system and/or optional interface cards (5, fig. 1, 1000/1500VA models only) can be
added. See chapter 4.

54

321

1000/1500 VA

models

A

B

fig. 2

fig. 3

fig. 1

fig. 4
