GE Kalatel DVMRe-4L User Manual

Download

Kaallaatteell

Digital Video Multiplexer Recorder

DVV

Ree--44LL

User Manual

WARNING!

To prevent fire and electric shock, do not expose this product to rain or moisture.

The lightning flash with the arrowhead symbol,

within an equilateral triangle, is intended to alert

the user to the presence of uninsulated

"dangerous voltage" within the products enclosure

that maybe of sufficient magnitude to constitute a

risk of electric shock to persons.

CAUTION!

To prevent electric shock, do not remove cover.

No user serviceable components inside. Refer

servicing to qualified service personnel.

The exclamation point, within an equilateral

triangle, is intended to alert the user to the

presence of important operating and maintenance

(servicing) instructions in the literature

accompanying the product.

CAUTION! Lithium Battery

Danger of explosion if battery is

incorrectly replaced. Replace only

with the same or equivalent type

This equipment generates, uses and can radiate radio frequency energy, and if not installed and used

in accordance with the instructions in this manual, may cause interference to radio communications. It

has been tested and found to comply with the limits for a Class A computing device pursuant to subpart

J of part 15 of FCC rules which are designed to provide reasonable protection against such

interference when operated in a commercial environment. This equipment has also been tested and

found to comply with the requirements for a CE Class A device and TUV safety standards.

recommended by the

manufacturer.

Electrostatic-Sensitive Device!

Use proper CMOS and MOSFET handing precautions, including approved

grounded wrists straps, etc., to avoid damage to this unit or its internal

components, from electric discharge.

WARNING!

This product contains a recyclable lithium battery.

It may be illegal to dispose of this battery

improperly under local, state, or federal laws.

Check with your local waste management officials

for disposal and recycling options.

CAUTION!

ATTENTION

Operation of this equipment in a residential area may cause interference, in which case the user is

required to take all measures that are necessary, at the user's expense, to correct the interference.

0150-0257A 2 Kalatel DVMRe-4L

IMPORTANT INFORMATION

Software and/or firmware is furnished to the purchaser under a license for use on a single system. Software and/or firmware included with this equipment are the sole proprietary property of, confidential to, and copyrighted by GE-Interlogix Kalatel Division, Corvallis, Oregon, USA. The software/firmware are not to be copied or disclosed in any manner without the express written consent of GE-Interlogix.

All information and specifications furnished by GE-Interlogix are believed to be accurate and reliable. No responsibility is assumed by GE-Interlogix for neither its use nor any infringements of rights of third parties that may result from its use. No license is granted by implication or otherwise under any patent or patent rights of GE-Interlogix.

The Kalatel™ brand name and product model numbers are the property of GE-Interlogix. COPYRIGHT, 2003: The contents of this manual may not be copied or reproduced in any manner or

form without the prior written consent of GE-Interlogix.

0150-0257A 3 Kalatel DVMRe-4L

Contents

1 DVMRe-4L Overview..............................................................................................6

1.1 Products Featured In This Manual...................................................................................6

1.2 Product Description ..........................................................................................................6

1.3 Passwords......................................................................................................................... 6

1.4 Unpacking.........................................................................................................................7

1.5 Installation Environment ..................................................................................................7

1.6 Associated Equipment...................................................................................................... 8

1.7 The Back Panel ................................................................................................................. 8

1.8 Power-Up.........................................................................................................................11

2 DMVRe-4L Basic Operations..............................................................................12

2.1 Principal Operating Modes.............................................................................................12

2.2 The Front Panel...............................................................................................................12

2.3 Live Viewing....................................................................................................................13

2.4 Playback..........................................................................................................................14

2.5 Recording........................................................................................................................16

2.6 Display Options............................................................................................................... 17

2.7 Active Cameos................................................................................................................17

2.8 Sequencing .....................................................................................................................18

2.9 On-screen Indicators......................................................................................................19

3 Menu System Overview.......................................................................................21

3.1 Menu Notation In This Manual........................................................................................21

3.2 Accessing The Menu System.........................................................................................21

3.3 Available Menus..............................................................................................................21

3.4 Menus In This Manual.....................................................................................................22

3.5 Navigating The Menu System.........................................................................................22

3.6 Menu Shortcuts...............................................................................................................22

3.7 The Main Menu................................................................................................................23

3.8 Time/Date ........................................................................................................................23

3.9 Record.............................................................................................................................25

3.10 Alarms.............................................................................................................................28

3.11 Motion Detection.............................................................................................................30

3.12 Camera Setup .................................................................................................................32

3.13 Communications............................................................................................................. 34

3.14 Front Panel Lock.............................................................................................................36

3.15 Factory Settings.............................................................................................................. 37

3.16 Passwords......................................................................................................................37

3.17 The Operator Menu.........................................................................................................38

0150-0257A 4 Kalatel DVMRe-4L

4 Alarms ..................................................................................................................40

4.1 Alarm Input......................................................................................................................40

4.2 Alarm Output...................................................................................................................40

4.3 Alarm Acknowledge........................................................................................................40

4.4 On-screen Displays During Alarms................................................................................40

4.5 Alarm Operations During Playback................................................................................40

4.6 Alarm History Box...........................................................................................................41

4.7 Searching For Recorded Alarms....................................................................................41

5 Searching .............................................................................................................42

5.1 Search Filters..................................................................................................................42

5.2 Search Results ................................................................................................................43

6 Technical Specifications.....................................................................................44

7 RS232 Remote Control Protocol........................................................................46

7.1 Front Panel Button Emulation........................................................................................46

7.2 Configuration and Status ...............................................................................................47

8 Warranty and Service..........................................................................................48

8.1 Factory Service...............................................................................................................48

8.2 Warranty and Return Information...................................................................................49

0150-0257A 5 Kalatel DVMRe-4L

1 DVMRe-4L Overview

1.1 Products Featured In This Manual

DVMRe –4L: Digital Video Multiplexer Recorder, Four-Channel, Color.

1.2 Product Description

The DVMRe-4L is a video multiplexer capable of recording from multiple cameras to an internal hard drive while simultaneously providing playback. Unlike outdated time-lapse VCRs, the DVMRe-4L records high-resolution pictures. Digital recording improves playback quality over VCRs, and eliminates the hassle of cleaning heads, changing tapes or servicing motors. Depending on the setup, the DVMRe-4L can store from a few hours to more than 3 years of color images.

Programmable search features eliminate time consuming Fast Forwarding or Rewinding of tapes, searching for critical data. Search for recorded images or events by alarm, time, date, video loss, and camera number.

Caution! This products primary purpose is to furnish video multiplexing and recording. Although the unit has alarm handling and motion detection functions, they are considered secondary features. This unit should not be the only alarm device on site.

Features

• Multiplexer functionality with built-in digital recording.

• 30pps (pictures per second) recording of up to 4 cameras.

• Remote programming and control through the RS232 and Ethernet ports.

• View live or recorded images remotely using WaveReader software.

• Dual monitor displays.

• Video motion detection.

• Displays include full screen, sequenced, picture-in-picture, and multiscreens.

• Alarm Handling with History Log. Pre- and post alarm recording.

• Auto-Daylight savings time change function.

• Clock synchronization with Network Server.

• Dynamic IP addressing (DHCP).

1.3 Passwords

Passwords are provided to limit access to menus and certain functions. Two levels of password security are provided:

• Operator: Limited menu access, only the Operator menu is available.

• Installer: Complete menu access, both the Main and Operator menus are available.

As a security measure, it is recommended that the Operator and Installer passwords be changed after installation is complete (see section 3.16). Store the passwords in the administrator’s secure files.

0150-0257A 6 Kalatel DVMRe-4L

Default Passwords

Password

Type

Operator

Installer

Factory

Defaults

Language

Ethernet

Access

Reset

Access

Level

Operator

Installer

Function

Provides access to the Operator

menu.

Provides access to all on-screen

menus.

Resets the multiplexer to the

factory defaults.

Provides access to the On-screen

Language menu.

Deactivates the ethernet

password, so that any PC

equipped with WaveReader may

access the unit.

Changeable

by user?

Yes

Default

Password

Press ‘ENTER’

4 Times

Press ‘ENTER’

4 Times

4 1 1 1

1 4 1 4

1 1 1 1

1.4 Unpacking

Check the package and contents for visible damage. If any components are damaged or missing, do not attempt to use the unit, contact the supplier immediately. If the unit must be returned, it must be shipped in the original packing box.

Package Contents

• The DVMRe-4L unit.

• DVMRe-4L Software CD (P/N 0151-0075).

• Power Supply (P/N 4310-0020).

• Power Cord (120 VAC P/N 4310-0002).

1.5 Installation Environment

Power: Ensure that the installation site’s AC power is stable and within the rated voltage of the 12

Volt DC power supply. If the site’s AC power is likely to have spikes or power dips, use power line conditioning or an Uninterruptable Power Supply (UPS).

Ventilation: Ensure that the location planned for the installation of the unit is well ventilated. Take note of the locations of the cooling vents in the unit’s enclosure, and ensure that they are not obstructed.

Temperature: Consider the unit’s operating temperature (0 to 40 °C) and non-condensing humidity specifications (10% to 80%) before choosing an installation location. Extremes of heat or cold beyond the specified operating temperature limits may cause the unit to fail. Do not install the unit on top of other hot equipment. Leave space between rack mounted units.

Moisture: Do not expose the unit to rain or moisture. Moisture can damage the internal components. Do not install the unit near sources of water.

Chassis: Other equipment may be placed on top of the unit if it weighs less than 35 pounds (16 kilograms).

0150-0257A 7 Kalatel DVMRe-4L

1.6 Associated Equipment

RS-485/1

ETHERNET

RS-485/2

RS-232/2

2345678

910111213

Associated equipment in a typical security system could contain the following items:

• Two monitors

• A Keyboard (KB3 or KTD405).

• Video cameras: Composite video, 1 volt peak-to-peak.

• Alarm input devices: Pressure sensors, motion detectors, etc.

• Alarm output devices: Buzzers, Sirens, Flashing Lights, etc.

• A PC connected via ethernet cable.

For instructions regarding the connection of the associated security equipment in your system, please consult the instruction manual of the associated equipment.

1.7 The Back Panel

AUX

1 2 3 4

B B

1. Camera Inputs: BNC connector, looping. Auto Terminating.

SVHS

12V DC

RS-232/1

10/100

2. Composite Monitor-A Output: Composite video output with BNC style connector.

3. Y/C Monitor-A Output: Y/C video output with 4-pin mini-DIN style connector.

4. Alarm I/O: For connecting alarm inputs, and alarm output relays.

5. Power Input: For connecting the power supply.

6. Aux Port: Not Used.

7. RS485 Port 1 Connector: Not Used.

8. 10/100 Ethernet Port: For connecting to remote PC via ethernet network.

9. Composite Monitor-B Output: Composite video output with BNC style connector.

10. Y/C Monitor-B Output: Not Used.

11. RS232 Port 1: For modem connection and external control of the unit.

12. RS485 Port 2 Connector: Not Used.

13. RS232 Port 2: Not Used.

Camera Inputs

There are two BNC jacks for each camera. Either jack can receive a camera signal. The signal is looped (directly connected to the other jack), making the camera signal available to other equipment.

Cable: 75-Ohm Coaxial Connectors: BNC Auto Terminating: Yes

The camera input connectors are Auto Terminating.

0150-0257A 8 Kalatel DVMRe-4L

Passive Looping: Yes

This means that the input signal will automatically be terminated with 75-Ohms unless a 2nd cable is connected to the 2nd BNC connector of the same camera input. Make sure there is 75-Ohm termination at the end of the video line if the signal is looped through the DVMRe-4L.

Time base correction is performed during digital capture. As a result, cameras do not require synchronization.

See section 3.12 for information about disabling unused camera jacks in the menu system.

Composite Monitor Output

When connecting directly from the DVMRe-4L to the monitor, select the 75-Ohm impedance setting on the monitor.

If an additional device is connected to the monitor’s looping output, set the termination of the additional device as 75-Ohm, and set the termination of the monitor as Hi-Z (High Impedance).

Cable: 75-Ohm Coaxial Connectors: BNC

Y/C Monitor Output (Monitor A only)

Y/C video output has a 4-pin mini-DIN style connector. This style of connection is also referred to as SVHS and S-Video.

Cable: 75-Ohm Coaxial Connectors: BNC

Alarm I/O Port

The back panel of the unit is equipped with an Alarm

Port (DB-25 style connector).

Do not attempt to wire directly to the DB-25

connector on the back panel. Wire all alarm inputs per the pin out specifications shown below.

Pin 1: Alarm Input 1.

Pin 2: Alarm Input 2.

Pin 3: Alarm Input 3.

Pin 4: Alarm Input 4.

Pin 5: Not used.

Pin 6: Not used.

Pin 7: Not used.

Pin 8: Not used..

Pin 9: Not used.

Pin 10: Not used.

Pin 11: Not used.

Pin 13: Not used. Pin 14: Not used. Pin 15: Not used. Pin 16: Not used. Pin 17: Alarm Output Relay #1. Pin 18: Ground. Pin 19: Ground. Pin 20: Ground. Pin 21: Alarm Output Relay #1 Common. Pin 22: Alarm Output Relay #2. Pin 23: External Alarm Silence and Acknowledge Input.

DB-25 Connector on Back panel

Pin 12: Not used.

0150-0257A 9 Kalatel DVMRe-4L

Pin 25: Alarm Output Relay #2 Common.

Alarm Input

An alarm condition can be activated by devices such as pressure pads, passive infrared detectors, door switches, or other similar devices.

Alarm Relay Output

The alarm relay output is activated when an alarm condition

exists. The alarm output is only active for the duration of the

alarm.

Alarm relays can be programmed in the menu system to

respond to video loss. See section 3.10 for information about

configuring the alarms in the menu system.

Output: Normally Open Zero potential relay contact.

Voltage: 30V (Max) Current: 500mA (Max)

External Alarm Acknowledge Input

Connect a switch or similar device to ground this pin in order

to acknowledge an alarm condition, and silence associated

buzzers and relays. Connect from pin 23 to either pin 18, 19,

or 20 (ground pins).

External Device: Normally Open Zero potential relay contact.

NOTE

All specifications subject to change without notice. GE-Interlogix believes all specifications to be correct at time of printing, but no liability is assumed for omissions or errors.

Ethernet Port

The cable connection configuration depends on your

network configuration:

• For a DVMRe-4L that connects directly to a Hub or Switch, use a straight through connection.

• For a DVMRe-4L that connects directly to a PC, use a cross over connection.

Consult with your MIS personnel for the specific type of configuration. See section 3.13 for information about configuring the ethernet settings in the menu system.

Wire Type: Cat 5 Connector Type: RJ-45 Max. Cable Length: 100 meters / 328 ft. Min. Cable Length: 6 feet / 1.8 meters Hub Wiring Configuration: Straight Through PC Wiring Configuration: Cross Over

RJ-45 Pin Configuration For Ethernet Port

Pin Use

1 TX+ 5 Not Connected 2 TX- 6 RX-

Pin Use

82 3 4 5 6 71

3 RX+ 7 Not Connected 4 Not Connected 8 Not Connected

0150-0257A 10 Kalatel DVMRe-4L

RJ-45 socket on

back panel.

RS232 Port 1

For a Modem connection or remote control of the unit. See section 3.13 for information about configuring the modem settings in the menu system. See section 8 for RS232 Remote Control Protocols.

DB-9 Pin Configuration For Port 1

Pin Use

1 DCD 4 DTR 7 RTS

Pin Use

2 RX 5 Ground 8 CTS 3 TX 6 Not Connected 9 Not Connected

DB-9 on back panel.

1.8 Power-Up

It is important that the power-up procedures be followed carefully. The unit uses its auto-detect feature to detect camera signals during power-up, and configure itself automatically.

Power-up procedure

Once the system installation is complete, apply power in the following order:

Voltage: 12 Volt DC

1. Energize the monitors and all of the cameras. Power: 60 Watt (5 Amp)

2. Energize the DVMRe-4L. Connector: 2.1mm barrel, center positive

Once power is applied to the unit, it will begin its power-up procedure. The unit will begin by displaying the software version on Monitor-A, and then the unit will begin recording automatically.

Check Video Input Quality

Check the picture quality by selecting each camera for full screen display. If the picture quality is poor, check the following items:

• The BNC connections.

Power Supply Input

• The loop-through terminations.

• The video levels of incoming signals.

• The possibility of ground loops.

• Consult the camera’s installation instructions for additional information about proper camera setup.

Check Record And Playback Quality

Record for at least three minutes at the default record rate. Then play back the recording, selecting each camera for full screen display. Check the playback picture quality.

0150-0257A 11 Kalatel DVMRe-4L

2 DMVRe-4L Basic Operations

234

45678

2.1 Principal Operating Modes

The DVMRe-4L has three principal modes of operation:

• Live Viewing.

• Playback.

• Recording.

Each mode is discussed in detail later in this section.

2.2 The Front Panel

1 2 3

Kalatel DVMRe-4L

11 12 13 14 15 16 17

{F}

1. Multiscreen Selection Button: 4 way.

2. Monitor Selection Button: Monitor A or Monitor B.

3. Multiscreen Selection Button: Picture-in-Picture.

4. Camera Selection Number buttons: Camera numbers 1 through 4.

5. Reverse Play Button: Playback in Reverse.

6. Freeze Button: Freezes camera images on-screen in Live mode. Pauses Playback.

7. Play Forward Button: Begins Playback.

8. Jog/Shuttle: Controls Playback speed and Menu selections.

9. Menu Button: Provides access to on-screen menus.

10. Power Indicator: Indicates power on/off condition.

11. Alarm button: Allows user to acknowledge and silence alarms.

12. Sequence Button: Sequences camera views.

13. Zoom Button: Provides a 2X digital zoom.

14. Function Button: Used to display a Help Screen on the Setup Active Zone menu.

15. Record Button: Used to Start and Stop Recording.

16. Stop Button: To stop Playback and return to Live mode.

17. Search Button: Access to stored video data.

18. Enter Button: Confirms selection in menus.

0150-0257A 12 Kalatel DVMRe-4L

2.3 Live Viewing

Multiscreen Display

In Live Multiscreen mode, press one of the Multiscreen buttons to activate the multiscreen display on Monitor-A. Multiscreen displays are not available on Monitor-B. Live Multiscreens are displayed with gray borders. For detailed information about Multiscreen displays, see section 2.6.

Multiscreen Display With Sequencing

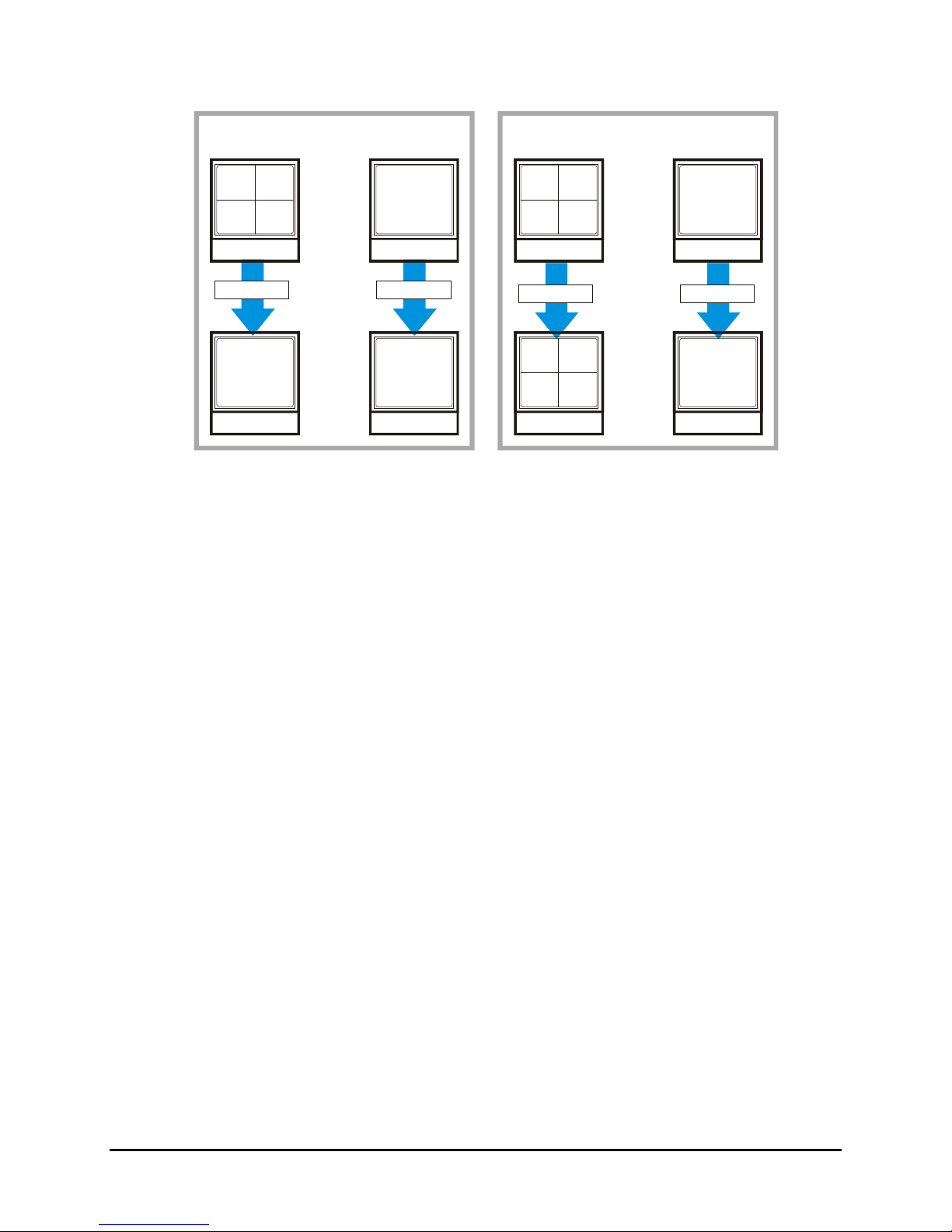

If a multiscreen display does not include all of the cameras, the remaining cameras can be sequenced in the bottom right cameo. While in a multiscreen display, press the Sequence button to begin sequencing. For detailed information about sequencing, see section 2.8.

Full Screen Display

Select any camera for Full Screen display by pressing the Number button of the desired camera. Pressing the Camera number button again displays the Status Display Box.

Sequenced Full Screen Display

While in a Full Screen display, press the Sequence button to begin full screen sequencing. The sequence list is programmable. For detailed information about programming the sequence list see section 2.8.

4-way and PIP

Multiscreen Buttons

Sequence Button

Number Button

Sequence Button

Zooming

To activate the 2x digital zoom, select the full screen display of the camera you wish to zoom, then press the Zoom button. Zooming will be indicated by the LED located directly above the Zoom button. Zooming is also indicated as ZOOM on the primary monitor. Zooming works with frozen and non-frozen images. Zoomed images can also be frozen.

While Zoomed, rotate the Jog/Shuttle to Pan and Tilt across the image. Please note, the camera does not move during digital Pan/Tilt.

Press the Zoom button again to cancel the Zoom operations.

NOTE

If the Zoom button is pressed while in a multiscreen display, the camera from the last active cameo is selected for full screen display. Press the Zoom button again to activate the Zoom operation.

Freezing

Pressing the Freeze button freezes all camera images on-screen. Full Screen freezing is indicated as FRZ on-screen. Multiscreen freezing is indicated as * (a flashing asterisk) in each frozen cameo.

Individual cameos can be frozen in Active Cameo mode (see section 2.7). Press the Freeze button again or any camera button to cancel Freeze

operations.

Zoom Button

with LED

Freeze Button

0150-0257A 13 Kalatel DVMRe-4L

Selecting Monitor-B

To control Monitor-B, press the lower part of the Monitor button. The Monitor-B LED will light to indicate that the number keypad now controls Monitor-B. Press the upper part of the Monitor button again to return the keypad control to Monitor-A.

Monitor Button

2.4 Playback

Playback always displays on Monitor A. Playback multiscreen borders are black, as opposed to the gray borders of the live multiscreens. Monitor B continues to display live full screen images in playback mode. To begin playback, press the Play Forward or Reverse Play button.

Play Forward

When the Play Forward button is pressed, the unit will play forward at the rate the data was recorded. While in Playback mode, the user may change the playback direction, playback speed, etc. To return to Play Forward operations, press the Play Forward button.

Reverse Play

To begin reverse playback, press the Reverse Play button.

Play Forward

Button

Fast Forward

During playback, rotate the Shuttle (the outer dial) clockwise to view data at a higher than normal rate. Increasing the amount of rotation increases the rate of playback.

AutoPause

During playback, moving the Jog (the inner dial) in any direction will freeze playback. Depress the Freeze or any Play button to continue playback.

Rewind

During playback, rotate the Shuttle counter-clockwise to view data (in reverse) at a higher than normal rate. Increasing the amount of rotation increases the rate of playback.

Freeze

During playback, press the Freeze button. This feature pauses all full screen and multiscreen images

Reverse Play

Button

Jog / Shuttle

Freeze Button

0150-0257A 14 Kalatel DVMRe-4L

Single Frame Advance & Single Frame Rewind

During Freeze or Pause mode, rotate the Jog (the inner dial) to view the frame directly before or after the frame displayed on-screen.

Stop Playback

To stop playback and return to Live Multiscreen mode on Monitor A, press the Stop button.

Stop Button

Multiscreen Display

During Playback, only the 4-way multiscreen display will function. The PIP multiscreen display is not available in Playback mode. For detailed information about Multiscreen displays, see section 2.6.

Multiscreen Display With Sequencing

Full Screen Display

Select any camera for Full Screen display by pressing the Number button of the desired camera. Pressing the Camera number button again displays the Status Display Box.

Sequenced Full Screen Display

Zooming

To activate the 2x digital zoom, select the full screen display of the camera you wish to zoom, then press the Zoom button. Zooming will be indicated by the LED located directly above the Zoom button. Zooming is also indicated as ZOOM on the monitor. Zooming works with frozen and non-frozen images. Zoomed images can also be frozen.

While Zoomed, use the Jog/Shuttle to Pan and Tilt across the image. Please note, the camera does not move during digital Pan/Tilt.

4-way and PIP

Multiscreen Buttons

Sequence Button

Number Button

Sequence Button

Zoom Button

with LED

Press the Zoom button again, or another camera button to cancel the Zoom operations.

If the Zoom button is pressed while in a multiscreen display, the camera from the last active

NOTE

cameo is selected for full screen display. Press the Zoom button again to activate the Zoom operation.

0150-0257A 15 Kalatel DVMRe-4L

Searching Recorded Data

Monitor A

Stop Mode

Playback Mode

Monitor B

The DVMRe-4L has a powerful search interface feature that allows the user to search for data on the internal hard disk. The user may search the data for previous recording sessions, and alarm conditions. Because the search interface is so dynamic, the search interface is covered in detail in a separate section of this manual. See section 5.

Search Button

2.5 Recording

To begin recording, press the Record button. Recording will be indicated by the LED located directly above the Record button. The unit always starts recording at the end of previously recorded data. The unit will continue recording until the record button is pressed again, unless Record Lock is ON.

The DVMRe-4L also remembers its current record mode in the event of power loss. If the unit was recording during a power loss, then when power is restored the unit will put itself back in that mode.

Monitor Displays During Recording

Multiscreen Live and Playback display on Monitor A and Monitor B are not affected by recording operations.

Record Button

LIVE

PLAY

BACK

LIVE

0150-0257A 16 Kalatel DVMRe-4L

2.6 Display Options

Monitor A

Monitor B

Available Multiscreen Displays

Press the Multiscreen buttons to activate the multiscreen display. Pressing the individual multiscreen button will display the corresponding multiscreen.

4-Way

The multiscreen display is limited to the number of camera inputs on the unit.

Four-Channel unit: Capable of displaying 4-way multiscreen and PIP. The camera assignments for each multiscreen is retained (in non-volatile memory) for both Live and

Playback multiscreen mode on Monitor A.

PIP

PIP: Use the Jog/Shuttle to adjust the location and size of the PIP display. Please note that the PIP display is only available on Monitor A in Live mode.

2.7 Active Cameos

A cameo is defined as any cell within a multiscreen display. Active Cameo mode allows the user to access and edit each cameo individually.

Entering Active Cameo Mode

While viewing a multiscreen, enter Active Cameo mode by pressing the Enter button. Active Cameo mode is indicated on-screen by flashing the number and titles of the active cameo and the LED above the Enter button is lit. By default, the top left cameo is activated.

Selecting Cameos

Select a cameo using the Jog/Shuttle to navigate the multiscreen. Rotating the Jog selects the next screen up or down a row. Rotating the shuttle selects the next screen in numerical order. The active cameo will always be indicated by the flashing camera number and titles.

Selecting Cameras

Display any camera in the active cameo by pressing the Number button of the desired camera. Once a camera has been selected, the active cameo advances to the next cameo on the right.

Enter Button

Jog/Shuttle

Number Button

0150-0257A 17 Kalatel DVMRe-4L

The camera selection only changes the multiscreen currently being displayed. Each multiscreen must be configured separately. Changes to the multiscreen display are saved in non-volatile memory, and will be retained even if power is removed from the unit.

Freezing

Press the Freeze button to freeze the image in the selected cameo. Each frozen cameo is indicated as * (a flashing asterisk) on-screen.

Press the Freeze button again to cancel Freeze operations.

Freeze Button

2.8 Sequencing

The sequencing feature allows a camera to be displayed briefly on-screen, before advancing to the next camera in the sequence list. The default sequence list displays each camera in numerical order.

Sequence Button

Dwell Time

The dwell time is the amount of time each camera is displayed on-screen before advancing to the next camera. The default dwell time is 3 seconds.

Autolist™ Custom Sequence List

The Autolist™ feature allows the user to create a custom sequence list, controlling the order the cameras are displayed and the dwell time. Separate Autolists may be created for Monitor A (Live and Playback mode) and Monitor B (Live mode). Using the Monitor button, select the monitor to be programmed. Then, using a Number button, select any camera for full screen display.

NOTE

The unit must be in Full Screen Display mode before starting to create the sequence list. This initial camera is not part the sequence list.

To begin recording the Autolist™ sequence: Press the Alarm button and Sequence button simultaneously. Autolist Program mode is indicated as PGM on-screen.

Recording starts when the first camera number is pressed. Press the camera numbers in the order you wish them to appear on-screen. The amount of time between button presses determines the Dwell Time. During sequence list programming, pressing any button other than a Number button or the

Alarm Button and

Sequence Button

Sequence button voids the sequence list.

To end the recording: Press the Sequence button. The amount of time between pressing the last Number button and the Sequence button determines the dwell time for the final camera in the

sequence list.

Returning To The Default Sequence List

The default sequence list is all cameras in numeric order with a three second dwell time. To return the unit to the default sequence list, go to the Main Menu → Factory Settings menu.

Caution! Initiating the Factory Setting menu command returns all settings back to the original factory defaults. This will cause the loss of any custom settings.

0150-0257A 18 Kalatel DVMRe-4L

Sequencing In Cameos

While viewing a multiscreen display, additional cameras (cameras not shown in the multiscreen display) can be sequenced in the lower right hand cameo by pressing the Sequence button. The sequence list is not programmable. Press the Sequence button again to cancel sequencing.

2.9 On-screen Indicators

There are five types of on-screen indicators.

Camera Titles: Displays the camera number and the camera title. Status Indicators: Displays Time, Date, and Hard Disk record time left. Conditional Indicators: Displays indicators for Freeze, Zoom, Alarm, Motion Detection, Videoloss,

and Autolist™ Program mode. Status Display Box: Displays Archive Device, Network status and Image Quality Setting (Playback

mode only).

Camera Titles

Camera Titles are displayed on either the upper or lower corner of the left hand side of the screen. The camera title can be changed in the menu system (see section 3.12). The user can change display position and color. See below.

Changing Position And Color Of Title And Status Indicators

Camera Titles: To change the color and position of the camera

titles, select a camera for full screen display, then press the Enter button to advance to the next display setting. Repeatedly pressing the Enter button advances the display settings through the sequence show in the table on the right.

Status Indicators & Camera Titles: Select Camera 1 for full screen display. Using the Enter button, cycle through the sequence shown on the right. Each time the position cycle is completed, the unit advances the Status Indicator color. Choose Black, White or Gray.

Position Color

Top Left Black Top Left White Top Left Gray Bottom Left Black Bottom Left White Bottom Left Gray

Title not displayed

Status Indicators

Status indicators are displayed on the upper right hand corner of the screen. Status indicators include:

• Time and Date (these can be turned off in the menu system, see section 3.8). The Time and Date format can also be changed in the menu system.

• Time remaining on Hard Disk(s).

0150-0257A 19 Kalatel DVMRe-4L

Conditional Indicators

Condition Full Screen Indicator Multiscreen Indicator

Alarm

Autolist™ Program

mode

Freeze

Motion Detection

Videoloss

Zoom

ALM A in cameo of camera in alarm

PGM PGM

FRZ

M M in cameo w/ motion detection

VDL V in cameo with videoloss

ZOOM ZOOM

(Asterisk) in frozen cameo

Status Display Box

A Status Display Box can be viewed by pressing the Camera Number button twice. Status Indicators include:

On Live Fullscreen:

• Archive Status: Not Connected. (This feature is not available on this model.)

• Network: Displays all current Network connections. Normal connection is displayed as ip.ip or ---

if there is no connection. Live connections are displayed as E1: ip.ip, E2: ip.ip, etc. (where ip.ip represents the last 2 bytes of the IP Address).

On Playback Fullscreen:

• All the above, including Image Quality Setting: High, Medium, Standard.

0150-0257A 20 Kalatel DVMRe-4L

Time/Date Display

Operator Password

3 Menu System Overview

3.1 Menu Notation In This Manual

In the following sections, there are headings like this:

q Main Menu → Time/Date → Set Time

Meaning: From the Main Menu, select Time/Date, then press the Enter button. The Time/Date menu

will appear. From the Time/Date menu, select Set Time, then press the Enter button. A pop-up or pull-down menu will appear.

Selected Items

Items selected in the menu system are represented in the manual as follows:

Selected Not Selected

Time/Date Time/Date

3.2 Accessing The Menu System

Enter the menu system by pressing the Menu button. A Password Box will appear on the primary monitor. Enter either the:

• Operator Password: Providing limited access to the menu system. Only the Operator and System View menus are available.

Menu Button

• Installer Password: Providing complete menu access. Use the Number buttons to enter the appropriate password. Default passwords are provided in the beginning of this manual, in section 1.

3.3 Available Menus

Main

Time/Date Record Alarms Motion Detection Camera Setup Communications Front Panel Lock Factory Settings Passwords

Operator

About DVMR

Titles Display Alarm History

0150-0257A 21 Kalatel DVMRe-4L

3.4 Menus In This Manual

Shuttle

Jog

Each menu is covered in detail in this chapter of this manual. Menus and Menu Items appear in the manual in the same order they appear on-screen.

• Main Menu

• Operator menu

3.5 Navigating The Menu System

Selecting a Menu from the Menu Bar: When the menu system is first accessed, only the menu bar is displayed. Use the Shuttle to select the desired menu.

Opening the Drop Down Menus: Rotate the Jog. Navigating in Menus: Rotate the Jog to highlight items in the drop-down menus. Selecting Menu Items: Hit the ENTER button to select the highlighted menu item. Exiting Menus: Press the Menu button to exit a menu. From the menu bar, press the Menu button

to exit the menu system completely.

Main

Time/Date Record Alarms Motion Detection Camera Setup Communications Front Panel Lock Factory Settings Passwords

Operator

Jog

3.6 Menu Shortcuts

Zoom Button: In menu lists that have 2 settings per camera, the Zoom button will toggle all

selections. This provides a quick and easy way to enable or disable all cameras for a particular feature.

Camera Button: In menu lists that provide settings per camera, a particular camera may be

accessed directly by pressing on the associated camera button. Rotate the Shuttle to modify the setting.

0150-0257A 22 Kalatel DVMRe-4L

3.7 The Main Menu

Time Setup

[CANCEL] [OK]

Date Setup

[CANCEL] [OK]

Main Menu Overview

The Main menu contains the majority of programmable options for the DVMRe-4L. Each item in the Main menu is described in detail in this section of the manual.

Main menu items appear in this section in the same order they appear in the menu.

3.8 Time/Date

Use this menu to specify:

• The time and date.

• The date format: MM/DD/YY, YY/MM/DD, or DD/MM/YY.

• Which monitors will display the time and date.

• Set Regional Daylight Savings Time.

q Main Menu → Time/Date → Set Time

1. Rotate the Shuttle to navigate, highlight HH MM SS.

2. Press the Enter button, the highlighting will move to the row of numbers.

Set Time Set Date Set Date Format Time/Date Display Set Region

3. Enter the time in Hours, Minutes, and Seconds. Rotate the Jog to change the values and the Shuttle to navigate.

4. Press the Enter button to confirm the selection and exit the edit mode.

5. To save the changes and exit the menu: Rotate the Jog to select [OK], then press the Enter button.

6. To exit the menu without making changes: Rotate the Jog to select [CANCEL], then press the Enter button.

HH MM SS

03 05 53

q Main Menu → Time/Date → Set Date

1. Press the Enter button, the highlighting will move to the row of

numbers.

2. Enter the date in Months, Days, Years. The day of the week is calculated automatically. Rotate the Jog to change the values and the Shuttle to navigate.

3. Press the Enter button to confirm the selection and exit the edit mode.

4. To save the changes and exit the menu: Rotate the Jog to select [OK], then press the Enter

button.

5. To exit the menu without making changes: Rotate the Jog to select [CANCEL], then press the Enter button.

MM DD YY Day

01 28 02 MON

0150-0257A 23 Kalatel DVMRe-4L

q Main Menu → Time/Date → Set Date Format

Rotate the Jog to set the desired date format. Select from either:

Date Format Setup

• MM/DD/YY

• DD/MM/YY

Select Format

MM/DD/YY

• YY/MM/DD Press the Enter button to confirm the selection and exit the menu. Press the Menu button to exit the menu without making changes.

q Main Menu → Time/Date → Time / Date Display

Use this menu to specify if the time and date will be displayed on:

• Monitor-A.

• Monitor-B.

• Both Monitors.

• Not Displayed

Rotate the Jog to navigate, then rotate the Shuttle to change the values. Save changes and exit the menu: Select [OK], then press the Enter button. Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press

the Enter button.

Time/Date Display

Monitor A : Monitor B : ON

[CANCEL] [OK]

q Main Menu → Time/Date → Set Region

Use this menu to set the region for the Auto Daylight Savings Time feature. Choices are:

• OFF: Clock will not be changed automatically.

Daylight Saving : Time Zone :

• USA: DST starts at 02:00 on the first Sunday in April. DST ends at 02:00 on the last Sunday in October. Includes: United States (except Hawaii, American Samoa,

SUN, 7 APR 2002 02:00 (+1) SUN, 27 OCT 2002 02:00 (-1)

Guam, Puerto Rico, Virgin Islands, parts of Indiana and Arizona) and Canada (except Saskatchewan).

• EUR: DST starts at 01:00 GMT on the last Sunday in March. DST ends at 01:00 GMT on the last Sunday in October. Includes: European Union Countries.

• AUS: DST starts at 02:00 on the last Sunday in October. DST ends at 03:00 on the last Sunday in March. Includes: South Australia, Victoria, ACT, NSW. Excludes: Tasmania.

The Time Zone must be set correctly to ensure that the DST adjustments are made at the right time. It is also required for accurate email time stamping.

Regional Settings

USA

GMT+00:00

[CANCEL] [OK]

The clock will only be automatically adjusted once on a given time and date. If you manually

NOTE

set the clock back before the last DST change, the time will not get automatically adjusted again for that same time change.

0150-0257A 24 Kalatel DVMRe-4L

3.9 Record

Use this menu to:

• Specify if a camera is to be used for event recording, time-lapse recording, or both.

• Specify the record quality: High, Medium, or Standard.

• Specify the time-lapse record rate.

• Specify the event record rate.

• Specify the activity record rate.

• Specify the global alarm record rate.

• Specify the Alarm/Event actions.

• Perform disk maintenance by Deleting, Un-deleting, or

Destroying previously recorded video.

• Turn the Record Lock feature ON or OFF.

q Main Menu → Record → Event /Timelapse

Use this menu to specify how each camera will record during normal and event conditions.

TL: Records at the Time-lapse Record Rate under normal conditions. Does not change record rate during an event.

Event: Records during events at the Event Record Rate. Camera does not record under normal conditions.

Event + TL: Records at the Time-lapse Record Rate under normal conditions. Records at the Event Record Rate during events. This is the default setting.

Event/Timelapse

Record Settings Alarm/Event Actions Disk Maintenance Record Lock

Event Camera Settings

Camera 01: Camera 02: TL Camera 03: Event Camera 04: TL

[CANCEL] [OK]

Event + TL

About Events: An Event is an action that the unit acknowledges by recording at the Event

NOTE

Record Rate, yet it is not cause for an Alarm. Events are created by Activity detection. Example of an Event: A camera is pointed at the front door inside the lobby during

business hours. With the Event Camera Settings Type set to Event, the unit does not record while the doorway is empty. When activity motion detection senses that someone is entering or leaving the doorway, the unit begins recording at the Event Record Rate and stops recording when the motion ceases.

Activity Detection Event: See Setup Parameters in section 3.11 for detailed information about configuring activity detection as an event in the menu system.

0150-0257A 25 Kalatel DVMRe-4L

q Main Menu → Record → Record Settings

Global Alarm Record Rate

Estimate of the % of time each

camera will typically spend in

have about 20 total events each

day, each lasting 3 minutes on

average, then the % of the time

Use this menu to:

• Specify the record quality: High, Medium, or Standard.

• Specify the Timelapse Record Rate.

• Specify the Activity Record Rate.

• Specify the Event Record Rate.

• Specify the Global Alarm Record Rate.

Record Settings

Record Quality

Timelapse Record Rate Activity Record Rate Event Record Rate

Disk Duration

[CANCEL] [OK]

High

Global

1.1pps

24.00pps

3 days

Per Camera

0.57pps

1.1pps

1.7pps

19 h

%Time 15% 10% 4%

the associated record rate. For example, if you expect to

will be (1 hour/24 hours) 4%.

1. Rotate the Jog to navigate, and the Shuttle to change the values.

2. To save changes and exit the menu: Select [OK], and then press the Enter button.

3. To exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

Record Quality

Use this setting to specify the record quality for all cameras. Decreasing the record quality decreases the amount of disk space required to store the images, due to a higher compression scheme.

Record Quality Picture Quality Disk Space Needed

High Excellent Most Medium Good Medium Standard Fair Least

Timelapse Record Rate

The unit records at the Timelapse Record Rate under normal conditions, when there are no alarms, events, or activity present. Record rates are measured in Pictures Per Second (pps).

0150-0257A 26 Kalatel DVMRe-4L

Activity Record Rate

The unit will record at the Activity Record Rate when the camera is in normal Timelapse Record Mode and activity is detected in the camera scene. Activity should not be linked to Event, in which case the Event Record Rate will be used. Record rates are measured in Pictures Per Second (pps).

Event Record Rate

The unit will record at the Event Record Rate when an Event is activated. Events can be activated by activity detection. Record rates are measured in Pictures Per Second (pps).

Global Alarm Record Rate

During an alarm, the unit records at the alarm record rate. The configuration of the Alarm Record Rate is closely associated with the Alarm Record Mode. For detailed information about configuring the Alarm Record Mode, see Alarm Record mode in the next section.

Disk Duration Calculator

The bottom of the menu contains a disk duration calculator. The duration indicates the estimated recording time, taking into consideration the estimated amount of time the unit will spend in Time-lapse, Activity, Event, and/or Alarm record mode.

The maximum record rate per camera is inversely proportional to the number of cameras

NOTE

connected to the unit. The fewer cameras connected, the higher the maximum record rate for each camera, and vice versa. The maximum record rate for multiple cameras is 30pps.

q Main Menu → Record → Alarm/Event Actions

Pre Event Duration: The unit will record up to 5 seconds of data ahead of the event trigger, at the

Event Record Rate. Select from 0 to 5 seconds. Post Event Duration: The unit will record up to 250 seconds after the completion of the Event, at the

Event Record Rate. Select from 0 to 250 seconds.

Alarm/Event Actions

Pre Event Duration Post Event Duration Pre Alarm Duration Alarm Record Mode ACTIVITY Link to Event

[CANCEL] [OK]

0 0 Interleaved Yes

Pre Alarm Duration: The unit will record up to 5 seconds of data ahead of the alarm trigger, at the Alarm Record Rate. Select from 0 to 5 seconds.

Alarm Record Mode: Use this option to determine how the unit will record cameras in alarm.

Exclusive: The unit records only the camera (or cameras) in alarm. Interleaved: Alarmed cameras are recorded at a higher rate than

non-alarm cameras. The unit accomplishes this by interleaving images

0150-0257A 27 Kalatel DVMRe-4L

of alarmed cameras between images from non-alarmed cameras in the record list. Interleaved is the recommended mode of operation.

Example of Record Lists:

No Change record list for 8 cameras, Camera-4 in alarm. 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 Exclusive record list for 8 cameras, Camera-4 in alarm. 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 Interleaved record list for 8 cameras, Camera-4 in alarm. 1 4 2 4 3 4 5 4 6 4 7 4 8 4 1 4

ACTIVITY Link to Event: Selecting Yes in this menu will activate the event record speed when

activity detection is present.

q Main Menu → Record → Disk Maintenance

Use the Jog to select from the following options, then press the

Enter button to begin. Delete: Delete all data from the hard disk (with the possibility of restoring it). Undelete: Restore data that has been deleted, but not yet overwritten. Destroy: Erase all data from the hard disk permanently, without the possibility

of restoring it. Selecting this option brings up a confirmation dialog box.

Delete

UnDelete Destroy

q Main Menu → Record → Record Lock

The Record Lock feature prevents Recording from being halted from the Front Panel. Turning this feature ON automatically starts the unit recording.

3.10 Alarms

Use this menu to configure the alarm handling features of the unit.

Caution! The DVMRe-4L’s primary function is to furnish video multiplexing and recording with a multiscreen display. Although the unit has alarm handling and motion detection functions, these are considered secondary features. This unit should not be the only alarm device on site.

Input Configuration

Alarm Latch Enable / Disable Alarm History Buzzer Setup

0150-0257A 28 Kalatel DVMRe-4L

q Main Menu → Alarms → Input Configuration

Alarm 01: N/CLOSED

Alarm 04: N/CLOSED

Configure the alarm inputs as either Normally Open or Normally Closed. Configure inputs as follows. Normally Open Zero Potential Relay Contact: Configure in menu as

Normally Open. Normally Closed Zero Potential Relay Contact: Configure in menu

as Normally Closed

Alarm Input

Alarm 01:

Alarm 03: N/OPEN

TTL Active High: Configure in menu as Normally Closed.

TTL Active Low: Configure in menu as Normally Open.

[CANCEL] [OK]

Open Collector Active On: Configure in menu as Normally Open. Open Collector Active Off: Configure in menu as Normally Closed.

q Main Menu → Alarms → Alarm Latch

This feature determines how the unit latches alarm conditions. Selecting from the following options.

Latched: The alarm is activated until it is silenced and acknowledged by the user.

Transparent: The alarm is active only while receiving alarm input. The alarm condition is canceled when the alarm input ceases.

Timed Out: The alarm condition is latched for the amount of time selected in this menu, then it is automatically silenced and acknowledged. If the alarm input exceeds the duration specified in this menu, the unit silences and acknowledges the alarm when the alarm input ceases. Select the timeout duration, the range is from 1 to 250 seconds.

Latched

Transparent Timed Out

N/OPEN

Transparent alarms cannot be silenced and acknowledged. If transparent mode is preferred, but the ability to silence and acknowledge alarms is desired, select Timed Out and set the Alarm Timeout to two seconds.

q Main Menu → Alarms → Enable / Disable

Use this menu to Enable or Disable the alarm inputs. Select from the following:

Individual Enable

Enable All Disable All

• Individual Enable: Allow the user to access the Alarm Enable submenu, and enable or disable alarm inputs on a per camera basis.

• Enable All

• Disable All

Rotate the Jog to navigate, and the Shuttle to change the values.

Alarms Enable

Alarm 01: Alarm 02: Disable Alarm 03: Enable Alarm 04: Disable

Enable

Save changes and exit the menu: Select [OK], then press the Enter button.

[CANCEL] [OK]

Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

0150-0257A 29 Kalatel DVMRe-4L

Setup Parameters

Setup Active Zones

Indicate Detection

Buzzer Setup

[CANCEL] [OK]

Detection Enable

Camera 02: Disable

q Main Menu → Alarms → Alarm History

Use this window to view a list of the 100 most recent alarms. Alarms are displayed 10 at a time. Rotate the Jog to scroll through the alarms.

Information displayed in this window is:

• The alarms number in the list.

• The date of the alarm (month and day).

• The time of the alarm (hours, minutes, and seconds).

The number of the camera input in alarm.

q Main Menu → Alarms → Buzzer Setup

Use this menu to configure the internal buzzer. Global Buzzer: The Global Buzzer setting acts as a master On/Off

switch. Setting the Global Buzzer to OFF deactivates all buzzer activity.

3.11 Motion Detection

Use this menu to:

• Enable motion detection on a per camera basis.

• Activate individual zones in a scene to respond to motion

detection.

• Activate the on-screen motion detection indicator.

• Set motion detection as Activity detection or Intrusion Detection.

• Configure the motion detection parameters on a per camera basis.

Alarm History Box

001- 02/04 18:40:32 16 002- 02/15 12:00:10 11 003- 02/28 10:10:20 08 : : 010- 03/15 05:12:16 04

[OK]

Global Buzzer : ON

Enable/Disable Detection

q Main Menu → Motion Detection → Enable/Disable Detection

Selecting Enable All or Disable All from this menu will activate or deactivate motion detection on all cameras.

Selecting Individual Enable from this menu will bring up the following menu.

Individual Enable Menu

Use this menu to enable or disable motion detection on a per camera basis. Rotate the Jog to navigate, and the Shuttle to change the values.

0150-0257A 30 Kalatel DVMRe-4L

Individual Enable

Enable All Disable All

Camera 01:

Camera 03: Enable Camera 04: Enable

[CANCEL] [OK]

Enable

q Main Menu → Motion Detection → Setup Parameters

Use this menu to select the Camera, Sensitivity, and Relay Output for the Motion Detection you wish to configure.

Motion Detection Parameters Setup

Camera Motion Detection Type Sensitivity Relay Output

[CANCEL] [OK]

Relay Output: The unit may be configured to activate a relay output when motion detection is present. Select either 1, 2, 1+2 (both relays), or None.

Navigate in this menu using the Jog to select the field and the Shuttle to change the parameters.

ACTIVITY 06 2

q Main Menu → Motion Detection → Setup Active Zones

Use this menu to setup the Active Zones for motion detection. The screen shown below will overlay the current video image allowing for precise activity zone setup. The disabled zones will be tinted. The enabled zones will be clear.

Activity Grid Setup Screen

0150-0257A 31 Kalatel DVMRe-4L

Pressing the Function button will bring up the Help screen shown below. This screen will overlay the

‘MENU’ : Exit Activity Setup

‘ENTER’: Save and Exit Activity Setup

‘PAUSE’: Toggle between Enable and Neutral

‘STOP’ : Toggle between Disable and Neutral

‘PLAY FORWARD’: Increase the Sensitivity level

“PLAY REVERSE’: Decrease the Sensitivity level

Play Forward to increase the Sensitivity

Indicate Detection

Camera Disable

current video image.

{F}

Function

‘ZOOM’ : Disable/Enable all zones

Button

This Help Screen will display for 15 seconds, and then disappear. Press the Function

NOTE

button again to redisplay.

Sensitivity Scope

Use the sensitivity scope to adjust the motion detection sensitivity for the scene. The sensitivity scope is the bar located near the left-hand corner of the screen.

The black bar raises and lowers to indicate the degree of motion detected. When the black bar reaches the red bar, a motion detection alarm is activated.

Adjusting Motion Detection Sensitivity: Raise and lower the red bar to change the motion detection sensitivity. Use the Play Forward button to increase the sensitivity level and the Play Reverse button to decrease the sensitivity level. The sensitivity level is also displayed as a numeric value.

Play Reverse to decrease the Sensitivity

q Main Menu → Motion Detection → Indicate Detection

Motion Detection may be indicated on-screen by displaying the letter M. Use this menu to turn this feature On or Off.

3.12 Camera Setup

Use this menu to:

• Edit the title for each camera.

• Adjust the Automatic Gain Control.

• Disable or Enable camera inputs

Detection

Camera Titles Camera AGC

0150-0257A 32 Kalatel DVMRe-4L

q Main Menu → Camera Setup → Camera Titles

Titles Display

[CANCEL] [OK]

Monitor B: OFF

Use this menu to:

• Specify if the camera titles will be displayed on the monitors. Edit the title for each camera.

Edit Titles

Titles Display

Camera titles may be displayed on either monitor. Use this menu to turn this feature On or Off.

Monitor A:

Rotate the Jog buttons to navigate and the Shuttle to change the values.

Edit Titles

Rotate the Shuttle to select the camera whose title you wish to configure, and then press the Enter button. The Camera Title Edit menu will appear.

Camera Title Edit

Camera Title : Camera 01

@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^

SEQ key selects character bank ‘1’ key inserts blank character ‘2’ key inserts selected character

[CANCEL] [OK]

Camera Title Edit Menu

1. With the camera title selected, press the Enter button. The menu will enter the Edit mode and the

character bank will appear in the center of the menu.

2. Press the Sequence button to select the desired character set.

3. Rotate the Shuttle to navigate the cursor in the camera title.

4. Rotate the Jog to navigate the cursor in the character bank.

5. Press the Number 1 button to insert a blank character or press the Number 2 button to insert the

selected character.

6. When finished editing the title, press the Enter button to exit the edit mode.

7. Save changes and exit the menu: Select [OK], then press the Enter button.

8. Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press

the Enter button.

0150-0257A 33 Kalatel DVMRe-4L

q Main Menu → Camera Setup → AGC

POTS Setup

Camera Disable

[CANCEL] [OK]

Camera 03: Disable

Use the Automatic Gain Control (AGC) to adjust the video input signal level for cameras whose level is outside the normal range. The default gain setting is 100%.

Rotate the Jog to navigate and the Shuttle to change the values.

Save changes and exit the menu: Select [OK], then press the Enter button.

Exit the menu without making changes: Press the Menu button, or select [CANCEL], then press the Enter button.

q Main Menu → Camera Setup → Camera Disable

Use this menu to Disable or Enable each camera input individually.

Use the Jog to navigate and the Shuttle to change the values. Save changes and exit the menu: Select [OK], then press

the Enter button. Exit the menu without making changes: Press the Menu

button, or select [CANCEL], then press the Enter button.

Signal Gain Setup

Camera 01 Signal Gain 100%

[CANCEL] [OK]

Camera 01: Camera 02: Enable

Camera 04: Enable

Disable

3.13 Communications

Use this menu to:

• Configure the baud rates and settings for the RS232 ports.

• Configure the Ethernet address and networks settings.

q Main Menu → Communications → RS232

Select Port 1 to configure and press the ENTER button.

Port 1

Use this menu to:

• Enable/Disable POTS and configure the Modem initialization string (POTS Setup).

• Adjust the Baud rate.

RS232

Ethernet

Port 1

Baud Rate

0150-0257A 34 Kalatel DVMRe-4L

POTS Setup

1200 Baud

2400 Baud

4800 Baud

19200 Baud

38400 Baud

57600 Baud

The default modem string (shown below) is for use with Hayes Accura 56k, Diamond Supra Express 56k, and 5686 US Robotics modems in their default conditions. Consult with the modem manual before attempting to make any changes. It is strongly recommended that the modem initialization string only be modified by a qualified technician.

POTS : DISABLE

Modem Init String : AT&F1&K3M0E1Q0V1S0=0&R2&C1&D0&H1

[Default Modem String] [CANCEL] [OK]

@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\]^

SEQ key selects character bank ‘1’ key inserts blank character ‘2’ key inserts selected character

1. With the Modem Init String highlighted, press the Enter button to enter the Edit mode. The character bank will appear in the center of the menu.

2. Press the Sequence button to select the desired character bank.

3. Rotate the Shuttle to navigate the Modem Init String.

4. Rotate the Jog to select a character from the character bank.

5. Use the Number 2 button or rotate the Shuttle to insert the desired character from the character

bank into the Modem Init String and advance to the next character.

6. Use the Number 1 button to insert a blank character.

7. When finished, press the Enter button.

8. To save the changes and reboot, select OK, then press the Enter button. The unit will only reboot

if changes were made to the Modem Init String.

9. To exit the menu without making changes, select Cancel, then press the Enter button. Pressing the Menu button also exits the menu without making changes.

Baud Rate

Use this menu to configure the baud rate for Port 1 for external control of the unit via RS232. Rotate the Jog to select a baud rate from the menu.

Save changes and exit the menu: Press the Enter button. Exit the menu without making changes: Press the Menu button.

9600 Baud

0150-0257A 35 Kalatel DVMRe-4L

q Main Menu → Communications → Ethernet Settings

An ethernet connection can be used to connect to the unit from a PC for the viewing of live or recorded images. Use this menu to configure the Ethernet communications settings. Select from the following:

Ethernet: Select Enable or Disable. Hostname: Not selectable. Pulled from the systems serial number. DHCP: Select Enable or Disable. Enables dynamic IP addressing. When DHCP is enabled the, IP

address, Subnet Mask, Gateway, and Server fields are dynamically addressed. Name Service: Select from Disable or WINS. Enabling WINS registers the hostname and IP address

within the current Network. This ensures that you can connect to the Triplex by hostname within the network. The hostname is the unit’s serial number without the dashes.

IP Address / Subnet Mask / Gateway: Consult with a qualified Network Administrator or an MIS professional to configure these settings if DHCP is not enabled.

Primary Name Server / Backup Name Server: The IP addresses of the Primary and Backup Name Servers. Not required if DHCP is enabled.

Print Server: Enter the Print Servers IP address to enable the Print Image operation (Function and Zoom).

TCP MTU Size: Select from Standard, 1400, and 1200. The MTU describes the maximum possible TCP packet size. Standard (1500) is optimal for most ethernet network environments.

Ethernet Settings

Ethernet : Hostname : D406L7340419 DHCP : Disable Name Service : Disable IP Address Subnet Mask : 255.255.254. 0 Gateway Primary Name Server : 3. 18.173. 12 Backup Name Server : 3. 18.173. 13 Print Server TCP MTU Size : Standard

[CANCEL] [OK]

Enable

: 3. 18.173. 60

: 3. 18.172. 1

: 3. 18.173. 11

3.14 Front Panel Lock

Use this feature to lock the front panel keypad. While locked, the only operational key on the front panel is the Menu button. To unlock the front panel, enter the Installer password and return to this menu.

Unlock Keyboard

Lock Keyboard

Highlight the item you wish to select.

Save changes and exit the menu: Press the Enter button. Exit the menu without making changes: Press the Menu button.

0150-0257A 36 Kalatel DVMRe-4L

3.15 Factory Settings

Installer Password

Return To Factory Defaults

From the Factory Setting menu, press the Enter button. A password box will appear. Enter the Factory Default password. Select OK, then press the Enter button.

The unit will reboot, returning all settings (except the time and date) to the factory defaults. Due to the large size of the hard disk, the reboot may take several minutes.

Change Language

From the Factory Setting menu, press the Enter button. A password box will appear. Enter the Language password. Select OK, then press the Enter button.

A menu will appear displaying the available language selections. Rotate the Jog to select the desired language.

Save changes and exit the menu: Press the Enter button. Exit the menu without making changes: Press the Menu button.

3.16 Passwords

Use this feature to change the Installer, Operator or Ethernet passwords.

Changing the Installer or Operator Passwords

To change the password:

1. Highlight the password you wish to change, then press the Enter button. A password box will appear.

2. Enter the new password using the Number buttons.

3. Highlight OK, then press the Enter button.

4. Re-enter the password.

Factory Default Password

4-Channel

4 1 1 1

Language Password

4-Channel

English

French German

Operator Password Ethernet Password

Password Box

Enter a new Install Password

1 4 1 4

---

5. Highlight OK, then press the Enter button. The user will be prompted, indicating if the password was entered correctly and changed.

The Ethernet Password

The Ethernet Password feature limits access to only those users who access the unit using the password feature of WaveReader versions 2.4 or later. When the unit is first setup, the default is No Password Protection. Meaning, anyone using WaveReader and accessing with an ethernet connection can connect to the unit.

0150-0257A 37 Kalatel DVMRe-4L

Password Box

Enter a new Ethernet Password

---

Activate The Ethernet Password

About DVMR

Boot Code Version:

1. Enter the new password using the Number buttons.

2. Highlight OK, then press the Enter button.

3. Re-enter the password.

4. Highlight OK, then press the Enter button. The user will be prompted, indicating if the password was

entered correctly and changed.

Deactivate The Ethernet Password

To return the unit to No Ethernet Password Protection, enter the Ethernet Access Reset Password in the password box shown above.

Ethernet Access Reset Password

1 1 1 1

3.17 The Operator Menu

The Operator Menu Overview

The Operator menu is provided so that the user has access to a limited number of menu items. These menu items are primarily monitor display setup options, so that the user may “personalize” the monitor displays during their shifts. Other options include alarm history and changing the operator password.

None of the items are unique to the Operator menu. All items located in the Operator menu are also found in the Main menu.

Time/Date Display Titles Display Alarm History Operator Password

q Operator Menu → About DVMR

About DVMR menu: This menu provides information

such as:

• Model Designation

• Serial Number

• Hostname

• Software Version

• Software Date

• Boot Code Version

• Hard Disk Size

• IP Address

• Hardware Address (MAC).

• DHCP Lease Expiration Date

Model: Serial Number: Hostname: Software Version: Software Date:

Disk Size: IP Address: Hardware Address: DHCP Lease Expires:

DVMRe4L D406-L7-340419 D406L7340419 VER 5.00 Mar 25 2003 16:40:18 VER 1.03

80.00 GB

3.18.173.10 BA-BE-C6-7E-FA-CE No Lease or Date

0150-0257A 38 Kalatel DVMRe-4L

Use the following table to find detailed information about configuring specific items from the Operator menu.

Operator Menu Item Primary Menu Location

Time/Date Display Titles Display

Main Menu → Time/Date → Time/Date Display Main Menu → Camera Setup → Camera Titles → Title

Display Alarm History Operator Password

Main Menu → Alarm → Alarm History

Main Menu → Password → Operator Password

Section In

Manual

3.8

3.12

3.10

3.16

0150-0257A 39 Kalatel DVMRe-4L

4 Alarms

4.1 Alarm Input

Alarm devices are connected via the Alarm PCB on the back panel of the unit (see section 1.7). Each Alarm Input corresponds with the Camera Input of the same number.

4.2 Alarm Output

Front Panel Alarm LED: The LED located to the left and above the Alarm button is lit for the duration

of the alarm. Internal Buzzer: The internal buzzer is activated until it is Silenced and Acknowledged. This feature

can be turned off in the menu system (see Buzzer Setup in section 3.10).

Monitor Displays: Discussed below in the On-screen Displays During Alarms section. Output Relays: The alarm output relay is active for the duration of the alarm. Record Rate: Record Rate can be increased by recording at the Alarm Record Rate (see section

3.10) and by Interleaved or Exclusive Recording (see Alarm Record mode in section 3.10).

4.3 Alarm Acknowledge

Pressing the Alarm button acknowledges to the unit that the alarm has been recognized and silences the internal buzzer. This does not clear the alarm condition.

Alarm Button

4.4 On-screen Displays During Alarms

Monitor-A and Monitor-B Display During Alarm

Single Alarm: Unit switches to a full screen display of the camera in alarm. Additional Alarms: Unit switches to a sequenced display of all cameras in alarm.

4.5 Alarm Operations During Playback

Live Alarms Displays

Single Alarm: Unit switches to a full screen display of the camera in alarm on Monitor B. Additional Alarms: Unit switches to a sequenced display of all cameras in alarm on Monitor B.

0150-0257A 40 Kalatel DVMRe-4L

LIVE

LIVE MODE

PLAYBACK MODE

Monitor A

Monitor B

LIVE

PLAY

BACK

LIVE

LIVE ALARM

FULL

SCREEN

ALARM

LIVE ALARM

FULL

SCREEN

ALARM

LIVE ALARM

PLAY

BACK

LIVE ALARM

FULL

SCREEN

ALARM

Recorded Alarms

Internal Buzzer: During playback, the internal buzzer is activated until it is silenced and

acknowledged. This feature can be turned off in the menu system (see Buzzer Setup, in section

3.10). Front Panel Alarm LED: The LED located to the left and above the Alarm button is lit for the duration

of the alarm. Monitor-A Multiscreen: Each camera in alarm is indicated on-screen by a flashing red “A” in its

cameo. Alarm LED lights to indicate an alarm condition. There is no change in the playback (or Triplex) multiscreen based on playback of recorded alarms.

4.6 Alarm History Box

The Alarm History feature provides a list of the 100 most recent alarms. View the Alarm History Box by accessing the menu system, and selecting Operator → Alarm History. The Alarm History Box can also be found under Main Menu → Alarm → Alarm History. For detailed information about viewing the Alarm History Box see Alarm History in section 3.10.

4.7 Searching For Recorded Alarms

See section 5.

0150-0257A 41 Kalatel DVMRe-4L

Search Filters

select/deselect individual

5 Searching

The DVMRe-4L provides a powerful search interface to access video files stored on the hard disk.

Begin by pressing the Search button. The Search Filters Screen will appear.

Search Button

5.1 Search Filters

Pressing the Search button a second time brings up the Search Filters Menu. Use the Search Filters menu to specify:

• The Start and Stop date of the search.

• The Start and Stop time of the search.

• Searching for recorded activity, events, or alarms.

• Searching for a text string.

• Which cameras to search inclusively or exclusively.

Operation: Play from Disk

DATE (MM/DD/YY) TIME (HH:MM) Start Stop Start Stop 01/27/02 01/27/02 20:57 20:59

Activity Event Alarm Text

Camera 1 2 3 4

X X X X

[CANCEL] [START SEARCH]

CAMERA key selects/deselects individual cameras ZOOM key selects/deselects (except 1) all cameras

Hit Camera buttons to cameras. Use the Zoom

button to globally select/deselect cameras to search.

Selecting Search Parameters

1. Rotating the Jog to navigate, highlight the box adjacent to the parameters that you wish to modify.

2. Once in the Parameter Box, use the Shuttle to navigate through the fields and the Jog to change

the values.

3. To activate the parameter, use the Shuttle or the Enter button to place an [X] in the check box.

4. When finished, use the Jog to navigate to another parameter.

0150-0257A 42 Kalatel DVMRe-4L

Search Results

Start Date Start Time Days HH MM SS

002 01/21/2002 20:09:10 0 00:00:38

003 01/21/2002 20:10:10 0 01:07:22

004 01/22/2002 20:07:10 0 00:00:07

005 01/23/2002 20:07:10 0 00:08:56

006 01/24/2002 20:07:10 0 00:00:06

007 01/25/2002 20:07:10 0 05:57:31

008 01/26/2002 20:07:10 0 00:46:43

000 01/21/2002 20:07:10 0 04:35:15

‘ENTER’ to play event; ‘SEQ’ to repeatedly play event.

5.2 Search Results

Activate Search

From the Search Filters menu, use the Jog to navigate to the Start Search parameter. With the Start Search parameter highlighted, press the Enter button to begin the search operation. When finished

searching, the Search Results window will appear. A maximum of 200 results can be displayed per search.

001 01/21/2002 20:08:10 0 00:01:55

9 matches found.

‘PLAY REV/FWD’ to page up/down

Press the Menu button to exit the Search Results window without making a selection. Hitting the Enter button will play the selected search result. Hitting the Enter button again while in playback will cause the next selection from the search list to be

played. Press the Sequence button to repeatedly play the selected event.

0150-0257A 43 Kalatel DVMRe-4L

6 Technical Specifications

General

External Power Supply

12 Volt DC. 60 Watt (5 Amp)

Connector Power Consumption Operating Temperature Range Relative Humidity Range (Non-Condensing) Dimensions Weight

Connections

10/100 Ethernet Port RS232 Port 1 RS232 Port 2 Camera Inputs Monitor-A Output (Y/C) Monitor-B Output (Y/C) Monitor-A Output (Composite) Monitor-B Output (Composite) RS485 Port

2.1mm barrel connector, center positive. 35 Watt nominal (single disk). Operating: 0 to 40°C. Storage: -20 to +60°C. Operating: 10% to 80%. Storage: 10% to 95%

17.5 x 14 x 1.7 Inches. 1U, 19 inch rack unit. 9 Lbs.

RJ-45 Connector. DB-9 Male Connector. Not used on this model. BNC connectors. Auto Terminating. Color & Mono. 4-pin Mini-DIN Connector. 4-pin Mini-DIN Connector. BNC Connector BNC Connector Not used on this model.

Alarm I/O Port

DB-25 Female Connector.

Video

Video Signal Input Video Signal Output Input Termination Display Memory Resolution Gray Scale Colors Compression Standard

0150-0257A 44 Kalatel DVMRe-4L

0.5 to 2.0 Volts peak-to-peak with Automatic Gain Control. 1 Volt peak-to-peak into 75-Ohm. 75-Ohm (Auto Terminating) 4 Megabytes Horizontal: 720 Pixels. Vertical: 484 Lines. 256 levels Y:U:V 4:2:2, 16.8 Million Colors Wavelets

Alarms

Inputs

1 per camera.

Relay Configuration Record Priority Alarm Status Indicators

Motion Detection

Zones Per Camera Sensitivity Settings Gray Levels Per Zone Motion Detection Status

Output

Part Numbers

Rack Mount Kit Replacement Manual

Normally Open. Interleaved, Exclusive, or No Change. Relay Outputs, On-screen Indicators. Status Retrievable via RS232

port.

256: 16 x 16 grid. 10 levels 256 levels Relay Outputs, Link to Alarms, Link to Events, On-screen Indicators.

Status retrievable via RS232 port.

CBR-RK6. 1U Height. Part Number: 0110-R601 0150-0257A

0150-0257A 45 Kalatel DVMRe-4L

7 RS232 Remote Control Protocol

The unit supports two different communication types:

• Remote Front Panel Button Emulation

• Remote Configuration and Status

7.1 Front Panel Button Emulation

Data Structure

Byte 1: 0xFF Byte 2: 0x55 Byte 3: Front Panel Button Code

Description

Byte 1 and 2 are header bytes. Byte 3 contains the code for a specific front

panel button. The different buttons and their corresponding

codes are as follows. No Button Pressed 0

Record 1 Play 2 Stop 3 Alarm 4 Freeze 5 Zoom 6 Sequence 7 Reserved 8 Camera 1 9 Camera 2 10 Camera 3 11 Camera 4 12 Reserved 13 Reserved 14 Reserved 15 Reserved 16 Reserved 17 Reserved 18 Reserved 19 Reserved 20 Reserved 21 Reserved 22 Reserved 23 Reserved 24 Reserved 25 - 40 Menu 41 Enter 42 Reserved 43 Reserved 44 Reserved 45-49 Monitor B 50

Reserved 51-63 Left Arrow 64 Right Arrow 65 Up Arrow 66 Down Arrow 67 Reserved 68-74 Alarm and Sequence 75 *Alarm and Camera 1 76 *Alarm and Camera 2 77 *Alarm and Camera 3 78 *Alarm and Camera 4 79 Reserved 80 Reserved 81 Reserved 82 Reserved 83 Reserved 84 Reserved 85 Reserved 86 Reserved 87 Reserved 88 Reserved 89 Reserved 90 Reserved 91 Reserved 92-110 Search 111 Frame Reverse 112 Frame Forward 113 Play Reverse 114 Stop 115 Play Forward 116 Monitor A 130 2 Way Multiscreen 131 4 Way Multiscreen 132 Reserved 133 Reserved 134 Reserved 135 Reserved 136 Reserved 137 Reserved 138

*Must send a “No Button Pressed” command immediately following any of these commands.

0150-0257A 46 Kalatel DVMRe-4L

7.2 Configuration and Status

i) Data structure

Byte 1: 0xFF Byte 2: Command Type

0xAA: (SET) Update DVMRe with data.

0xBB: (GET) Extract data from DVMRe. Byte 3: Data Length (n) Byte 4: Data Type

0x61: Restart DVMRe

0xFE: Send configuration data to DVMRe 0x09: Read Alarm History from DVMRe 0xFF: Read configuration and status data

from DVMRe Byte 5: Data byte 1 Byte 6: Data byte 2 : : Byte x: Data byte n

ii) Sending data to the DVMRe

a) Restart DVMRe-4L

This command will restart the DVMRe-4L.

Byte 1: 0xFF Byte 2: 0xAA Byte 3: 0 Byte 4: 0x61

b) Send data to DVMRe-4L

Configuration data can be sent to the DVMRe4L, to change the way it operates. The data is arranged in the form of 16 byte blocks, numbered from 1 to 213. Blocks 182, 183 and 185 are status blocks, and hence cannot be written to. For details about the contents of each block, contact GE-Interlogix and request the Block Data Structure for the DVMRe-4L.

Byte 1: 0xFF Byte 2: 0xAA Byte 3: 17 Byte 4: 0xFE Byte 5: Block Number

(1-181, 184, 186-200)

Byte 6: data[0] : : : : Byte 21:data[15]

After sending a block or series of blocks, block number 255 must be updated to signal the end of the configuration session. All data bytes for block 255 must be set to 0.

iii) Requesting data from the DVMRe

When a message of type 0xBB is sent to the DVMRe-4L, it will respond by sending 16 bytes of requested data.

a) Read Alarm History List

Byte 1: 0xFF

Byte 2: 0xBB Byte 3: 0 Byte 4: 0x09

When the "Read Alarm History List" message is received by the DVMRe-4L, it responds by sending a start byte 0xFF, followed by ASCII strings for every alarm event in its alarm history list, and a stop byte, 0xFF. Each string is formatted as follows:

dd.bmm/ddbhh:mm:ssbaa<CR><LF>

dd: index number (00 - 99) b: space character mm: month (01-12) dd: day (01-31) hh: hours (00-23) mm: minutes (00-59) ss: seconds (00-59) aa: alarm number (01-16) <CR> Carriage return (0x0D) <LF> Line feed (0x0A)

Example: 03. 11/27 22:48:58 15

b) Read data from DVMRe-4L

Configuration and status data can be read from the DVMRe-4L. The data is arranged in the form of 16 byte blocks, numbered from 1 to 213. For details about the contents of each block, contact GE-Interlogix and request the Block Data Structure for the DVMRe-4L.

Byte 1: 0xFF Byte 2: 0xBB Byte 3: 1 Byte 4: 0xFF Byte 5: Block Number 1-213 or 255 if all

blocks are requested.

The DVMRe-4L responds to the “Read data” request by sending all the requested data bytes consecutively, without any start or stop bytes.

A total of either 16 bytes or 3408 bytes will be transmitted, depending on whether a single block or all the blocks were requested.

0150-0257A 47 Kalatel DVMRe-4L

8 Warranty and Service

8.1 Factory Service

Warning: Do not open the top cover or attempt to service the unit, as this may expose

you to dangerous voltages and other hazards. Programmer maintenance of this unit is limited to external cleaning and inspection. Refer all servicing to qualified personnel.

If the unit requires factory service, contact the dealer who supplied the unit to you for the correct procedures on returning the unit to the factory or the nearest factory service center.

If the dealer is not available, contact the manufacturer of the unit as detailed below and request a Return Material Authorization number (RMA). The unit’s serial number must be provided before a RMA number can be issued. Units returned to the factory for service must have freight and insurance prepaid, and must show the RMA number clearly on all shipping documents. The failure symptoms must be clearly described by the operator and enclosed with the unit together with a copy of the original suppliers invoice. Failure to comply with these instructions will delay service of the unit, and may result in the unit not being accepted by the Repair Center.

Factory Address

GE-Interlogix, Kalatel Division Attention: Repair Center 3197-C Airport Loop Drive Costa Mesa, CA. 92626 United States of America Telephone: 800-343-3358 (7:00 AM to 4:30 PM, Pacific Time) In Oregon: 541-754-9133 Fax: 541-754-7162 (24 hours a day)

For warranty information, see the following page.

0150-0257A 48 Kalatel DVMRe-4L

8.2 Warranty and Return Information

GE-Interlogix warrants all of its equipment for three years from the date of purchase. This warranty covers any defects in materials and workmanship. Equipment failures that are due to improper installation, modification, abuse, or acts of nature will not be covered by this warranty. The repair department will evaluate all equipment returned for repair to determine warranty coverage. The Tech Support Manager will resolve any questions that may arise during evaluation to make a final determination.

Note: The three-year warranty does not apply to the following products:

MobileView® and the monitor CRT, which carry a 12-month warranty from the date of purchase.

The warranty specifically covers any defects in material and workmanship and does not cover equipment that has been abused, damaged, or modified.

For all warranty repairs, GE-Interlogix will cover all costs, including parts, labor, and shipping. Repaired equipment will be returned via the same method of shipment in which it was received. If a customer requests a faster return shipment, the difference will be charged.

For all non-warranty repairs, the customer will be billed for parts, labor, and shipping. Labor will be billed in half-hour increments.

Note: Customers requesting an estimate prior to repair will be notified by phone. If they cannot be reached, they will be notified by fax. If we are unable to reach the contact person for repair authorization after one phone attempt and two fax attempts, the equipment will be returned without being repaired. We will hold equipment no longer than two weeks.

Advance Replacement Policy

When an advance replacement is required, we will send the customer replacement equipment from our stock and receive the returned product in exchange. The received equipment will be evaluated and the repair department will determine whether it is a warranty replacement. If it is non-warranty, see our repair policy above for details. The following guidelines will be used for all advance replacements:

• Fewer than 45 days from purchase, GE-Interlogix will replace the product with new equipment.

• From 45 days to 1 year from purchase, GE-Interlogix will replace the product with refurbished

equipment.

• From 1 year to 3 years from purchase, the product must be sent in for repair. Advance replacements will be sent for a fee of $100.

If you have questions about this policy, please contact GE-Interlogix Kalatel Division’s RMA Department at 800-469-1676.

0150-0257A 49 Kalatel DVMRe-4L

0150-0257A

GE Kalatel DVMRe-4L User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
