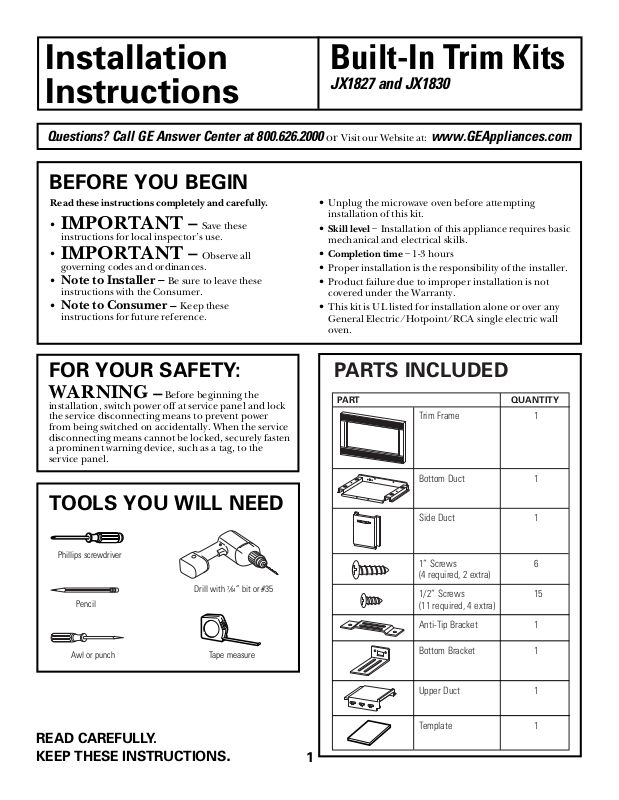

GE JX1827, JX1830 Installation Instructions
PART QUANTITY
Trim Frame 1
Bottom Duct 1
Side Duct 1
1” Screws 6
(4 required, 2 extra)
1/2” Screws 15
(11 required, 4 extra)
Anti-Tip Bracket 1
Bottom Bracket 1
Upper Duct 1
Template 1
PARTS INCLUDED
Questions? Call GE Answer Center at 800.626.2000
or Visit our Website at:
www.GEAppliances.com
READ CAREFULLY.
KEEP THESE INSTRUCTIONS
.
Installation Built-In Trim Kits
Instructions
JX1827 and JX1830
Read these instructions completely and carefully.
•
IMPORTANT
–
Save these
instructions for local inspector’s use.
•
IMPORTANT
–
Observe all
governing codes and ordinances.
• Note to Installer –Be sure to leave these
instructions with the Consumer.
• Note to Consumer –Keep these
instructions for future reference.
BEFORE YOU BEGIN
• Unplug the microwave oven before attempting
installation of this kit.
• Skill level – Installation of this appliance requires basic
mechanical and electrical skills.
• Completion time – 1-3 hours
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
• This kit is UL listed for installation alone or over any
General Electric/Hotpoint/RCA single electric wall
oven.
TOOLS YOU WILL NEED
Phillips screwdriver
Pencil
Tape measure
Awl or punch
Drill with
7
⁄64″ bit or #35
1
FOR YOUR SAFETY:
WARNING
–
Before beginning the
installation, switch power off at service panel and lock
the service disconnecting means to prevent power
from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten
a prominent warning device, such as a tag, to the
service panel.
2
CUTOUT DIMENSIONS
1
.
* Min. depth with receptacle outside cabinet 19
1
⁄2″
Min. depth with receptacle inside cabinet 22″
Installation Instructions
Models 27″ 30″
Height 16
3
⁄4″ 163⁄4″
Width 25
1
⁄2″ 251⁄2″
Depth (min.)* 19
1
⁄2″ or 22″ 191⁄2″ or 22″
On 27″ models, allow 1″ at the top, 11⁄16″ on the sides
and 1
3
⁄8″ at the bottom for overlap of the Trim Frame
over the edges of the cutout.
On 30″ models, allow 1″ at the top, 23⁄16″ on the sides
and 1
3
⁄8″ at the bottom for overlap of the Trim Frame
over the edges of the cutout.
Depth
Height
3″ Min.
Width

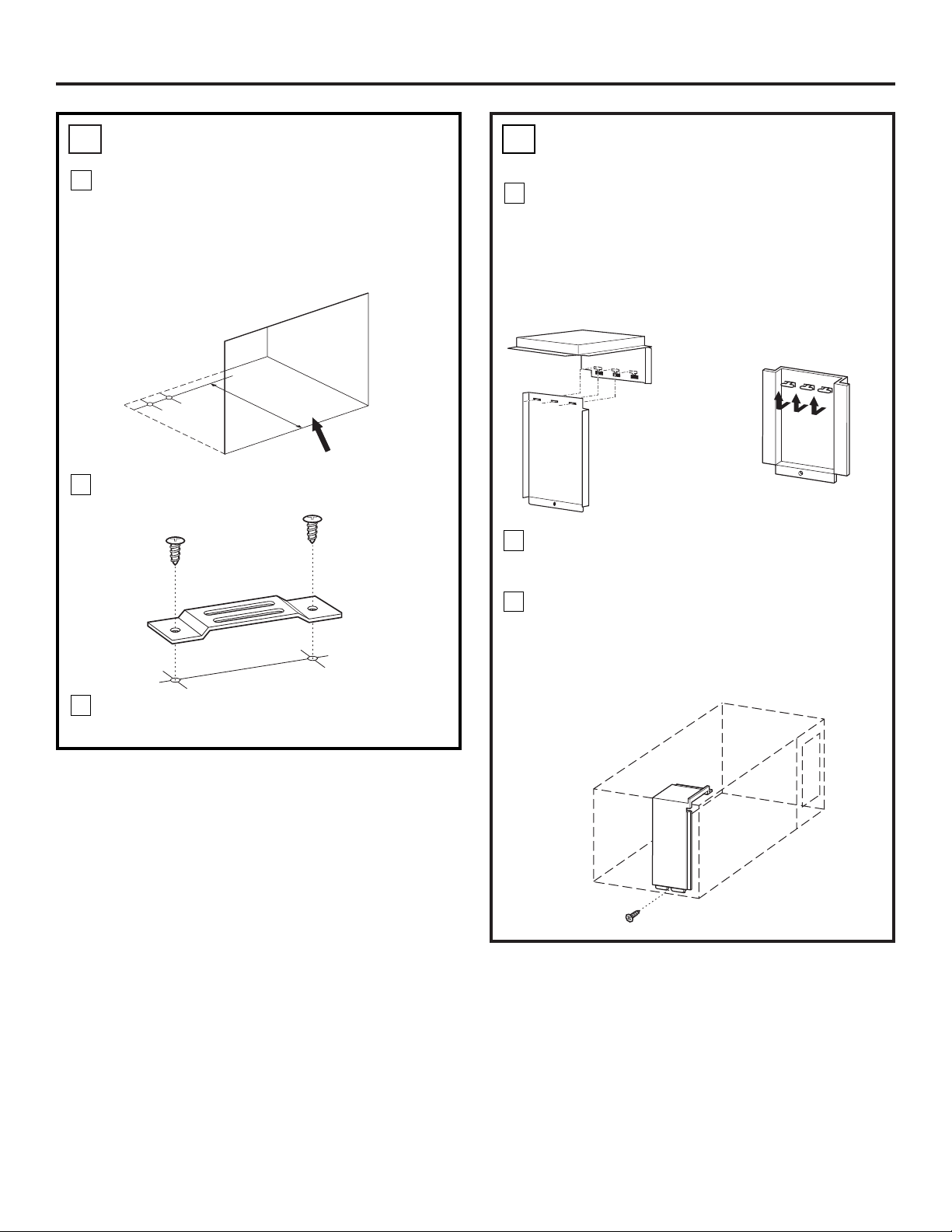

INSTALL BOTTOM BRACKET AND BOTTOM DUCT
2
.
Disconnect the microwave oven before proceeding
with the installation.
Fasten the bottom bracket to the bottom duct by
using two
1
⁄2″screws.
Remove any loose items inside the microwave
oven, including the turntable and turntable
support. Carefully turn the microwave upside
down.
Install bottom duct with four
1
⁄2″screws as shown.
A
C
B
D
Front
Rear
1
⁄2″ Screws (2)
Screws
Screws
Microwave Oven Upside Down
