GE JVX5360SJ, JVX5360EJ, JVX5360BJ Specification
JVX5360SJ/EJ/BJ
35-7/8"
5-1/2"
12"
20"
36" UNDER-THE-COUNTER HOOD
PRODUCT DIMENSIONS

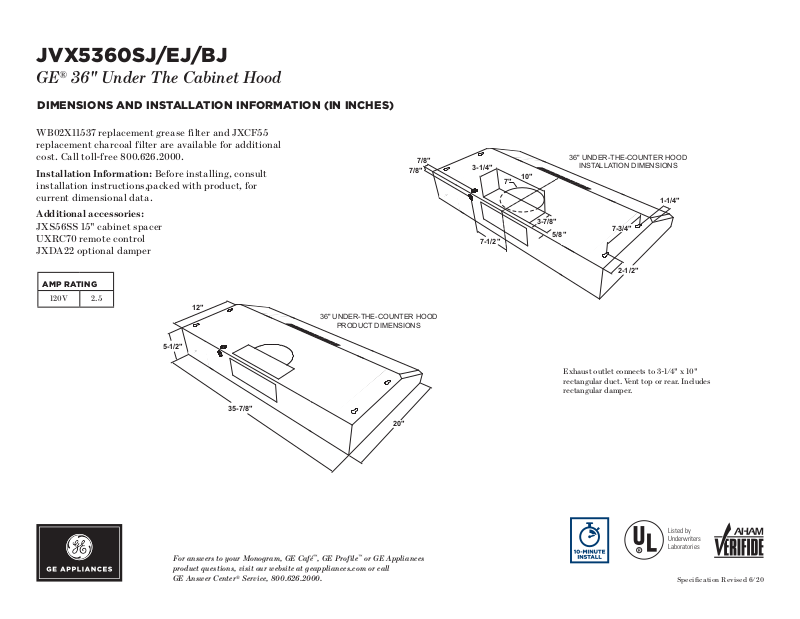

GE® 36" Under The Cabinet Hood
DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)
WB02X11537 replacement grease filter and JXCF55
replacement charcoal filter are available for additional
cost. Call toll-free 800.626.2000.
Installation Information: Before installing, consult
installation instructions,packed with product, for
current dimensional data.
Additional accessories:
JXS56SS 15" cabinet spacer
UXRC70 remote control
JXDA22 optional damper
AM P R ATING
120V 2.5
12"
5-1/2"
36" UNDER-THE-COUNTER HOOD
PRODUCT DIMENSIONS
7/8"
7/8"
3-1/4"
7-1/2"
36" UNDER-THE-COUNTER HOOD
INSTALLATION DIMENSIONS
10"
7"
1-1/4"
3-7/8"
5/8"
7-3/4"
2-1/2"
35-7/8"
20"
For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances
product questions, visit our website at geappliances.com or call
GE Answer Center® Service, 800.626.2000.
Exhaust outlet connects to 3-1/4" x 10"
rectangular duct. Vent top or rear. Includes
rectangular damper.
Listed by
Underwriters
Laboratories
Speci fication Rev ised 6/20
JVX5360SJ/EJ/BJ
GE® 36" Under The Cabinet Hood
FEATURES AND BENEFITS
Easy installation – 10 minutes or less by one person
Four-speed with boost, 310-CFM venting system – Removes smoke,
grease, odors and moisture
Electronic backlit controls – Add a sophisticated look with this up-front,
easy-to-use display
Dual halogen lighting with nightlight – Enjoy better visibility with a
brightly lit cooktop and surrounding surface
Auto-off – Set the vent hood to automatically shut off after 15 minutes
Convertible venting options – Select recirculating or external venting
Vertical and rear exhaust – Exhausts from the top or rear of the hood
Appearance (Fully enclosed bottom) – Enjoy a sleek appearance from
every angle
Optional remote control – Control your ventilation lighting and fan
speed from anywhere in the kitchen
Model JVX5360SJSS – Stainless steel
Auto O
Hold 3 Sec
Fan Settings
Lo Med Hi Light
Boost
Hold 3 Sec
Model JVX5360EJES – Slate
Model JVX5360BJTS – Black Stainless
CFM/SONES RATINGS
Exhaust Boost Speed (BS) 310/7.0
Exhaust High Speed (HS) 26 0/5.5
Exhaust Medium Speed (MS) 170/3.0
Exhaust Low Speed (LS) 60/1.0
Speci fication Rev ised 6/20
