GE JVM3660BD001, JVM3660CD001, JVM3660SD001, JVM3660WD001, JVM3670BF001 Installation Guide
...
Installation
Overthe Range
Instructions
Microwave Oven
JVM3_O, JVM36_
I Questions?Call800.GECARES(800.432.2737)orVisitour Website at: GEAppliances.com I

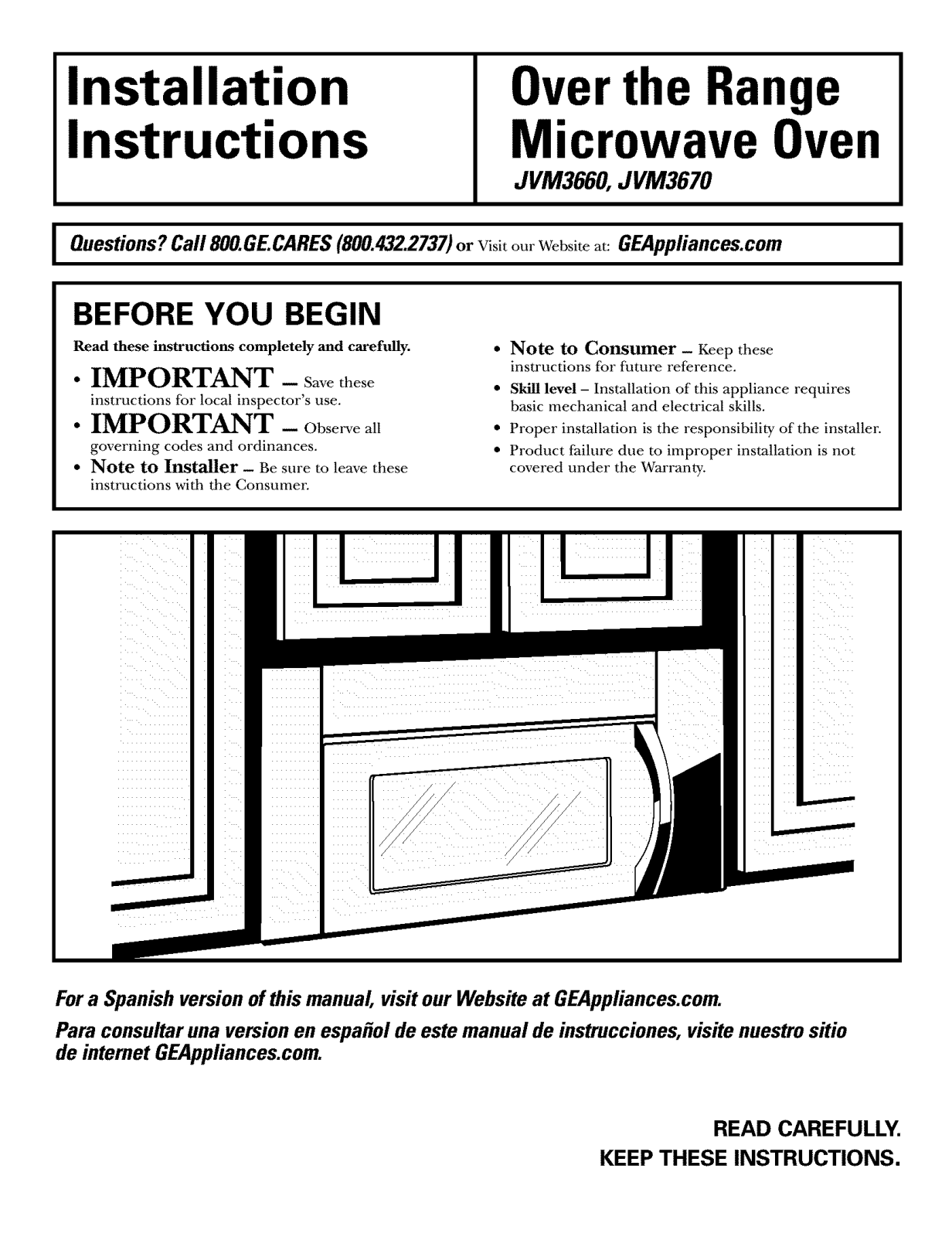

BEFORE YOU BEGIN
Read these instructions completely and carefully.
• IMPORTANT - Savethese
instructions for local inspector's use.
• IMPORTANT - Obse,-_eall
governing codes and ordinances.
• Note to Installer - Be sure to leavethese
instructions with the Consumer.
• Note to Consumer - Keep these
instructions for future reference.
• Skill level - Installation of this appliance requires
basic mechanical and electrical skills.
• Proper installation is the responsibility of the installer.
• Product failure due to improper installation is not
covered under the Warranty.
Fora Spanishversionofthismanual,visitour Websiteat GEAppliances.com.
Para consultaruna versionen espafioldeeste manualde instrucoiones,visitenuestrositio
de internet GEAppliances.com.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.
Installation Instructions

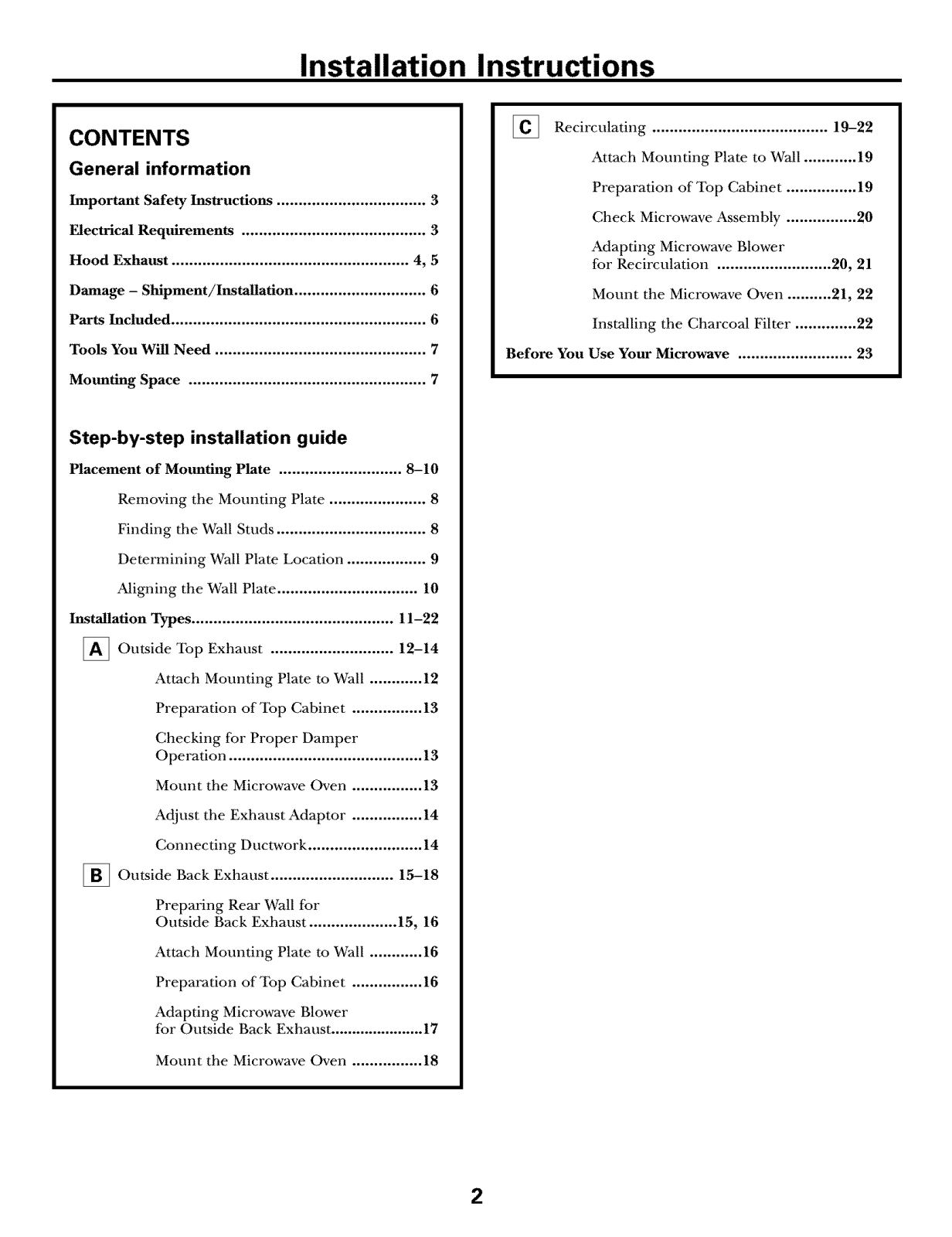

CONTENTS
General information
Important Safety Instructions .................................. 3
Electrical Requirements .......................................... 3
Hood Exhaust ...................................................... 4, 5
Damage - Shipment/Installation .............................. 6
Parts Included .......................................................... 6
Tools You Will Need ................................................ 7
Mounting Space ...................................................... 7
Step-by-step installation guide
Placement of Mounting Plate ............................ 8-10
Removing the Mounting Plate ...................... 8
Finding the Wall Studs .................................. 8
Determining Wall Plate Location .................. 9
] Recirculating ........................................ 19-22
Attach Mounting Platc to Wall ............ 19
Preparation of Top Cabinet ................ 19
Check Microwave Assembly ................ 20
Adapting Microwave Blower
for Rccirculation .......................... 20, 21
Mount the Microu-ave Oven .......... 21, 22
Installing the Charcoal Filter .............. 22
Before You Use Your Microwave .......................... 23
:Migning the Wall Plate ................................ 10
Installation Types .............................................. 11-22
_] Outside Top ............................
Attach Mounting Plate to Wall ............ 12
Preparation of Top Cabinet ................ 13
Checking for Proper Damper
Operation ............................................ 13
Mount the Microwave Oven ................ 13
Adjust the Exhaust Adaptor ................ 14
Connecting Ductwork .......................... 14
_] Outside Back Exhaust 15-18
Preparing Rear Wall fbr
Outside Back Exhaust .................... 15, 16
Attach Mounting Plate to Wall ............ 16
Preparation of Top Cabinet ................ 16
Adapting Microwave Blower
for Outside Back Exhaust ...................... 17
Exhaust 12-14
Mount the Microwave Oven ................ 18
2
Installation Instructions

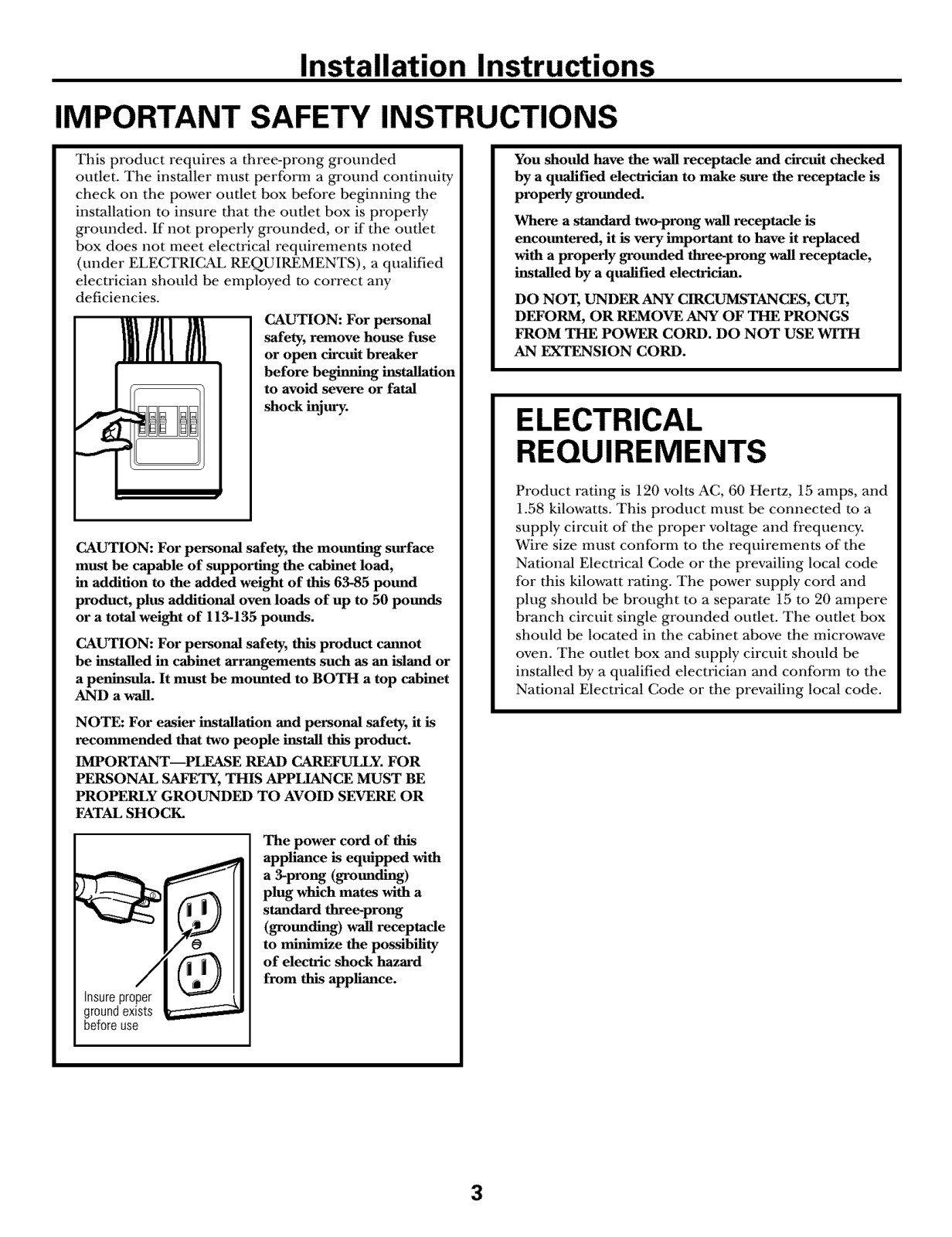

IMPORTANT SAFETY INSTRUCTIONS
This product requires a three-prong grounded
outlet. The installer must perfbrm a ground continuity
check on the power outlet box before beginning the
installation to insure that the outlet box is properly
grounded. If not properly grounded, or if the outlet
box does not meet electrical requirements noted
(under ELECTRICAL REQUIREMENTS), a qualified
electrician should be employed to correct any
deficiencies.
CAUTION: For personal
safety, remove house fuse
or open circuit breaker
before beginning installation
to avoid severe or fatal
shock injury.
CAUTION: For personal safety, the mounting surface
must be capable of supporting the cabinet load,
in addition to the added weight of this 63-85 pound
product, plus additional oven loads of up to 50 pounds
or a total weight of 113-135 pounds.
CAUTION: For personal safety, this product cannot
be installed in cabinet arrangements such as an island or
a peninsula. It must be mounted to BOTH a top cabinet
AND a wall.
You should have the wall receptacle and circuit checked
by a qualified electrician to make sure the receptacle is
properly grounded.
Where a standard two-prong wall receptacle is
encountered, it is very important to have it replaced
with a properly grounded three-prong wall receptacle,
installed by a qualified electrician.
DO NOT, UNDER ANY CIRCUMSTANCES, CUT,
DEFORM, OR REMOVE ANY OF THE PRONGS
FROM THE POWER CORD. DO NOT USE WITH
AN EXTENSION CORD.
ELECTRICAL
REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 15 amps, and
1..58 kilowatts. This product must be connected to a
supply circuit of the proper voltage and frequency:
Wire size must conform to the requirements of the
National Electrical Code or the prevailing local code
for this kilow-att rating. The power supply cord and
plug should be brought to a separate 15 to 20 ampere
branch circuit single grounded outlet. The outlet box
should be located in the cabinet above the microwave
oven. The outlet box and supply circuit should be
instMled by a qualified electrician mid confbrm to the
National Electrical Code or the prevailing local code.
NOTE: For easier installation and personal safety, it is
recommended that two people install this product.
IMPORTANT--PLEASE READ CAREFULLY. FOR
PERSONAL SAFETY, THIS APPLIANCE MUST BE
PROPERLY GROUNDED TO AVOID SEVERE OR
FATAL SHOCK.
The power cord of this
appliance is equipped with
a 3-prong (grounding)
plug which mates with a
standard three-prong
(grounding) wall receptacle
to minimize the possibility
of electric shock hazard
from this appliance.
insureproper
groundexists
beforeuse
3
Installation Instructions

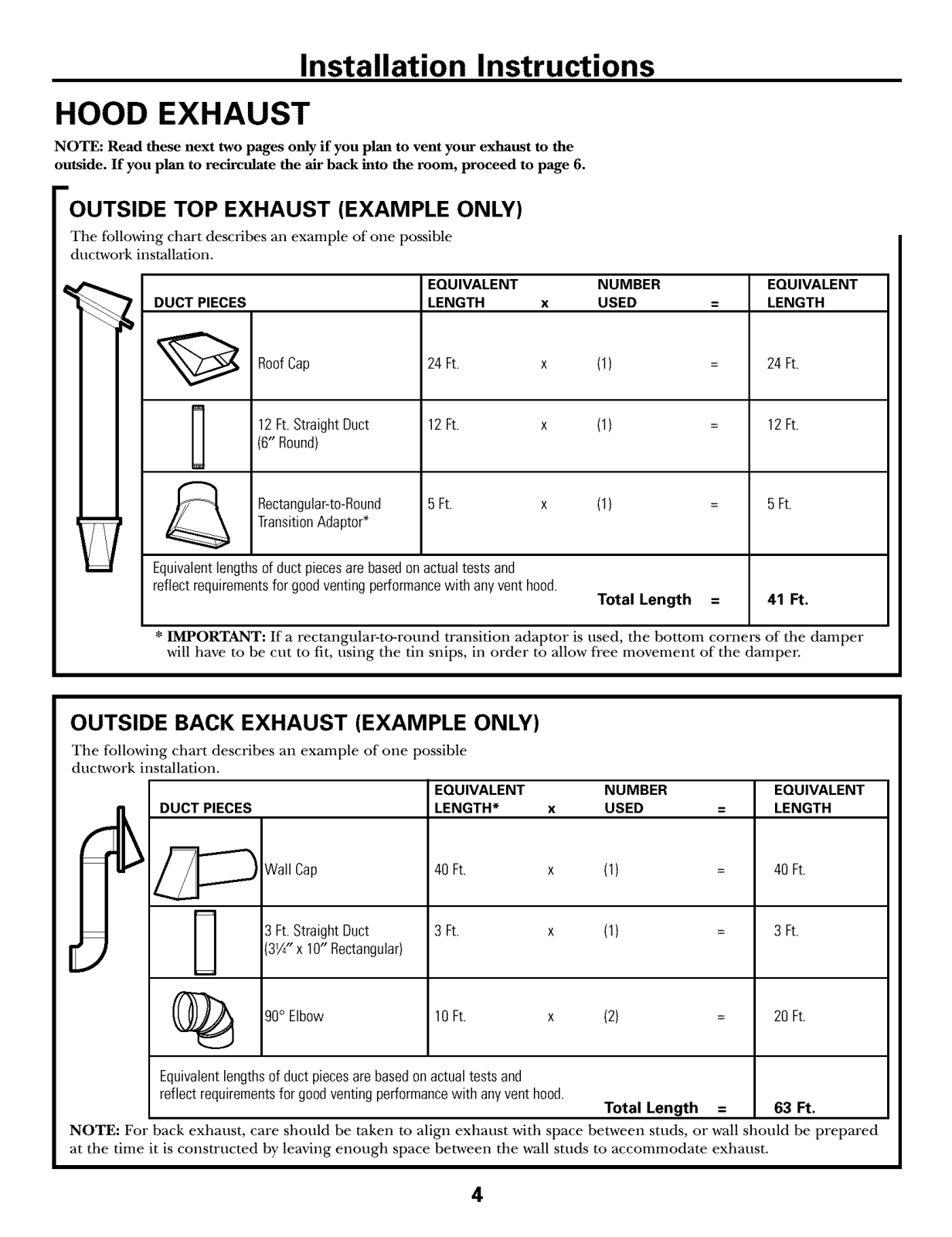

HOOD EXHAUST
NOTE: Read these next two pages only if you plan to vent your exhaust to the
outside. If yon plan to recirculate the air back into the room, proceed to page 6.
1
OUTSIDE TOP EXHAUST (EXAMPLE ONLY)
The fbllowing chart describes an example of one possible
ductwork installation.
EQUIVALENT
DUCT PIECES
RoofCap
12 Ft.StraightDuct
(6"Round)
RectangulaFto-Round
TransitionAdaptor*
Equivalentlengthsofductpiecesarebasedonactualtestsand
reflectrequirementsforgoodventingperformancewith anyvent hood.
* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper
will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.
LENGTH
24 Ft.
12 Ft.
5 Ft. x
OUTSIDE BACK EXHAUST (EXAMPLE ONLY)
NUMBER
x
USED
= LENGTH
(1)
(1)
(1)
Total Length =
EQUIVALENT
24 Ft.
12Ft.
5 Ft.
41 Ft.
The following chart describes an example of one possible
ductwork installation.
EQUIVALENT
f ,_ DUCT PIECES LENGTH* x
Wall Cap 40 Ft. x
3 Ft.StraightDuct 3 Ft. x
j 3_A"x 10" Rectangular)
(_ 90° Elbow 10Ft. x
Equivalentlengthsofductpiecesarebasedonactualtestsand
reflectrequirementsfor goodventingperformancewith anyventhood.
NOTE: For back exbaust, care sbould be taken to align exhaust witb space between studs, or wall should be prepared
at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.
NUMBER EQUIVALENT
USED = LENGTH
(1) 40 Ft.
(1) 3Ft.
(2) 20 Ft.
Total Length = 63 Ft.
4
Installation Instructions

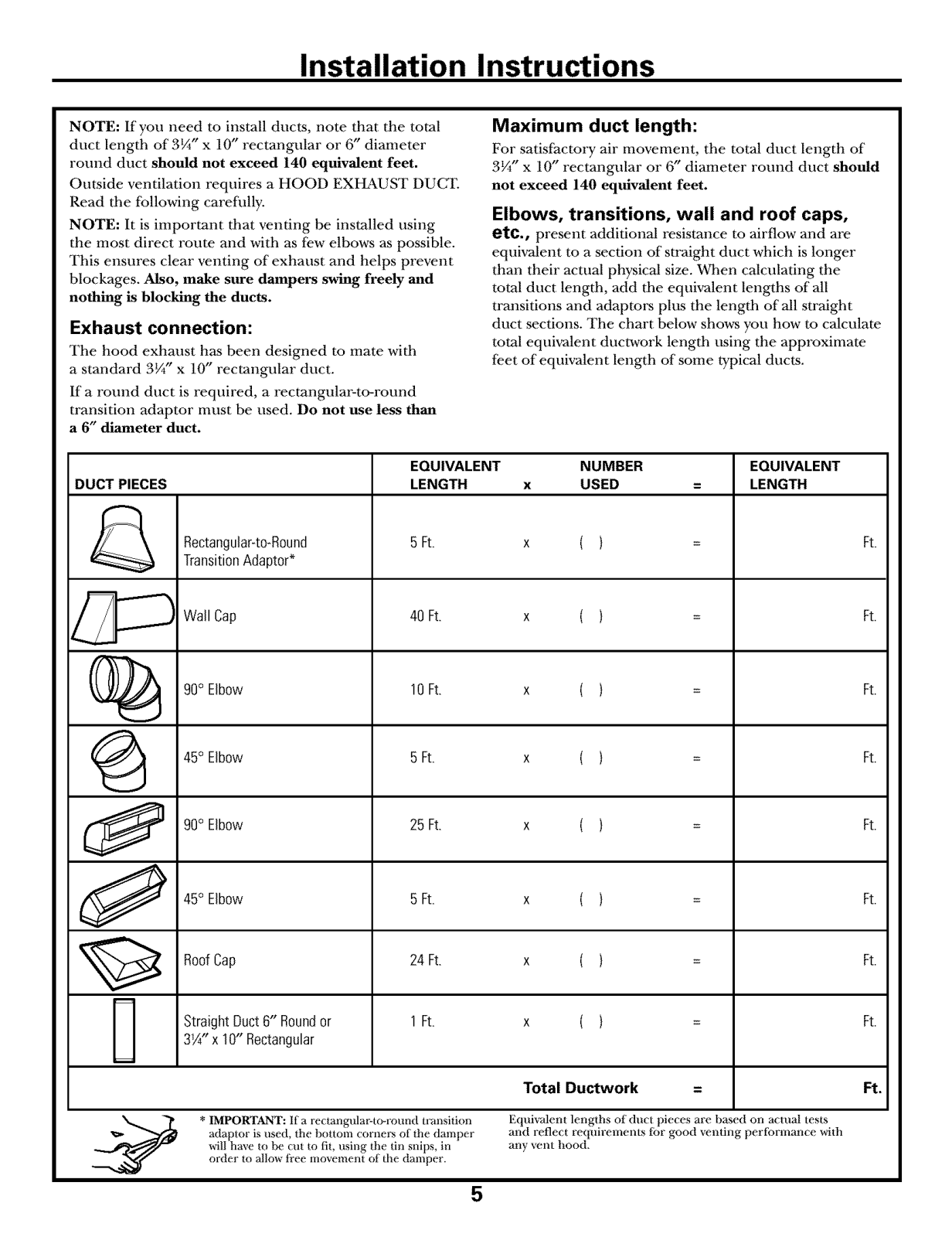

NOTE: If you need to install ducts, note that the total
duct length of 3¼" x 10" rectangular or 6" diameter
round duct should not exceed 140 equivalent feet.
Outside ventilation requires a HOOD EXHAUST DUCT.
Read the following carefully.
NOTE: It is important that venting be installed using
the most direct route and with as few elbows as possible.
This ensures clear venting of exhaust and helps prevent
blockages. Also, make sure dampers swing freely and
nothing is blocking the ducts.
Exhaust connection:
The hood exhaust has been designed to mate with
a standard 3¼" x 10" rectangular duct.
Maximum duct length:
For satisfiactory air movement, the total duct length of
3¼" x 10" rectangular or 6" diameter round duct should
not exceed 140 equivalent feet.
Elbows, transitions, wall and roof caps,
etc., present additional resistance to airflow and are
equivalent to a section of straight duct which is longer
than their actual physical size. When calculating the
total duct length, add the equivalent lengths of all
transitions and adaptors plus the length of all straight
duct sections. The chart below sho,a_ you how to calculam
total equivalent ductwork length using the approximam
feet of equivalent length of some typical ducts.
If a round duct is required, a rectangular-to-round
transition adaptor must be used. Do not use less than
a 6" diameter duct.
EQUIVALENT NUMBER EQUIVALENT
DUCT PIECES LENGTH x USED = LENGTH
Rectangular4o-Round 5 Ft. x ( ) Ft.
TransitionAdaptor*
.._ WallCap 40Ft. x ( ) Ft.
90° Elbow 10Ft. x ( ) Ft.
45° Elbow 5 Ft. x ( ) Ft.
90° Elbow 25Ft. x ( ) Ft.
J 45° Elbow 5 Ft. x ( ) Ft.
RoofCap 24Ft. x ( ) Ft.
StraightDuct6" Roundor 1 Ft. x ( ) Ft.
3_A" x10" Rectangular
Total Ductwork = Ft.
adaf)tor is !ist-'([, the bottom corllefs of the dall_per arid i-eflect req/llrenlellts _or good Velltillg perf_i-lllarl_e with
_a'ill have to be cut to fit, t_sing the tin snips, in any _ent hood.
* IMPORTANT: ira iectangtllat_lo-round Ilansitlon Eqllivalent lengths of(hlt-t pieces at-(" based on actual tests
order to aIIo_ t_'ee movement of the damper.
5
Installation Instructions
DAMAGE - SHIPMENT/
INSTALLATION
• If the unit is damaged in shipment, return the
unit to the store in which it was bought for repair
or replacement.
• If the unit is damaged by the customer, repair or
replacement is the responsibilib" of the customer.
• If the unit is damaged by the installer (if other
than the customer), repair or replacement must
be made by" arrangement between customer and
installen

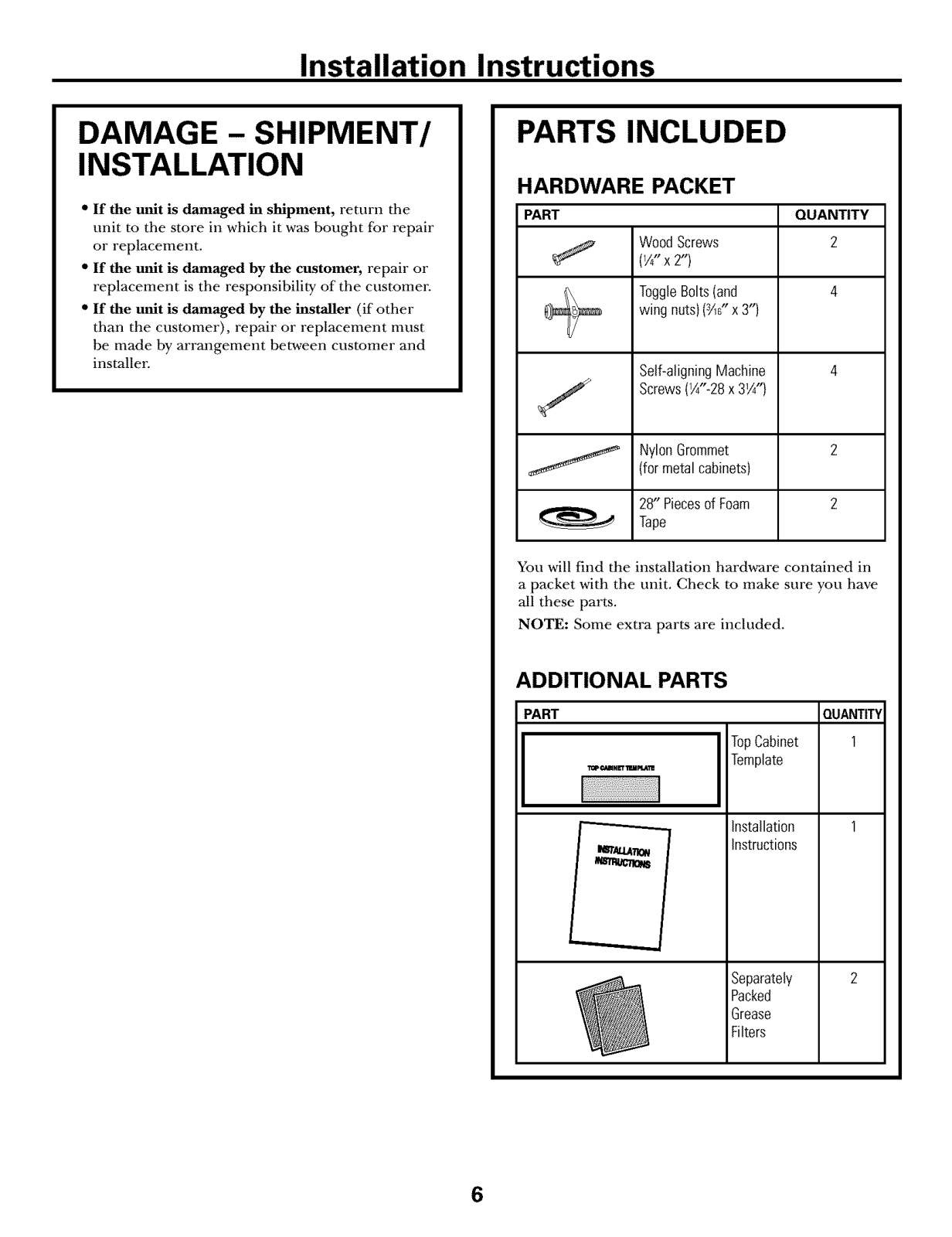

PARTS INCLUDED
HARDWARE PACKET
PART QUANTITY
Wood Screws 2
(I/4 _1 X 2")
/ \ Toggle Bolts (and 4
_ wing nuts)(3A6"x 3")
Self-aligning Machine 4
Screws (I/4"-28 x 3W')
Nylon Grommet 2
(for metal cabinets)
28" Pieces of Foam 2
Tape
You will find the installation hardw-are contained in
a packet with the unit. Check to make sure you have
all these parts.
NOTE: Some extra parts are included.
ADDITIONAL PARTS
PART
-r Installation
ms'rJ_4.A_ Instructions
J--
J
®
TopCabinet
Template
Separately
Packed
Grease
Filters
QUANTITY
1
2
6
Installation Instructions

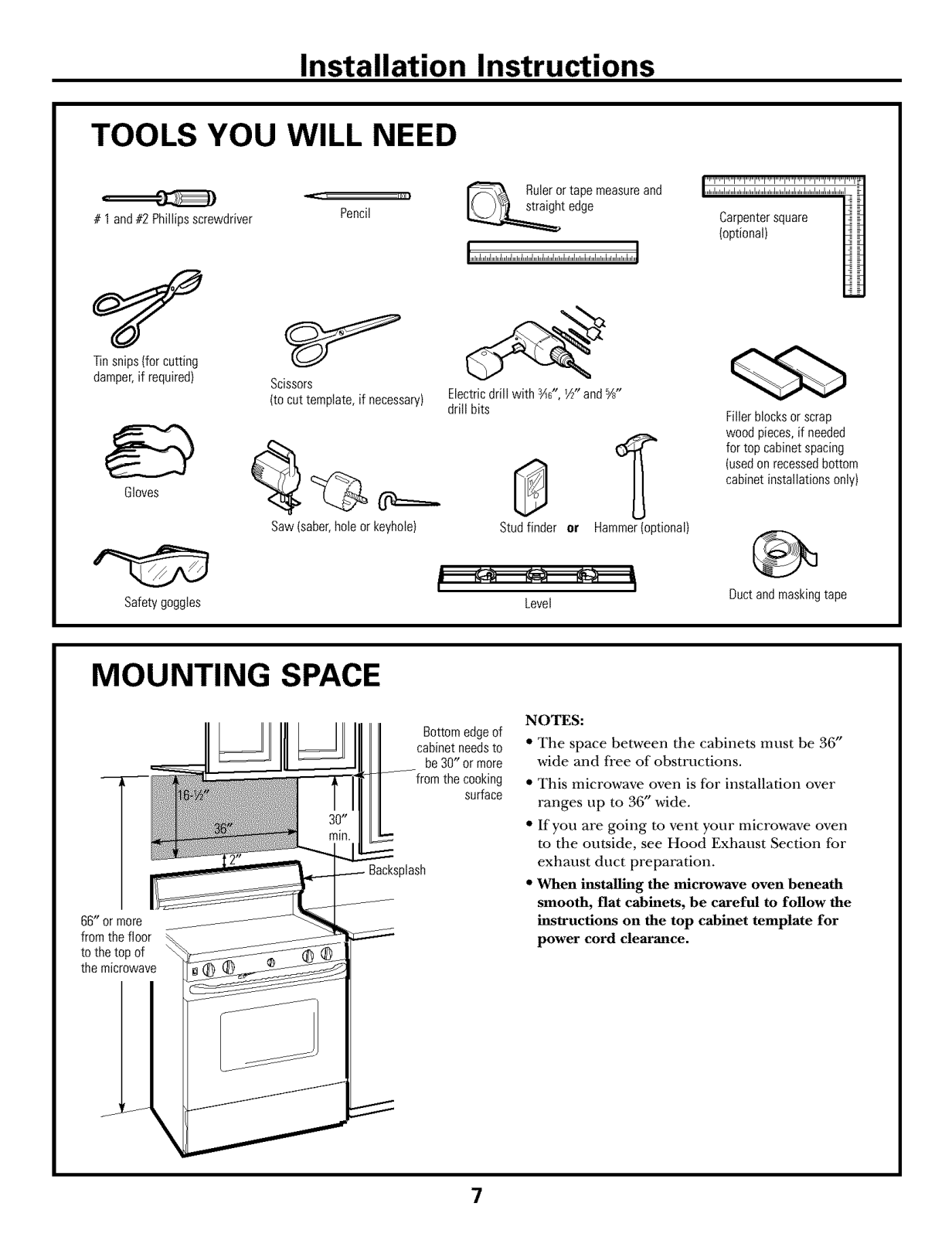

TOOLS YOU WILL NEED
# 1 and#2 Phillipsscrewdriver
Tinsnips(for cutting
damper,ifrequired)
Gloves
Scissors
(tocut template,if necessary)
Pencil
Ruleror tapemeasureand
t edge
Electricdrillwith sA_",VZ'and%"
drillbits
Fillerblocksor scrap
wood pieces,if needed
for topcabinetspacing
(usedon recessedbottom
cabinetinstallationsonly)
Saw(saber,holeorkeyhole)
Safetygoggles
MOUNTING SPACE
--F--
66" or more
fromthe floor
to thetop of
the microwav
Bottomedgeof
cabinetneedsto
be30" ormore
fromthe cooking
plash
Studfinder or Hammer(optional)
Level
NOTES:
• The space bet,a, een the cabinets must be 36"
wide and free of obstructions.
surface
• This microwave oven is for installation over
ranges up to 36" wide.
• If you are going to vent your microwave oven
to the outside, see Hood Exhaust Section for
exhaust duct preparation.
• When installing the microwave oven beneath
smooth, flat cabinets, be careful to follow the
instructions on the top cabinet template for
power cord clearance.
Ductandmaskingtape
7
Installation Instructions

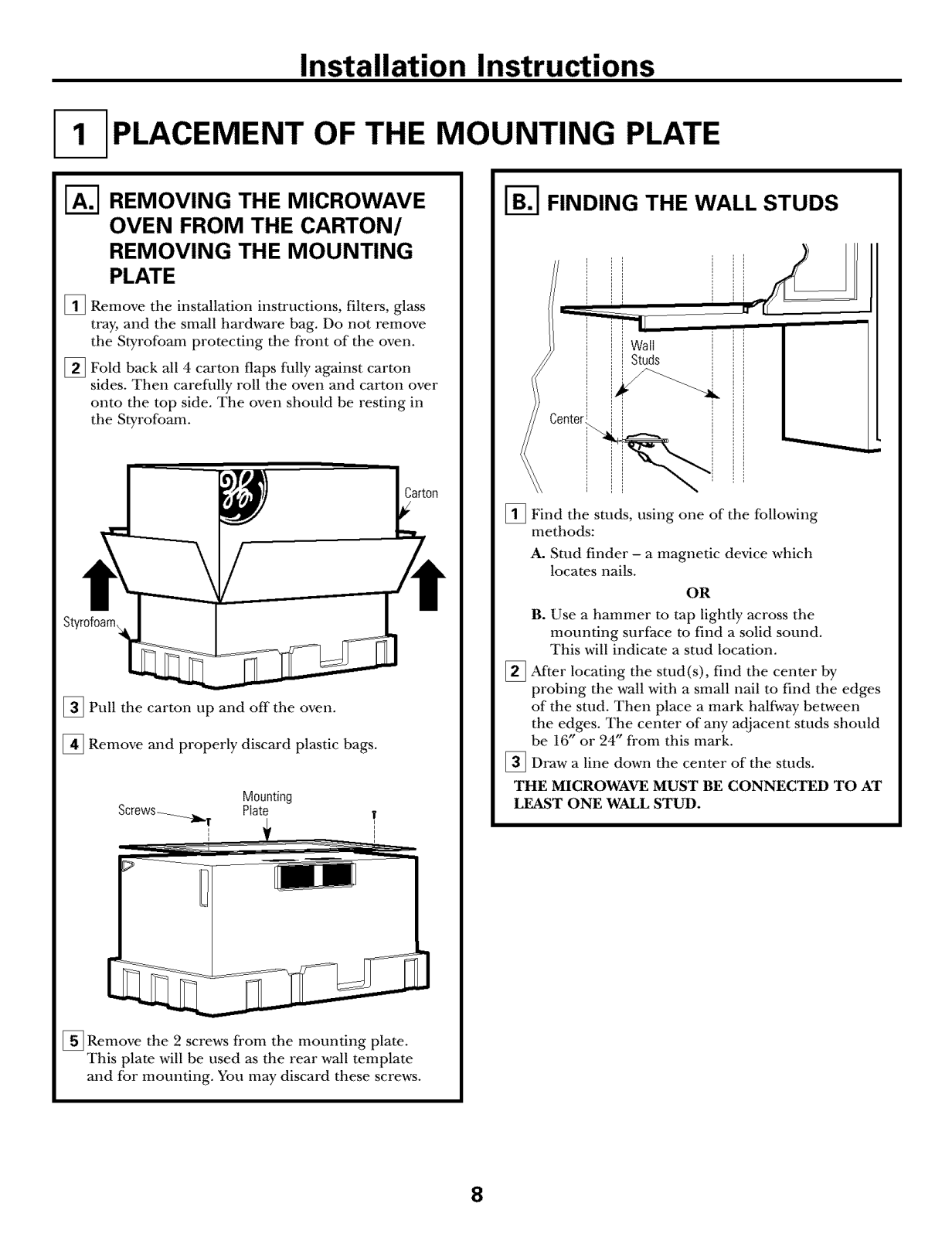

PLACEMENT OF THE MOUNTING PLATE
[_ REMOVING THE MICROWAVE
OVEN FROM THE CARTON/
REMOVING THE MOUNTING
PLATE
[] Remove the installation instructions, filters, glass
tray; and the small hardu-are bag. Do not remove
the Styrofoam protecting the front of the oven.
[] Fold back all 4 carton flaps fiflly against carton
sides. Then carefully roll the oven and carton over
onto the top side. The oven should he resting in
the Svyrofoam.
Styrofoam\
[]Pull the carton up and off the oven.
[] Remove and properly discard plastic bags.
Mounting
Plate
I-_ FINDING THE WALL STUDS
[] Find the studs, using one of the following
methods:
A. Stud finder - a magnetic device which
locates nails.
OR
B. Use a hammer to tap lightly across the
mounting surface to find a solid sound.
This will indicate a stud location.
[] After locating the stud(s), find the center by"
probing the wall with a small nail to find the edges
of the stud. Then place a mark halfway between
the edges. The center of any adjacent studs should
be 16" or 24" from this mark.
[]Draw a line down the center of the studs.
THE MICROWAVE MUST BE CONNECTED TO AT
LEAST ONE WALL STUD.
[] Remove the 2 screws from the mounting plate.
This plate will be used as the rear wall template
and for mounting. You may" discard these screws.
8
Loading...
