21-3/4"
Door open
16-13/32
66" MIN.
Mounting
height
from
floor
30"
MIN.
width
required
13"
MAX.
Exhaust outlet
connects to
3-1/4" X 10" duct
15-1/4
16
GE Appliances

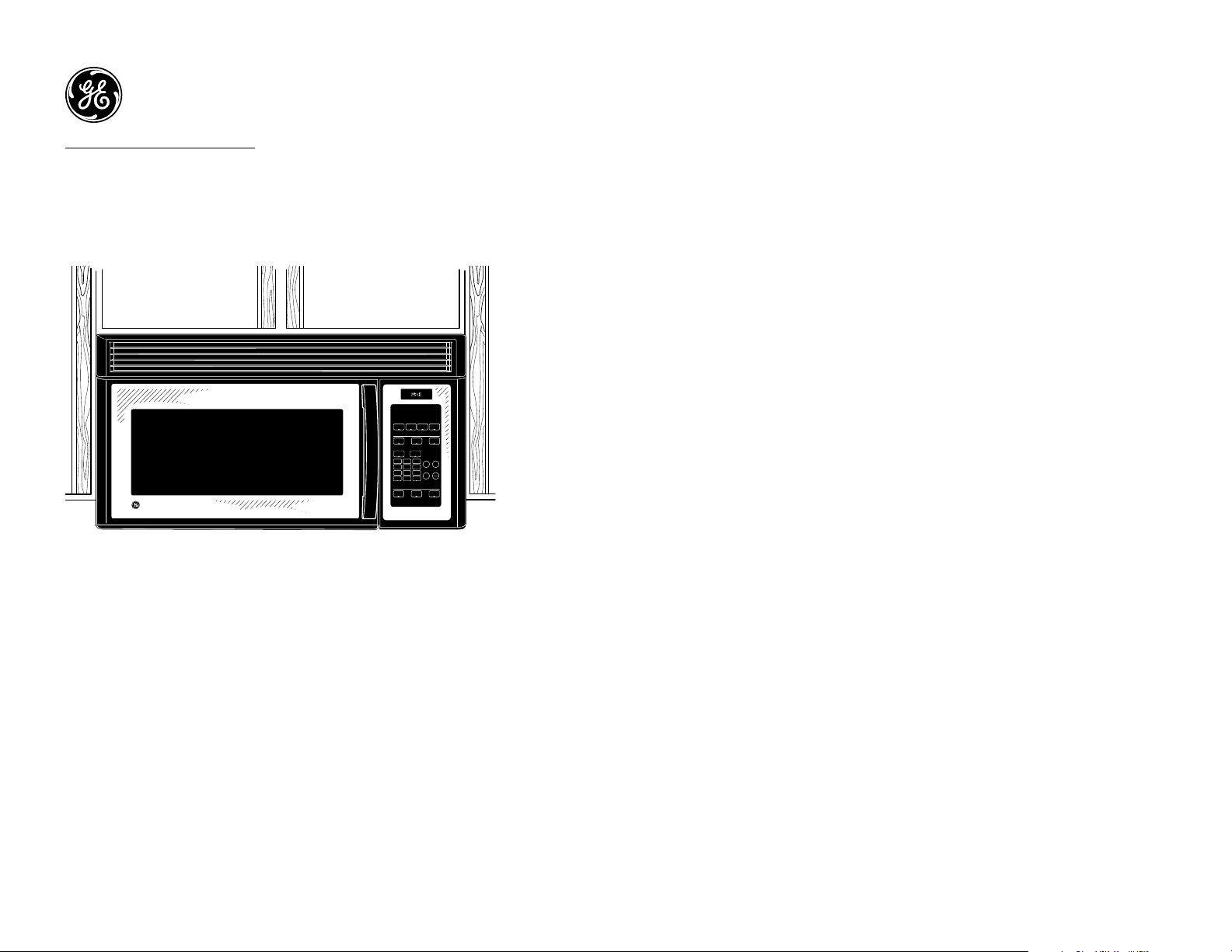

JVM1440BH/CK/LK/SH/WH – GE Spacemaker® 1.4 Cu. Ft. Capacity Over-the-Range Microwave
Dimensions (in inches)
Note: Requires 120V grounded outlet. Electrical receptacle must be
located in cabinet above Spacemaker microwave oven. No additional
wiring, venting or cabinet rebuilding necessary in many cases. Complete
detailed, easy-to-follow installation instructions and convenient full-size
templates are packed with the Spacemaker microwave oven.
Important Information: When installing the Spacemaker microwave oven
over a range, allow minimum of 2" from bottom of Spacemaker microwave
oven to top of range backguard to allow for removal of light covers.
Ventilation Options: The Spacemaker microwave ovens are designed for
adaptation to the following three types of ventilation:
• Outside exhaust (vertical – as shown)
• Outside exhaust (horizontal)
• Recirculating (non-vented ductless – see Filter Kit drawing)
Installation Information: This information is not intended to be used for
installing unit described. Before installing, consult installation instructions
packed with product/kit for current dimensional data.
Specification Revised 4/06
34 010 3
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
GE Appliances
JVM1440BH/CK/LK/SH/WH – GE Spacemaker® 1.4 Cu. Ft. Capacity Over-the-Range Microwave
Optional Accessories (Available at additional cost)
Filler Panel kits
JX46BL
When replacing a 36"
range hood, this kit fills
in the additional width to
provide a custom built-in
appearance. For installation
between cabinets only;
not for end-of-cabinet
installation.
Each kit contains two
3"-wide filler panels.
Filter kits
JX81A–Recirculating
Charcoal Filter kit
To be used when the
Spacemaker microwave
oven cannot be vented
to the outside.
HOOD EXHAUST DUCT: Outside ventilation requires a HOOD EXHAUST DUCT. Read the
following carefully.
EXHAUST CONNECTION: The hood exhaust has been designed to mate with a standard
3-1/4" x 10" rectangular duct. If a round duct is required, a rectangular-to-round transition
adaptor must be used. Do not use less than a 6” diameter duct
REAR EXHAUST: If a rear or horizontal exhaust is to be used, care should be taken to align
exhaust with space between studs, or wall should be prepared at the time it is constructed
by leaving enough space between the wall studs to accommodate exhaust.
MAXIMUM DUCT LENGTH: For satisfactory air movement, the total duct length of
3-1/4" x 10" rectangular or 6" diameter round duct should not exceed 140 equivalent feet.
ELBOWS, TRANSITIONS, WALL AND ROOF CAPS, etc., present additional resistance
to airflow and are equivalent to a section of straight duct which is longer than their actual
physical size. When calculating the total duct length, add the equivalent length of all
transitions and adaptors plus the lengths of all straight duct sections. The chart below
shows the approximate feet of equivalent length of some typical ducts.
Duct Equivalent Feet
A. Rectangular-To-round
Transition Adaptor
B. Wall Cap 40 ft.
C. 90° Elbow 10 ft.
D. 45° Elbow 5 ft.
E. 90° Elbow 25 ft.
F. 45° Elbow 5 ft.
G. Roof Cap 24 ft.
5 ft.
Specification Revised 4/06
34 010 3
Listed by
Underwriters
Laboratories
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center® service, 800.626.2000.
Spacemaker
CLOCK AM/PM
NORMAL SPEED
CONVENIENCE COOKING
GUIDE BEHIND DOOR
PAUSE
ON/OFF
REMINDER TIMER
POPCORN
TIME COOK
SURFACE
LIGHT
TURNTABLE VENT FAN
POWER
LEVEL
ADD
30 SEC.
DELAY
START
EXPRESS COOK1EXPRESS COOK2EXPRESS COOK
3
EXPRESS COOK4EXPRESS COOK
HI-LO-OFFBRIGHT-LIGHT
OFF
DISPLAY ON/OFF
5
EXPRESS COOK
6
7 800
DEFROST
AUTO/TIME
BEVERAGE
REHEAT
SELECTIONS
HELP
START
CLEAR
OFF
GE Appliances
JVM1440BH/CK/LK/SH/WH – GE Spacemaker® 1.4 Cu. Ft. Capacity Over-the-Range Microwave
Features and Benefits
• 1.4 Cu. Ft. Capacity/950 Watts*
• 1.4 cu. ft. Capacity - 950 watts (IEC-705 test procedure)
• Convenience Cooking Controls - Allow cooking and reheating at the touch of a button
• Auto and Time Defrost - Automatically defrosts for a specified amount of time
• Turntable On/Off - Ideal for oversized, oblong-shaped dishes
• 10 Power Levels - Offer maximum cooking flexibility, from warming and reheating, to the
full speed of microwave cooking at high power
• Removable Oven Rack - Makes multi-dish cooking possible
• Convenience Controls - Allow cooking and reheating at the touch of a button
Specification Revised 4/06
34 010 3
• Two-Speed, 300-CFM Venting System - Quickly removes smoke and steam from the
cooktop
• Model JVM1440BH
• Model JVM1440CK
• Model JVM1440LK
• Model JVM1440SH
• Model JVM1440WH
* IEC-705 Test Procedure
