GE JVB96SA, JVB93SA, JVB67A, JVB37A Catalog
G E T E L E S C O P I C D O W N D R A F T S Y S T E M S
Planning Guide
Featuring 36" and 30" models: JVB96SA, JVB93SA, JVB67A and JVB37A
We bring good things to life.
36" and 30" Cooktop/Downdraft System Counter Installation
JVB96SA/93SA, JVB67A/37A
|
Models JVB96SA/93SA |
|
Models JVB67A/37A |
||
|
36"/30" |
2-1/8"* |
|
36"/30" |
2-1/8"* |
|
|
|
|||
|
|
|
|
|
8-1/2" Lift |
1-7/8" |
Vent |
|
2-1/4" |
|
14-3/4" |
|
|
|
6-3/8" |
Vent |
27" |
7" |
|
|
12-3/8" |
|
|
|
|
|
|
||
|
|
|
Max. |
|
|
*Includes 1/8" required gap between cooktop and vent trim.
|
Flat Surface Area |
|
Note: The counter top must be at least 26" deep with a flat surface area of 23-1/2" or more, |
|
front to back. In addition, other clearances to the front edge must be considered. |
|
Note: JGP932SEC, JP938SC, JP930SC, JP350SC require 23-5/8" flat surface area. |
|
Note: See specific cutout illustrations with your cooktop model to determine requirements. |
24" |
Note: A counter top with a raised or a rolled front edge may not allow enough flat area for installation. |
|
|
|
|
|

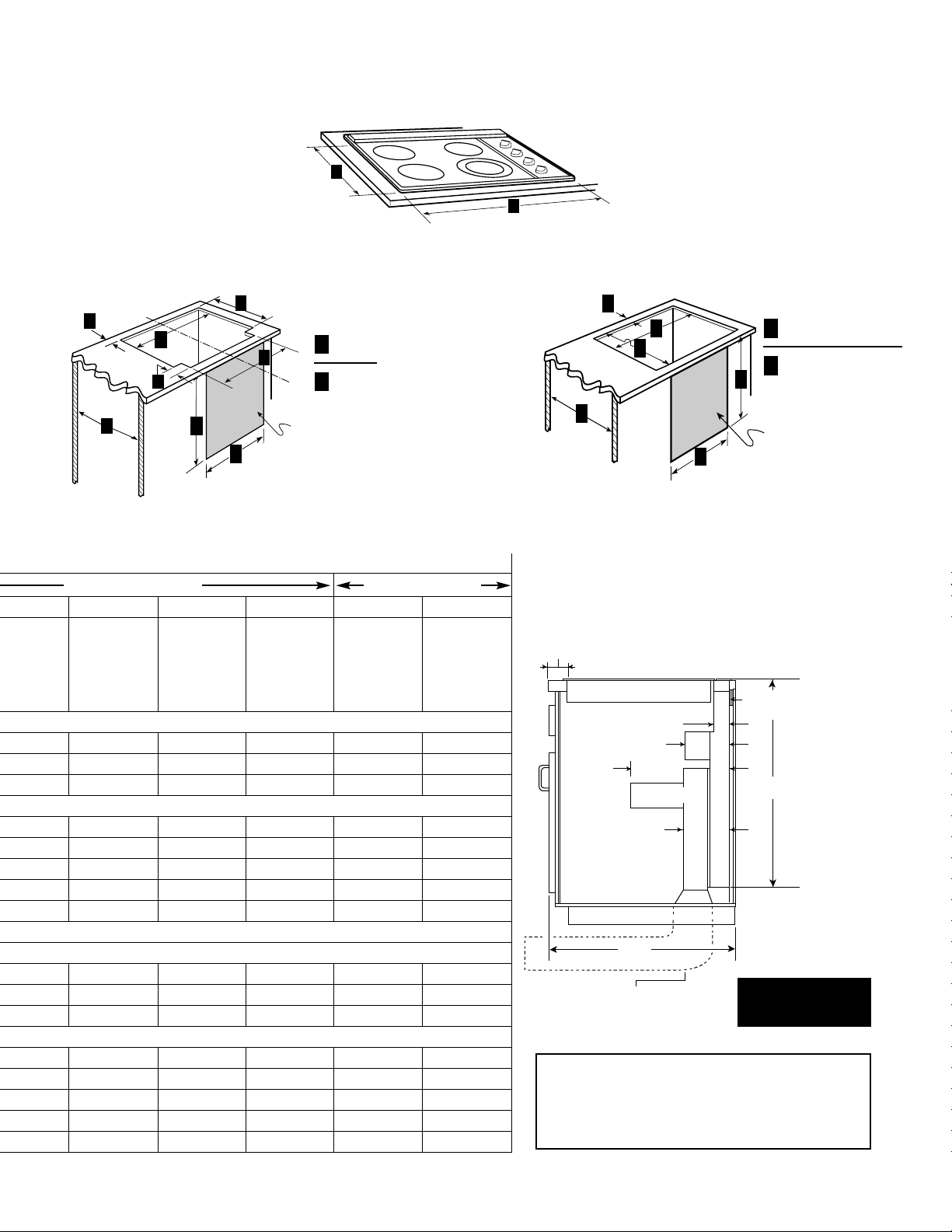

Planning Installation |
|
Preparing Cutout |
|
|
|
||
|
|
|
|
|
|
|
|
All Models |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
“A” Fig. 1 |
“B” Fig. 1 |
“B” & Vent Fig. 1 |
“C” Figs. 2 & 3 |
“D” Figs. 2 & 3 |
|
“E” Fig. 2 |
|
|
|
|
|
|
|
|
Overall |
Min. required |
|
|
|
|
|
|
|
|
|
|
|
Surface Depth |
setback from |
|
|
Downdraft |
|
|
|
|
|
|
|
|
Cooktop |
front edge |
Countertop |
Cutout Width |
|
|
|
|
|
|
|
Cooktop |
Cooktop |
Depth + Vent |
to front edge |
inside cabinet |
|
Req’d from |
|
|
36" Models |
|
Overall Width |
Overall Depth |
Cover Depth |
of cutout |
clearance |
|
Centerline |
|
||
|
Electric |
|
|
|
|
|
|
|
|
|
||
|
JP968S/JP960S |
36-1/8" |
21" |
23 -1/8" |
2-1/2" |
22-11/16" |
33-1/16" |
|
||||
|
JP968/JP960 |
36" |
20-3/8" |
22-1/2" |
2-1/2" |
22-11/16" |
33-1/16" |
|
||||
|
JP626 |
35-1/2" |
21" |
23-1/8" |
2-1/2" |
22-11/16" |
33-1/16" |
|
||||
|
Gas |
|
|
|
|
|
|
|
|
|
|
|
|
JGP962S |
|
|
36" |
21" |
23-1/8" |
2-1/2" |
22-11/16" |
33-1/16" |
|
||
|
JGP963S/JGP963/JGP628 |
36" |
21" |
23-1/8" |
2-1/2" |
22-11/16" |
33-1/16" |
|
||||
|
JGP962 |
36" |
20-7/16" |
22-9/16" |
2-1/2" |
22-11/16" |
33-1/16" |
|
||||
|
JGP960S |
36" |
21-1/4" |
23-3/8" |
2-1/2" |
22-11/16" |
33-1/16" |
|
||||
|
JGP636 |
36" |
21" |
23-1/8" |
2-1/2" |
22-11/16" |
33-1/16" |
|
||||
|
30" Models |
|
|
|
|
|
|
|
|
|
|
|
|
Electric |
|
|
|
|
|
|
|
|
|
|
|
|
JP938S/JP930S/JP350S |
|
29-7/8" |
21-1/2" |
23-5/8" |
2-1/2" |
22-7/16" |
27-1/16" |
|
|||
|
JP938/JP930/JP350/JP340 |
29-3/4" |
20-7/8" |
23" |
2-1/2" |
22-7/16" |
27-1/16" |
|
||||
|
JP326 |
30-1/4" |
21-1/4" |
23-3/8" |
2-1/2" |
22-7/16" |
27-1/16" |
|
||||
|
Gas |
|
|
|
|
|
|
|
|
|
||
|
JGP933S/JGP933/JGP328 |
30" |
21" |
23-1/8" |
2-1/2" |
22-7/16" |
27-1/16" |
|
||||
|
JGP932S |
29-7/8" |
21-1/2" |
23-5/8" |
2-1/2" |
22-7/16" |
27-1/16" |
|
||||
|
JGP932 |
29-3/4" |
21" |
23-1/8" |
2-1/2" |
22-7/16" |
27-1/16" |
|
||||
|
JGP930S |
30" |
21-1/4" |
23-3/8" |
2-1/2" |
22-7/16" |
27-1/16" |
|
||||
|
JGP336 |
30" |
21" |
23-1/8" |
2-1/2" |
22-7/16" |
27-1/16" |
|
||||
Required to maintain U.L. or AGA approvals.
