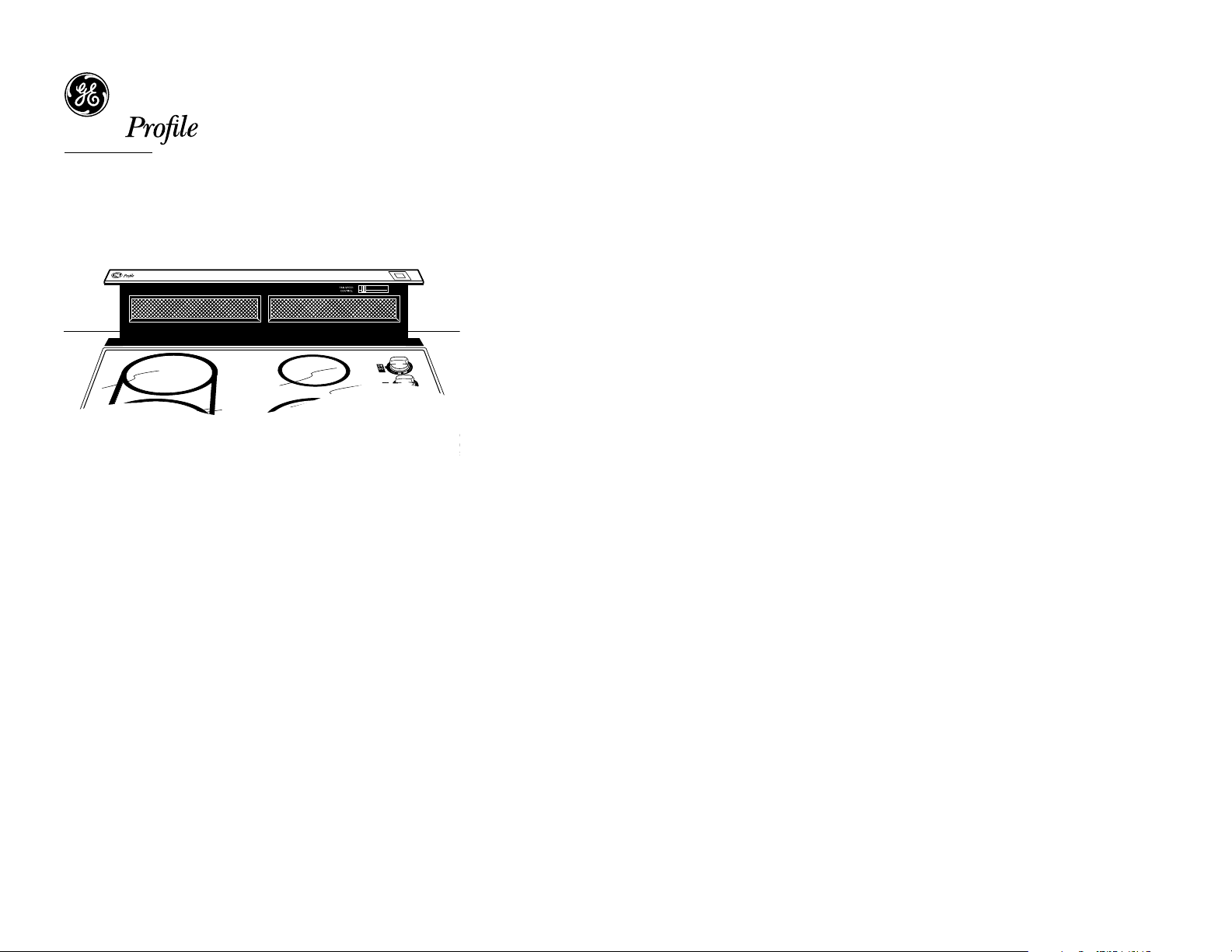

JVB37AWW - GE Profile™30" Telescopic Downdraft System
TM
Specification Revised 4/00
2-1/4
6-3/8
3-1/4
30" Unit
30
28-3/8
14-3/8
17-7/8
12-1/8
7-1/4
7-1/2
8-1/2
27
C
L

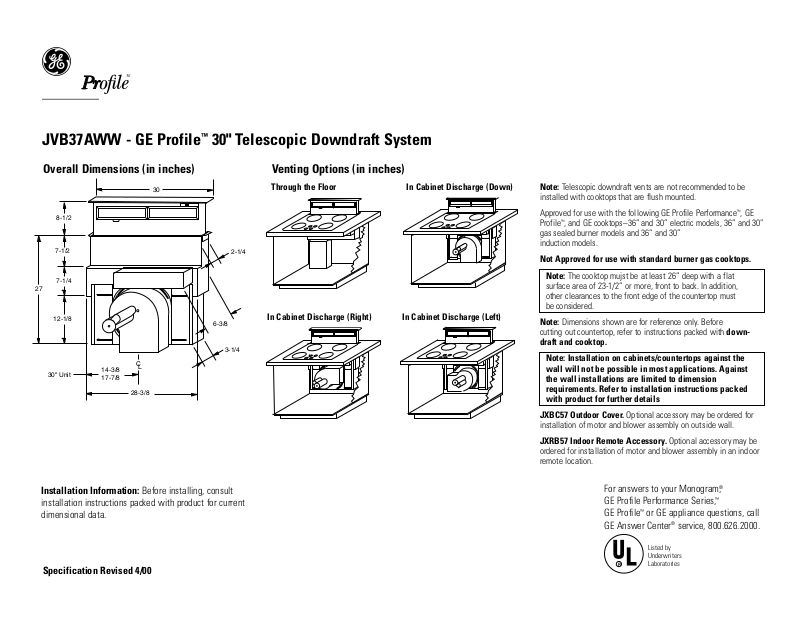

Overall Dimensions (in inches) Venting Options (in inches)
Installation Information: Before installing, consult
installation instructions packed with product for current
dimensional data.
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center
®
service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
Through the Floor
In Cabinet Discharge (Down)
In Cabinet Discharge (Right)
In Cabinet Discharge (Left)
Note: Telescopic downdraft vents are not recommended to be
installed with cooktops that are flush mounted.
Approved for use with the following GE Profile Performance
™
, GE
Profile
™
, and GE cooktops–36” and 30” electric models, 36” and 30”
gas sealed burner models and 36” and 30”
induction models.
Not Approved for use with standard burner gas cooktops.
Note: The cooktop mujst be at least 26” deep with a flat
surface area of 23-1/2” or more, front to back. In addition,
other clearances to the front edge of the countertop must
be considered.
Note: Dimensions shown are for reference only. Before
cutting out countertop, refer to instructions packed with down-
draft and cooktop.
Note: Installation on cabinets/countertops against the
wall will not be possible in most applications. Against
the wall installations are limited to dimension
requirements. Refer to installation instructions packed
with product for further details
JXBC57 Outdoor Cover. Optional accessory may be ordered for
installation of motor and blower assembly on outside wall.
JXRB57 Indoor Remote Accessory. Optional accessory may be
ordered for installation of motor and blower assembly in an indoor
remote location.
JVB37AWW - GE Profile™30" Telescopic Downdraft System
TM
Specification Revised 4/00
For answers to your Monogram,
®
GE Profile Performance Series,
™
GE Profile™or GE appliance questions, call
GE Answer Center®service, 800.626.2000.
R
Listed by
Underwriters
Laboratories
6" Round
Straight
3-1/4" x 10"
Straight
6"
90° Elbow
6"
45° Elbow
3-1/4" x 10"
90° Elbow
3-1/4" x 10"
45° Elbow
3-1/4" x 10"
45° Elbow
6" Round
to 3-1/4 x 10"
Transitions
3-1/4" x 10"
to 6" Round
Transition
6" Round
to 3-1/4 x 10"
Transitions
90° Elbow
3-1/4" x 10"
to 6" Round
Transition
90° Elbow
6" Round
Wall Cap
with Damper
3-1/4" x 10"
Wall Cap
with Damper
6" Round
Roof Cap
6" Round
Roof Vent
Duct Pieces
Equivalent Length*
Duct Pieces
Equivalent Length*
1 ft. (per foot length)
1 ft. (per foot length)
15 ft.
9 ft.
16 ft.
5 ft.
24 ft.
7 ft.
5 ft.
20 ft.
12 ft.
21 ft.
27 ft.
20 ft.
24 ft.
SHOULD NOT EXCEED 100 EQUIVALENT FT.
*Equivalent length of duct pieces are based on actual test conducted by
GE Evaluation Engineering and reflect requirements for good venting
performance with a downdraft rated at 500 CFM
Venting Duct Information
Plan the Ductwork
1. This downdraft blower system is designed for use with 3-1/4 “ x 10”
ductwork (can be transitioned to 6” round). Two different discharge
directions are available with side-to-side adjustment for the
accurate alignment of ductwork.
2. For best performance: choose the ducting option which allows the
shortest length of ductwork and a minimum number of elbows and
transitions. Check location of floor joists, wall joists, wall studs,
electrical wiring or plumbing for possible interference.
Steps to Determine Flexible Ducting’s Equivalent length
1. Measure the actual amount of offset (Maximum 3” recommended).
The effect upon airflow is dependent upon the amount of offset.
2. Calculate the equivalent ducting allowances using:
(__in. offset) x (14 Ft. per inch)
=__Ft. equivalent length.
1. Ensure that the total equivalent length of ducting does not exceed the
maximum recommendation of 150 feet.
Left discharge
(as shipped)
Right
discharge
